Exploded parts diagram · 22 parts

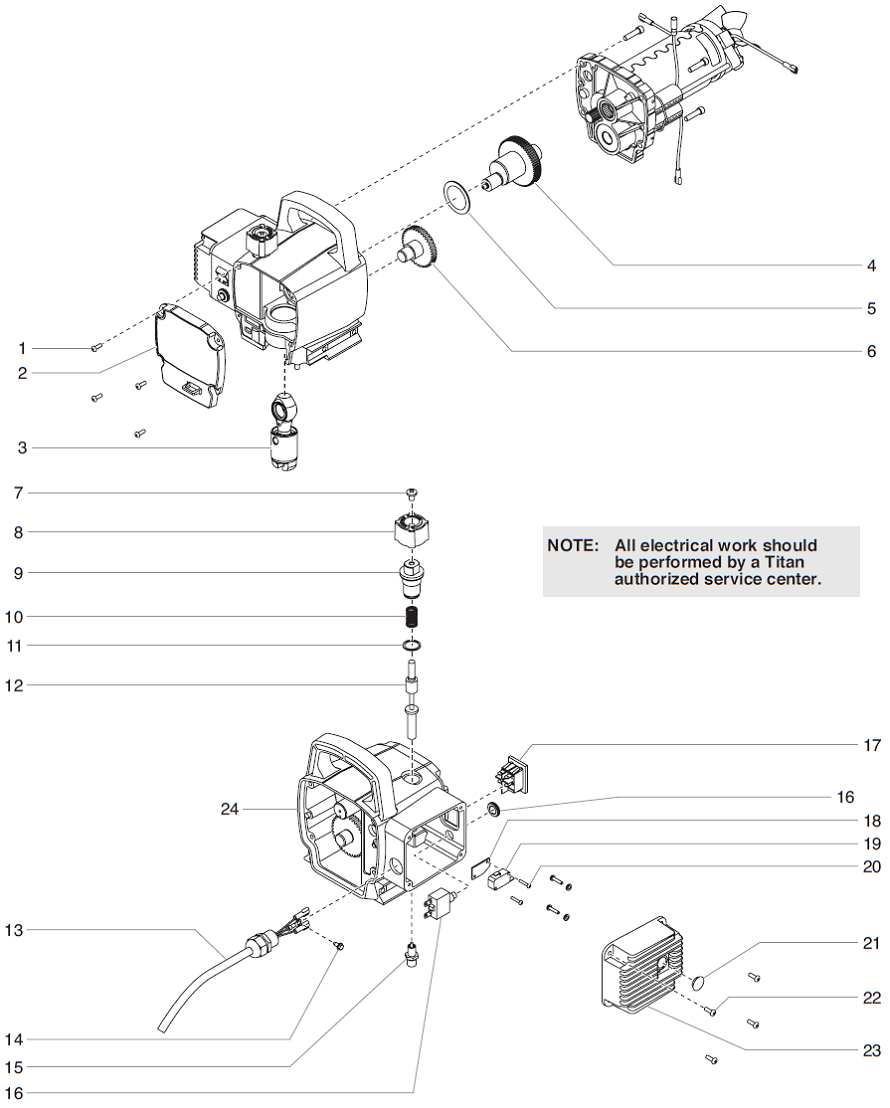

Titan Advantage 400 Gear Box Assembly Parts

Shop Titan Advantage 400 Gear Box Assembly Parts at AllTitanParts for genuine OEM crankshaft and gear assemblies, slider assemblies, second-stage gears, thrust washers, gearbox housings, pressure control components and electrical replacement parts.

Exploded view
Parts diagram

Click a numbered marker on the drawing to see that part, its price and Add to Cart.

Titan Advantage 400 Gear Box Assembly Parts
Numbered to the diagram

Shop all 22 parts

22 parts
View:
1 AND 22
Item
Titan 700-139 Motor Baffle Screw
Titan 700-139 Motor Baffle Screw
Part #: 700-139
UPC: 612561334496
OEM Titan Fastening Hardware Titan 700-139 Motor Baffle Screw is a genuine OEM replacement fast...
$2.50
QTY:
Buy Now
1 AND 22
Titan 700-139 Motor Baffle Screw Genuine OEM
Titan
Titan 700-139 Motor Baffle Screw
Part #: 700-139
$2.50
Buy Now
3
Item
Titan 0508208 Slider Assembly
Titan 0508208 Slider Assembly
Part #: 0508208
UPC: 612567392681
OEM Titan Drive System Component Titan 0508208 Slider Assembly is a genuine OEM reciprocating...
$193.38
$224.60Save 14%
QTY:
Buy Now
3
Titan 0508208 Slider Assembly −14%
Titan
Titan 0508208 Slider Assembly
Part #: 0508208
$193.38 $224.60 Save $31.22
Buy Now
4
Item
Titan 0508572 Crankshaft/Gear Assembly
Titan 0508572 Crankshaft/Gear Assembly
Part #: 0508572
UPC: 024964171286
OEM Titan Drive Component Titan 0508572 Crankshaft/Gear Assembly is an OEM drive component th...
$159.25
$182.00Save 13%
QTY:
Buy Now
4
Titan 0508572 Crankshaft/Gear Assembly −13%
Titan
Titan 0508572 Crankshaft/Gear Assembly
Part #: 0508572
$159.25 $182.00 Save $22.75
Buy Now
5
Item
Titan 704-174 Thrust Washer
Titan 704-174 Thrust Washer
Part #: 704-174
UPC: 612567391547
OEM Titan Gearbox Component Titan 704-174 Thrust Washer is a genuine OEM component confirmed ...
$6.80
QTY:
Buy Now
5
Titan 704-174 Thrust Washer Genuine OEM
Titan
Titan 704-174 Thrust Washer
Part #: 704-174
$6.80
Buy Now
6
Item
Titan 704-176 2nd Stage Gear
Titan 704-176 2nd Stage Gear
Part #: 704-176
UPC: 612564161839
OEM Titan Gearbox Component Titan 704-176 2nd Stage Gear is a genuine OEM gearbox component t...
$50.71
$55.30Save 8%
QTY:
Buy Now
6
Titan 704-176 2nd Stage Gear −8%
Titan
Titan 704-176 2nd Stage Gear
Part #: 704-176
$50.71 $55.30 Save $4.59
Buy Now
7
Item
Titan 0509219 Screw
Titan 0509219 Screw
Part #: 0509219
UPC: 612567405497
OEM Titan Fastener Titan 0509219 Screw is an OEM replacement fastener used to secure covers, ...
$3.60
QTY:
Buy Now
7
Titan 0509219 Screw Genuine OEM
Titan
Titan 0509219 Screw
Part #: 0509219
$3.60
Buy Now
8
Item

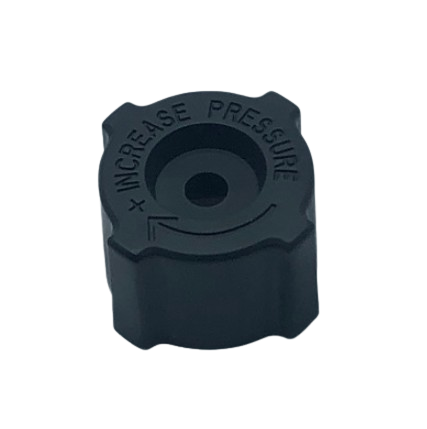

Titan 700-771 Pressure Control Knob
Titan 700-771 Pressure Control Knob
Part #: 700-771
UPC: 024964171408
OEM Titan Control Component Titan 700-771 Pressure Control Knob is an OEM operator interface ...
$5.90
QTY:
Buy Now
8
Titan 700-771 Pressure Control Knob Genuine OEM
Titan
Titan 700-771 Pressure Control Knob
Part #: 700-771
$5.90
Buy Now
9
Item
Titan 0551522 Knob Housing
Titan 0551522 Knob Housing
Part #: 551522
UPC: 024964171415
OEM Titan Control Component Titan 0551522 Knob Housing is an OEM structural component that en...
$63.64
$69.40Save 8%
QTY:
Buy Now
9
Titan 0551522 Knob Housing −8%
Titan
Titan 0551522 Knob Housing
Part #: 551522
$63.64 $69.40 Save $5.76
Buy Now
10
Item
Titan 02712 Spring
Titan 02712 Spring
Part #: 2712
UPC: 024964131242
OEM Titan Mechanical Component Titan 02712 Spring is an OEM spring used to provide tension, r...
$21.50
QTY:
Buy Now
10
Titan 02712 Spring Genuine OEM
Titan
Titan 02712 Spring
Part #: 2712
$21.50
Buy Now
11
Item
Titan 9822522 Retainer Ring - (Replaces Titan 704-124)
Titan 9822522 Retainer Ring - (Replaces Titan 704-124)
Part #: 9822522
UPC: 024964141852
OEM Titan Hardware Component Titan 9822522 Retainer Ring is a genuine OEM snap ring that replac...
$2.90
QTY:
Buy Now
12
Item
Titan 806-032 Plunger (Replaces Titan 551521)
Titan 806-032 Plunger (Replaces Titan 551521)
Part #: 806-032
UPC: 024964171422
OEM Titan Pump Component Titan 806-032 Plunger (Replaces 551521) is an OEM precision-machined...
$17.80
QTY:
Buy Now
13
Item
Titan 800-741 Power Cord Assembly
Titan 800-741 Power Cord Assembly
Part #: 800-741
UPC: 612567406890
OEM Titan Electrical Component Titan 800-741 Power Cord Assembly is an OEM lighted power cord...
$56.67
$61.80Save 8%
QTY:
Buy Now
13
Titan 800-741 Power Cord Assembly −8%
Titan
Titan 800-741 Power Cord Assembly
Part #: 800-741
$56.67 $61.80 Save $5.13
Buy Now
14
Item
Titan 9800340 Ground Screw
Titan 9800340 Ground Screw
Part #: 9800340
UPC: 024964158003
OEM Titan Electrical Grounding Hardware Titan 9800340 Ground Screw is an OEM electrical groun...
$2.50
QTY:
Buy Now
14
Titan 9800340 Ground Screw Genuine OEM
Titan
Titan 9800340 Ground Screw
Part #: 9800340
$2.50
Buy Now
15
Item
Titan 0551112 Pressure Transducer Assembly
Titan 0551112 Pressure Transducer Assembly
Part #: 0551112
UPC: 024964171842
OEM Titan Electronic Control Component Titan 0551112 Pressure Transducer Assembly is an OEM e...
$73.27
$79.90Save 8%
QTY:
Buy Now
15
Titan 0551112 Pressure Transducer Assembly −8%
Titan
Titan 0551112 Pressure Transducer Assembly
Part #: 0551112
$73.27 $79.90 Save $6.63
Buy Now
16
Item
Titan 704-211A Circuit Breaker (Replaces Titan 0551515)
Titan 704-211A Circuit Breaker (Replaces Titan 0551515)
Part #: 704-211A
UPC: 612564161822
OEM Titan Electrical Protection Component Titan 704-211A Circuit Breaker (Replaces 0551515) i...
$16.40
QTY:
Buy Now
17
Item
Titan 9850936 Power Switch (Replaces Titan 704-380)
Titan 9850936 Power Switch (Replaces Titan 704-380)
Part #: 9850936
UPC: 024964143580
OEM Titan Electrical Control Component Titan 9850936 Power Switch (Replaces 704-380) is an OE...
$25.10
QTY:
Buy Now
19
Item
Titan 0295490 Microswitch
Titan 0295490 Microswitch
Part #: 0295490
UPC: 024964146543
OEM Titan Electrical Component Titan 0295490 Microswitch is a genuine OEM snap-action switch th...
$19.70
QTY:
Buy Now
19
Titan 0295490 Microswitch Genuine OEM
Titan
Titan 0295490 Microswitch
Part #: 0295490
$19.70
Buy Now
20
Item
Titan 9800604 Screw
Titan 9800604 Screw
Part #: 9800604
UPC: 024964141463
OEM Titan Hardware Component Titan 9800604 Screw is an OEM microswitch screw (PHPNHD, 4-40 x ...
$2.00
QTY:
Buy Now
20
Titan 9800604 Screw Genuine OEM
Titan
Titan 9800604 Screw
Part #: 9800604
$2.00
Buy Now
21
Item
Titan 704-281 Plug or Grommet
Titan 704-281 Plug or Grommet
Part #: 704-281
UPC: 612564168357
OEM Titan Housing Component Titan 704-281 Plug or Grommet closes designated openings in compa...
$5.30
QTY:
Buy Now
21
Titan 704-281 Plug or Grommet Genuine OEM
Titan
Titan 704-281 Plug or Grommet
Part #: 704-281
$5.30
Buy Now
22
Item
Titan 700-139 Motor Baffle Screw
Titan 700-139 Motor Baffle Screw
Part #: 700-139
UPC: 612561334496
OEM Titan Fastening Hardware Titan 700-139 Motor Baffle Screw is a genuine OEM replacement fast...
$2.50
QTY:
Buy Now
22
Titan 700-139 Motor Baffle Screw Genuine OEM
Titan
Titan 700-139 Motor Baffle Screw
Part #: 700-139
$2.50
Buy Now
23
Item

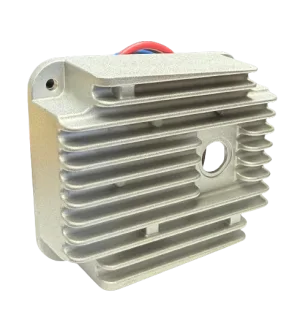

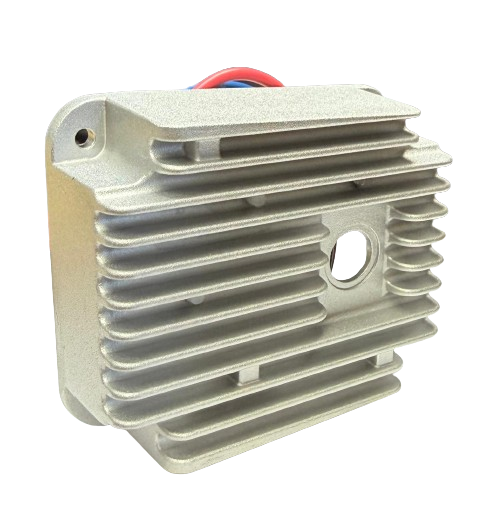

Titan 0523527A Advantage Motor Controller Assembly
Titan 0523527A Advantage Motor Controller Assembly
Part #: 0523527A
UPC: 024964199037
  Titan OEM Replacement Part | Advantage Series Motor Controls Titan 0523527A Advantage Motor...
$127.41
$142.20Save 10%
QTY:
Buy Now
23
Titan 0523527A Advantage Motor Controller Assembly −10%
Titan
Titan 0523527A Advantage Motor Controller Assembly
Part #: 0523527A
$127.41 $142.20 Save $14.79
Buy Now
24
Item
Titan 806-100A Housing Assembly
Titan 806-100A Housing Assembly
Part #: 806-100A
UPC: 024964182268
  Titan Housing & Drive Assembly Service Components Give your sprayer repair a sound foundati...
$307.27
$359.80Save 15%
QTY:
Buy Now
24
Titan 806-100A Housing Assembly −15%
Titan
Titan 806-100A Housing Assembly
Part #: 806-100A
$307.27 $359.80 Save $52.53
Buy Now
About this category

About Titan Advantage 400 Gear Box Assembly Parts

GENUINE TITAN OEM | ADVANTAGE 400 GEAR BOX ASSEMBLY

Shop Titan Advantage 400 Gear Box Assembly Parts at AllTitanParts for genuine OEM crankshaft and gear assemblies, slider assemblies, second-stage gears, thrust washers, gearbox housings, pressure control components and electrical replacement parts. Maintain your airless paint sprayer's mechanical drive system, address worn or damaged components and support dependable pump operation. Explore the factory exploded parts diagram, match the correct Titan OEM part number and order the gearbox repair components needed for your Advantage 400.

  • Genuine Titan OEM
  • Advantage 400
  • Gear Box Assembly
  • Factory Parts Diagram
Buying guide

Titan Advantage 400 Gear Box Assembly Parts: what to know before you buy

GENUINE TITAN OEM | GEAR BOX AND DRIVE SYSTEM REPLACEMENT PARTS

Titan Advantage 400 Gear Box Assembly Parts

Shop genuine Titan Advantage 400 Gear Box Assembly Parts for maintaining and repairing your electric airless paint sprayer. Find OEM crankshaft and gear assemblies, slider assemblies, second-stage gears, thrust washers, gearbox housings, pressure control components, motor controllers, switches and mounting hardware.

Whether you're investigating abnormal drive noise, repairing damaged gearing or servicing the pressure-control system, use the factory exploded diagram to identify the correct Titan OEM replacement component before ordering.

Genuine Titan OEM Advantage 400 Gear Box Assembly 22 Listed Entries
OEM DRIVE SYSTEM | ADVANTAGE 400

Maintain Reliable Power Transmission and Pump Operation

The Titan Advantage 400 gearbox assembly forms part of the mechanical drive system that transfers power from the electric motor to the piston pump. Its gears, crankshaft and slider components work together to convert motor rotation into the reciprocating movement required by the fluid section.

The factory gearbox assembly also incorporates pressure-control and electrical components, including a pressure transducer, motor controller, switches, circuit breaker and related hardware. These components have distinct functions and should be diagnosed independently when troubleshooting equipment problems.

Normal wear, inadequate lubrication, mechanical damage, damaged electrical components or prolonged operation under abnormal conditions may make servicing necessary. Selecting the correct OEM replacement part helps preserve the manufacturer's intended mechanical and electrical arrangement.

AllTitanParts provides genuine Titan replacement parts identified by factory part number. Use the exploded parts diagram to locate the exact component and verify compatibility before checkout.

Manufacturer
Titan
Equipment
Advantage 400
Assembly
Gear Box Assembly
Replacement Type
Genuine Titan OEM

Shop Titan Advantage 400 Gear Box Components

Explore important mechanical and electrical replacement components listed in the Advantage 400 Gear Box Assembly category.

MECHANICAL DRIVE

Titan 0508572 Crankshaft/Gear Assembly

Genuine OEM crankshaft and gear assembly used in the mechanical drive system. Inspect for gear damage, excessive wear and abnormal drive movement.

Part Number: 0508572
RECIPROCATING DRIVE

Titan 0508208 Slider Assembly

OEM slider assembly associated with transferring the gearbox's mechanical movement to the pumping mechanism. Inspect when diagnosing drive wear or damage.

Part Number: 0508208
GEAR TRAIN

Titan 704-176 Second-Stage Gear

Factory-listed second-stage gear used within the Advantage 400 drive mechanism. Inspect the associated gear train when abnormal noise or wear is suspected.

Part Number: 704-176
GEARBOX HOUSING

Titan 806-100A Housing Assembly

OEM housing assembly that supports and encloses designated drive components. Inspect for physical damage, worn mounting areas or other structural defects.

Part Number: 806-100A

Titan Advantage 400 Gear Box Assembly OEM Parts Reference

The current category displays 22 listed entries. Titan 700-139 Motor Baffle Screw appears twice, under diagram references 1 and 22. The reference below preserves both listings while identifying their shared part number.

Diagram Item Titan Part Number Replacement Component Function / Category
1 and 22 700-139 Motor Baffle Screw Motor baffle fastening
3 0508208 Slider Assembly Mechanical drive
4 0508572 Crankshaft/Gear Assembly Gearbox drive mechanism
5 704-174 Thrust Washer Axial load support
6 704-176 Second-Stage Gear Gear train
7 0509219 Screw Assembly fastening
8 700-771 Pressure Control Knob Operator pressure adjustment
9 0551522 Knob Housing Pressure-control housing
10 02712 Spring Mechanical control component
11 9822522 Retainer Ring Replaces 704-124
12 806-032 Plunger Replaces 551521
13 800-741 Power Cord Assembly Electrical supply
14 9800340 Ground Screw Electrical grounding
15 0551112 Pressure Transducer Assembly Pressure sensing
16 704-211A Circuit Breaker Replaces 0551515
17 9850936 Power Switch Replaces 704-380
19 0295490 Microswitch Electrical switching
20 9800604 Screw Assembly fastening
21 704-281 Plug or Grommet Opening protection
23 0523527A Advantage Motor Controller Assembly Motor control electronics
24 806-100A Housing Assembly Gearbox housing
Important ordering note: The diagram reference numbers are not component quantities. Confirm the exact Titan part number, replacement supersession, quantity and application before checkout. Some product listings display shortened catalog numbers, so use the manufacturer's complete part number for identification.
FIND YOUR ADVANTAGE 400 GEARBOX PARTS FASTER

How to Identify the Correct Gear Box Replacement Part

01

Identify the Problem

Determine whether the issue involves the mechanical drive, pressure control or electrical system.

02

Inspect the Assembly

Follow Titan's safety and diagnostic instructions to locate the defective component.

03

Match the OEM Number

Use the factory exploded diagram and the exact manufacturer part number.

04

Verify and Order

Confirm compatibility, required quantity and whether the part is sold individually or as an assembly.

REPAIR PLANNING | CORRECT SYSTEM IDENTIFICATION

Gearbox Drive Parts, Pressure Controls and Electrical Components

The Advantage 400 Gear Box Assembly category includes more than mechanical gears. Identify the affected system before selecting replacement components.

Mechanical Drive Components

Crankshaft and gear assemblies, sliders, second-stage gears, thrust washers and gearbox housings transfer and support mechanical movement.

Pressure Control Components

Pressure knobs, housings, springs, plungers and transducers are associated with operator adjustment and pressure sensing.

Electrical Components

Motor controllers, switches, circuit breakers, power cords and grounding hardware are part of the electrical control and supply arrangement.

Titan Advantage 400 Gear Box Troubleshooting Guide

The following conditions can help identify components requiring inspection. Similar symptoms may arise from the motor, fluid section or electrical system.

Observed Condition Components to Inspect Recommended Action
Unusual grinding or knocking noise Crankshaft, gears, slider and housing Stop operation and inspect the mechanical drive according to Titan's service procedure.
Motor operates but pump does not cycle correctly Gear train, slider and fluid section Determine whether the drive mechanism is transferring movement properly.
Sprayer does not start Power supply, switch, circuit breaker, controller and motor Follow the manufacturer's electrical diagnostic procedure.
Pressure adjustment does not respond normally Pressure knob, plunger, transducer and controller Inspect the pressure-control system using Titan's specified tests.
Excessive vibration Gearbox housing, drive components and fasteners Inspect for damaged or loose mechanical components.
Circuit breaker repeatedly trips Motor, controller, electrical supply and mechanical load Investigate the underlying fault rather than repeatedly resetting the breaker.
REPAIR PLANNING | INDIVIDUAL OEM COMPONENTS

Which Titan Advantage 400 Gearbox Parts Should You Replace?

Choose the replacement based on a confirmed diagnosis and the manufacturer's parts documentation.

Gear and Slider Repairs

Inspect mating gear teeth, crankshaft components, slider surfaces and thrust washers when mechanical wear is confirmed.

Pressure Control Repairs

Inspect the pressure knob, control mechanism and transducer when the pressure-control system does not respond as specified.

Electrical System Repairs

Have qualified service personnel diagnose the motor controller, switches, circuit breaker, cord and grounding components.

COMPLETE YOUR TITAN ADVANTAGE 400 REPAIR

The motor, gearbox, fluid section and suction system perform different functions. Use the appropriate factory assembly category when inspecting related components.

Looking for every assembly? Browse all Titan Advantage 400 Electric Piston Pump Parts.

OEM FITMENT | CORRECT PART IDENTIFICATION

Why Choose Genuine Titan Advantage 400 Gear Box Parts?

Genuine Titan OEM gearbox components are identified by manufacturer part number and intended equipment application. Correctly specified gears, washers, sliders, housings and electrical components help preserve the original drive-system arrangement.

Selected components may also appear in other Titan, Impact, RentSpray or SprayTech equipment. However, similar appearance does not establish interchangeability. Verify the exact part number and manufacturer-documented application.

Before ordering, confirm the Advantage 400 model, applicable factory parts diagram, part number and any documented replacement supersession.

Titan Advantage 400 Gear Box Maintenance and Safety

Before inspecting or repairing the gearbox, turn off the sprayer, disconnect electrical power and complete Titan's pressure-relief procedure.

Never loosen a pressurized fluid connection. High-pressure coating material can penetrate the skin and cause serious injury.

Mechanical gearbox service requires correct component positioning, specified lubrication, secure fastening and proper reassembly. Follow Titan's official service instructions rather than substituting unverified lubricants or tightening values.

Electrical diagnosis involving the motor controller, pressure transducer, power cord, circuit breaker or switches should be performed by appropriately qualified service personnel. Do not bypass protective electrical components or operate the sprayer with damaged grounding connections.

After service, verify proper assembly and operation using the manufacturer-prescribed testing procedure.

Titan Advantage 400 Gear Box Assembly Parts FAQ

Find answers about genuine Titan gearbox components, crankshaft assemblies, sliders, pressure controls and replacement compatibility.

What parts are available in the Titan Advantage 400 Gear Box Assembly?

The category includes crankshaft and gear assemblies, sliders, second-stage gears, thrust washers, gearbox housings, pressure-control components, switches, a motor controller, a pressure transducer and associated hardware.

What is the Titan Advantage 400 crankshaft and gear assembly part number?

Titan 0508572 is the crankshaft and gear assembly listed in the Advantage 400 Gear Box Assembly category.

What is the Titan Advantage 400 slider assembly part number?

Titan 0508208 is the OEM slider assembly listed for the Advantage 400 gearbox. Confirm its application against the factory diagram before ordering.

What does Titan 704-176 Second-Stage Gear do?

Titan 704-176 is a gear-train component used in the mechanical drive system. It helps transfer rotational motion through the gearbox.

Why is my Titan Advantage 400 making a grinding noise?

Possible causes include worn gearing, damaged drive components, mechanical interference or problems in adjacent systems. Stop operation and follow Titan's inspection procedure to identify the cause.

What is Titan 0523527A Advantage Motor Controller Assembly?

Titan 0523527A is an OEM motor controller assembly listed in the gearbox category. It forms part of the electrical motor-control system and requires appropriate diagnostic procedures.

Are Titan Advantage 400 gearbox parts interchangeable with other Titan sprayers?

Some individual OEM components may be shared with other models, but compatibility must be verified using the exact manufacturer part number and documented application.

Where can I buy genuine Titan Advantage 400 Gear Box Assembly Parts?

Shop the Titan Advantage 400 Gear Box Assembly Parts category at AllTitanParts. Use the factory exploded diagram and OEM part numbers to identify the correct replacement components before checkout.

GENUINE TITAN OEM GEAR BOX REPLACEMENT PARTS

Shop Titan Advantage 400 Gear Box Assembly Parts

Find genuine Titan crankshaft assemblies, sliders, gears, gearbox housings, pressure controls and electrical service components. Match the factory diagram to the correct OEM part number and order the parts needed for your repair.

BUY ADVANTAGE 400 GEAR BOX PARTS →

Need help identifying a replacement part? Call 713-931-0006.

Added to cart

Your Cart
No items in cart.
Add more items
Total 0
Checkout Modify Cart
