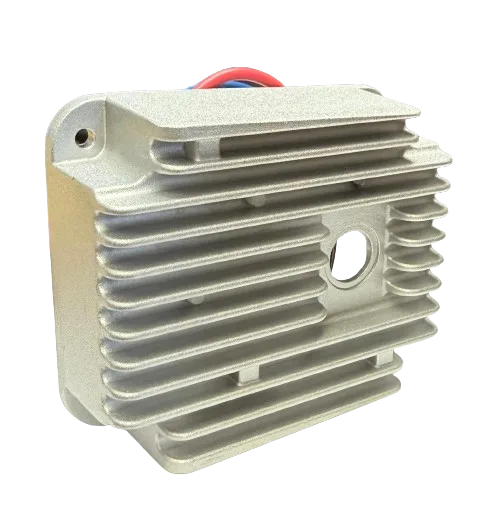

Part 0523527A is a replacement motor controller assembly for Advantage series sprayers. This electronic module regulates power to the motor, controlling speed and pressure based on operator input. When the original controller fails, causing erratic operation or complete motor shutdown, replacement restores proper sprayer performance.
| Part Number | 0523527A |
|---|---|
| Part Description | Advantage Motor Controller Assembly |
| Brand | Universal |
| Fits | Advantage 400; Advantage 500 |
| Condition | New |
The 0523527A motor controller assembly is a direct replacement electronic module for Advantage 400 and Advantage 500 sprayers. This component governs all motor functions, receiving input from the pressure control and trigger, then regulating power delivery to maintain consistent performance. The controller uses solid-state circuitry to vary motor speed, providing smooth startup and maintaining set pressure during spraying. When functioning properly, it ensures reliable operation, consistent spray patterns, and protection against overloads. A failing controller may cause erratic motor behavior, failure to start, loss of pressure control, or complete shutdown. This replacement assembly is manufactured to match original specifications for seamless integration with existing wiring and controls. Installation requires basic electrical knowledge and careful attention to proper connections. The controller is sealed against moisture and debris encountered in job site conditions. Regular inspection of electrical connections helps maintain reliable performance.
| Motor regulation | Controls motor speed based on demand |
|---|---|
| Pressure maintenance | Adjusts power to maintain set pressure |
| System protection | Includes overload and thermal protection |
| No motor response | Motor does not run when triggered |
|---|---|
| Erratic operation | Motor speed varies unpredictably |
| Pressure fluctuation | Unable to maintain set pressure |
| Visible damage | Burned components, cracked housing |
Motor controller assembly 0523527A is compatible with the following models. Verify fit using your equipment's parts diagram.
| Compatible Models |
|---|
| Advantage 400 |
| Advantage 500 |
When replacing the motor controller, inspect these associated components to ensure proper electrical system function.
Check for smooth operation and proper signal.
Verify switch sends signal to controller.
Check for damaged connections or corrosion.
