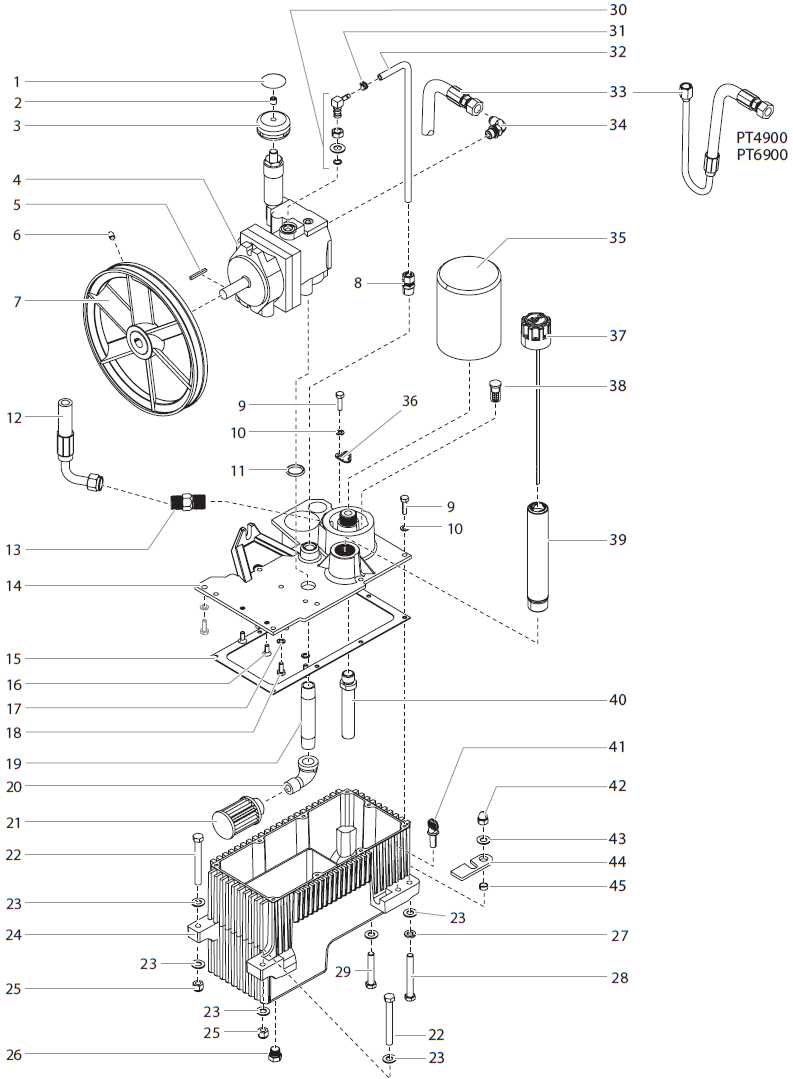

Powrtwin 4900 Hydraulic System Parts
Using the right PowrTwin 4900 hydraulic system parts is essential because only then can you get accuracy when you’re working at the job site. We ensure the availability of all parts on our website, AllTitanParts, where you can easily get your hands on these parts. Let’s find out the parts and their functioning in the sprayer.
Parts and Functions
Ball Valve
The ball valve is essential when you have to control the flow of paint or switch between different modes.
Pressure Control Knob
The pressure control knob is essential for controlling and adjusting the pressure to your desired number.
Hydraulic Pump
The hydraulic pump is essentially used to generate power within the hydraulic system
Fan Assembly
The fan assembly draws air over the hydraulic reservoir and is used to cool down the sprayer
Tube Connector/Nipple
Tube connectors and nipple are fittings that are used to join the hydraulic and fluid section tubes to other components
Set Screw/Bracket Screw/Socket Screw/Hexagonal Bolt
For holding the components together set screw, bracket screw, socket screw, and hexagonal bolt are essentially used.
Inlet Screen
The inlet screen is used for the filtration of paint to make sure no debris enters the sprayer.
Lock Washer
Lockwasher helps in the prevention of losing the nuts and bolts of the sprayer
Return Hose
The return hose is essential in carrying the fluid circulation from the motor to the main reservoir
Tank Gasket
The tank gasket creates a seal between the reservoir and the cover to prevent leakage
You can order these parts from our website at AllTitanParts.
FAQs
What is the main function of the return hose?
The return hose is used in carrying flow of circulation from the motor of your sprayer to the main reservoir.
Does the maintenance of these parts take too much time?
Know that if you regularly maintain each part of your sprayer, it is definitely going to take you too long.
What is the purpose of the parts diagram on the website?
The parts diagram is essential because it helps you understand each part and its usage.
