PowrCoat 1072 · Model 05331072C · 72:1 · 7,200 PSI
Support Maximum PowrCoat 1072 Output With Verified Main Assembly Parts
Source verified PowrCoat 1072 Main Assembly Parts for protective-coating contractors, industrial maintenance departments, repair facilities and buyers responsible for high-pressure pneumatic spray equipment. This exploded replacement-parts page covers cart assembly mounting hardware, the standard material-intake assembly, the optional 55-gallon suction assembly and the inlet filter screen documented by Titan.
01
Official 8-Position Diagram
All retained main-assembly positions match Titan documentation.
02
72:1 Pressure Ratio
Verified maximum operating pressure is 7,200 PSI.
03
Cart Model 05331072C
Compatibility is limited to the documented cart configuration.
04
Six Verified Product Links
No discontinued or unconfirmed product is linked.
Assembly Overview
PowrCoat 1072 Main Assembly Structure
This page is an eight-position exploded main-assembly parts diagram and replacement-parts category for Titan PowrCoat 1072 cart model 05331072C. Titan specifies a 72:1 pressure ratio, 7,200 PSI (496 bar) maximum operating pressure, 100 PSI (6.9 bar) maximum air inlet pressure, 3/4-inch NPT fluid inlet and outlet connections, and a 3/8-inch NPSM hose connection.
Titan’s main-assembly table identifies cart assembly 0533257, four 9805472 screws, eight 9822649 bent washers, four 9822650 lock washers, four 9812337 nuts, standard suction assembly 0533258, inlet screen 0533968 and optional 55-gallon suction assembly 0533259. Position 6 points to the separately listed wall-mount assembly.
Assembly Functions
Functions Supported by the PowrCoat 1072 Main Assembly
- Secures the sprayer structure to cart assembly 0533257.
- Distributes mounting force through eight bent washers 9822649.
- Resists vibration through four lock washers 9822650 and four nuts 9812337.
- Feeds coating through suction assembly 0533258 or optional 0533259.
- Filters incoming coating through inlet screen 0533968.
Service Applications
When Contractors and Repair Technicians Use This Diagram
- Correcting loose, shifting or misaligned cart-mounted equipment.
- Replacing damaged structural screws, bent washers, lock washers or retaining nuts.
- Restoring reliable priming from standard coating containers.
- Configuring verified material pickup from a 55-gallon container.
- Cleaning or replacing a restricted material-intake screen.
Troubleshooting
Lock the gun, shut off the unit and relieve pressure before service. Diagnose the full component group before replacing any part.
| Operating symptom |
Inspection points and reasons |
Recommended action |
| Sprayer shifts on the cart |
9805472 screws, 9822649 washers, 9822650 lock washers, 9812337 nuts and cart assembly 0533257 because looseness or deformation reduces clamping force. |
Inspect all four mounting positions before replacing any single fastener. |
| Mounting hardware loosens repeatedly |
9822650 lock washers, nut threads, screw threads and cart contact surfaces because vibration or damaged threads can defeat retention. |
Correct thread or mounting-surface damage before installing new hardware. |
| Pump primes slowly |
0533258 suction assembly, 0533968 screen and every suction connection because restriction or air entry reduces material pickup. |
Clean the screen and leak-test connections before replacing the complete assembly. |
| Flow becomes intermittent |
0533968 screen, container level and suction hose sealing because a blocked screen or air leak interrupts feed. |
Confirm immersion, cleanliness and sealing before ordering parts. |
| 55-gallon feed starves the pump |
0533259 assembly, its included screen and all one-inch feed connections because bulk-feed restriction can mimic pump failure. |
Inspect the complete feed path before replacing the suction assembly. |
| New hardware will not align |
Cart assembly 0533257, bent washers 9822649 and mounting surfaces because frame distortion changes hole alignment. |
Correct structural alignment before tightening or replacing hardware. |
High-Value Replacement Parts
Only active products displayed on the supplied page, confirmed in Titan’s main-assembly table and matched to verified internal URLs are linked.
Verified component
Titan 0533259 Suction Set Assembly
Optional 55-gallon suction assembly that includes inlet screen 0533968.
View Titan 0533259
Verified component
Titan 9805472 Screw
Main cart-mount structural screw; four are specified in the official diagram.
View Titan 9805472
Verified component
Titan 9822649 Washer
Bent cart washer used to distribute clamping load at the sprayer mounting points.
View Titan 9822649
Verified component
Titan 9812337 Nut
Main-assembly retaining nut used with the cart mounting fastener group.
View Titan 9812337
Verified component

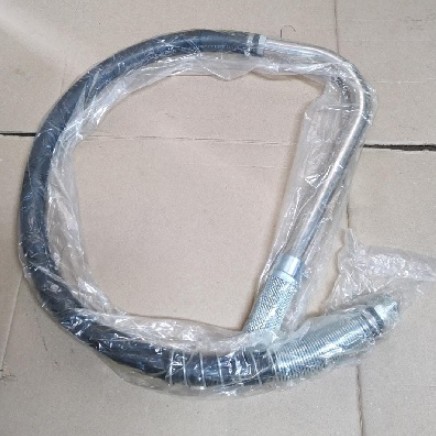

Titan 0533258 Suction Set Assembly
Standard suction tube assembly for the PowrCoat 1072 cart model; includes inlet screen 0533968.
View Titan 0533258
Verified component

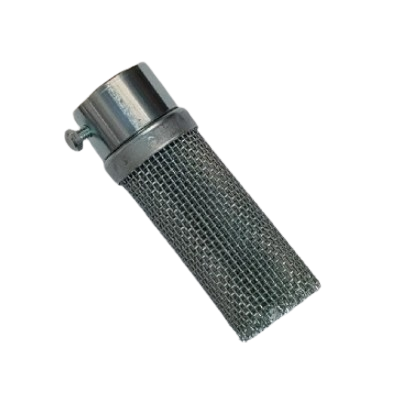

Titan 0533968 Inlet Screen
Material-intake filter screen used with both verified suction assemblies.
View Titan 0533968
Buying Guide
STEP 1
Confirm model 05331072C
Use the cart-model diagram, not the wall-mount listing.
STEP 2
Match the position
Confirm part number, description and required quantity.
STEP 3
Inspect mating components
Check the full fastener or suction group together.
STEP 4
Choose the feed configuration
Use 0533258 standard or optional 0533259 for 55-gallon supply.
Maintenance
- Inspect all four cart mounting locations before transport.
- Replace distorted washers or damaged threads as a matched repair.
- Keep inlet screen 0533968 submerged and clean.
- Prevent hardened coating from accumulating in suction tubes.
- Check suction joints for air entry before every major job.
- Relieve all pressure before loosening any connection.
Repair Planning
Record the exact diagram position, quantity and observed symptom before disassembly. Position 1 refers to separate cart assembly 0533257, while position 6 refers to the separate wall-mount assembly.
For mounting repairs, inspect the screw, both washer types, nut and cart surface together. For intake repairs, inspect the suction assembly, included screen, coating container and pump-inlet connection as one system.
FAQ Section
What type of page is the PowrCoat 1072 Main Assembly page?+
It is an exploded main-assembly replacement-parts category for Titan PowrCoat 1072 cart model 05331072C.
What is the verified PowrCoat 1072 pressure ratio?+
Titan specifies a 72:1 pressure ratio.
What is the maximum operating pressure?+
Titan specifies 7,200 PSI, or 496 bar, maximum operating pressure.
What is the maximum air inlet pressure?+
Titan specifies 100 PSI, or 6.9 bar.
Which cart assembly is used?+
Titan identifies cart assembly 0533257 at position 1 and directs technicians to its separate parts listing.
Which fasteners secure the main assembly to the cart?+
Titan specifies four 9805472 screws, eight 9822649 washers, four 9822650 lock washers and four 9812337 nuts.
Which standard suction assembly is used?+
Titan identifies 0533258 as the standard suction tube assembly, including inlet screen 0533968.
Is a 55-gallon suction assembly available?+
Yes. Titan lists optional suction assembly 0533259, which also includes inlet screen 0533968.
Does 769-061 belong to the PowrCoat 1072 main assembly?+
No. Titan’s official main-assembly table identifies 9822650 as the position-4 lock washer. The 769-061 product was therefore excluded from this page.
Why should mounting hardware be inspected as a group?+
A damaged screw, bent washer, lock washer, nut or cart mounting surface can create the same looseness or misalignment symptom.
Why should suction connections be diagnosed before replacement?+
Air leaks, blocked screens and hardened coating can cause poor priming even when the complete suction assembly is still serviceable.
What must be done before service?+
Lock the spray gun, shut off the unit, relieve pressure from the gun and hose, and verify that the system is fully depressurized.
Preserve PowrCoat 1072 Cart Stability and Dependable Material Intake
Use the verified part number, diagram position and symptom to identify the correct replacement.
