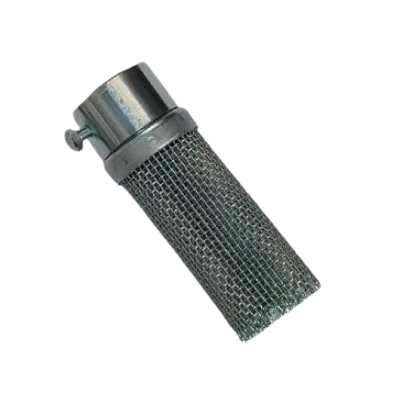

Titan 0533968 Inlet Screen

Name: Titan 0533968 Inlet Screen
Brand: Titan
SKU: 0533968
Price: 36.76 USD
Availability: InStock

$36.76

$38.90

Save 6%

Available to Order

Part #: 533968

Titan PowrCoat Material Intake Filtration

The Titan 0533968 Inlet Screen is a 30-mesh intake filter that captures coating debris before it reaches compatible PowrCoat pumps, supporting reliable priming, consistent material delivery and reduced fluid-section wear during demanding commercial and industrial spraying projects.

Brand: Titan Part Number: 0533968 Type: 30-Mesh Inlet Screen Application: Material Filtration

Compatibility Table

Brand	Accurate Compatible Titan Machine(s)	Part Number	Parts / Assemblies Serviced With	Technical / Commercial Detail
Titan	PowrCoat 1045C/W, 1064C/W and 1072C/W; models 05331045C, 05331045W, 05331064C, 05331064W, 05331072C and 05331072W	0533968	0533258 5-gallon suction set and 0533259 55-gallon suction assembly	30-mesh intake filtration for PowrCoat 10-inch pump systems

Quantity

Buy Now

Genuine OEM Part Fast Shipping Easy Returns

Titan PowrCoat Material Intake Filtration

Reduce Maintenance Downtime Using Dependable Titan Inlet Screen Contaminant Control Every Shift

Titan 0533968 is a 30-mesh inlet screen designed for 10-inch PowrCoat material-intake systems. Positioned at the suction inlet, it captures coating debris before contamination reaches the pump, supporting steadier material flow and dependable contractor productivity.

Brand: Titan Part Number: 0533968 Type: Inlet Screen Mesh: 30 Application: PowrCoat 10-Inch Pumps

Technical and Commercial Information
Product Overview	Thirty-mesh material inlet screen for Titan pneumatic sprayers equipped with a compatible 10-inch PowrCoat pump and suction arrangement.
Function	Screens coating material at the suction inlet to reduce the entry of debris, dried coating particles and other contaminants into the fluid pump.
Industrial Applications	Protective coatings, structural steel finishing, corrosion control, waterproofing, roofing, marine maintenance and high-output industrial airless spraying.
Accurate Compatible Titan Machines	All Titan PowrCoat models equipped with the compatible 10-inch pump intake system, including: Titan PowrCoat 1045C and 1045W; Titan PowrCoat 1064C and 1064W; Titan PowrCoat 1072C and 1072W.
Accurate Part Number	Titan 0533968 — PowrCoat 10-inch, 30-mesh inlet screen.
Compatible Parts & Assemblies	Compatible PowrCoat suction hoses, siphon tubes, pump inlet connections and 10-inch fluid pump intake configurations.
Related Parts Commonly Serviced Together	0533258 five-gallon suction set assembly, 0533259 fifty-five-gallon suction assembly, suction tubing and pump inlet connection hardware.
Common Problems Solved	Restricted material intake, poor priming, debris entering the pump, intermittent coating delivery and premature wear caused by contaminated material.
Use with Coating Systems	Suitable for compatible pneumatic airless systems drawing architectural, industrial and protective coatings through a PowrCoat 10-inch suction configuration.
OEM & Brand Information	Titan replacement intake-filtration component engineered for the specified PowrCoat pump and suction system configuration.
Commercial Benefits	Helps protect expensive pumping components, improve material consistency, reduce avoidable service interruptions and maintain productive spraying throughout demanding projects.

FAQ Section

Review these contractor-focused answers before servicing a PowrCoat material-intake system.

Which Titan sprayers use this inlet screen?

It is designed for Titan PowrCoat sprayers equipped with a compatible 10-inch pump intake system, including PowrCoat 1045C/W, 1064C/W and 1072C/W configurations.

What is the mesh rating of the screen?

The screen has a 30-mesh rating for removing larger coating debris at the material intake point.

Does this replace the high-pressure manifold filter?

No. This component filters material at the suction inlet, while the manifold filter provides additional filtration farther downstream in the fluid system.

When should contractors replace the inlet screen?

Replace it when the mesh is damaged, crushed, permanently blocked, corroded or unable to remain securely attached to the suction assembly.

Can a clogged screen cause poor sprayer performance?

Yes. A restricted screen can reduce material supply, causing difficult priming, pump starvation, uneven pressure and intermittent coating delivery.
