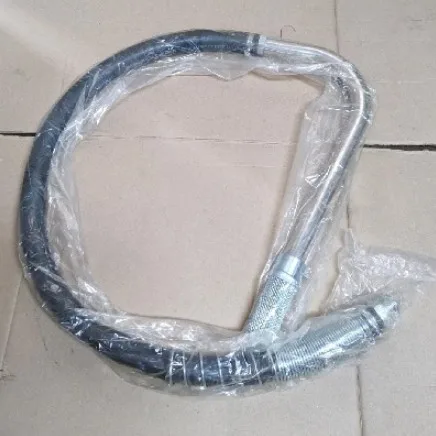

Titan 0533258 Suction Set Assembly

Name: Titan 0533258 Suction Set Assembly
Brand: Titan
SKU: 0533258
Price: 415.39 USD
Availability: InStock

$415.39

$486.40

Save 15%

Available to Order

Part #: 533258

Titan PowrCoat 5-Gallon Material Intake Assembly

The Titan 0533258 Suction Set Assembly supplies coating material from a 5-gallon container to compatible PowrCoat fluid sections, supporting dependable material pickup, consistent pump feeding and efficient contractor operation during demanding industrial and protective coating applications.

Brand: Titan Part Number: 0533258 Type: Suction Set Assembly Application: 5-Gallon Supply

Compatibility Table

Brand	Accurate Compatible Titan Machine(s)	Part Number	Parts / Assemblies Serviced With	Technical / Commercial Detail
Titan	PowrCoat 1045, 1064 and 1072 cart and wall-mount models	0533258	Compatible fluid sections; includes 0533968 inlet filter screen	5-gallon siphon assembly for direct coating pickup; one assembly per sprayer

Quantity

Buy Now

Genuine OEM Part Fast Shipping Easy Returns

Titan PowrCoat 5-Gallon Material Intake System

Improve Sprayer Productivity Through Premium Titan Suction Assembly Efficiency Every Project

Titan 0533258 is a complete 5-gallon suction set assembly for compatible PowrCoat pneumatic sprayers. It draws coating material from the supply container into the fluid section, supporting dependable priming, continuous pump feeding and efficient high-production spraying.

Brand: Titan Part Number: 0533258 Type: Suction Set Assembly Container: 5 Gallons Includes: Inlet Screen

Technical and Commercial Information
Product Overview	Complete 5-gallon siphon tube assembly supplied with the matching inlet filter screen for compatible Titan PowrCoat sprayers.
Function	Transfers coating material from a 5-gallon container to the pump inlet while screening debris before it enters the fluid section.
Industrial Applications	Protective coatings, structural steel finishing, corrosion control, waterproofing, roofing, marine maintenance and industrial airless spraying.
Accurate Compatible Titan Machines	Titan PowrCoat 1045; Titan PowrCoat 1064; Titan PowrCoat 1072; compatible cart-mount and wall-mount main assemblies equipped for the standard 5-gallon suction configuration.
Accurate Part Number	Titan 0533258 — Suction Set Assembly, 5 Gallon; includes inlet screen item 0533968.
Compatible Parts & Assemblies	PowrCoat 1045, 1064 and 1072 main assemblies, pump inlet connections and compatible severe-service fluid sections.
Related Parts Commonly Serviced Together	0533968 inlet filter screen and 0533259 optional 55-gallon suction assembly.
Common Problems Solved	Poor priming, restricted material intake, air leakage, intermittent pump feeding and contamination caused by a damaged or obstructed suction system.
Use with Coating Systems	Designed for compatible pneumatic airless systems applying architectural, industrial, high-solids and protective coating materials from 5-gallon containers.
OEM & Brand Information	Titan replacement material-intake assembly configured for the specified PowrCoat pump inlet arrangement.
Commercial Benefits	Supports faster priming, consistent coating delivery and reduced production interruptions while helping protect the fluid section from debris.

FAQ Section

Review these contractor-focused answers before replacing or servicing the suction assembly.

Which Titan sprayers use this suction assembly?

It is used with compatible Titan PowrCoat 1045, PowrCoat 1064 and PowrCoat 1072 main assemblies.

What container size is this assembly designed for?

It is the standard suction configuration for drawing coating material from a 5-gallon container.

Does the suction set include an inlet screen?

Yes. The assembly includes Titan inlet filter screen 0533968.

What symptoms indicate a damaged suction assembly?

Common symptoms include difficult priming, fluctuating pressure, intermittent material flow, visible air bubbles or coating leakage around the intake connections.

Is a 55-gallon suction option available?

Yes. Titan 0533259 is the corresponding optional 55-gallon suction assembly for compatible PowrCoat configurations.

No reviews yet. Be the first to review this product!
