Assembly Overview

PowrCoat 1072 Fluid Pump Assembly

Titan’s PowrCoat 1072 WL72 fluid-pump diagram covers the packing system, pump block, outlet housing, cylinder, displacement rod, piston-valve group, inlet ball, ball stop, foot valve and connecting hardware. These components convert pneumatic motor motion into controlled high-pressure coating flow.

Verified component index: 0533938, 0533895, 0533671, 0533672, 0533696, 0533662, 0533664, 0533663, 0533665, 0533697, 0533698, 0533660, 0533699, 0533661, 0533939, 51519, 0533941, 0533942, 0533962, 0533693, 315-700, 0533694, 0533695, 9832132, 0533669, 0533670, 0533668

Functions Supported by the Assembly

Draws coating through the foot valve during intake.
Pressurizes material through the piston-seat group.
Maintains sealing through PTFE and leather packing groups.
Transfers air-motor movement through the displacement rod.
Contains the WL64 working stroke within cylinder 0533699.

Service Applications

Correcting upper-packing leakage.
Restoring weak priming or pressure loss.
Repairing uneven pump stroke speed.
Replacing scored rods or cylinders.
Planning a complete fluid-pump rebuild.

Troubleshooting

Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.

Operating symptom	Inspection points and reason	Recommended action
Upper packing leaks	upper glands, PTFE and leather packings, spring and 0533939 rod	Inspect rod finish and packing-stack condition before rebuilding.
Pump loses pressure	51519 inlet ball, 0533942 piston seat and packing groups	Diagnose internal bypass before replacing the piston assembly.
Poor priming	0533695 foot valve, 315-700 ball and 0533694 seat	Clean and inspect inlet sealing surfaces before replacement.
Pump moves faster on one stroke	piston valve and foot-valve groups	Compare both valve groups before ordering parts.
New packing fails quickly	0533939 rod, 0533699 cylinder and pump alignment	Inspect for scoring or misalignment before installing another kit.
Fluid leaks at threaded joints	0533672 block, 0533696 outlet housing and seals	Identify the exact seal or damaged thread before replacement.

High-Value Replacement Parts

Only active products verified on the supplied category and matched to working internal destinations are linked.

Verified component

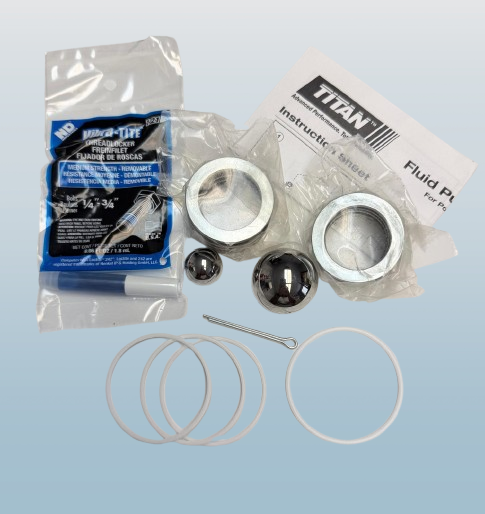

Titan 0533938 Fluid Pump Service Kit

Verified WL72 service kit for restoring fluid-section sealing and pressure performance.

View Titan 0533938

Verified component

Titan 0533672 Pump Block

Central WL72 pump housing supporting the severe-service fluid components.

View Titan 0533672

Verified component

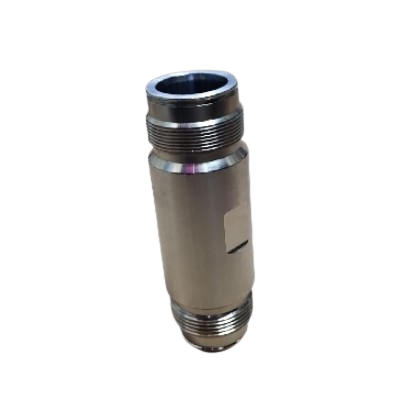

Titan 0533699 Cylinder

Precision WL72 working cylinder for the displacement stroke.

View Titan 0533699

Verified component

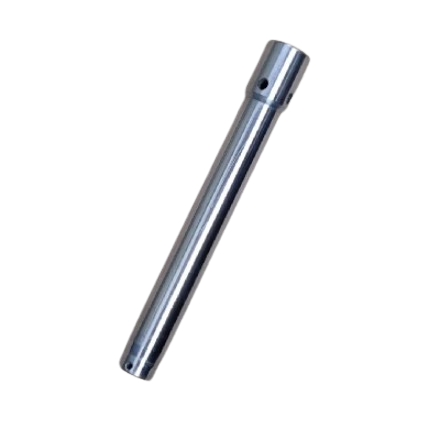

Titan 0533939 Displacement Rod

Reciprocating WL72 rod that transfers air-motor motion into material displacement.

View Titan 0533939

Verified component

Titan 0533942 Piston Seat Assembly

Verified WL72 piston-seat component controlling outlet-valve operation.

View Titan 0533942

Verified component

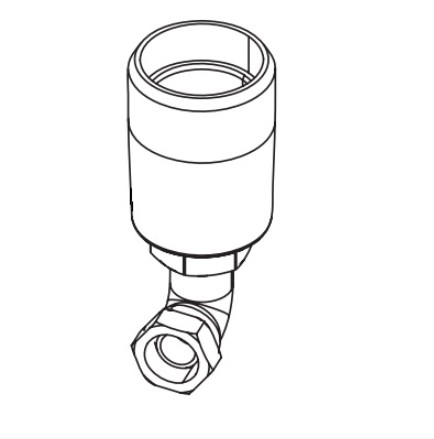

Titan 0533695 Foot Valve Assembly

Complete inlet-valve assembly supporting dependable priming and material intake.

View Titan 0533695

Buying Guide

STEP 1

Confirm the assembly

Use the exact PowrCoat 1072 diagram.

STEP 2

Match the callout

Check part number and component name.

STEP 3

Inspect mating parts

Find the true failure point.

STEP 4

Order verified fitment

Exclude discontinued or uncertain items.

Maintenance

Relieve all stored pressure before service.
Keep air and coating passages clean.
Inspect seals and mating surfaces together.
Check fasteners and connections for alignment.
Record model, part number and service date.
Replace only after confirming the fault.

Repair Planning

Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.

Fast Navigation

Titan 0533938 Fluid Pump Service Kit Titan 0533672 Pump Block Titan 0533699 Cylinder Titan 0533939 Displacement Rod Titan 0533942 Piston Seat Assembly Titan 0533695 Foot Valve Assembly

FAQ Section

What type of page is PowrCoat 1072 Fluid Pump Assembly?+

It is a 24-position exploded high-pressure fluid-pump replacement-parts category.

Which PowrCoat 1072 model is documented?+

Titan identifies cart model 05331072C in the official operation and parts manual.

What is the verified pressure ratio?+

The PowrCoat 1072 uses a 72:1 pressure ratio.

What is the maximum operating pressure?+

Titan specifies 7,200 PSI, or 496 bar.

What is the maximum air inlet pressure?+

Titan specifies 100 PSI, or 6.9 bar.

Why should technicians diagnose before replacement?+

Connected seals, fittings, valves and hard parts can produce similar symptoms.

How should a part number be confirmed?+

Match the supplied category, diagram position, component name and Titan part number.

Can unlisted products be assumed compatible?+

No. Unverified products and relationships should be omitted.

What safety step comes before service?+

Lock the gun, shut off the unit and fully relieve fluid and air pressure.

Why inspect mating components?+

A damaged mating surface can cause a replacement part to fail quickly.

How many product links are included?+

6 verified active product links are included.

Where are related PowrCoat 1072 assemblies found?+

Use the verified Related Searches links at the bottom of the page.
