Assembly Overview
PowrCoat 1072 High Pressure Filter
Titan’s high-pressure filter removes debris from coating before it reaches the spray hose and gun. The diagram also includes the outlet connection, pressure-relief valve and return-tube path used during priming, flushing and pressure relief.
Verified component index: 0533854, 0533513, 0533514, 0533515, 0533855, 0533856, 0533857, 0533858, 227-033, 0533859, 0533770, 0533517, 0533634, 0533127
Functions Supported by the Assembly
- Captures debris through the standard 60-mesh element.
- Supports the element with spring and internal support.
- Seals the filter cap with two PTFE gaskets.
- Routes filtered coating to the spray hose.
- Provides pressure relief and return flow through the bleed assembly.
Service Applications
- Correcting repeated tip clogging.
- Restoring flow after filter restriction.
- Repairing filter-cap leakage.
- Servicing the spray-hose outlet.
- Repairing priming and pressure-relief flow.
Troubleshooting
Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.
| Operating symptom |
Inspection points and reason |
Recommended action |
| Frequent tip clogging |
0533514 element, 0533515 support and cap sealing |
Inspect for damage, bypass or incorrect seating before replacement. |
| Reduced material flow |
0533514 element and 0533858 body passages |
Clean hardened coating before ordering parts. |
| Filter cap leaks |

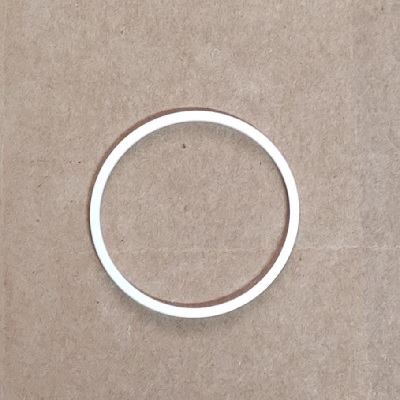

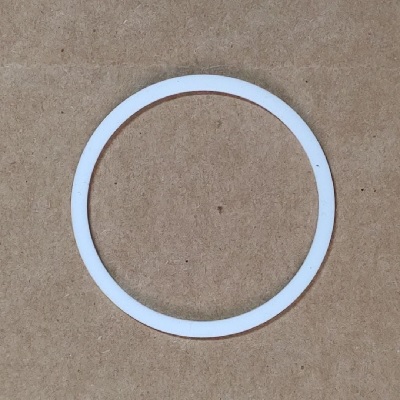

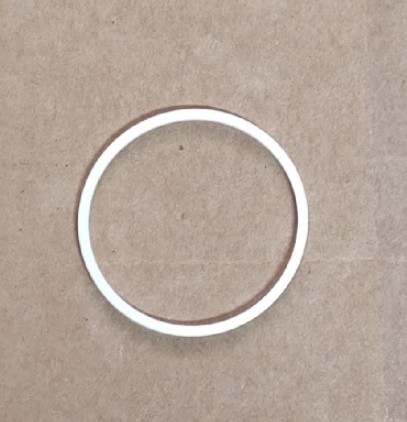

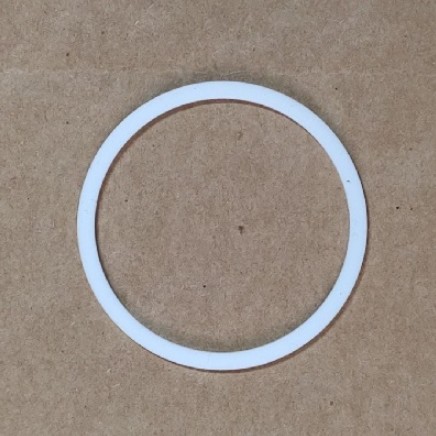

0533854 cap, 0533855 and 0533856 PTFE gaskets |
Inspect both seals and cap threads before replacement. |
| Outlet connection leaks |
0533859 fitting and mating hose connection |
Identify the damaged side of the joint before replacement. |
| Pressure will not relieve |

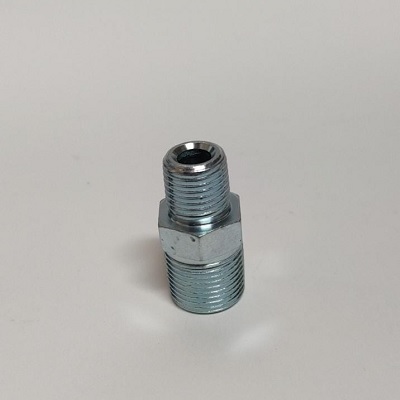

0533517 bleed valve, 0533770 nipple and 0533127 return tube |
Confirm blockage or valve failure before replacement. |
| Return flow is restricted |
0533127 tube and bleed-valve passages |
Clean the path before replacing the tube or valve. |
High-Value Replacement Parts
Only active products verified on the supplied category and matched to working internal destinations are linked.
Verified component
Titan 0533854 Filter Cap
Pressure filter cap.
View Titan 0533854
Verified component
Titan 0533514 Filter Element, 60 Mesh
Standard high-pressure filter element.
View Titan 0533514
Verified component

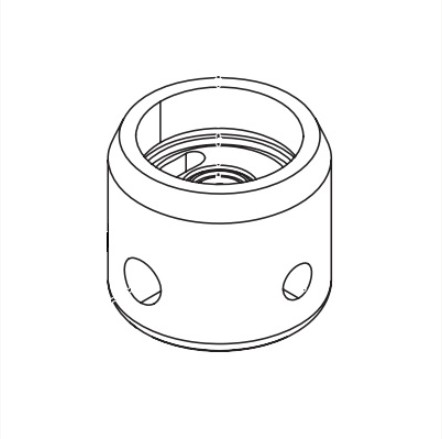

Titan 0533858 Filter Body
Main high-pressure filter housing.
View Titan 0533858
Verified component

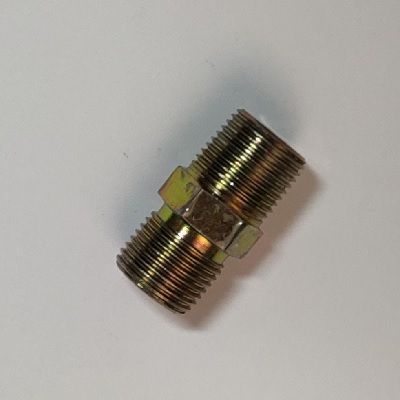

Titan 0533859 Spray Hose Outlet Fitting
Verified high-pressure hose connection.
View Titan 0533859
Verified component

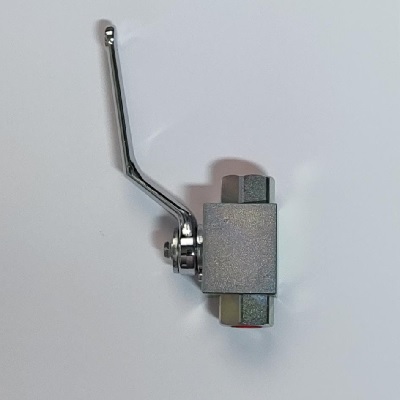

Titan 0533517 Bleed Valve Assembly
Manual pressure-relief valve assembly.
View Titan 0533517
Verified component
Titan 0533127 Return Tube Assembly
Return-flow tube for priming and relief.
View Titan 0533127
Buying Guide
STEP 1
Confirm the assembly
Use the exact PowrCoat 1072 diagram.
STEP 2
Match the callout
Check part number and component name.
STEP 3
Inspect mating parts
Find the true failure point.
STEP 4
Order verified fitment
Exclude discontinued or uncertain items.
Maintenance
- Relieve all stored pressure before service.
- Keep air and coating passages clean.
- Inspect seals and mating surfaces together.
- Check fasteners and connections for alignment.
- Record model, part number and service date.
- Replace only after confirming the fault.
Repair Planning
Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.
FAQ Section
What type of page is PowrCoat 1072 High Pressure Filter?+
It is a 18-position exploded high-pressure fluid-filter and bleed-path replacement-parts category.
Which PowrCoat 1072 model is documented?+
Titan identifies cart model 05331072C in the official operation and parts manual.
What is the verified pressure ratio?+
The PowrCoat 1072 uses a 72:1 pressure ratio.
What is the maximum operating pressure?+
Titan specifies 7,200 PSI, or 496 bar.
What is the maximum air inlet pressure?+
Titan specifies 100 PSI, or 6.9 bar.
Why should technicians diagnose before replacement?+
Connected seals, fittings, valves and hard parts can produce similar symptoms.
How should a part number be confirmed?+
Match the supplied category, diagram position, component name and Titan part number.
Can unlisted products be assumed compatible?+
No. Unverified products and relationships should be omitted.
What safety step comes before service?+
Lock the gun, shut off the unit and fully relieve fluid and air pressure.
Why inspect mating components?+
A damaged mating surface can cause a replacement part to fail quickly.
How many product links are included?+
6 verified active product links are included.
Where are related PowrCoat 1072 assemblies found?+
Use the verified Related Searches links at the bottom of the page.
Repair the PowrCoat 1072 With Verified Information
Use the exact part number, diagram position and operating symptom to narrow the correct replacement.
Search using:
- Titan part number
- Assembly callout
- PowrCoat 1072 model
- Component or repair-kit name
- Operating symptom
