Assembly Overview

PowrCoat 1045 Air Motor Assembly

Titan’s 44-position air-motor diagram covers the detent mechanism, air-direction valve system, manifold, cylinder, piston, trip rod, seals, packings and grounding hardware. The motor converts regulated compressed air into reciprocating movement for the fluid pump.

Verified component index: 0533935, 0533949, 0533365, 9805471, 0533950, 0533943, 0533944, 0533945, 0533946, 0533951, 9822648, 0533948, 0533947, 0533967, 0533952, 0533956, 0533644, 0533955, 0533953, 0533954, 0533769, 0533642, 0533643, 0533864, 0533957, 0533958, 862-444, 0509292, 0533959, 0533645, 0533649, 0533962, 0533256, 0533964, 0533646, 0533647, 769-061, 9805474, 0533865, 730-165, 0533866, 9885664

Functions Supported by the Assembly

Reverses motor direction through the detent and valve system.
Transfers pneumatic force through the 10-inch piston.
Maintains cylinder sealing through V-packings and O-rings.
Connects the piston to the fluid-pump drive train.
Grounds the pneumatic motor structure.

Service Applications

Correcting a stalled or hesitant air motor.
Repairing continuous air leakage.
Restoring weak or uneven cycling.
Replacing worn valve and trip components.
Planning a complete 10-inch motor rebuild.

Troubleshooting

Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.

Operating symptom	Inspection points and reason	Recommended action
Motor stalls or hesitates	0533950 detent housing, 0533256 trip rod and detent springs	Confirm free mechanical travel before replacing parts.
Air leaks continuously	0533952 housing, 0533957 plate, 0533958 seal and manifold gasket	Locate the leak path before ordering a repair kit.
Motor cycles unevenly	0533962 piston, cylinder gasket and V-packings	Inspect wear, scoring and seal condition before replacement.
Motor will not reverse	trip rod, detent axle, plunger and valve components	Verify the entire reversal mechanism before replacing one component.
Power output is weak	air supply, FRL, piston seals and valve plate	Confirm regulated air volume before rebuilding the motor.
Repeat seal failure occurs	piston, cylinder surfaces and alignment	Correct hard-part damage before installing fresh packings.

High-Value Replacement Parts

Only active products verified on the supplied category and matched to working internal destinations are linked.

Verified component

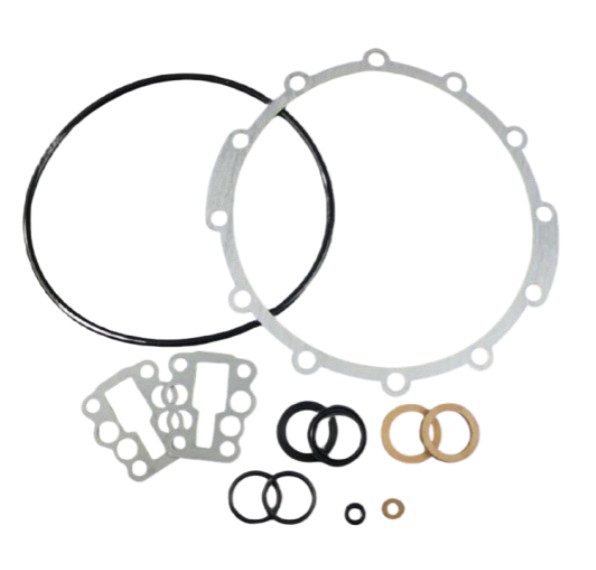

Titan 0533935 Air Motor Repair Kit, 10 Inch

Verified service kit for the 10-inch motor.

View Titan 0533935

Verified component

Titan 0533950 Detent Housing

Housing for the trip and detent mechanism.

View Titan 0533950

Verified component

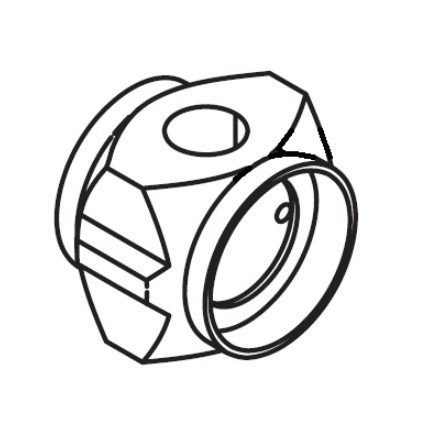

Titan 0533952 Valve Housing

Air-direction valve housing.

View Titan 0533952

Verified component

Titan 0533957 Valve Plate

Precision plate controlling air distribution.

View Titan 0533957

Verified component

Titan 0533962 Air Motor Piston

Main 10-inch pneumatic piston.

View Titan 0533962

Verified component

Titan 0533256 Trip Rod Assembly

Complete motor reversal trip-rod assembly.

View Titan 0533256

Buying Guide

STEP 1

Confirm the assembly

Use the exact PowrCoat 1045 diagram.

STEP 2

Match the callout

Check part number and component name.

STEP 3

Inspect mating parts

Find the true failure point.

STEP 4

Order verified fitment

Exclude discontinued or uncertain items.

Maintenance

Relieve all stored pressure before service.
Keep air and coating passages clean.
Inspect seals and mating surfaces together.
Check fasteners and connections for alignment.
Record model, part number and service date.
Replace only after confirming the fault.

Repair Planning

Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.

Fast Navigation

Titan 0533935 Air Motor Repair Kit, 10 Inch Titan 0533950 Detent Housing Titan 0533952 Valve Housing Titan 0533957 Valve Plate Titan 0533962 Air Motor Piston Titan 0533256 Trip Rod Assembly

FAQ Section

What type of page is PowrCoat 1045 Air Motor Assembly?+

It is a 44-position exploded 10-inch pneumatic air-motor replacement-parts category.

Which PowrCoat 1045 model is documented?+

Titan identifies cart model 05331045C in the official operation and parts manual.

What is the verified pressure ratio?+

The PowrCoat 1045 uses a 45:1 pressure ratio.

What is the maximum operating pressure?+

Titan specifies 4,500 PSI, or 310 bar.

What is the maximum air inlet pressure?+

Titan specifies 100 PSI, or 6.9 bar.

Why should technicians diagnose before replacement?+

Connected seals, fittings, valves and hard parts can produce similar symptoms.

How should a part number be confirmed?+

Match the supplied category, diagram position, component name and Titan part number.

Can unlisted products be assumed compatible?+

No. Unverified products and relationships should be omitted.

What safety step comes before service?+

Lock the gun, shut off the unit and fully relieve fluid and air pressure.

Why inspect mating components?+

A damaged mating surface can cause a replacement part to fail quickly.

How many product links are included?+

6 verified active product links are included.

Where are related PowrCoat 1045 assemblies found?+

Use the verified Related Searches links at the bottom of the page.
