Titan 0533959 Manifold

Name: Titan 0533959 Manifold
Brand: Titan
SKU: 533959
Price: 239.70 USD
Availability: InStock

Sourced From:

Titan Tools Inc.

Titan Pneumatic Air Motor Manifold

The Titan 0533959 Manifold houses the valve plate assembly and distributes compressed air within compatible PowrCoat air motors. Two manifolds are required per motor and install against dedicated gaskets on the air motor cylinder.

Brand: Titan Part Number: 0533959 Type: Air Manifold Application: Pneumatic Air Motor

Compatibility Table

Brand	Accurate Compatible Titan Machines	Part Number	Parts Serviced With	Technical / Commercial Detail
Titan	PowrCoat 1045, PowrCoat 1064 and PowrCoat 1072	0533959	0533957 valve plate, 0533958 seal, 0533645 gasket, 862-444 screws and 0509292 washers	Diagram item 28; two manifolds are required per air motor.

Replace the adjoining manifold gasket whenever the manifold is removed or renewed. Inspect the valve plate, valve plate seal, mounting screws and washers before completing the air motor repair.

Retail Price: $278.4

You save: $38.7 (13.90%)

Our Price: $239.7

Description

Titan PowrCoat Pneumatic Air Manifold

Support Stable Motor Reversal with Dependable Manifold Airflow Control

Restore compressed-air distribution within compatible PowrCoat pneumatic motors using Titan 0533959. Two manifolds are installed on the air motor cylinder, where they support the valve plates and seals responsible for controlled reciprocating operation.

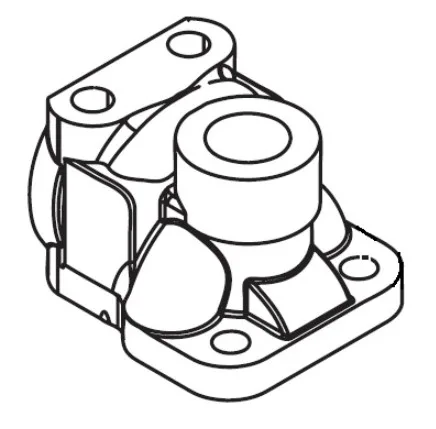

Titan Replacement Part Part No. 0533959 Pneumatic Manifold Diagram Item 28

Technical Category	Product Information
Product Overview	Replacement air manifold identified as item 28 within the shared PowrCoat pneumatic air motor assembly.
Function	Supports the valve plate components and channels compressed air through the air motor during reciprocating piston movement and directional switching.
Industrial Applications	Pneumatic sprayer maintenance for commercial painting, industrial finishing, protective coatings, roof coating, corrosion control, concrete rehabilitation and structural steel projects.
Accurate Compatible Titan Machines	Titan PowrCoat 1045, Titan PowrCoat 1064 and Titan PowrCoat 1072 air-powered airless sprayers.
Accurate Part Number	0533959. The shortened ecommerce reference may appear as 533959.
Required Assembly Quantity	Two manifolds are required per air motor, with one manifold installed at each valve plate location.
Valve Component Relationship	Each manifold supports one 0533957 valve plate and one 0533958 valve plate seal secured by four 0533864 flat-head screws.
Cylinder Sealing Relationship	Each manifold installs against one 0533645 air manifold gasket positioned between the manifold and 0533961 air motor cylinder.
Mounting Hardware	The pair of manifolds is secured with four 862-444 screws and four 0509292 washers.
Compatible Parts & Assemblies	PowrCoat air motor assembly, air motor cylinder, valve plates, valve plate seals, air manifold gaskets and associated mounting hardware.
Related Parts Commonly Serviced Together	Inspect both manifolds, both gaskets, both valve plates, both valve plate seals, all valve plate screws, manifold screws and mounting washers during disassembly.
Common Problems Solved	Replaces a cracked, warped, corroded, damaged or excessively worn manifold that can cause internal air leakage or interfere with pneumatic switching.
Use with Coating Systems	Used within the compressed-air drive section of compatible PowrCoat coating systems and does not normally contact paint or sprayed material.
OEM & Brand Information	Titan-branded replacement manifold matched to the specified valve plate, gasket and cylinder arrangement used in compatible PowrCoat air motors.
Service Kit Relationship	The manifold is not supplied in Titan 0533935 Motor Service Kit. The kit includes the two adjoining 0533645 manifold gaskets, but the manifold must be purchased separately.
Commercial Benefits	Supports component-level pneumatic repair, restores the correct mounting structure for airflow-control parts and reduces the need to replace a complete air motor assembly.

Contractor Product Support

FAQ Section

Review these practical answers before replacing an air manifold in a compatible PowrCoat pneumatic motor.

Frequently Asked Questions
Which Titan sprayers use this air manifold? It is used as item 28 in the shared pneumatic air motor assembly fitted to Titan PowrCoat 1045, PowrCoat 1064 and PowrCoat 1072 sprayers.
How many manifolds are required per air motor? Two manifolds are used per air motor, with one installed at each valve plate and gasket location on the cylinder.
Which gasket installs beneath this manifold? Each manifold installs with one Titan 0533645 air manifold gasket between the manifold and the air motor cylinder.
Which valve parts attach to the manifold? Each manifold supports one 0533957 valve plate and one 0533958 valve plate seal, retained by four 0533864 flat-head screws.
Is the manifold included in the motor service kit? No. Titan 0533935 Motor Service Kit includes the adjoining manifold gaskets but does not include item 28, so the manifold must be ordered separately.
