PowrCoat 1045 · Model 05331045C · 45:1 · 4,500 PSI
Protect the PowrCoat 1045 Air Motor With Clean, Regulated and Lubricated Air
Shop verified FRL parts including the regulator repair kit, 5-micron filter, automatic drain kit, drip control, lubricator bowl and body-connector O-ring kit.
01
Verified page type
Eight-position exploded pneumatic air-preparation replacement-parts category
02
Official cross-check
Diagram positions retained only when confirmed.
03
Diagnosis first
Inspect the complete component group.
04
6 product links
No more than six active links.
Assembly Overview
PowrCoat 1045 Automatic Filter Lubricator Regulator Assembly
The AirCare assembly filters compressed air, regulates inlet pressure, removes collected moisture and meters lubricant before air reaches the motor. Discontinued filter bowl 0533915 is retained only as a documented diagram position and is not linked as a product.
Verified component index: 0533917, 0533910, 0533909, 0533911, 0533915, 0533912, 0533914, 0533913, 0533916, 0533918
Functions Supported by the Assembly
- Filters incoming air through a 5-micron element.
- Regulates pneumatic pressure.
- Automatically drains collected moisture.
- Meters lubricant through the drip-control assembly.
- Seals connected FRL bodies with dedicated O-rings.
Service Applications
- Correcting unstable regulated pressure.
- Servicing restricted airflow.
- Repairing automatic-drain problems.
- Restoring lubricant metering.
- Replacing leaking FRL connector seals.
Troubleshooting
Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.
| Operating symptom |
Inspection points and reason |
Recommended action |
| Pressure drifts |
0533917 regulator kit, gauge and air supply |
Verify upstream pressure before rebuilding the regulator. |
| Airflow is restricted |
0533911 filter and body connector |
Inspect contamination before replacing the element. |
| Moisture remains in the air system |
0533912 automatic drain and filter section |
Confirm drain movement and passage cleanliness. |
| Lubricant is not visible |

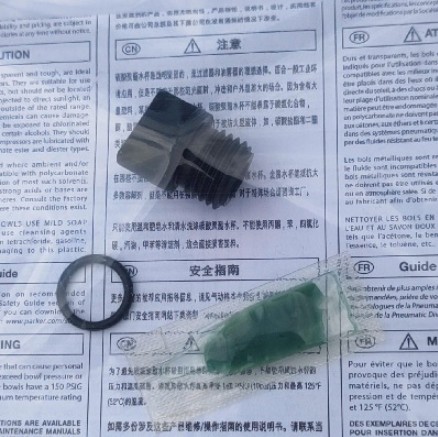

0533914 drip control, 0533913 fill plug and 0533916 bowl |
Check oil level and passages before replacement. |
| Air leaks between bodies |
0533918 O-rings and 0533909 connector |
Inspect alignment and sealing surfaces first. |
| Filter bowl requires replacement |
0533915 documented filter bowl |
The bowl is discontinued; verify current service options rather than linking an unavailable product. |
High-Value Replacement Parts
Only active products verified on the supplied category and matched to working internal destinations are linked.
Verified component
Titan 0533917 Regulator Repair Kit
Regulator service kit.
View Titan 0533917
Verified component
Titan 0533911 Standard 5-Micron Filter
Compressed-air filter element.
View Titan 0533911
Verified component
Titan 0533912 Automatic Drain Kit
Automatic moisture-drain service kit.
View Titan 0533912
Verified component
Titan 0533914 Drip Control Assembly
Lubricator metering component.
View Titan 0533914
Verified component

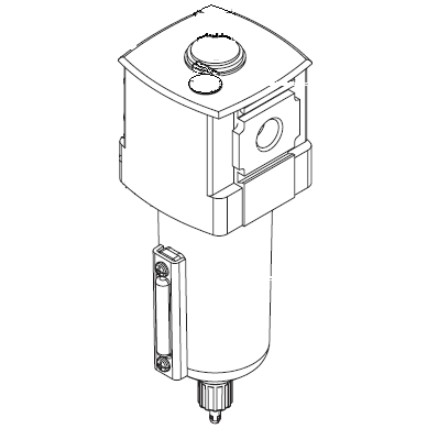

Titan 0533916 Lubricator Bowl
Lubricant reservoir bowl.
View Titan 0533916
Verified component

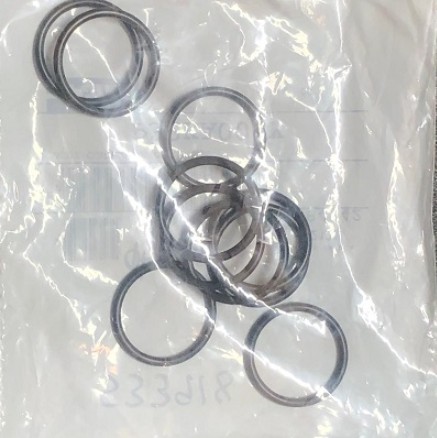

Titan 0533918 Body Connector O-Ring Kit
FRL connector seal kit.
View Titan 0533918
Buying Guide
STEP 1
Confirm the assembly
Use the exact PowrCoat 1045 diagram.
STEP 2
Match the callout
Check part number and component name.
STEP 3
Inspect mating parts
Find the true failure point.
STEP 4
Order verified fitment
Exclude discontinued or uncertain items.
Maintenance
- Relieve all stored pressure before service.
- Keep air and coating passages clean.
- Inspect seals and mating surfaces together.
- Check fasteners and connections for alignment.
- Record model, part number and service date.
- Replace only after confirming the fault.
Repair Planning
Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.
FAQ Section
What type of page is PowrCoat 1045 Automatic Filter Lubricator Regulator Assembly?+
It is a eight-position exploded pneumatic air-preparation replacement-parts category.
Which PowrCoat 1045 model is documented?+
Titan identifies cart model 05331045C in the official operation and parts manual.
What is the verified pressure ratio?+
The PowrCoat 1045 uses a 45:1 pressure ratio.
What is the maximum operating pressure?+
Titan specifies 4,500 PSI, or 310 bar.
What is the maximum air inlet pressure?+
Titan specifies 100 PSI, or 6.9 bar.
Why should technicians diagnose before replacement?+
Connected seals, fittings, valves and hard parts can produce similar symptoms.
How should a part number be confirmed?+
Match the supplied category, diagram position, component name and Titan part number.
Can unlisted products be assumed compatible?+
No. Unverified products and relationships should be omitted.
What safety step comes before service?+
Lock the gun, shut off the unit and fully relieve fluid and air pressure.
Why inspect mating components?+
A damaged mating surface can cause a replacement part to fail quickly.
How many product links are included?+
6 verified active product links are included.
Where are related PowrCoat 1045 assemblies found?+
Use the verified Related Searches links at the bottom of the page.
Repair the PowrCoat 1045 With Verified Information
Use the exact part number, diagram position and operating symptom to narrow the correct replacement.
Search using:
- Titan part number
- Assembly callout
- PowrCoat 1045 model
- Component or repair-kit name
- Operating symptom
