PowrCoat 1045 Upper shroud assembly

PowrCoat 1045 Upper shroud assembly
Titan 0533463 3/16 X 1/4 Screw
Titan 0533463 3/16 X 1/4 Screw

Item No: 1

Part #: 0533463

  OEM Titan Fastening Component Titan 0533463 Screw is an OEM shroud screw used to secure o...

$2.60
QTY:
Titan 0533980 Front Shroud 10
Titan 0533980 Front Shroud 10" (red)

Item No: 2

Part #: 533980

OEM Titan Body Component Titan 0533980 Front Shroud, 10" (Red) is an OEM front cover designed...

Retail Price: $104.70
You save: $10.89 (10.40%)
Our Price: $93.81
QTY:

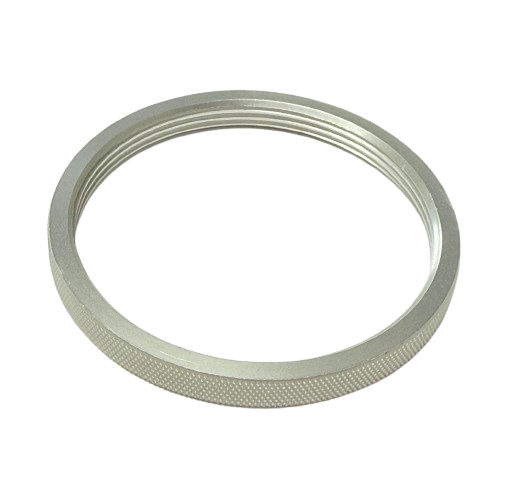

Titan 0533910 Nut
Titan 0533910 Nut

Item No: 3

Part #: 0533910

  OEM Titan Hardware Component Titan 0533910 Nut is an OEM panel mounting nut used to secur...

Retail Price: $39.90
You save: $2.19 (5.49%)
Our Price: $37.71
QTY:

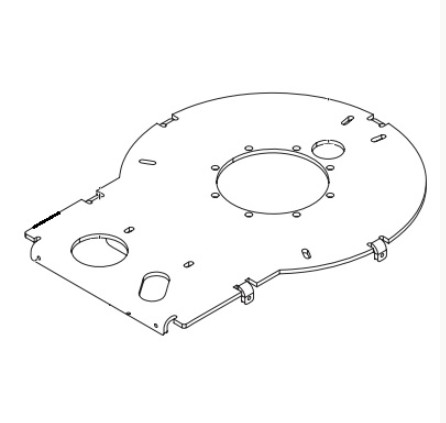

Titan 0533982 Top Shroud, 10
Titan 0533982 Top Shroud, 10" (red)

Item No: 4

Part #: 533982

OEM Titan Body Component Titan 0533982 Top Shroud, 10" (Red) is an OEM top cover designed for...

Retail Price: $276.60
You save: $38.45 (13.90%)
Our Price: $238.15
QTY:

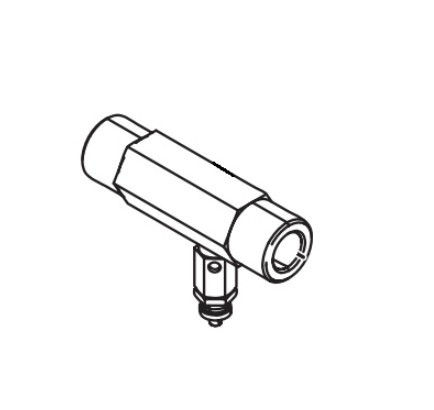

Titan 0533983 Air Inlet Fitting
Titan 0533983 Air Inlet Fitting

Item No: 5

Part #: 0533983

OEM Titan Air System Component Titan 0533983 Air Inlet Fitting is an OEM fitting used to conn...

Retail Price: $55.20
You save: $4.58 (8.30%)
Our Price: $50.62
QTY:
Titan 0533496 Conn. Push-In
Titan 0533496 Conn. Push-In

Item No: 6

Part #: 0533496

Titan 0533496 Conn. Push-In is an OEM quick-connect fitting that joins fluid or air lines on Air...

$9.20
QTY:
Titan 0533984 Tube Air
Titan 0533984 Tube Air

Item No: 7

Part #: 0533984

OEM Titan Air System Component Titan 0533984 Tube, Air is an OEM air tube used in the upper h...

$2.60
QTY:
Titan 0533985 Lubricator Drain Hose
Titan 0533985 Lubricator Drain Hose

Item No: 8

Part #: 0533985

OEM Titan Lubrication System Component Titan 0533985 Lubricator Drain Hose is an OEM drain ho...

$8.40
QTY:
Titan 0533986 Nipple
Titan 0533986 Nipple

Item No: 9

Part #: 0533986

OEM Titan Fluid System Component Titan 0533986 Nipple is an OEM fitting used in the fluid sys...

Retail Price: $39.50
You save: $2.17 (5.49%)
Our Price: $37.33
QTY:
Titan 0533987 Elbow, 90 DEG
Titan 0533987 Elbow, 90 DEG

Item No: 10

Part #: 0533987

OEM Titan Fitting Titan 0533987 Elbow, 90 DEG is an OEM street elbow fitting used in the uppe...

$28.70
QTY:

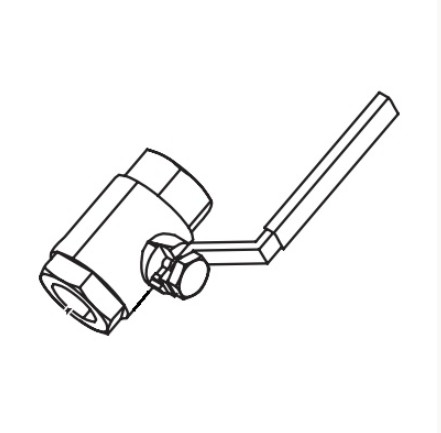

Titan 0533988 Ball Valve
Titan 0533988 Ball Valve

Item No: 11

Part #: 0533988

OEM Titan Fluid System Component Titan 0533988 Ball Valve is an OEM shut-off valve used in th...

Retail Price: $43.10
You save: $3.28 (7.61%)
Our Price: $39.82
QTY:
Titan 0533989 Nipple
Titan 0533989 Nipple

Item No: 12

Part #: 0533989

OEM Titan Fitting Titan 0533989 Nipple is an OEM fitting used in the upper housing assembly o...

$22.80
QTY:
Titan 600-086 Pressure Gauge
Titan 600-086 Pressure Gauge

Item No: 13

Part #: 600-086

OEM Titan Instrumentation Component Titan 600-086 Pressure Gauge is an OEM instrument used to...

Retail Price: $67.30
You save: $5.59 (8.31%)
Our Price: $61.71
QTY:
Titan 0533991 Left Shroud, Red
Titan 0533991 Left Shroud, Red

Item No: 14

Part #: 533991

Titan PowrCoat Upper Shroud Component The Titan 0533991 Left Shroud, Red replaces the left-si...

Retail Price: $128.10
You save: $13.32 (10.40%)
Our Price: $114.78
QTY:
Titan 0533491 Elbow
Titan 0533491 Elbow

Item No: 15

Part #: 0533491

  OEM Titan Fluid Component Titan 0533491 Elbow is an OEM push-in elbow fitting used to con...

$10.10
QTY:

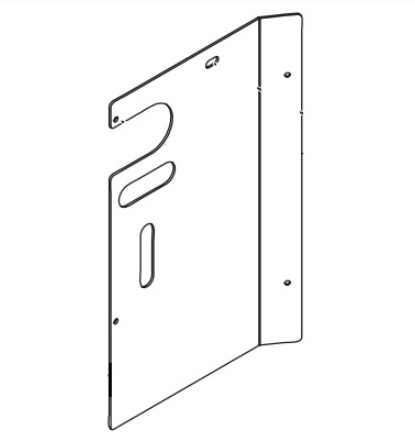

Titan 0533994 Right Shroud, red
Titan 0533994 Right Shroud, red

Item No: 16

Part #: 533994

Titan PowrCoat Right Enclosure Panel The Titan 0533994 Right Shroud, Red replaces the right-s...

Retail Price: $128.10
You save: $13.32 (10.40%)
Our Price: $114.78
QTY:

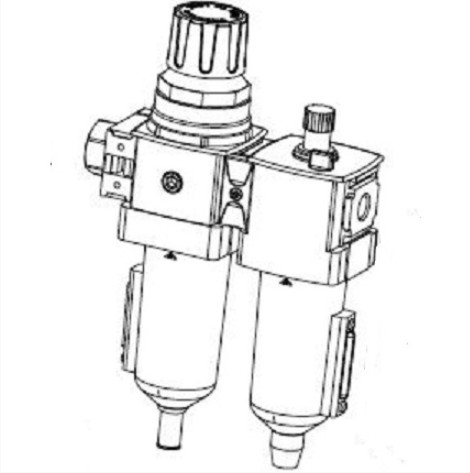

Titan 0533210A Filter with Regulator Lubricator Assembly
Titan 0533210A Filter with Regulator Lubricator Assembly

Item No: 19

Part #: 0533210A

Titan PowrCoat Pneumatic Air Preparation Assembly The Titan 0533210A Filter with Regulator Lu...

Retail Price: $951.30
You save: $152.21 (16.00%)
Our Price: $799.09
QTY:
Titan 0533998 Bracket, shroud (red)
Titan 0533998 Bracket, shroud (red)

Item No: 20

Part #: 0533998

Titan PowrCoat Shroud Mounting ComponentThe Titan 0533998 Bracket, Shroud (Red) securely mounts and ...

$27.10
QTY:
Titan 0533999 Bracket, frl (red)
Titan 0533999 Bracket, frl (red)

Item No: 21

Part #: 0533999

Titan PowrCoat FRL Mounting Component The Titan 0533999 Bracket, FRL (Red) securely supports th...

Retail Price: $40.40
You save: $3.07 (7.60%)
Our Price: $37.33
QTY:
Titan 0533768 Snap Bushing
Titan 0533768 Snap Bushing

Item No: 22

Part #: 0533768

Titan PowrCoat Upper Shroud Component The Titan 0533768 Snap Bushing installs in the upper shro...

$28.80
QTY:

PowrCoat 1045 · Model 05331045C · 45:1 · 4,500 PSI

Protect and Service the PowrCoat 1045 Upper Housing With Verified Parts

Shop verified red shrouds, air-control fittings, pressure gauge, shutoff valve, FRL assembly, drain hose and mounting brackets from the PowrCoat 1045 upper housing diagram.

01
Verified page type

22-position exploded upper-shroud and pneumatic-control replacement-parts category

02
Official cross-check

Diagram positions retained only when confirmed.

03
Diagnosis first

Inspect the complete component group.

04
6 product links

No more than six active links.

Assembly Overview

PowrCoat 1045 Upper Shroud Assembly

The upper-shroud diagram combines protective red panels with the compressed-air inlet, shutoff valve, pressure gauge, FRL assembly, drain routing and mounting brackets. These parts protect the 10-inch air motor while giving technicians access to the air preparation and control system.

Verified component index: 0533463, 0533980, 0533910, 0533982, 0533983, 0533496, 0533984, 0533985, 0533986, 0533987, 0533988, 0533989, 600-086, 0533991, 0533491, 0533994, 0533210A, 0533998, 0533999, 0533768

Functions Supported by the Assembly

  • Protects the air motor and pneumatic controls from overspray and impact.
  • Routes incoming compressed air through the shutoff hardware.
  • Displays regulated air pressure through gauge 600-086.
  • Supports the complete FRL assembly 0533210A.
  • Routes moisture and lubricant drainage through verified tubing.

Service Applications

  • Replacing cracked or missing red shrouds.
  • Repairing air-control leaks.
  • Restoring reliable pressure indication.
  • Servicing the FRL mounting area.
  • Correcting damaged drain-hose routing.

Troubleshooting

Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.

Operating symptom Inspection points and reason Recommended action
Shroud rattles or will not align 0533463 screws, 0533910 nuts and red shroud panels Inspect mounting holes and panel distortion before replacing hardware.
Air cannot be isolated 0533988 ball valve, 0533986 nipple and 0533987 elbow Confirm valve travel and leak location before replacement.
Gauge reading is unstable 600-086 gauge, 0533989 nipple and upstream FRL Verify supply and regulated pressure before replacing the gauge.
Moisture or oil drains incorrectly 0533985 drain hose and FRL drain points Inspect hose routing and blockage before replacement.
Air motor controls are exposed 0533980, 0533982, 0533991 and 0533994 shrouds Replace only the confirmed damaged panel after checking brackets.
FRL assembly moves or leaks 0533210A assembly, 0533999 bracket and connector fittings Inspect bracket alignment and the exact leak path before replacement.

High-Value Replacement Parts

Only active products verified on the supplied category and matched to working internal destinations are linked.

Verified component

Titan 0533980 Front Shroud, 10 Inch Red

Front protective panel for the upper housing.

View Titan 0533980
Verified component

Titan 0533982 Top Shroud, 10 Inch Red

Top protective cover around the air motor.

View Titan 0533982
Verified component

Titan 0533988 Ball Valve

Verified pneumatic shutoff valve.

View Titan 0533988
Verified component

Titan 600-086 Pressure Gauge

Air-pressure monitoring gauge.

View Titan 600-086
Verified component

Titan 0533991 Left Shroud, Red

Left-side protective enclosure panel.

View Titan 0533991
Verified component

Titan 0533210A Filter Regulator Lubricator Assembly

Complete pneumatic air-preparation assembly.

View Titan 0533210A

Buying Guide

STEP 1

Confirm the assembly

Use the exact PowrCoat 1045 diagram.

STEP 2

Match the callout

Check part number and component name.

STEP 3

Inspect mating parts

Find the true failure point.

STEP 4

Order verified fitment

Exclude discontinued or uncertain items.

Maintenance

  • Relieve all stored pressure before service.
  • Keep air and coating passages clean.
  • Inspect seals and mating surfaces together.
  • Check fasteners and connections for alignment.
  • Record model, part number and service date.
  • Replace only after confirming the fault.

Repair Planning

Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.

Fast Navigation

FAQ Section

What type of page is PowrCoat 1045 Upper Shroud Assembly?+
It is a 22-position exploded upper-shroud and pneumatic-control replacement-parts category.
Which PowrCoat 1045 model is documented?+
Titan identifies cart model 05331045C in the official operation and parts manual.
What is the verified pressure ratio?+
The PowrCoat 1045 uses a 45:1 pressure ratio.
What is the maximum operating pressure?+
Titan specifies 4,500 PSI, or 310 bar.
What is the maximum air inlet pressure?+
Titan specifies 100 PSI, or 6.9 bar.
Why should technicians diagnose before replacement?+
Connected seals, fittings, valves and hard parts can produce similar symptoms.
How should a part number be confirmed?+
Match the supplied category, diagram position, component name and Titan part number.
Can unlisted products be assumed compatible?+
No. Unverified products and relationships should be omitted.
What safety step comes before service?+
Lock the gun, shut off the unit and fully relieve fluid and air pressure.
Why inspect mating components?+
A damaged mating surface can cause a replacement part to fail quickly.
How many product links are included?+
6 verified active product links are included.
Where are related PowrCoat 1045 assemblies found?+
Use the verified Related Searches links at the bottom of the page.

Repair the PowrCoat 1045 With Verified Information

Use the exact part number, diagram position and operating symptom to narrow the correct replacement.

Search using:
  • Titan part number
  • Assembly callout
  • PowrCoat 1045 model
  • Component or repair-kit name
  • Operating symptom

Related PowrCoat 1045 Searches
