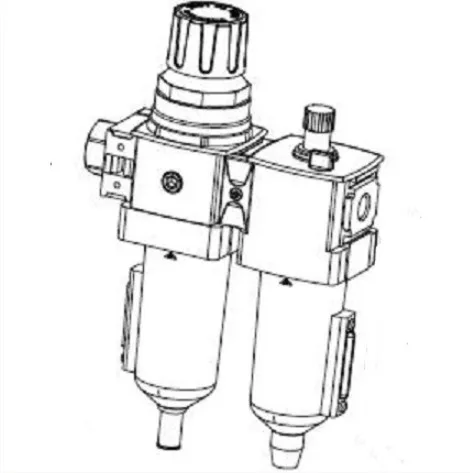

Titan 0533210A Filter with Regulator Lubricator Assembly

Name: Titan 0533210A Filter with Regulator Lubricator Assembly
Brand: Titan
SKU: 0533210A
Price: 799.09 USD
Availability: InStock

Sourced From:

Titan Tools Inc.

Titan PowrCoat Pneumatic Air Preparation Assembly

The Titan 0533210A Filter with Regulator Lubricator Assembly conditions incoming compressed air for compatible PowrCoat sprayers by filtering contaminants, regulating operating pressure, and supplying controlled lubrication to support dependable pneumatic performance during demanding commercial and industrial coating applications.

Brand: Titan Part Number: 0533210A Type: FRL Assembly Application: Pneumatic Air System

Compatibility Table

Brand	Accurate compatible Titan machine(s)	Part Number	Parts / assemblies serviced with	Technical / Commercial Detail
Titan	PowrCoat 1045: 05331045C, 05331045W; PowrCoat 1064: 05331064C, 05331064W; PowrCoat 1072: 05331072C, 05331072W	0533210A	Upper-shroud assembly; 0533999 FRL bracket; air inlet, pressure gauge, ball valve, drain hose and pneumatic lines	Combined air filter, moisture separator, pressure regulator and automatic lubricator; assembly position 19

Contractors should inspect the air supply, drain hose, pressure gauge, fittings, mounting bracket, and connecting tubes before installation to prevent contamination, leakage, pressure instability, or insufficient air-motor lubrication.

Retail Price: $951.3

You save: $152.21 (16.00%)

Our Price: $799.09

Description

Titan Pneumatic Air Preparation Assembly

Eliminate Contaminated Airflow Before Demanding Industrial Coating Operations Begin Successfully

Improve compressed-air management with the Titan 0533210A Filter with Regulator Lubricator Assembly. This integrated pneumatic component filters incoming air, controls operating pressure, separates moisture, and delivers lubrication that supports dependable air-motor performance across compatible PowrCoat and SuperCoat spraying systems.

Brand: Titan Part Number: 0533210A Type: FRL Assembly Application: Pneumatic Air System

Technical Category	Product Information
Product Overview	Combined compressed-air filter, moisture separator, pressure regulator, and automatic lubricator assembly for compatible Titan air-powered airless sprayers.
Function	Conditions incoming compressor air, removes moisture and contaminants, regulates air-motor pressure, and introduces controlled lubrication into the pneumatic system.
Industrial Applications	Structural steel coating, corrosion control, roofing, fire-protection materials, architectural finishing, bridge maintenance, concrete rehabilitation, facility service, and industrial refinishing.
Accurate Compatible Titan Machines	Titan PowrCoat 1045 cart 05331045C and wall 05331045W; PowrCoat 1064 cart 05331064C and wall 05331064W; PowrCoat 1072 cart 05331072C and wall 05331072W; Titan SuperCoat SC30, SC40, SC45, SC60, and SC75 cart or wall configurations using this FRL assembly.
Accurate Part Number	0533210A; PowrCoat upper-shroud position 19 and SuperCoat main-assembly position 24.
Compatible Parts & Assemblies	PowrCoat upper-shroud and pneumatic inlet assemblies; SuperCoat main assembly; air regulator, filter bowl, filter element, lubricator, pressure gauge, air tubing, valves, adapters, and drain components.
Related Parts Commonly Serviced Together	0533999 FRL bracket, 0533911 filter element, 0533915 filter bowl, 600-086 pressure gauge, 0533985 lubricator drain hose, 814-007 nipple, 9885627 adapter, 191-664 elbow, and 9885628 nipple.
Common Problems Solved	Addresses contaminated airflow, moisture accumulation, unstable air pressure, inadequate air-motor lubrication, sticking pneumatic components, air leakage, and reduced pump consistency.
Use with Coating Systems	Supports high-pressure pneumatic airless systems spraying latex, dispersion coatings, primers, protective materials, anti-corrosive coatings, zinc-rich materials, thick films, and compatible roofing products.
OEM & Brand Information	Titan replacement air-preparation assembly engineered for the specified PowrCoat and SuperCoat pneumatic equipment configurations.
Commercial Benefits	Helps stabilize production pressure, reduce moisture-related interruptions, protect air-motor components, improve equipment reliability, and limit downtime caused by contaminated compressor air.

Contractor Service Note

Inspect the filter element, bowl, drain line, pressure gauge, fittings, lubricator oil level, mounting hardware, and compressor supply before installation. Correcting contaminated hoses or excessive inlet moisture protects the replacement assembly and promotes stable air-motor operation.

FAQ Section

Review these contractor-focused fitment, maintenance, and installation details before servicing the pneumatic air system.

Contractor Questions and Answers
Which Titan machines use this FRL assembly? It fits Titan PowrCoat 1045, 1064, and 1072 cart and wall models, plus SuperCoat SC30, SC40, SC45, SC60, and SC75 configurations using part 0533210A.
What does the assembly do? It filters incoming air, separates moisture, regulates pneumatic pressure, and supplies controlled lubrication for the sprayer’s air-driven components.
When should contractors replace the complete assembly? Replacement may be appropriate when the housing is damaged, pressure cannot be controlled, air leaks persist, moisture separation fails, or lubrication remains unreliable after individual component service.
Can contaminated compressor air damage the sprayer? Yes. Dirt and moisture can accelerate pneumatic wear, restrict airflow, affect pressure stability, promote corrosion, and interrupt consistent pump cycling.
What should be checked after installation? Confirm secure fittings, correct airflow direction, stable regulator response, proper drainage, adequate lubricator oil, leak-free operation, and smooth air-motor cycling before returning the sprayer to production.
