Shop verified PowrCoat 1045 pump parts, including the repair kit, pump block, cylinder, displacement rod, piston-seat assembly and foot-valve assembly.

Verified page type

24-position exploded high-pressure fluid-pump replacement-parts category

Official cross-check

Diagram positions retained only when confirmed.

Diagnosis first

Inspect the complete component group.

6 product links

No more than six active links.

Assembly Overview

PowrCoat 1045 Fluid Pump Assembly

Titan’s 24-position fluid-pump diagram covers the upper and lower packing groups, pump block, outlet housing, cylinder, displacement rod, piston valve, ball guide, inlet ball and foot valve. These components convert air-motor movement into high-pressure coating flow.

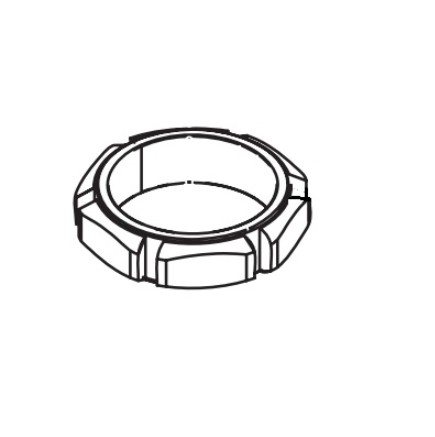

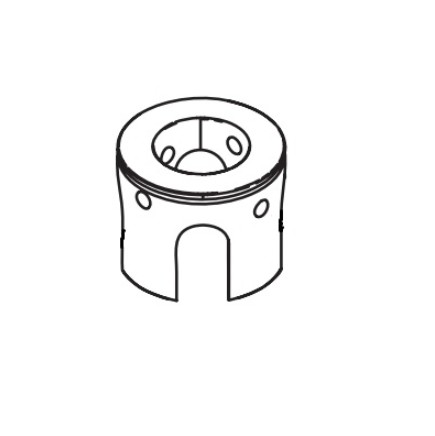

Verified component index: 0533936, 0533671, 0533672, 0533673, 0533650, 0533651, 0533652, 0533653, 0533674, 0533675, 0533654, 0533676, 0533655, 0533677, 211-129, 0533678, 0533679, 0533680, 0533681, 315-700, 0533683, 0533684, 9832132, 0533669, 0533670, 0533668

Functions Supported by the Assembly

Draws coating through the foot valve during intake.
Pressurizes material through the piston-seat group.
Maintains sealing through PTFE and leather packing groups.
Transfers air-motor movement through the displacement rod.
Contains the working stroke within cylinder 0533676.

Service Applications

Correcting upper-packing leakage.
Restoring weak priming or pressure loss.
Repairing uneven pump stroke speed.
Replacing scored rods or cylinders.
Planning a complete fluid-pump rebuild.

Troubleshooting

Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.

Operating symptom	Inspection points and reason	Recommended action
Upper packing leaks	upper glands, packings, spring and 0533677 rod	Inspect rod finish and packing-stack condition before rebuilding.
Pump loses pressure	211-129 ball, 0533679 piston seat and packing groups	Diagnose internal bypass before replacing the piston assembly.
Poor priming	0533684 foot valve, 315-700 ball and 0533683 seat	Clean and inspect inlet sealing surfaces before replacement.
Pump moves faster on one stroke	piston valve and foot-valve groups	Compare both valve groups before ordering parts.
New packing fails quickly	0533677 rod, 0533676 cylinder and pump alignment	Inspect for scoring or misalignment before installing another kit.

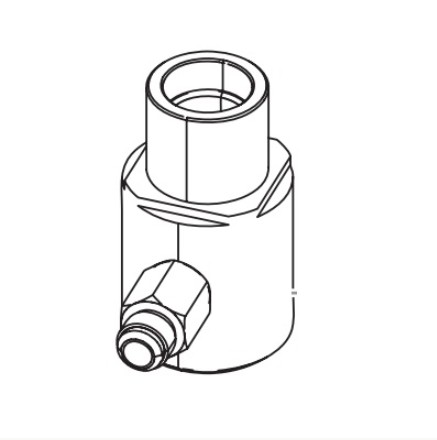

Fluid leaks at threaded joints	0533672 block, 0533673 outlet housing and seals	Identify the exact seal or damaged thread before replacement.

High-Value Replacement Parts

Only active products verified on the supplied category and matched to working internal destinations are linked.

Verified component

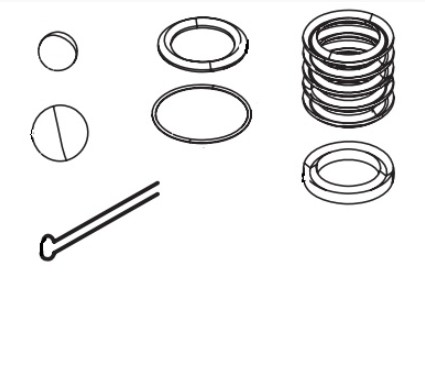

Titan 0533936 Fluid Pump Repair Kit

Verified pump rebuild kit.

View Titan 0533936

Verified component

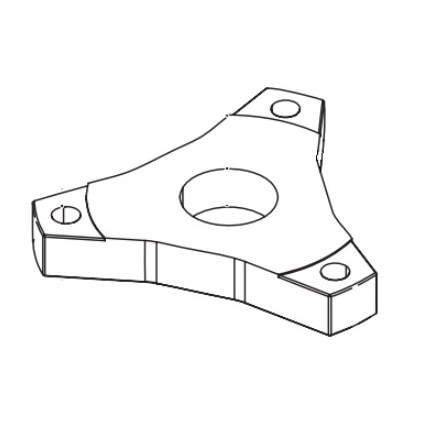

Titan 0533672 Pump Block

Central structural pump housing.

View Titan 0533672

Verified component

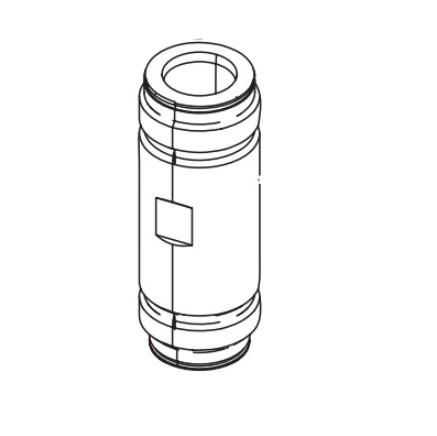

Titan 0533676 Cylinder

Working high-pressure pump cylinder.

View Titan 0533676

Verified component

Titan 0533677 Displacement Rod

Hard-chrome reciprocating pump rod.

View Titan 0533677

Verified component

Titan 0533679 Piston Seat Assembly

Outlet piston sealing assembly.

View Titan 0533679

Verified component

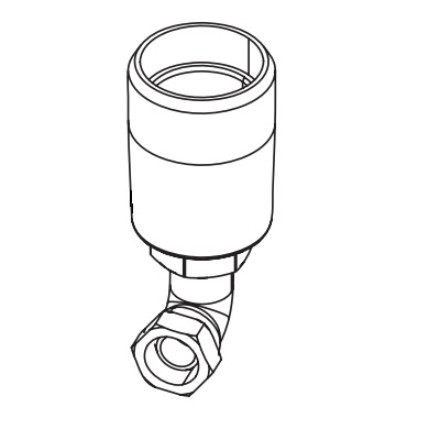

Titan 0533684 Foot Valve Assembly

Complete material-intake valve assembly.

View Titan 0533684

Buying Guide

STEP 1

Confirm the assembly

Use the exact PowrCoat 1045 diagram.

STEP 2

Match the callout

Check part number and component name.

STEP 3

Inspect mating parts

Find the true failure point.

STEP 4

Order verified fitment

Exclude discontinued or uncertain items.

Maintenance

Relieve all stored pressure before service.
Keep air and coating passages clean.
Inspect seals and mating surfaces together.
Check fasteners and connections for alignment.
Record model, part number and service date.
Replace only after confirming the fault.

Repair Planning

Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.

Fast Navigation

Titan 0533936 Fluid Pump Repair Kit Titan 0533672 Pump Block Titan 0533676 Cylinder Titan 0533677 Displacement Rod Titan 0533679 Piston Seat Assembly Titan 0533684 Foot Valve Assembly

FAQ Section

What type of page is PowrCoat 1045 Fluid Pump Assembly?+

It is a 24-position exploded high-pressure fluid-pump replacement-parts category.

Which PowrCoat 1045 model is documented?+

Titan identifies cart model 05331045C in the official operation and parts manual.

What is the verified pressure ratio?+

The PowrCoat 1045 uses a 45:1 pressure ratio.

What is the maximum operating pressure?+

Titan specifies 4,500 PSI, or 310 bar.

What is the maximum air inlet pressure?+

Titan specifies 100 PSI, or 6.9 bar.

Why should technicians diagnose before replacement?+

Connected seals, fittings, valves and hard parts can produce similar symptoms.

How should a part number be confirmed?+

Match the supplied category, diagram position, component name and Titan part number.

Can unlisted products be assumed compatible?+

No. Unverified products and relationships should be omitted.

What safety step comes before service?+

Lock the gun, shut off the unit and fully relieve fluid and air pressure.

Why inspect mating components?+

A damaged mating surface can cause a replacement part to fail quickly.

How many product links are included?+

6 verified active product links are included.

Where are related PowrCoat 1045 assemblies found?+

Use the verified Related Searches links at the bottom of the page.

Repair the PowrCoat 1045 With Verified Information

Use the exact part number, diagram position and operating symptom to narrow the correct replacement.

Search using:

Titan part number
Assembly callout
PowrCoat 1045 model
Component or repair-kit name
Operating symptom
