Titan Impact 1140 Airless Sprayer Parts
Shop genuine OEM Titan Impact 1140 Airless Sprayer Parts using organized factory exploded diagrams. Find pump, fluid-section, drive, motor, electrical, filter, cart and related replacement components for professional maintenance and repair. Select the applicable assembly, locate the numbered diagram callout and verify the complete Titan OEM part number before purchasing.
Find the Correct Parts for Your Titan Impact 1140
The Titan Impact 1140 is a professional electric airless sprayer designed for high-production coating applications. Maintaining the machine correctly requires identifying replacement components by the exact sprayer model, applicable factory assembly, exploded-view callout and Titan OEM part number.
This category organizes Impact 1140 service parts around the major machine systems so contractors, technicians, rental operations and maintenance departments can move directly from the area being repaired to the corresponding factory parts diagram.
Choose Your Titan Impact 1140 Parts Assembly
Start with the machine system being serviced. Use the applicable factory diagram to locate the component, identify its numbered callout and verify the complete OEM part number before ordering.
Which Impact 1140 Parts Diagram Should You Check?
| Repair Area | Start Here | Typical Components |
|---|---|---|
| Electrical / Controls | Main Assembly | Motor-area parts, controller, transducer, wiring and related hardware |
| Mechanical Drive | Drive Assembly | Slider, gears, housings and power-transmission components |
| Pump / Fluid Delivery | Fluid Section | Piston, packings, cylinder, valves, seals and pump-service parts |
| Fluid Filtration | Filter Assembly | Filter element, housing, seals, fittings and related parts |
| Cart / Mobility | Cart Assembly | Frame, handle, wheels, bushings and mounting hardware |

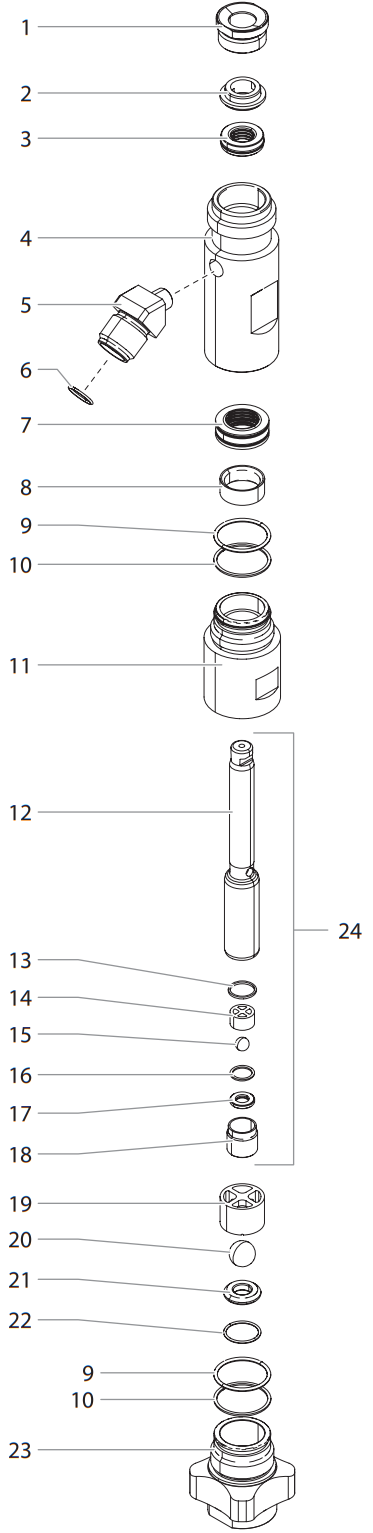

Titan Impact 1140 Fluid Section Parts
The fluid section converts the mechanical movement of the drive system into coating flow and spray pressure. Packing wear, contaminated valves, damaged sealing surfaces or worn piston components can contribute to pressure loss, leakage, poor priming and irregular pump operation.
When rebuilding the Impact 1140 pump, identify the exact fluid-section configuration from the factory diagram before selecting packings, valves, piston components, seals or repair kits. Do not choose pump parts solely from the machine family name or component appearance.
Titan Impact 1140 Drive Assembly Parts
The drive system transfers power from the electric motor to the reciprocating fluid section. Worn gears, slider components, bearings or associated drive hardware can affect pump movement and may produce abnormal noise, vibration or inconsistent mechanical operation.
Use the Impact 1140 drive exploded diagram to identify the affected component before disassembly. Mechanical parts that appear similar across Titan Impact models should not be assumed interchangeable without OEM part-number confirmation.

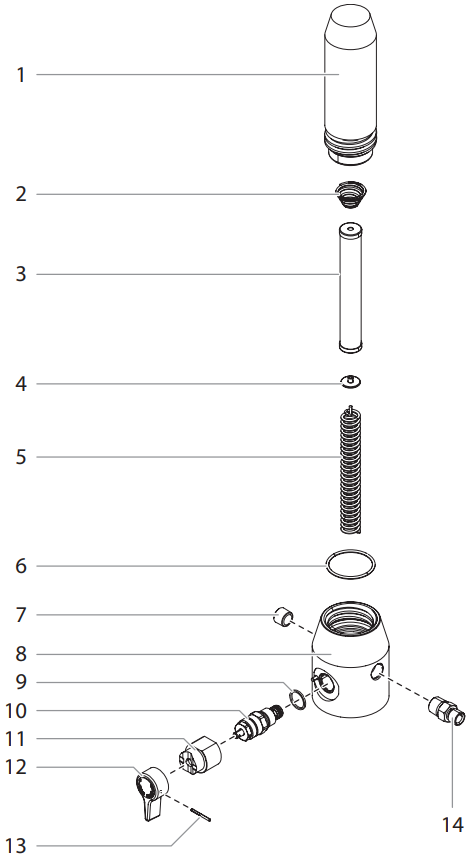

Impact 1140 Filter and Fluid-System Parts
The high-pressure filtration system helps capture unwanted material before coating reaches the spray hose and gun. Proper filtration helps maintain material flow and reduces contamination reaching downstream spray components.
During service, inspect the filter element, housing, seals, fittings and associated fluid passages for contamination, restriction, wear or damage. Match replacement components to the applicable Impact 1140 factory diagram.
Match the Impact 1140 Symptom to the Correct System
| Symptom | Inspection Starting Point | Parts Area |
|---|---|---|
| Will Not Prime | Material supply, intake system, inlet valve and fluid section | Fluid Section |
| Low / Unstable Pressure | Packings, piston, valves, seals, filter and material supply | Fluid Section / Filter |
| Fluid Leakage | Packings, seals, fittings and pump components | Fluid Section |
| Abnormal Mechanical Noise | Gears, slider, bearings, housings and related drive components | Drive Assembly |
| Electrical / Pressure-Control Problem | Power supply, wiring, controls, transducer and motor-related components | Main Assembly |

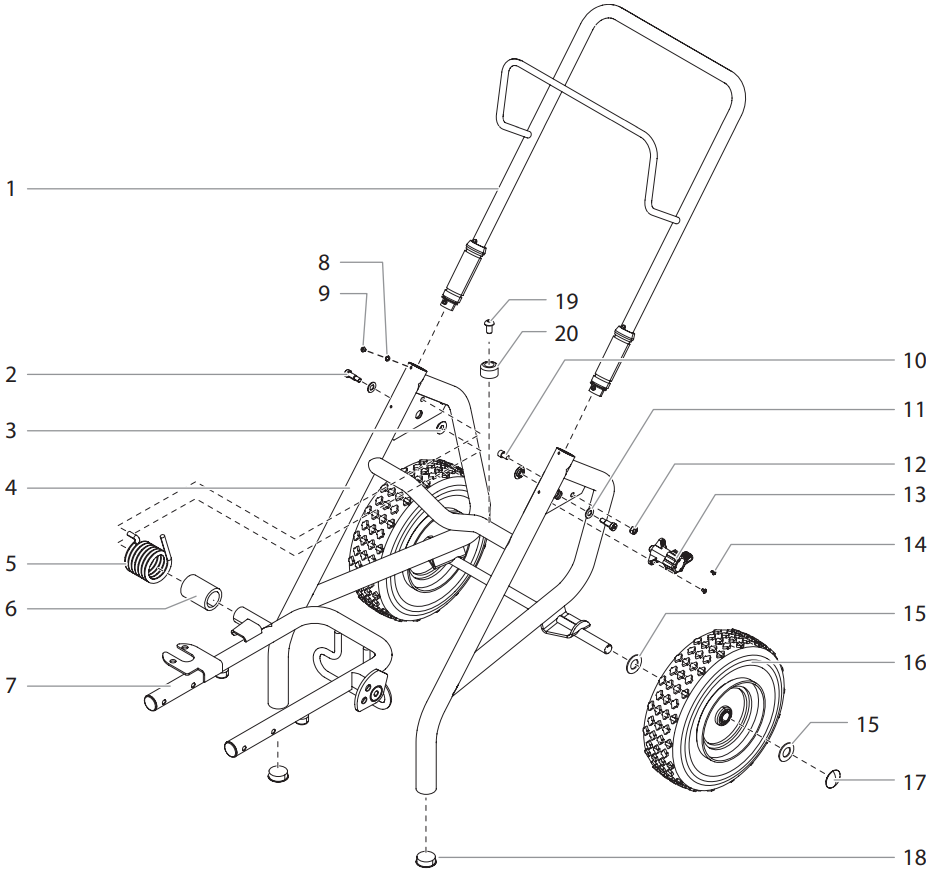

| Cart / Wheel Damage | Frame, handle, wheel and mounting components | Cart Assembly |
Find the Correct Impact 1140 Part in Four Steps
Verify Impact 1140 Fitment Before Ordering
Titan has produced multiple Impact models and later machine configurations with similar model-family names. Do not assume that a component from another Impact model or newer Impact 1140-series machine is interchangeable with the parts shown for this Impact 1140. Use the exact factory diagram and OEM part number as the primary fitment reference.
Buy Titan Impact 1140 Parts by OEM Part Number
Ordering by appearance alone can lead to incorrect fitment. Similar-looking Titan components can differ in dimensions, mounting arrangement, electrical specification, pressure-control design, pump configuration or machine generation.
For accurate identification, use the sequence Impact 1140 model → assembly diagram → numbered callout → Titan OEM part number. This is particularly important when selecting fluid-section, drive, electrical and pressure-control components.
Relieve Pressure Before Servicing the Impact 1140
Airless spraying equipment operates at pressures capable of causing serious fluid-injection injury. Shut down the sprayer, disconnect electrical power and follow the applicable Titan pressure-relief procedure before inspection, disassembly or service. Never loosen a pressurized gun, hose, filter, fitting, valve or fluid-section component.
Need Parts for Another Titan Impact Sprayer?
If your machine is not an Impact 1140, return to the complete Titan Impact Sprayer Parts directory and select the exact model before purchasing replacement components.
Browse All Titan Impact Sprayer Parts → Choose your exact Titan Impact model and shop genuine OEM replacement parts using factory exploded diagrams.Buy Titan Impact 1140 Airless Sprayer Parts
Confirm your Impact 1140, select the applicable factory assembly, locate the component on the exploded drawing and verify the complete Titan OEM part number before checkout.
SHOP IMPACT 1140 PARTS →Titan Impact 1140 Parts FAQ
Where can I buy genuine Titan Impact 1140 parts?
How do I find the correct Impact 1140 pump part?
Where can I find Titan Impact 1140 drive parts?
What should I inspect if my Impact 1140 will not build pressure?
Can I identify an Impact 1140 replacement part by appearance?
Are parts from other Titan Impact models interchangeable with the Impact 1140?
Should I replace a part based only on an operating symptom?
What information helps confirm an Impact 1140 replacement part?
Not Sure Which Impact 1140 Part You Need?
Have the machine model, serial information, assembly name, diagram callout and any Titan OEM number visible on the original component available. These references provide the strongest basis for identifying the correct Impact 1140 replacement component.
