Shop Genuine OEM Titan 3300 PSI Airless Hoses
Compare genuine OEM Titan 3300 PSI Airless Hoses by inside diameter, length, main or whip configuration, end connection and exact Titan part number. Titan’s current manufacturer matrix includes 3/16", 1/4", 3/8" and 1/2" configurations with NPSM connections. Select the hose as part of the complete pressure-bearing spray system rather than by thread fit alone.
Titan 3300 PSI Hose Size & Part Number Guide
Titan currently lists fourteen configurations in its 3300 PSI airless-hose family. The manufacturer distinguishes them by hose ID, length, whip or main-hose configuration and NPSM end arrangement. Textile braid is specifically identified only on designated configurations; it should not be applied as a construction description to the entire family.
| Titan Part Number | Hose ID | Length | Configuration | End Connection | Construction Note | Manufacturer Listing |
|---|---|---|---|---|---|---|
| 291004 | 3/16" | 3' | Whip Hose | 1/4" NPSM (F/M) | 3300 PSI family | Current Titan matrix |
| 316-506 | 3/16" | 5' | Whip Hose | 1/4" NPSM (F/M) | 3300 PSI family | Current Titan matrix |
| 550-222 | 3/16" | 9' | Whip Hose | 1/4" NPSM (F/M) | 3300 PSI family | Current Titan matrix |

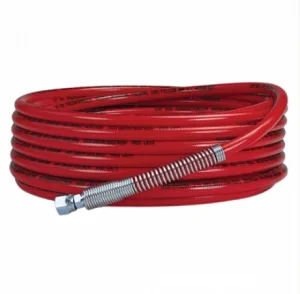

| 291007 | 3/16" | 25' | Main Hose | 1/4" NPSM (FBE) | 3300 PSI family | Current Titan matrix |
| 291008 | 3/16" | 50' | Main Hose | 1/4" NPSM (FBE) | 3300 PSI family | Current Titan matrix |
| 316-533 | 1/4" | 6' | Whip Hose | 1/4" NPSM (FBE) | Textile braid; Titan notes textile-braided hoses contain spring guards at both ends | Current Titan matrix |
| 550-227 | 1/4" | 6' | Whip Hose | 1/4" NPSM (F/M) | 3300 PSI family | Current Titan matrix |
| 316-513 | 1/4" | 25' | Main Hose | 1/4" NPSM (FBE) | 3300 PSI family | Current Titan matrix |
| 316-505 | 1/4" | 50' | Main Hose | 1/4" NPSM (FBE) | 3300 PSI family | Current Titan matrix |

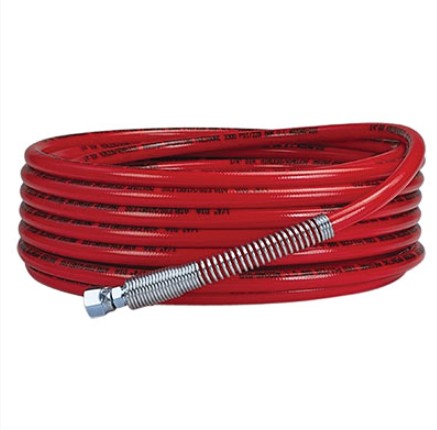

| 508342 | 3/8" | 25' | Main Hose | 3/8" NPSM (FBE) | 3300 PSI family | Current Titan matrix |
| 291006 | 3/8" | 50' | Main Hose | 3/8" NPSM (FBE) | 3300 PSI family | Current Titan matrix |

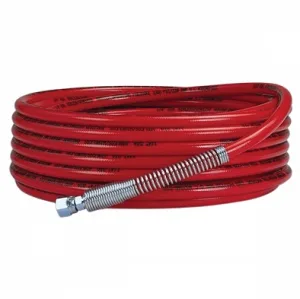

| 225-112 | 1/2" | 25' | Main Hose | 1/2" NPSM (FBE) | Textile braid; spring guards at both ends per Titan textile-braid note | Current Titan matrix |
| 250-112 | 1/2" | 50' | Main Hose | 1/2" NPSM (FBE) | Textile braid; spring guards at both ends per Titan textile-braid note | Current Titan matrix |
| 2441268 | 1/4" | 9' | Main Hose | 1/4" NPSM (FBE) | 3300 PSI family | Current Titan matrix |
How Do I Choose the Correct Titan 3300 PSI Airless Hose?
Start with the complete spray system. A hose belongs to the pressure-bearing fluid path, so selection should account for more than the brand name or whether the threads physically connect.
| Step | Verify | Selection Check |
|---|---|---|
| 1 | Maximum system operating pressure | Every pressure-bearing accessory must be appropriately rated for the system. |
| 2 | Hose working-pressure class | Confirm the required 3300 PSI hose class from the applicable equipment/accessory documentation. |
| 3 | Inside diameter | Choose the manufacturer-specified 3/16", 1/4", 3/8" or 1/2" configuration. |
| 4 | Length | Match the required hose arrangement rather than selecting length independently. |
| 5 | Main hose or whip hose | Titan catalogs these as distinct configurations. |
| 6 | End connection | Confirm NPSM size and F/M or FBE arrangement. |
| 7 | Equipment configuration | Use the applicable Titan manual or parts documentation when fitment is equipment-specific. |
| 8 | Exact Titan part number | Confirm the manufacturer number before ordering. |
Titan 3300 PSI Main Hose vs Whip Hose
Titan lists both longer fluid hoses and short whip hoses within the 3300 PSI family. They are not interchangeable labels: each configuration has its own ID, length, connection arrangement and part number.
| Titan PN | Configuration | Connection |
|---|---|---|
| 316-505 | 50' x 1/4" main hose | 1/4" NPSM (FBE) |
| 316-506 | 5' x 3/16" whip hose | 1/4" NPSM (F/M) |
| 316-533 | 6' x 1/4" textile-braid whip hose | 1/4" NPSM (FBE) |
| 550-227 | 6' x 1/4" whip hose | 1/4" NPSM (F/M) |
Notice that two 6-foot, 1/4-inch Titan whip hoses can still have different end arrangements. Always verify the complete configuration rather than selecting by length and ID alone.
Titan 3300 PSI Hose Diameter: 3/16 vs 1/4 vs 3/8 vs 1/2 Inch
Inside diameter is a fluid-delivery specification, not a ranking of hose quality. Titan currently offers four documented IDs in the 3300 PSI family. Use the diameter specified for the intended hose arrangement and equipment rather than assuming a larger ID is automatically preferable.
3', 5' and 9' whips; 25' and 50' hoses.
6' whips plus 9', 25' and 50' hoses.
25' and 50' main-hose configurations.
25' and 50' textile-braid configurations.
Choosing Titan 3300 PSI Hose Length
The current Titan matrix includes 3-, 5-, 6-, 9-, 25- and 50-foot 3300 PSI configurations. Length must be considered together with hose ID, main/whip designation and end connection. Do not apply one universal maximum hose length to every Titan sprayer; use the applicable equipment manual or parts documentation when the machine specifies a particular hose arrangement.
Titan 3300 PSI Hose Connections: NPSM F/M vs FBE
Titan identifies NPSM as National Pipe Straight Mechanical Thread. The manufacturer's 3300 PSI matrix also distinguishes F/M and FBE end arrangements. Keep hose ID and connection size separate when comparing hoses.
| Titan Designation | Meaning for Selection | Example |
|---|---|---|
| F/M | Female / male end arrangement | 316-506: 1/4" NPSM (F/M) |
| FBE | Female both ends | 316-505: 1/4" NPSM (FBE) |
| NPSM | National Pipe Straight Mechanical Thread | Used throughout Titan's current 3300 PSI matrix |
Titan 3300 PSI Hose Construction & Grounding
Titan describes the current 3300 PSI family as solid urethane construction designed for durability, high flexibility and easy coiling/uncoiling. The manufacturer also specifies a conductive tube design for proper grounding and NPSM connections.
Current Titan 3300 PSI Hose Part Numbers
| ID Group | Titan PN | Length | Type | Connection |
|---|---|---|---|---|
| 3/16" | 291004 | 3' | Whip | 1/4" NPSM F/M |
| 316-506 | 5' | Whip | 1/4" NPSM F/M | |
| 550-222 | 9' | Whip | 1/4" NPSM F/M | |
| 291007 | 25' | Hose | 1/4" NPSM FBE | |
| 291008 | 50' | Hose | 1/4" NPSM FBE | |
| 1/4" | 316-533 | 6' | Textile-Braid Whip | 1/4" NPSM FBE |
| 550-227 | 6' | Whip | 1/4" NPSM F/M | |
| 316-513 | 25' | Hose | 1/4" NPSM FBE | |
| 316-505 / 2441268 | 50' / 9' | Hose | 1/4" NPSM FBE | |
| 3/8" | 508342 | 25' | Hose | 3/8" NPSM FBE |
| 291006 | 50' | Hose | 3/8" NPSM FBE | |
| 1/2" | 225-112 | 25' | Textile-Braid Hose | 1/2" NPSM FBE |
| 250-112 | 50' | Textile-Braid Hose | 1/2" NPSM FBE |
Titan 291006 vs 0291006 and Leading-Zero Part Numbers
Titan's current 3300 PSI manufacturer matrix lists 291006, 291007, 291008 and 508342. AllTitanParts currently presents corresponding products using leading-zero forms such as 0291006, 0291007, 0291008 and 0508342. Because a formatting relationship is not automatically a supersession, buyers should preserve both searchable forms while using the current manufacturer matrix as the technical reference.
| AllTitanParts Display | Current Titan Matrix | Verified Configuration | Treatment |
|---|---|---|---|
| 0291006 | 291006 | 50' x 3/8" — 3/8" NPSM FBE | Retain both searchable formats; do not label the digit-format change a supersession without manufacturer documentation. |
| 0291007 | 291007 | 25' x 3/16" — 1/4" NPSM FBE | Treat conservatively as alternate displayed numbering. |
| 0291008 | 291008 | 50' x 3/16" — 1/4" NPSM FBE | Treat conservatively as alternate displayed numbering. |
| 0508342 | 508342 | 25' x 3/8" — 3/8" NPSM FBE | Treat conservatively as alternate displayed numbering. |
Titan 3300 PSI Hose Replacement & Cross-Reference Guide
Older Titan documentation lists 690-375-50 as a 3/8" x 50' airless hose, while Titan's current 3300 PSI matrix lists 291006 for the 50' x 3/8", 3/8" NPSM FBE configuration. AllTitanParts currently describes 0291006/291006 as replacing 690-375-50. Because the available current Titan matrix does not itself state that supersession, verify the replacement relationship against Titan service/supersession records when an exact legacy replacement is required.
| Legacy PN | Legacy Description | Current Comparable PN | Current Configuration | Status |
|---|---|---|---|---|
| 690-375-50 | Airless hose, 3/8" x 50' | 291006 | 50' x 3/8", 3/8" NPSM FBE | Comparable current configuration; direct supersession should be confirmed from manufacturer service/supersession data. |
Inspecting a Titan 3300 PSI Airless Hose
Titan safety documentation instructs operators to inspect high-pressure hoses before use and replace damaged hoses rather than repairing them. Relieve system pressure according to the applicable Titan equipment instructions before servicing, cleaning or disconnecting pressure-bearing components.
| Inspection Point | Manufacturer-Supported Check |
|---|---|
| Hose cover | Inspect for cuts, leaks, abrasion, notches or bulging. |
| Couplings / fittings | Check for damage, movement and secure condition. |
| Kinking | Avoid sharp bending, kinking and physical abuse of the high-pressure hose. |
| Conductivity | Titan service documentation specifies conductivity across the high-pressure hose for grounding. |
| Damage | Replace a damaged high-pressure hose; do not attempt to repair it. |
Shop Titan 3300 PSI Airless Hoses by Verified Configuration
AllTitanParts currently carries multiple configurations from Titan's manufacturer matrix. Use the category together with the exact Titan part number to compare available hose sizes and whip configurations.
Contractor Selection Insight
Do not choose a Titan 3300 PSI hose simply because the fitting connects. Start with the spray system's pressure requirements, then verify hose rating, ID, length, main or whip configuration, NPSM end arrangement and exact Titan part number.
Shop, Compare, Buy or Order genuine OEM Titan 3300 PSI airless hoses from AllTitanParts.com after verifying hose ID, length, end connection and exact Titan part number.
FAQ Section
Use these manufacturer-based checks to narrow the correct Titan 3300 PSI hose before ordering.
How do I choose the correct Titan 3300 PSI airless hose?Verify the spray system's maximum operating pressure, then confirm the required hose pressure class, inside diameter, length, main or whip configuration, NPSM end arrangement, equipment configuration and exact Titan part number. Do not select a hose solely because its threads connect.
|
What is the difference between a Titan main hose and whip hose?Titan lists main hoses and shorter whip hoses as separate configurations. Each has a documented ID, length, connection arrangement and part number. For example, 316-505 is a 50' x 1/4" hose with 1/4" NPSM FBE connections, while 316-506 is a 5' x 3/16" whip with 1/4" NPSM F/M connections.
|
What is the difference between 3/16, 1/4, 3/8 and 1/2-inch Titan hoses?Those measurements identify hose inside-diameter configurations in Titan's current 3300 PSI family. Diameter is one fluid-delivery specification and should be selected together with length, main or whip configuration, end connection and exact part number. A larger ID is not automatically the correct choice for every sprayer.
|
What do NPSM F/M and FBE mean on Titan hose listings?Titan defines NPSM as National Pipe Straight Mechanical Thread. In the hose matrix, F/M identifies a female/male end arrangement and FBE identifies female both ends. Hose inside diameter and thread/connection size are separate specifications, so verify both before ordering.
|
Can a 3300 PSI Titan hose replace another hose just because the fittings match?No. A physical connection alone does not establish the correct hose configuration. Verify the required working-pressure rating, hose ID, length, main or whip arrangement, connection and exact part number against the applicable Titan equipment documentation. Installing a higher-rated hose also does not increase the operating-pressure rating of the sprayer or other system components.
|
