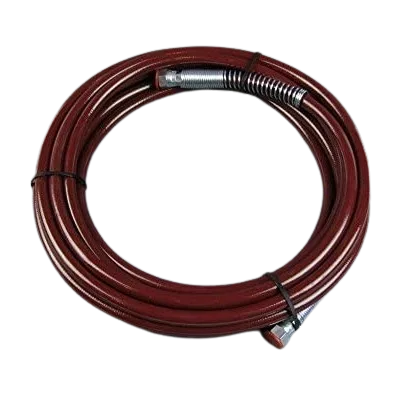

316-513 is a replacement airless hose designed to deliver high‑pressure paint from the pump to the spray gun on compatible sprayers. It features durable, abrasion‑resistant construction and factory‑installed fittings for a leak‑free, reliable connection.
| Part Number | 316-513 |
|---|---|
| Part Description | Airless Hose |
| Brand | Airless Sprayer / Advantage / Elite / Epic |
| Fits | Airless Sprayer 1100 XC, 660XC; Advantage 1100, 700, GPX130, GPX165, GPX220; Airless LX-30; Advantage GPX85; Elite E15, G40; Epic 660HPX, 660EX |
| Condition | New |
The 316-513 Airless Hose is an OEM‑spec replacement hose designed for a wide range of airless paint sprayers. It transports paint from the pump outlet to the spray gun at operating pressures up to the machine's rated maximum. The hose features a tough outer jacket that resists abrasion, kinking, and chemical attack from paints and solvents.
Over time, airless hoses can develop leaks from punctures, cracks, or worn fittings. A damaged hose causes pressure loss, uneven spray patterns, material waste, and safety hazards (high‑pressure injection injuries). Replacing a worn or damaged hose with the 316‑513 restores full pressure delivery and safe operation.
| High‑pressure paint delivery | Carries material from pump to gun at operating pressure |
|---|---|
| Flexible connection | Allows free movement of the gun without restricting flow |
| Durability | Resists abrasion, chemicals, and weather exposure |
| Visible cuts or punctures | Any breach in the outer jacket or inner tube |
|---|---|
| Bulges or swelling | Weak spots that indicate internal liner failure |
| Leaking fittings | Paint seeping from swivel or end connections |
| Kinked or flattened sections | Restricted flow causing pressure drop and uneven spray |
Part 316-513 is compatible with the following sprayers. Always verify with your machine's parts diagram before ordering.
| Brand / Model | Component |
|---|---|
| Airless Sprayer 1100 XC | Airless hose (pump to gun) |
| Airless Sprayer 660XC | Airless hose |
| Advantage 1100 | Airless hose |
| Advantage 700 | Airless hose |
| Advantage GPX130 | Airless hose |
| Advantage GPX165 | Airless hose |
| Advantage GPX220 | Airless hose |
| Airless LX-30 | Airless hose |
| Advantage GPX85 | Airless hose |
| Elite E15 | Airless hose |
| Elite G40 | Airless hose |
| Epic 660HPX | Airless hose |
| Epic 660EX | Airless hose |
When replacing the airless hose, these related components are often inspected or replaced at the same time.
Worn tips or gun seals can mimic hose pressure loss.
A damaged swivel can cause leaks or restricted movement.
Clogged filters reduce output and can be mistaken for hose issues.
