Shop Titan Air Spray Air & Fluid Hoses
Shop Titan Air Spray Hoses by documented hose function, equipment application and exact OEM part number. This category contains two different hose functions: 0295689 is documented as an air hose, while 0277348 is documented as the material/fluid hose that carries coating to the gun. They belong to related professional finishing systems but should not be treated as interchangeable components.
Titan Air Spray Hose Part Number & Function Guide
The live AllTitanParts category currently contains 0295689 and 0277348. OEM documentation establishes different functions for these parts. Titan accessory literature identifies 0295689 as a 30-foot air hose and 0277348 as a 30-foot material hose, while the CS10000 parts list identifies them respectively as the air hose and the material hose connecting to the gun.
| Part Number | OEM Description | Hose Function | Length | Hose ID | Color | Verified Equipment | Documentation Status | Buying Guidance |
|---|---|---|---|---|---|---|---|---|

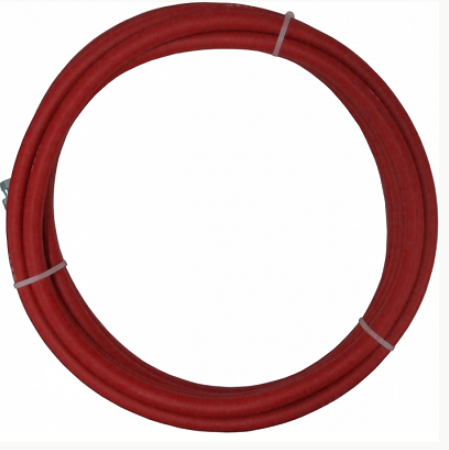

| 0295689 | Air Hose | Air-side hose | 30' in Titan accessory documentation | 3/8" ID documented in Titan fine-finish literature | Red in historical Titan fine-finish documentation | CS10000 | Documented in Titan accessory literature and CS10000 parts documentation | Select for the documented air-side position only after confirming equipment and PN. |

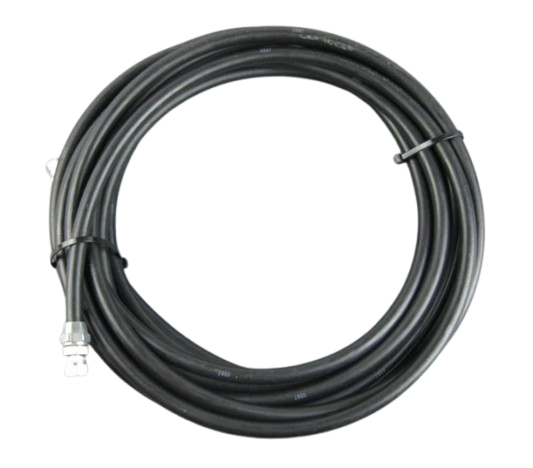

| 0277348 | Material / Fluid Hose | Coating/material delivery to gun | 30' in Titan HVLP accessory and transfer-pump documentation | 3/8" in multiple Titan accessory/service documents; historical literature contains differing application-specific listings | Black in historical Titan fine-finish documentation | CS10000; ProFinish C-100 documented fluid/material position | Documented across Titan parts/accessory literature | Select as a material-side hose only after checking the exact equipment documentation. |
Titan 0295689 Air Hose vs 0277348 Fluid Hose
The most important buying distinction is hose function. In documented CS10000 equipment, 0295689 belongs to the air path while 0277348 belongs to the material path. The material hose carries coating to the gun; the air hose serves the system’s air-side connection. Sharing a machine does not make the two hoses interchangeable.
Verify the equipment parts list identifies 0295689 for the required air-side position before ordering.
Verify the equipment parts list identifies 0277348 for coating/material delivery to the spray gun.
SprayTech CS10000 Air & Material Hose Selection
The OEM CS10000 main-assembly parts documentation provides particularly clear fitment evidence because both hoses appear in the same assembly while retaining different functions. The historical documentation is branded CAPSpray/SprayTech-era material, so the original equipment context should be preserved when identifying these legacy applications.
| CS10000 Item | Part Number | OEM Description | Qty. | Documented Role |
|---|---|---|---|---|
| 1 | 0295689 | Air hose | 1 | Air-side component |
| 12 | 0277348 | Hose, material (connects to gun) | 1 | Material-side connection to gun |
This CS10000 relationship is strong evidence for those exact assembly positions. It should not be expanded into universal compatibility with other Titan, SprayTech or CAPSpray systems unless their own parts documentation identifies the same part number.
Titan ProFinish C-100 Fluid Hose
ProFinish C-100 documentation establishes a material-side application for 0277348. The system uses separate air and fluid connections at the spray gun, and its parts documentation identifies 0277348 in the fluid/material position. This provides a documented equipment relationship for the fluid hose without implying that 0295689 is automatically the corresponding air hose for every ProFinish C-100 configuration.
Air Spray Hose vs Titan AirCoat / Air-Assisted Airless Hose
Titan Air Spray/HVLP hose components should not be confused with AirCoat or air-assisted-airless hose assemblies. AirCoat equipment combines a pressurized material path with a separate atomizing-air path and uses hose assemblies engineered for that system. Current Titan AirCoat documentation, for example, identifies 9984595 as a dedicated hose set containing material, air and protective hoses.
| System Context | Example | Selection Rule |
|---|---|---|
| Air Spray / pressure-pot or documented fine-finish system | 0295689 air-side hose; 0277348 material-side hose where specified | Use exact equipment documentation to identify each hose function. |
| AirCoat / Air-Assisted Airless | Dedicated assemblies such as 9984595 where specified | Use the AirCoat system’s specified high-pressure material and air-side components. |
Titan Air Spray Hose Size, Length & Connection Verification
Hose function comes first, but it is not the only specification that matters. Confirm the hose dimensions and connection arrangement documented for the exact equipment before purchasing. Do not import specifications from Titan’s 3300, 3600, 4500, 6500 or 7500 PSI airless hose families into these air-spray components.
| Step | Verify | Why It Matters |
|---|---|---|
| 1 | Air-side or fluid/material-side function | Determines which system path is being serviced. |
| 2 | Exact equipment model | Establishes documented fitment. |
| 3 | Hose ID and length | Confirms the required physical hose configuration. |
| 4 | Connection / fitting specification | A physically similar hose may use a different connection arrangement. |
| 5 | Exact OEM part number | Provides the strongest replacement identifier when supported by the machine parts list. |
Red Air Hose vs Black Fluid Hose
Historical Titan fine-finishing literature identifies 0295689 as a red air hose and 0277348 as a black fluid hose. This color distinction can help identify the two functional paths in the documented configuration, but color should remain a secondary reference rather than the primary purchasing specification.
Historical identification: Air — Red
Primary buying identifier: exact PN + documented air-side function
Historical identification: Fluid — Black
Primary buying identifier: exact PN + documented material-side function
Current & Legacy Titan / SprayTech Air Spray Hose Part Numbers
These part numbers appear across Titan, CAPSpray and SprayTech-era technical literature. Historical branding should not be rewritten into a replacement or supersession claim. A part number should be described as replaced or superseded only when an authoritative manufacturer record explicitly establishes that relationship.
| Part Number | Documented Historical Context | Description | Store Status | Verified Replacement PN |
|---|---|---|---|---|
| 0295689 | Titan / CAPSpray / SprayTech documentation context | Air Hose | Currently offered in this AllTitanParts category | No supersession asserted here |
| 0277348 | Titan / CAPSpray / SprayTech documentation context | Material / Fluid Hose | Currently offered in this AllTitanParts category | No supersession asserted here |
Product-Data Verification Before Ordering
Exact-part pages should agree with the applicable OEM parts list and accessory documentation. Avoid speculative dimensions, broad compatibility statements and performance claims that are not tied to the exact hose.
| Data Field | Verification Standard |
|---|---|
| Brand / Manufacturer | Preserve Titan, CAPSpray or SprayTech historical context accurately; do not rewrite brand history to create unsupported OEM claims. |
| Part Number | Use 0295689 or 0277348 exactly where documented. |
| Function | Distinguish air-side from material/fluid-side service. |
| Length / ID | Use the specification tied to the applicable manufacturer document and equipment configuration. |
| Connections | Publish only exact fitting/thread information supported for that PN and application. |
| Pressure | Do not borrow a pressure rating from another hose family. |
| Compatibility | Require an OEM parts list, assembly, manual or equivalent authoritative equipment reference. |
| Supersession | Require an explicit manufacturer replacement relationship. |
Inspecting Air & Fluid Spray Hoses
Inspect the complete hose and adjacent connections according to the applicable equipment service and safety instructions. Direct physical evidence of hose damage is different from a general spray-system symptom.
| Inspection Type | Examples | Interpretation |
|---|---|---|
| Direct hose condition | Cuts, cracks, leaks, abrasion, kinking, damaged fittings or visible physical deterioration | Inspect and service according to manufacturer instructions. |
| System symptoms | Poor atomization, pulsing, pressure variation, uneven spray pattern or reduced material delivery | These symptoms do not by themselves establish hose failure; inspect the complete air/fluid system. |
Shop Related Titan Hose Categories & Parts
Compare the correct hose technology and then confirm the exact part against the applicable equipment diagram before purchase.
Contractor Selection Insight
Start with the hose’s job in the system. Do not select these parts merely because both appear under Air Spray Hose or because a connection appears to fit.
Shop, Compare, Buy or Order genuine OEM air-spray hose components from AllTitanParts.com after verifying air-versus-fluid function, hose size and length, connection, equipment model and exact OEM part number.
FAQ Section
Use the exact hose function and equipment parts documentation to confirm the correct replacement before ordering.
What is the difference between Titan 0295689 and 0277348?They serve different functions. OEM CS10000 documentation identifies 0295689 as the air hose and 0277348 as the material hose connecting to the gun. Titan accessory literature also identifies 0295689 as an air hose and 0277348 as a material/fluid hose. They should not be treated as interchangeable.
|
Is Titan 0295689 an air hose or a fluid hose?0295689 is documented as an air hose. Titan accessory literature identifies it as a 30-foot Air Hose, and CS10000 parts documentation lists it as the air hose in the main assembly. It should not be described as the system’s material/fluid hose.
|
What equipment uses Titan 0277348 Fluid Hose?OEM documentation identifies 0277348 as the material hose connecting to the gun in the CS10000 main assembly, and ProFinish C-100 parts documentation also identifies 0277348 in the material/fluid-side configuration. Other applications should be verified from their own OEM parts documentation before ordering.
|
Can an Air Spray Hose be substituted for a Titan AirCoat hose?Not on category name or physical connection alone. Titan AirCoat / air-assisted-airless systems use their own documented material- and air-side hose requirements, including dedicated hose assemblies where specified. Use the exact AirCoat equipment documentation rather than substituting 0295689 or 0277348 without an explicit manufacturer fitment reference.
|
How do I verify the correct air or fluid hose before ordering?First identify whether you need the air-side or material/fluid-side hose. Then verify the equipment model, applicable parts diagram, hose size and length, connection specification and exact OEM part number. Do not rely on color, similar dimensions, physical fit or the store category alone to establish compatibility.
|
