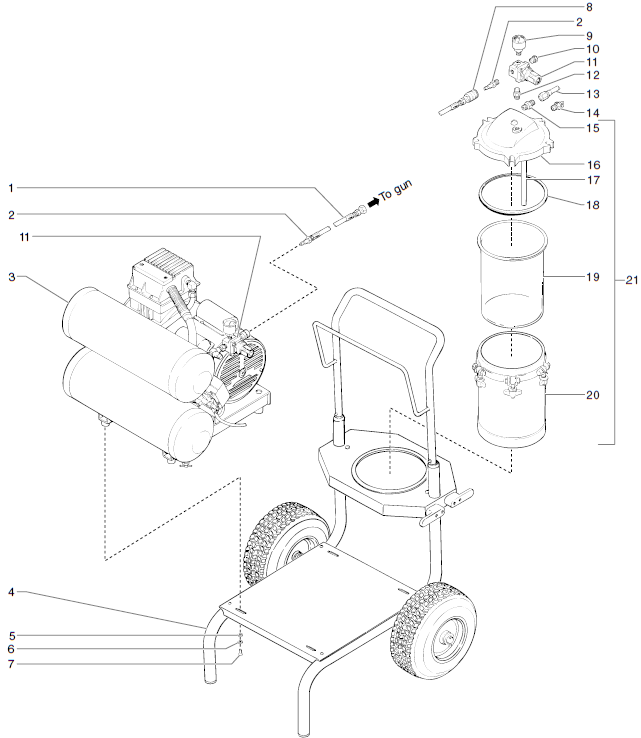

ProFinish C-100 Main Assembly Parts

Titan 858-001 Washer

Item No: 5

Part #: 858-001

Titan part 858-001 is a washer used to distribute load and provide proper spacing for ...

$2.10

QTY:

Titan 9821503 Lock Washer

Item No: 6

Part #: 9821503

Part 9821503 is a replacement lock washer used in various assembly points across a wide range of...

$2.50

QTY:

Titan 858-625 Pail Hook Screw

Item No: 7

Part #: 858-625

Part 858-625 is a pail hook screw used to secure the pail hook assembly to the sprayer...

$2.50

QTY:

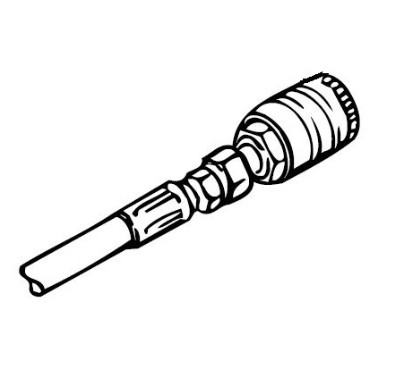

Titan 0275640 Male Air Coupler

Item No: 8

Part #: 0275640

Titan part 0275640 is a male air coupler used to connect air supply hoses to compatibl...

$24.80

QTY:

Titan 227-027 Pipe Plug

Item No: 10

Part #: 227-027

Part 227-027 is a replacement pipe plug for a wide range of compatible spray equipment. This plu...

$3.50

QTY:

Titan 0277348 Fluid Hose

Item No: 13

Part #: 0277348

Part 0277348 is a fluid hose designed to transport coating material between the pump and spray gun...

Retail Price: $223.70

You save: $31.09 (13.90%)

Our Price: $192.61

QTY:

Titan 0295703 Tube, Pick-Up(replaces Titan 770-563)

Item No: 17

Part #: 0295703

SprayTech part 0295703 is a pick-up tube assembly used to draw coating material from t...

Retail Price: $95.90

You save: $7.96 (8.30%)

Our Price: $87.94

QTY:

Titan 0275702 Pot Liner

Item No: 19

Part #: 0275702

SprayTech part 0275702 is a pot liner used in the material cup of compatible SprayTech...

$27.90

QTY:

ProFinish C-100 Main Assembly Parts

The ProFinish C-100 Main Assembly Parts are designed to support the core airflow, fluid handling, and pressure regulation functions of the Titan ProFinish C-100 HVLP spray system. These components work together to deliver smooth atomization, stable pressure control, and consistent coating application for professional finishing projects such as cabinetry, furniture, trim, and woodworking applications.

Key components within the main assembly include the Titan 858-001 Washer, Titan 858-625 Pail Hook Screw, Titan 0275640 Male Air Coupler, Titan 0277348 Fluid Hose and 770-563 pickup tube. These parts help maintain balanced airflow and uninterrupted material delivery while supporting efficient HVLP spray performance.

Properly functioning assembly components are essential for reducing pressure fluctuations, minimizing overspray, and maintaining finish quality. Routine maintenance and timely replacement of worn parts help extend equipment life and reduce downtime caused by airflow restrictions, fluid leaks, or inconsistent spray pressure. The durable design of the ProFinish C-100 system supports long-term use in demanding professional finishing environments.

FAQs

Inconsistent airflow is often caused by a worn or loose Titan 0275640 Male Air Coupler. If the coupler does not seal properly, it can leak air and reduce atomization pressure. Inspect the O-ring and locking mechanism, and replace the coupler if air loss is detected.

This issue is commonly linked to a damaged or partially blocked Titan 0277348 Fluid Hose. Cracks, internal buildup, or kinks can restrict coating flow, leading to sputtering or uneven spray patterns. Replacing the hose restores stable material delivery and consistent finish quality.

A failing or clogged 770-563 pickup tube assembly is a frequent cause. Air leaks at the suction side or a clogged strainer can prevent proper priming. Inspect for cracks, debris buildup, or loose fitting at the container connection and replace the tube if damaged.

The Titan 858-001 Washer helps maintain tight alignment and sealing in the main assembly. If worn or missing, it can cause vibration, misalignment, and pressure instability, which ultimately affects spray consistency and finish quality. Regular inspection prevents these performance issues.

The Titan 858-625 pail hook screw secures the container assembly in place. If it loosens or wears out, it can cause movement during operation, leading to suction disruption, air ingestion, or inconsistent fluid pickup. Tightening or replacing it ensures stable operation and uninterrupted spraying.

ProFinish C-100 Main Assembly Parts

ProFinish C-100 Main Assembly Parts

FAQs

1. Why does my ProFinish C-100 show inconsistent airflow during spraying?

2. What causes irregular or interrupted material flow from the spray gun?

3. Why does the system lose prime or fail to draw material properly?

4. How do loose or worn washer components affect spray performance?

5. What role does the 858-625 pail hook screw play in system stability issues?
