CS10000 HVLP Spray System Main Assembly

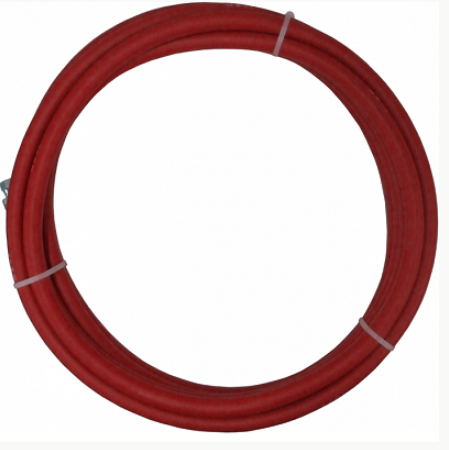

Titan 0295689 Air Spray Hose

Item No: 1

Part #: 0295689

0295689 is a replacement air spray hose designed for the SprayTech HVLP CS10000 turb...

Retail Price: $166.00

You save: $20.75 (12.50%)

Our Price: $145.25

QTY:

Titan 0275696 Air Fitting, 1/4"

Item No: 2

Part #: 0275696

0275696 is a 1/4" air fitting used to connect air lines in the pneumatic systems of He...

$17.50

QTY:

Titan 9820206 Flat Washer

Item No: 5

Part #: 9820206

9820206 is a flat washer used in various assemblies on compatible Speeflo and SprayT...

$1.54

QTY:

Titan 9821503 Lock Washer

Item No: 6

Part #: 9821503

Part 9821503 is a replacement lock washer used in various assembly points across a wide range of...

$2.50

QTY:

Titan 0295695 Screw

Item No: 7

Part #: 0295695

SprayTech part 0295695 is a screw used for assembly and component attachment on compatible s...

$3.40

QTY:

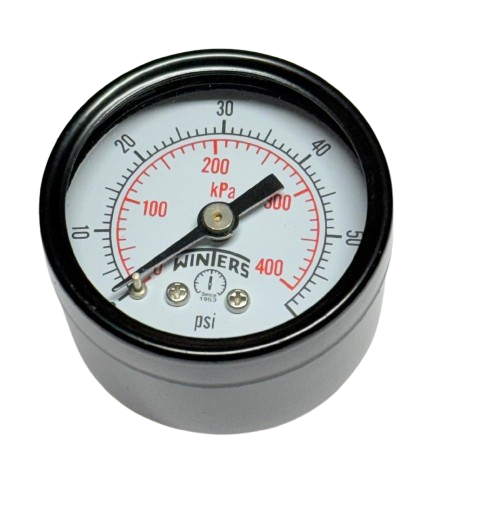

Titan 0279427 Pressure Guage, 0-60psi & Bar Glass

Item No: 9

Part #: 0279427

Part 0279427 is a 0-60 PSI pressure gauge with dual scale PSI and Bar readings, featuring a glass fa...

$29.20

QTY:

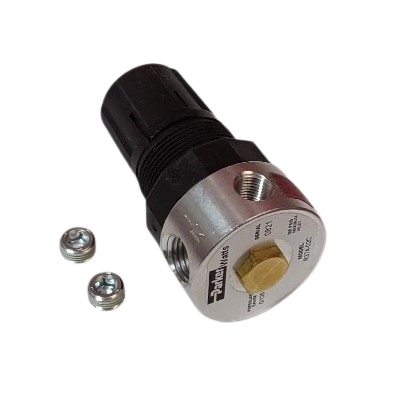

Titan 0275693 Regulator

Item No: 10

Part #: 0275693

SprayTech part 0275693 is a regulator used to control and maintain pressure within the spray...

Retail Price: $60.40

You save: $5.01 (8.29%)

Our Price: $55.39

QTY:

Titan 05045 Fitting, 1/4” x 1/4”

Item No: 11

Part #: 05045

SprayTech part 05045 is a 1/4 inch by 1/4 inch fitting used to connect fluid or air lines within...

$8.00

QTY:

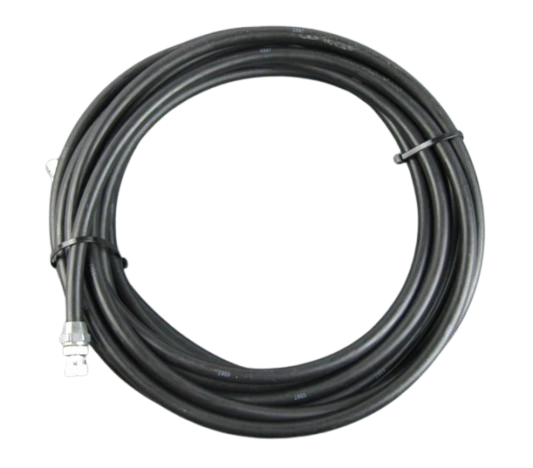

Titan 0277348 Fluid Hose

Item No: 12

Part #: 0277348

Part 0277348 is a fluid hose designed to transport coating material between the pump and spray gun...

Retail Price: $223.70

You save: $31.09 (13.90%)

Our Price: $192.61

QTY:

Titan 0275717 Relief Valve

Item No: 13

Part #: 0275717

Titan part 0275717 is a relief valve used to control and relieve excess pressure in th...

Retail Price: $62.20

You save: $5.16 (8.30%)

Our Price: $57.04

QTY:

Titan 0295703 Tube, Pick-Up(replaces Titan 770-563)

Item No: 16

Part #: 0295703

SprayTech part 0295703 is a pick-up tube assembly used to draw coating material from t...

Retail Price: $95.90

You save: $7.96 (8.30%)

Our Price: $87.94

QTY:

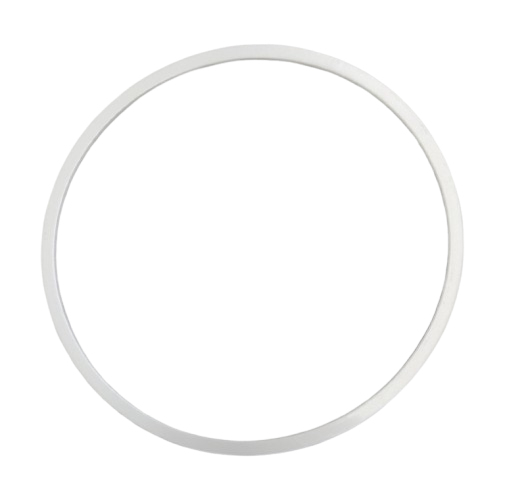

Titan 0508943 Solvent Resistant Gasket

Item No: 17

Part #: 0508943

Part 0508943 is a solvent resistant gasket designed to provide a reliable seal in fluid-handling a...

$21.10

QTY:

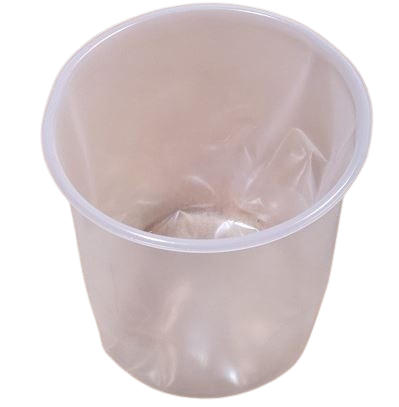

Titan 0275702 Pot Liner

Item No: 18

Part #: 0275702

SprayTech part 0275702 is a pot liner used in the material cup of compatible SprayTech...

$27.90

QTY:

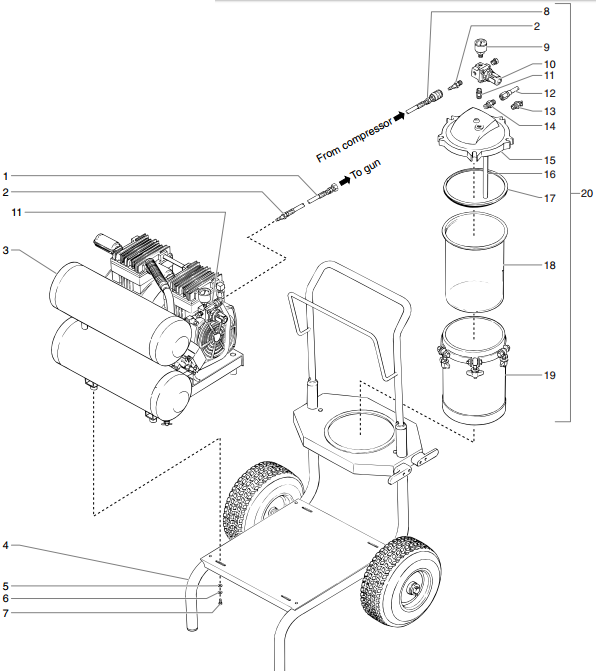

CS10000 HVLP Spray System Main Assembly

The CS10000 HVLP Spray System Main Assembly includes the primary airflow, pressure regulation, and fluid delivery components that control the overall performance of the Titan CS10000 professional HVLP finishing system.

Designed for high-end finishing applications, this assembly combines compressed air regulation with precision fluid control to deliver smooth atomization, reduced overspray, and consistent coating quality.

Main Assembly Components

The main assembly contains several critical OEM components that support pressure management and stable material flow during operation.

Important parts include the Titan 0295689 Air Spray Hose, Titan 0275693 Regulator, Titan 0279427 Pressure Gauge, Titan 0275717 Relief Valve, Titan 0277348 Fluid Hose, Titan 0295703 Pick-Up Tube, and Titan 0275702 Pot Liner.

These components work together to maintain balanced air pressure, controlled fluid transfer, and reliable spray consistency for demanding finishing projects.

Applications & Usage

The CS10000 system is commonly used in cabinetry, furniture finishing, woodworking, automotive refinishing, and industrial coating applications where professional-grade finish quality and high transfer efficiency are essential.

Its modular design also allows individual replacement of hoses, regulators, valves, and pot assemblies, helping reduce maintenance costs and downtime.

FAQs

Pressure instability usually occurs when the regulator becomes contaminated with moisture, debris, or internal seal wear. A faulty regulator can cause uneven atomization and inconsistent coating application.

Fluctuating pressure gauge readings are often caused by air leaks, unstable compressor output, or partially blocked air passages. Inspecting hose fittings and regulator connections can help stabilize pressure readings.

The Titan 0275717 Relief Valve protects the pressure pot and fluid system from excessive pressure buildup. If the valve sticks or fails, pressure spikes may affect spray quality and component safety.

A damaged or partially clogged fluid hose can reduce coating flow, create sputtering, and affect spray consistency at the gun. Regular inspection helps maintain stable material delivery.

Loss of suction can occur when the pick-up tube develops cracks, becomes loose, or the pot gasket loses its seal. Air entering the fluid line interrupts material flow and causes inconsistent spraying performance.
