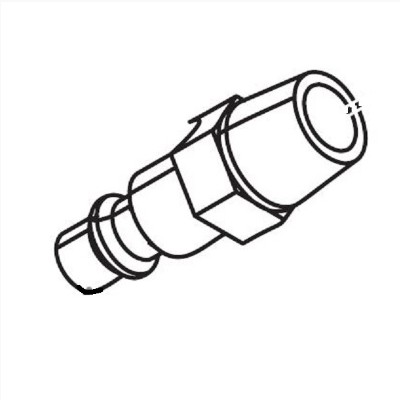

0275696 is a 1/4" air fitting used to connect air lines in the pneumatic systems of Helix LP and compatible SprayTech HVLP sprayers. This precision fitting ensures leak-free connections between air hoses, regulators, and valves, maintaining proper airflow for consistent turbine or compressor performance. Replace a damaged, cross-threaded, or leaking air fitting to restore proper air delivery and prevent pressure loss.
| Part Number | 0275696 |
|---|---|
| Part Description | Air Fitting, 1/4" |
| Brand | SprayTech / Helix |
| Fits | Helix LP; SprayTech HVLP CS 10000, Maxum II, Power Cart |
| Condition | New |
The 0275696 1/4" air fitting is an OEM replacement component used in the pneumatic systems of Helix LP and compatible SprayTech HVLP sprayers. It provides secure, leak-free connections between air lines, regulators, valves, and other system components, ensuring consistent airflow to the turbine or compressor for reliable spray performance.
Over time, fittings can become cracked from vibration, corroded from moisture exposure, or damaged during maintenance. A faulty air fitting can cause air leaks, pressure drops, and inconsistent atomization, leading to poor finish quality. Replacing it with this genuine fitting restores proper air delivery and maintains system integrity.
| Leak-free connection | Joins air lines securely to prevent pressure loss |
|---|---|
| Pressure retention | Maintains system pressure for consistent atomization |
| Component integration | Connects regulators, valves, and air hoses |
| Cracked / broken | Visible damage that compromises sealing |
|---|---|
| Corroded / degraded | Rust or chemical attack affecting integrity |
| Stripped threads | Threads no longer hold or seal properly |
| Air leaks | Hissing sound or pressure drop at connection |
Part 0275696 is designed for use on the following sprayer models. Always verify fitment and application by consulting your machine's parts manual.
| Brand | Model |
|---|---|
| Helix | LP |
| SprayTech HVLP | CS 10000 |
| Maxum II | |
| Power Cart |
When replacing an air fitting, inspect these associated components for wear or damage.
Check the connected hose for cracks, swelling, or deterioration at the fitting interface.
Many fittings use O-rings for sealing; inspect and replace if compressed or damaged.
Ensure the component being connected has clean, undamaged threads or ports.
