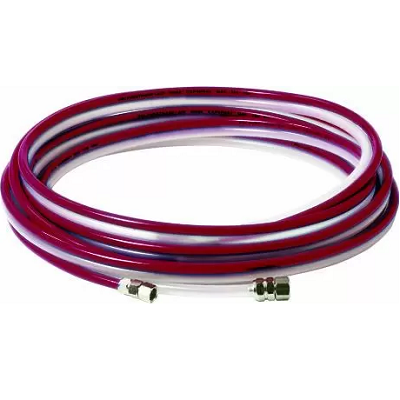

Shop Titan AirCoat & Air-Assisted Airless Spray Hoses
Shop Titan Air-Assisted Airless Spray Hose and Titan AirCoat hose components by equipment configuration, fluid-versus-air function and exact part number. Titan documents bonded main-hose configurations plus separate air and fluid whips for professional AirCoat / AAA systems. These components perform different jobs and should not be selected as interchangeable hose lengths.
Titan Air-Assisted Airless Hose Part Number Guide
Titan accessory documentation identifies four principal Air-Assisted Airless Spray Hose configurations: 9984595, 0524333, 0550860 and 0550861. The live AllTitanParts category currently lists 9984595, 0524333 and 0550861; 0550860 is part of Titan’s documented accessory matrix but is not currently displayed in this category. Manufacturer documentation and live-store assortment are therefore shown separately below.
| Titan PN | Manufacturer Description | Function | Length | Fluid / Air Role | Verified Specification | Documented Equipment Context | Live Store Status | Documentation Status | Buying Guidance |
|---|---|---|---|---|---|---|---|---|---|
| 9984595 | AirCoat hose set; historical accessory charts also describe a 3/16" x 25' bonded fluid hose | Combined material + air hose set | 7.5 m / 24.61 ft | Separate material and air paths | Material DN3; Air DN6; protective hose | Current AirCoat HE accessory documentation | Listed in this category | Documented in current AirCoat HE literature | Use only where the exact AirCoat configuration specifies 9984595. |
| 0524333 | 1/4" x 50' Bonded Fluid Hose / Red-Clear 50' Bonded Hose in Titan literature | Long bonded fluid-and-air configuration where documented | 50' | Bonded fluid-and-air system context | 1/4" x 50' documented | AirCoat AAA / MultiFinish and GM3600 fine-finish documentation | Listed in this category | Manufacturer-documented accessory | Confirm the complete equipment package before selecting the 50' configuration. |
| 0550860 | Air Whip Hose | Flexible air-side whip | 4' 6" | Atomizing-air side | Exact connections should be confirmed from the applicable system documentation | Titan Air-Assisted Airless accessory matrix | Not currently displayed in this live category | Manufacturer-documented accessory | Do not substitute a fluid whip for this air-side function. |
| 0550861 | Fluid Whip Hose | Flexible fluid-side whip | 5' | Material / fluid side | 5' fluid whip; use exact system documentation for additional specifications | Titan Air-Assisted Airless accessory matrix | Listed in this category | Manufacturer-documented accessory | Select as a fluid-side whip only after verifying the equipment configuration. |

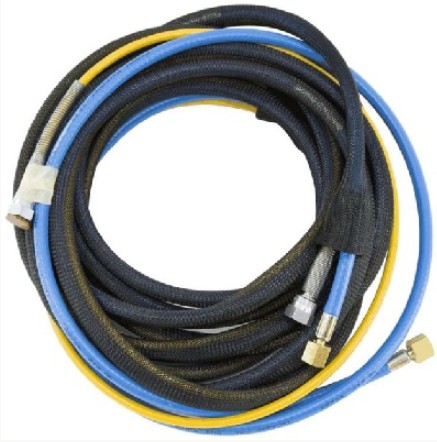

Titan 9984595 AirCoat Hose Set
Current Titan AirCoat HE documentation identifies 9984595 as an AC hose set with a DN3 material hose and DN6 air hose in a 7.5 m / 24.61 ft configuration. The assembly consists of separate material, air and protective hoses. This distinction matters because the high-pressure material path and the lower-pressure atomizing-air path have different dimensions, connections and pressure requirements.
| 9984595 Specification | Material Side | Air Side |
|---|---|---|
| Function | Pressurized coating / material | Atomizing air |
| Connection | NPSM 1/4" | G1/4 |
| Nominal Diameter | DN3 | DN6 |
| Inside Diameter | 0.12" | 0.24" |
| Maximum Documented Pressure | 27 MPa / 270 bar / 3916 PSI | 0.8 MPa / 8 bar / 116 PSI |
| Set Length | 7.5 m / 24.61 ft | |
These specifications belong to the documented 9984595 hose set. They should not be transferred automatically to 0524333, 0550860 or 0550861.
Historical 9984595 Terminology
Titan documentation from different periods describes 9984595 at different levels of detail. Historical North American accessory charts identify it as a 3/16" x 25' Bonded Fluid Hose, while current AirCoat HE documentation identifies the same order number as a complete AC hose set consisting of material, air and protective hose. For current AirCoat HE technical selection, use the current equipment-specific hose-set specifications rather than assuming the older abbreviated catalog description defines every component of the assembly.

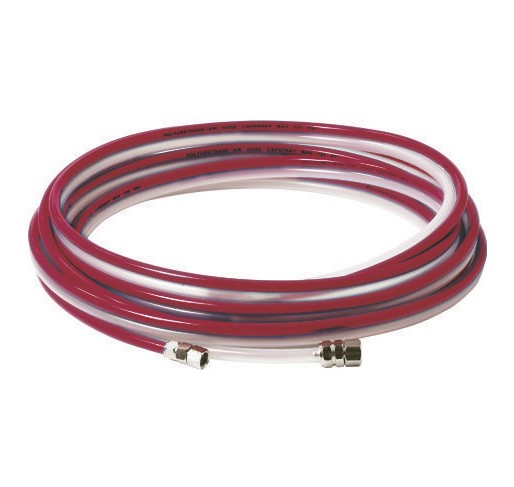

Titan 0524333 50-Foot Bonded Hose
Titan literature identifies 0524333 as a 50-foot bonded hose configuration, including descriptions such as a 1/4" x 50' bonded fluid hose and a red/clear 50-foot bonded hose. Titan fine-finish documentation also places the 50-foot bonded fluid-and-air hose configuration in AirCoat AAA and MultiFinish system packages using GM3600 equipment.
0524333
50 feet
Bonded fluid-and-air fine-finish configuration
Do not copy the DN3/DN6 dimensions, 3916 PSI material rating, 116 PSI air rating or connection specifications of 9984595 onto 0524333 unless the applicable Titan documentation explicitly assigns those specifications to 0524333.
Titan 0550860 Air Whip Hose
Titan accessory documentation identifies 0550860 as a 4' 6" Air Whip Hose in the Air-Assisted Airless Spray Hose family. Its documented role is on the air side, so it should not be described or selected as a material/fluid whip.
Titan 0550861 Fluid Whip Hose
Titan accessory documentation identifies 0550861 as a 5' Fluid Whip Hose in the Air-Assisted Airless Spray Hose family. Its function is the material/fluid side of a documented AAA configuration rather than the atomizing-air path.
Main Bonded Hose vs Air & Fluid Whip Hose
Main bonded hoses and short whip hoses serve different positions in an AirCoat / air-assisted-airless system. Start with the component function rather than choosing only by length.
Titan AirCoat Hose vs Standard Airless Hose
Titan separates Air-Assisted Airless Spray Hoses from its conventional airless hose families. A standard airless hose primarily provides a pressurized material path. An AirCoat / AAA configuration combines pressurized material delivery with a separate atomizing-air path at the gun. A conventional high-pressure fluid hose therefore does not automatically replace a bonded AirCoat hose set.
| Selection Principle | Meaning |
|---|---|
| AirCoat Hose ≠ Standard Airless Hose | AirCoat configurations must account for both material delivery and atomizing air. |
| Correct Fluid Pressure Rating ≠ Complete AirCoat Compatibility | Pressure capability alone does not verify air-side arrangement, fittings, hose type or equipment fitment. |
| Matching Threads ≠ Verified Compatibility | A fitting that connects physically does not prove the hose is correct for the system. |
Titan GM3600 AirCoat Hose Selection
The Titan GM3600 is an AirCoat / air-assisted-airless spray-gun platform with a maximum material-pressure rating of 3,600 PSI / 24.8 MPa. Titan fine-finish documentation places the GM3600 in systems using bonded fluid-and-air hose configurations, including 50-foot packages associated with 0524333.
For GM3600 guns, tips, air caps and documented gun-and-hose kits, use the verified Titan GM3600 & GM5000 Guns, Accessories & Tips category while keeping the two GM technologies separate.
GM3600 AirCoat ≠ GM5000 Electrostatic
Do not treat GM5000 electrostatic hose architecture as another GM3600 AirCoat hose configuration. GM5000 electrostatic equipment uses dedicated product-hose, air-hose and electrical-cable arrangements according to the specific GM5000 system. GM5000 hose sets should not be placed into this Titan AirCoat hose selection matrix solely because both product families carry a GM designation.
Fluid Pressure, Air Pressure & Hose Connections
AirCoat hose selection requires more than finding the highest pressure rating. The material path and atomizing-air path have different operating requirements, and the exact hose assembly must match the equipment configuration.
| Rule | Buying Implication |
|---|---|
| Material pressure ≠ air pressure | Verify each path separately. |
| Higher hose rating ≠ higher sprayer pressure | A hose rating does not increase the operating-pressure capability of the pump or gun. |
| Matching thread ≠ correct hose | Thread size alone does not verify function, pressure, length or equipment fitment. |
| Physical connection ≠ system compatibility | Confirm the manufacturer-specified configuration and exact PN. |
Current & Legacy Titan AirCoat Hose Part Numbers
Historical Titan accessory catalogs remain useful for identifying older hose descriptions, but a historical listing does not automatically establish current production status or a supersession. Use explicit manufacturer replacement information before treating one hose number as the replacement for another.
| Part Number | Documented Description | Current Evidence | Verified Supersession |
|---|---|---|---|
| 9984595 | Historical bonded-hose terminology; current AirCoat HE hose set | Documented in current AirCoat HE accessories | No different replacement PN asserted here |
| 0524333 | 50' bonded hose | Manufacturer accessory/fine-finish documentation; currently listed by AllTitanParts | No supersession asserted here |
| 0550860 | 4' 6" Air Whip Hose | Manufacturer accessory documentation; not currently displayed in this category | No supersession asserted here |
| 0550861 | 5' Fluid Whip Hose | Manufacturer accessory documentation; currently listed by AllTitanParts | No supersession asserted here |
Product-Data Verification Before Ordering
Exact product pages should agree with the applicable Titan equipment and accessory documentation. Broad claims about universal AAA or HVLP compatibility, performance improvements or replacement relationships should not replace exact part-number verification.
| Verify | Before Publishing or Ordering |
|---|---|
| Hose Function | Material, air, combined bonded hose/set, or whip. |
| Length & Diameter | Use the exact specification documented for the PN. |
| Pressure | Separate material-side and air-side pressure where applicable. |
| Connections | Verify exact thread/fitting specification; do not infer it from another hose. |
| Equipment Fitment | Require a manufacturer manual, parts list, accessory chart or documented system package. |
| Replacement Relationship | Use “replaces” or “supersedes” only with explicit manufacturer support. |
Inspecting Titan AirCoat Hoses & Whips
Separate visible hose damage from general spray-system symptoms. A damaged hose requires attention, but poor atomization or an unstable spray pattern does not by itself prove that the hose has failed.
| Inspection Category | Examples | Recommended Approach |
|---|---|---|
| Direct Physical Evidence | Cuts, cracks, leaks, abrasion, crushing, severe kinks, damaged fittings, loss of flexibility or visible deterioration | Relieve pressure and inspect/service according to the applicable manufacturer instructions. |
| System Symptoms | Poor atomization, pressure variation, pulsation, uneven finish, reduced fluid delivery or incorrect fan pattern | Inspect the complete system rather than diagnosing the hose alone. |
Depending on the system, diagnosis may include the pump, material supply, fluid filters, regulator, compressor or air supply, air controls, hose connections, gun filter, gun, tip, air cap and coating setup before a hose is identified as the cause.
Related Titan AirCoat & Hose Resources
Use the equipment family and hose technology together to narrow the correct component before ordering.
Contractor Selection Insight
Start with the exact equipment and determine which side of the AirCoat system you are servicing before comparing hose length or connections.
Shop, Compare, Buy or Order genuine OEM Titan AirCoat and air-assisted-airless hose components from AllTitanParts.com after verifying equipment model, fluid-versus-air function, main-hose-versus-whip classification, length, pressure rating, connection and exact Titan part number.
FAQ Section
Use these technical distinctions to narrow the correct Titan AirCoat hose component before ordering.
What is the difference between Titan 9984595 and 0524333?Titan 9984595 is documented in current AirCoat HE literature as a 7.5 m / 24.61 ft hose set containing separate material, air and protective hoses. Titan 0524333 is documented as a 50-foot bonded hose configuration and appears in Titan AirCoat AAA, MultiFinish and GM3600 fine-finish literature. Do not transfer the exact 9984595 DN, pressure or connection specifications to 0524333 unless the applicable Titan documentation explicitly supports them.
|
What is the difference between Titan 0550860 and 0550861?Titan accessory documentation identifies 0550860 as a 4' 6" Air Whip Hose and 0550861 as a 5' Fluid Whip Hose. They serve different sides of an air-assisted-airless system and should not be treated as interchangeable whip hoses.
|
Is Titan 9984595 a fluid hose or a complete AirCoat hose set?Current Titan AirCoat HE documentation identifies 9984595 as an AC hose set consisting of a DN3 material hose, DN6 air hose and protective hose. Historical Titan accessory charts use the shorter description 3/16" x 25' Bonded Fluid Hose. For current AirCoat HE technical selection, use the current equipment-specific hose-set specifications.
|
Can a standard Titan airless hose replace an AirCoat bonded hose?Not based on pressure rating or physical connection alone. AirCoat / air-assisted-airless configurations combine a pressurized material path with separate atomizing air, while a standard airless hose primarily serves the fluid path. Verify the exact equipment configuration and Titan part number before substituting any hose.
|
How do I verify the correct Titan AirCoat hose before ordering?Identify the exact equipment model first, then determine whether you need a material-side component, air-side component, main bonded hose/hose set or whip hose. Verify the required length, pressure rating, connection and exact Titan part number against the applicable manufacturer documentation before ordering.
|
