Shop Genuine OEM Titan 4500 PSI Airless Hoses
Shop and compare Titan 4500 PSI Airless Hoses by hose ID, length, manufacturer hose classification, NPSM connection and exact Titan part number. Titan’s current 4500 PSI / 31.0 MPa hose family covers documented 1/8", 1/4", 3/8" and 1/2" configurations from 3 to 100 feet, including dedicated whip hoses and longer high-pressure fluid hoses.
Titan 4500 PSI Hose Size & Part Number Guide
Titan’s current manufacturer matrix separates 4500 PSI hoses by inside diameter, length, hose classification and end connection. Use the complete configuration rather than choosing by pressure rating alone.
| Titan Part Number | Hose ID | Length | Titan Classification | End Connection | Construction Note | Manufacturer Listing |
|---|---|---|---|---|---|---|
| 290685 | 1/8" | 3' | Hose | 1/4" NPSM F/M | Specifically identified by Titan as textile braid | Listed in current 4500 PSI family |
| 2389428 | 1/4" | 3' | Whip Hose | 1/4" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |

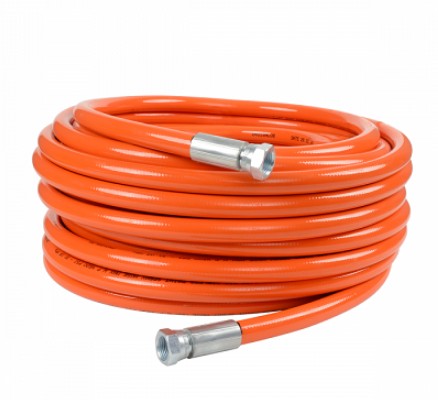

| 2389430 | 1/4" | 6' | Whip Hose | 1/4" NPSM F/M | 4500 PSI family construction | Listed in current 4500 PSI family |
| 2389429 | 1/4" | 50' | Hose | 1/4" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |
| 2389427 | 1/4" | 100' | Hose | 1/4" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |
| 2389436 | 3/8" | 6' | Whip Hose | 3/8" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |
| 2389434 | 3/8" | 50' | Hose | 3/8" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |
| 2389432 | 3/8" | 100' | Hose | 3/8" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |
| 2389425 | 1/2" | 50' | Hose | 1/2" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |

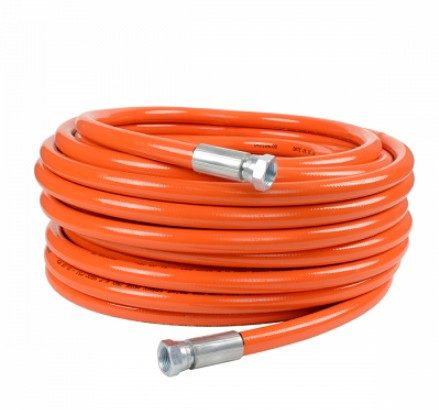

| 2389424 | 1/2" | 100' | Hose | 1/2" NPSM FBE | 4500 PSI family construction | Listed in current 4500 PSI family |
How Do I Choose the Correct Titan 4500 PSI Airless Hose?
Start with the equipment documentation rather than selecting a hose simply because its pressure rating and fittings appear suitable. The complete pressure-bearing fluid path must remain within the applicable ratings of the sprayer, hose, gun, fittings, manifolds and other pressure-bearing components.
| Step | Verify | Selection Reason |
|---|---|---|
| 1 | Equipment maximum pressure | Establish the pressure requirements of the complete system. |
| 2 | Hose working-pressure rating | Confirm that the 4500 PSI / 31.0 MPa class is appropriate. |
| 3 | Hose ID | Current configurations include 1/8", 1/4", 3/8" and 1/2". |
| 4 | Length | Current configurations include 3', 6', 50' and 100'. |
| 5 | Hose classification | Preserve Titan’s distinction between hose and whip-hose configurations. |
| 6 | End-connection size | Connection size is a separate specification from hose ID. |
| 7 | FBE or F/M | Hoses with the same ID and pressure can have different end arrangements. |
| 8 | Equipment configuration | Confirm exact system requirements from applicable Titan documentation. |
| 9 | Exact Titan PN | Match the required configuration to the documented manufacturer part number. |
Titan 4500 PSI Main Hose vs Whip Hose
Titan explicitly identifies several short 4500 PSI configurations as whip hoses, but not every short hose receives that classification. Preserve the manufacturer description when selecting or comparing parts.
| Part Number | ID | Length | Manufacturer Classification | Connection |
|---|---|---|---|---|
| 290685 | 1/8" | 3' | Textile-Braid Hose | 1/4" NPSM F/M |
| 2389428 | 1/4" | 3' | Whip Hose | 1/4" NPSM FBE |
| 2389430 | 1/4" | 6' | Whip Hose | 1/4" NPSM F/M |
| 2389436 | 3/8" | 6' | Whip Hose | 3/8" NPSM FBE |
Titan 4500 PSI Hose Diameter: 1/8 vs 1/4 vs 3/8 vs 1/2 Inch
Hose inside diameter is a fluid-path and system-selection specification. Titan’s current 4500 PSI matrix provides multiple IDs rather than treating larger diameter as an automatic upgrade. Select the ID documented for the intended equipment and hose configuration.
290685 — 3'
2389428 — 3'
2389430 — 6'
2389429 — 50'
2389427 — 100'
2389436 — 6'
2389434 — 50'
2389432 — 100'
2389425 — 50'
2389424 — 100'
Titan 4500 PSI Hose Length: 3, 6, 50 & 100 Feet
Titan offers short hose and whip-hose configurations as well as paired 50-foot and 100-foot hose choices. Length should be selected with the required ID, connection and equipment configuration rather than independently.
| Hose ID | 50-Foot PN | 100-Foot PN | Connection |
|---|---|---|---|
| 1/4" | 2389429 | 2389427 | 1/4" NPSM FBE |
| 3/8" | 2389434 | 2389432 | 3/8" NPSM FBE |
| 1/2" | 2389425 | 2389424 | 1/2" NPSM FBE |
Titan 4500 PSI Hose Connections: NPSM F/M vs FBE
Titan uses NPSM for National Pipe Straight Mechanical Thread. In Titan hose documentation, FBE means female both ends, while F/M identifies one female end and one male end. Connection arrangement matters even when pressure rating and hose ID are identical.
| Part Number | ID | Length | Connection | End Arrangement |
|---|---|---|---|---|
| 2389428 | 1/4" | 3' | 1/4" NPSM | FBE |
| 2389430 | 1/4" | 6' | 1/4" NPSM | F/M |
Titan 4500 PSI Hose Construction, Reinforcement & Grounding
Titan describes its current 4500 PSI hose family with solid urethane construction, a conductive tube design for proper grounding, easy coiling and uncoiling, NPSM connections, and aramid and steel-braid reinforcement. These are manufacturer family-level characteristics and should be used instead of unsupported generic hose claims.
Current Titan 4500 PSI Hose Part Numbers
290685 — 3' — 1/4" NPSM F/M
2389428 — 3' Whip — FBE
2389430 — 6' Whip — F/M
2389429 — 50' — FBE
2389427 — 100' — FBE
2389436 — 6' Whip — FBE
2389434 — 50' — FBE
2389432 — 100' — FBE
2389425 — 50' — FBE
2389424 — 100' — FBE
Legacy Titan 4500 PSI Hose Part Numbers & Cross-References
Historical Titan high-pressure hose documentation used an encoded part-number format in which the number itself could identify connection/diameter information, pressure class and length. One manufacturer example is 250450050, shown historically as a 1/4" x 50' hose rated to 4500 PSI.
| Historical PN | Historical ID | Length | Pressure | Current Comparable Configuration | Verified Supersession |
|---|---|---|---|---|---|
| 250450050 | 1/4" | 50' | 4500 PSI | 2389429 has the same current matrix ID, length and pressure class. | Not established here; do not present as a supersession without explicit Titan replacement documentation. |
4500 PSI vs 3300, 3600, 6500 & 7500 PSI Titan Hoses
Titan publishes multiple airless-hose working-pressure classes. They should be treated as system specifications rather than quality tiers. A 4500 PSI hose is not automatically an upgrade for equipment designed around another hose class.
| Hose Class | Maximum Working Pressure | Selection Rule |
|---|---|---|
| 3300 PSI | 22.8 MPa | Use the pressure class and exact hose configuration required by the complete system. A higher hose rating does not increase the sprayer’s rated operating pressure. |
| 3600 PSI | 24.8 MPa | |
| 4500 PSI | 31.0 MPa | |
| 6500 PSI | 44.8 MPa | |
| 7500 PSI | 51.7 MPa |
Where Do Titan 4500 PSI Hoses Fit in a Spray System?
Titan uses 4500 PSI / 31.0 MPa in professional high-pressure equipment, including systems such as the Hydra X 4540 and PowrCoat 1045. That shared pressure class provides useful system context, but it does not establish that every hose in this category is approved for every 4500 PSI Titan machine.
Confirms that equipment or a component operates within a stated pressure range. This is only one part of hose selection.
Requires manufacturer documentation connecting the exact hose or hose configuration to the applicable equipment.
The Hydra X 7230 operates above the 4500 PSI class, so do not infer general suitability of a 4500 PSI hose for that platform from a shared accessory listing, physical connection or similar appearance. Use the exact manufacturer-specified hose configuration for the equipment.
Titan 4500 PSI Category Product-Data Check
Exact product identity matters when ordering high-pressure components. The Titan manufacturer matrix identifies 290685 as a 4500 PSI hose configuration, while the current AllTitanParts 290685 product record displays “Universal” in its Brand field. That store-data field should be reconciled with the authoritative manufacturer record before it is reused in structured product data or compatibility content.
Inspecting a Titan 4500 PSI Airless Hose
Inspect high-pressure fluid hoses as part of the complete spray system. Follow the pressure-relief procedure in the applicable Titan equipment manual before disconnecting, inspecting or servicing pressure-bearing components, and never use a hand or finger to search for a suspected high-pressure fluid leak.
| Inspection Area | Check |
|---|---|
| Hose body | Cuts, abrasion, bulging, leaks or other physical damage. |
| Fittings | Damage or conditions that compromise the pressure-bearing connection. |
| Routing | Kinking, damaging bends and physical abuse. |
| Grounding | Maintain the grounding provisions required by the applicable Titan system documentation. |
| Pressure rating | Confirm that all applicable pressure-bearing components are appropriately rated. |
Contractor Selection Insight
Titan’s 4500 PSI family includes multiple diameters, lengths and connection arrangements, so pressure rating alone is not enough to identify the correct hose. Start with the equipment requirements and narrow the choice using the complete manufacturer configuration.
System Pressure → Hose Rating → ID → Length → Hose/Whip Classification → End Arrangement → Equipment Configuration → Exact PN
Shop, Compare, Buy or Order genuine OEM Titan 4500 PSI airless hoses from AllTitanParts.com after verifying pressure rating, hose ID, length, hose type, end connection and exact Titan part number.
FAQ Section
Use these selection checks to compare Titan 4500 PSI hose configurations before ordering.
How do I choose the correct Titan 4500 PSI airless hose?Verify the equipment maximum operating pressure, required hose working-pressure rating, hose ID, length, manufacturer hose or whip-hose classification, NPSM end size, FBE or F/M arrangement, equipment configuration and exact Titan part number. Pressure and physical thread fit alone do not establish the correct hose.
|
What is the difference between Titan 2389428, 2389430 and 2389436 whip hoses?Titan 2389428 is a 3-foot x 1/4-inch whip hose with 1/4-inch NPSM FBE connections; 2389430 is a 6-foot x 1/4-inch whip hose with 1/4-inch NPSM F/M connections; and 2389436 is a 6-foot x 3/8-inch whip hose with 3/8-inch NPSM FBE connections. The differences include ID, length and end arrangement.
|
What do NPSM FBE and F/M mean on Titan 4500 PSI hose listings?NPSM means National Pipe Straight Mechanical Thread. FBE means female both ends, while F/M identifies one female end and one male end. These connection specifications must be checked independently from hose inside diameter.
|
What is the difference between 1/4, 3/8 and 1/2-inch Titan 4500 PSI hoses?These dimensions identify different hose inside diameters within Titan’s 4500 PSI family. Titan lists 1/4-inch configurations in 3, 6, 50 and 100-foot lengths, 3/8-inch configurations in 6, 50 and 100-foot lengths, and 1/2-inch configurations in 50 and 100-foot lengths. Select the diameter documented for the equipment and hose configuration rather than assuming a larger ID is automatically better.
|
Can I use a Titan 4500 PSI hose just because the pressure rating and fittings match?No. Matching working pressure and physically compatible fittings are only part of the selection process. Verify hose ID, length, hose or whip classification, end arrangement, equipment configuration and exact Titan part number using the applicable manufacturer documentation before substituting a hose.
|
