Shop Genuine OEM Titan 3600 PSI Airless Hoses
Compare genuine OEM Titan 3600 PSI Airless Hoses by working-pressure rating, hose inside diameter, length, NPSM end connection and exact Titan part number. Titan’s documented 3600 PSI / 24.8 MPa matrix centers on two 50-foot configurations: 286498 with 1/4" ID and 1/4" NPSM FBE connections, and 286499 with 3/8" ID and 3/8" NPSM FBE connections.
Titan 286498 vs 286499: Which 3600 PSI Hose Do I Need?
Titan’s manufacturer hose matrix distinguishes these two 3600 PSI hoses by inside diameter and end-connection size. Both are 50 feet long and use female-both-ends NPSM connections. Choose from the documented configuration required by the equipment rather than assuming that either hose is interchangeable because the working-pressure rating is the same.
| Titan PN | Leading-Zero Form | Max. Working Pressure | Hose ID | Length | End Connection | Buying Guidance |
|---|---|---|---|---|---|---|

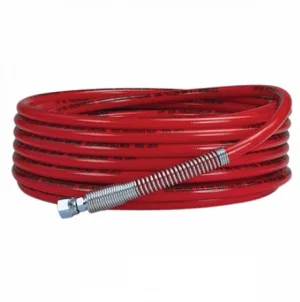

| 286498 | 0286498 | 3600 PSI / 24.8 MPa | 1/4" | 50' / 15.2 m | 1/4" NPSM (FBE) | Select when the documented system configuration requires this 1/4" hose and connection arrangement. |

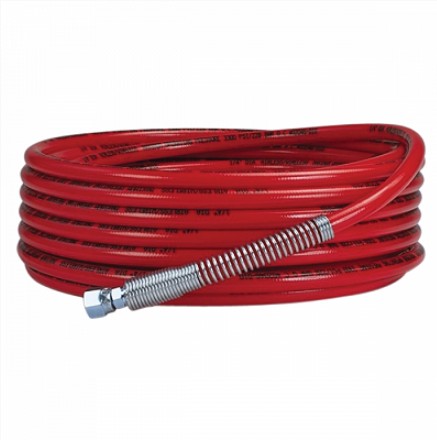

| 286499 | 0286499 | 3600 PSI / 24.8 MPa | 3/8" | 50' / 15.2 m | 3/8" NPSM (FBE) | Select when the documented system configuration requires this 3/8" hose and connection arrangement. |
How Do I Choose the Correct Titan 3600 PSI Airless Hose?
Treat the hose as part of the complete high-pressure fluid path. A pressure rating or connection that appears to match does not, by itself, establish the correct hose for a particular Titan sprayer, gun or other airless system.
| Step | Verify | Why It Matters |
|---|---|---|
| 1 | Equipment maximum operating pressure | The complete pressure-bearing system must use components suitable for its operating pressure. |
| 2 | Required hose pressure rating | Confirm that a 3600 PSI hose is appropriate for the documented system configuration. |
| 3 | Hose inside diameter | 286498 is 1/4" ID; 286499 is 3/8" ID. |
| 4 | Length | Both documented 3600 PSI configurations are 50 feet long. |
| 5 | End-connection size | Verify the connection independently from hose ID. |
| 6 | Connection arrangement | Both documented configurations use FBE, or female both ends. |
| 7 | Equipment configuration | Use the applicable Titan manual, parts list or accessory documentation where exact fitment is required. |
| 8 | Exact Titan part number | Confirm 286498/0286498 or 286499/0286499 before ordering. |
Titan 1/4 vs 3/8 Inch 3600 PSI Airless Hose
The principal documented difference between Titan 286498 and 286499 is the hose and connection size—not length or pressure class. Both are 50-foot hoses rated for a maximum working pressure of 3600 PSI / 24.8 MPa.
Hose inside diameter is a system-selection specification. Do not assume that 1/4" is automatically for short runs or that 3/8" is automatically for long runs—both Titan 3600 PSI configurations shown here are the same 50-foot length. Use the size specified for the intended equipment and hose arrangement.
Titan 3600 PSI Hose Connections: NPSM & FBE Explained
Titan identifies NPSM as National Pipe Straight Mechanical Thread. In Titan hose documentation, FBE identifies a female-both-ends connection arrangement. These are connection specifications and should be checked separately from hose inside diameter.
| Titan PN | Hose ID | End Connection | Arrangement |
|---|---|---|---|
| 286498 | 1/4" | 1/4" NPSM | FBE |
| 286499 | 3/8" | 3/8" NPSM | FBE |
The ID and connection size happen to match numerically on these two Titan hoses, but they remain separate specifications. Do not assume that every 1/4" hose uses a 1/4" connection or that every 3/8" hose uses a 3/8" connection.
Titan 286498 vs 0286498 and 286499 vs 0286499
Titan’s current accessory hose matrix identifies the 3600 PSI configurations as 286498 and 286499, while leading-zero forms 0286498 and 0286499 also appear in Titan-related cataloging and current AllTitanParts product listings. The digit-format difference should not, by itself, be presented as proof of a replacement or supersession.
| Current Matrix PN | Leading-Zero Form | Verified Configuration | Replacement Relationship | Status Treatment |
|---|---|---|---|---|
| 286498 | 0286498 | 50' x 1/4", 3600 PSI, 1/4" NPSM FBE | Do not label as a supersession solely from numbering format. | Preserve both verified searchable forms. |
| 286499 | 0286499 | 50' x 3/8", 3600 PSI, 3/8" NPSM FBE | Do not label as a supersession solely from numbering format. | Preserve both verified searchable forms. |
Titan 3600 PSI Hose Construction & Grounding
Titan describes its 3600 PSI airless-hose line using solid urethane construction, easy coiling and uncoiling, a conductive tube design for proper grounding and NPSM connections. These manufacturer-supported characteristics are more appropriate for product selection than applying generic hose-construction claims to the category.
3600 PSI vs 3300, 4500, 6500 & 7500 PSI Titan Hoses
Titan publishes separate airless-hose working-pressure classes including 3300, 3600, 4500, 6500 and 7500 PSI. These pressure classes are system specifications, not simple good-better-best quality levels. Select the hose class required by the complete pressure-bearing system.
| Titan Hose Class | Published Maximum Working Pressure | Selection Principle |
|---|---|---|
| 3300 PSI | 22.8 MPa | Match the required system pressure class and exact hose configuration. A higher-rated hose does not raise the operating-pressure capability of the sprayer. |
| 3600 PSI | 24.8 MPa | |
| 4500 PSI | 31.0 MPa | |
| 6500 PSI | 44.8 MPa | |
| 7500 PSI | 51.7 MPa |
Where Does a 3600 PSI Hose Fit in a Titan Spray System?
Titan uses 3600 PSI / 24.8 MPa as a working-pressure class within parts of its professional spray-equipment ecosystem, including certain guns and accessories. That shared pressure class is useful system context, but it is not proof that either 286498 or 286499 fits every Titan component carrying a 3600 PSI rating.
Shows that components operate within a documented pressure range. It is one required selection check.
Requires documentation connecting the exact hose or hose configuration to the applicable equipment.
Do not infer exact hose compatibility from pressure alone. Where a sprayer, gun, manifold or hose kit specifies a particular hose, use that equipment documentation and exact Titan part number as the fitment authority.
Selecting a Titan 3600 PSI Hose for Professional Spraying
Professional hose selection should begin with the documented spray-system requirements rather than a broad coating name. Verify maximum operating pressure, required hose working-pressure rating, inside diameter, length, end connections, equipment configuration and exact Titan part number. A generic statement that a hose is suitable for latex, acrylic, enamel, primer or another coating does not independently establish the correct hose for a particular sprayer or fluid system.
Inspecting a Titan 3600 PSI Airless Hose
High-pressure airless hoses should be inspected as part of the complete spray system. Follow the pressure-relief procedure in the applicable Titan equipment manual before disconnecting, inspecting or servicing pressure-bearing fluid components, and never use a hand or finger to search for a suspected high-pressure fluid leak.
| Inspection Area | What to Check |
|---|---|
| Hose body | Cuts, abrasion, leaks, bulging or other physical damage. |
| Couplings / fittings | Damage, looseness or other conditions that compromise the pressure-bearing connection. |
| Routing | Avoid damaging bends, kinks and physical abuse. |
| Grounding | Maintain the grounding provisions required by the applicable Titan equipment and hose documentation. |
| Pressure rating | Confirm that the hose is appropriately rated for the complete system. |
Contractor Selection Insight
Titan’s documented 3600 PSI airless-hose matrix is unusually focused: 286498 is the 50' x 1/4" configuration and 286499 is the 50' x 3/8" configuration. That makes exact identification more useful than generic hose marketing.
Pressure Requirement → Hose ID → Length → NPSM Connection → Exact Titan PN
Shop, Compare, Buy or Order genuine OEM Titan 3600 PSI airless hoses from AllTitanParts.com after verifying pressure rating, hose ID, length, end connection and exact Titan part number.
FAQ Section
Use these verified selection principles to identify the appropriate Titan 3600 PSI hose configuration before ordering.
What is the difference between Titan 286498 and 286499 3600 PSI hoses?Both are 50-foot hoses rated to 3600 PSI / 24.8 MPa. Titan 286498 is a 1/4-inch ID hose with 1/4-inch NPSM FBE connections, while 286499 is a 3/8-inch ID hose with 3/8-inch NPSM FBE connections. Select the configuration documented for the intended spray system rather than choosing by pressure rating alone.
|
Are Titan 0286498 and 286498 the same hose part number?Titan’s current hose matrix uses 286498 for the 50-foot x 1/4-inch, 3600 PSI, 1/4-inch NPSM FBE configuration, while 0286498 is a leading-zero form used in Titan-related cataloging and current AllTitanParts listings. The numbering difference alone should not be described as a supersession unless Titan explicitly documents a replacement relationship.
|
What does NPSM FBE mean on a Titan 3600 PSI hose?Titan identifies NPSM as National Pipe Straight Mechanical Thread, while FBE means Female Both Ends. These describe the hose connection and end arrangement. Hose inside diameter and fitting/thread size remain separate specifications even when their nominal sizes happen to match on a particular hose.
|
Can a Titan 3600 PSI hose be used just because the pressure rating and threads match?No. Matching pressure and threads are important checks, but they do not by themselves establish the correct hose configuration. Verify hose ID, length, end arrangement, equipment requirements and exact Titan part number against the applicable manufacturer documentation before substitution.
|
Does installing a 3600 PSI hose increase my sprayer's operating-pressure capability?No. The hose pressure rating identifies the hose’s maximum working-pressure class; it does not increase the operating-pressure capability of the sprayer. The complete system remains governed by the ratings and requirements of its applicable pressure-bearing components.
|
