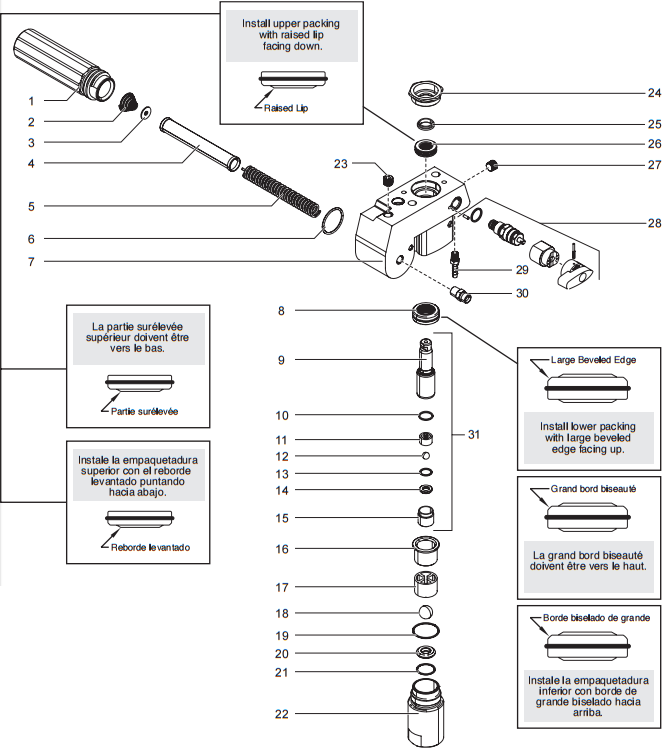

GPX 85 Fluid Section Assembly Parts

Titan 0555960 Repacking Kit

Item No: -

Part #: 0555960

Part 0555960 is a repacking kit containing the seals and packings needed to prevent fluid leaks from...

Retail Price: $179.60

You save: $22.45 (12.50%)

Our Price: $157.15

QTY:

Titan 730-067 60 Mesh Manifold Filter

Item No: 4

Part #: 730-067

RentSpray part 730-067 is a 60 Mesh Manifold Filter used to remove medium-sized particles from coati...

$18.00

QTY:

Titan 757-105 Filter Support Spring

Item No: 5

Part #: 757-105

Airless Sprayer / Advantage / Elite / Epic / Impact / Performer / PowrLiner / PowrTex ...

$10.30

QTY:

Titan 704-297 Teflon O-Ring

Item No: 6

Part #: 704-297

Part number 704-297 is a Teflon O-ring used to create a durable, chemical-resistant seal between...

$12.00

QTY:

Titan 0551681 Fluid Section Housing or Pump Manifold

Item No: 7

Part #: 0551681

Part number 0551681 is a fluid section housing or pump manifold that forms the core of the pumpi...

Retail Price: $337.10

You save: $49.22 (14.60%)

Our Price: $287.88

QTY:

Titan 0507274A Lower Packing (Can be Ordered as BEDFORD)

Item No: 8

Part #: 0507274A

Part 0507274A is a replacement lower packing component used in the fluid section of compatible s...

Retail Price: $52.40

You save: $4.35 (8.30%)

Our Price: $48.05

QTY:

Titan 800-452 Piston Rod

Item No: 9

Part #: 800-452

Part number 800-452 is a piston rod that transmits reciprocating motion from the drive system to...

Retail Price: $349.40

You save: $51.01 (14.60%)

Our Price: $298.39

QTY:

Titan 800-348 Outlet Valve Seal

Item No: 10

Part #: 800-348

Part number 800-348 is an Outlet Valve Seal used in Airless Sprayer 1140 I and IX, 740...

$2.50

QTY:

Titan 800-441 Outlet Cage

Item No: 11

Part #: 800-441

Part number 800-441 is an outlet cage that houses and protects the outlet valve components in co...

Retail Price: $35.80

You save: $1.97 (5.50%)

Our Price: $33.83

QTY:

Titan 9841502 Outlet Valve Ball

Item No: 12

Part #: 9841502

SprayTech part 9841502 is a replacement outlet valve ball used to seal the outlet valve ...

$25.10

QTY:

Titan 0507454 Washer

Item No: 13

Part #: 0507454

Part number 0507454 is a replacement washer used in various airless sprayer models. It...

$2.50

QTY:

Titan 0294516 Outlet Valve Seat (Replaces Titan 944-043)

Item No: 14

Part #: 0294516

Titan part 0294516 is an outlet valve seat (replaces Titan 944-043) used in the fluid ...

Titan 800-336 Outlet Valve Retainer

Item No: 15

Part #: 800-336

Part number 800-336 is an Outlet Valve Retainer used in Airless Sprayer 1140I and IA, ...

Retail Price: $57.80

You save: $4.8 (8.30%)

Our Price: $53.00

QTY:

Titan 0555002 Adapter or Bushing

Item No: 16

Part #: 0555002

Part number 0555002 is an adapter or bushing used to connect components of different sizes or ty...

Retail Price: $35.60

You save: $1.96 (5.51%)

Our Price: $33.64

QTY:

Titan 800-442 Inlet Cage

Item No: 17

Part #: 800-442

Part number 800-442 is an inlet cage that houses and protects the inlet valve components in comp...

Retail Price: $51.00

You save: $4.23 (8.29%)

Our Price: $46.77

QTY:

Titan 51519 Inlet Ball (replaces Titan 800-242)

Item No: 18

Part #: 51519

Part 51519 is an inlet ball (valve ball) used in the fluid section of a wide range o...

$21.40

QTY:

Titan 762-103 Lower Seal

Item No: 19

Part #: 762-103

Part number 762-103 is a lower seal used to prevent fluid leakage around the lower end of the pi...

$7.60

QTY:

Titan 00310 Inlet Seat

Item No: 20

Part #: 00310

Titan 00310 Inlet Seat - Short Description body { background-color: #f8f9fa; ...

Retail Price: $93.60

You save: $7.77 (8.30%)

Our Price: $85.83

QTY:

Titan 762-058 Seat O-Ring

Item No: 21

Part #: 762-058

Part 762-058 is a replacement seat o-ring used in fluid systems across an extensive range of com...

$7.40

QTY:

Titan 0555003 Foot Valve Housing

Item No: 22

Part #: 0555003

Part number 0555003 is a foot valve housing that encloses and supports the foot valve components...

Retail Price: $141.10

You save: $14.67 (10.40%)

Our Price: $126.43

QTY:

Titan 227-028 Pipe Plug

Item No: 23

Part #: 227-028

Part number 227-028 is a Pipe Plug used to seal unused threaded ports in fluid and air systems on a ...

$3.40

QTY:

Titan 705-104 Retainer

Item No: 24

Part #: 705-104

Part number 705-104 is a retainer used to hold components in position within compatible sprayer ...

Retail Price: $65.70

You save: $5.45 (8.30%)

Our Price: $60.25

QTY:

Titan 705-105 Upper Guide

Item No: 25

Part #: 705-105

Part number 705-105 is an upper guide used to align and support moving components in compatible ...

$18.10

QTY:

Titan 0507273A Upper Packing Kit (Can be Ordered as BEDFORD)

Item No: 26

Part #: 0507273A

Part 0507273A is a replacement upper packing kit used in the fluid section of compatible spray e...

Retail Price: $70.00

You save: $5.81 (8.30%)

Our Price: $64.19

QTY:

Titan 227-028 Pipe Plug

Item No: 27

Part #: 227-028

Part number 227-028 is a Pipe Plug used to seal unused threaded ports in fluid and air systems on a ...

$3.40

QTY:

Titan 0507690 Bypass Valve Assembly

Item No: 28

Part #: 0507690

SprayTech part 0507690 is a bypass valve assembly used in a wide range of airless pain...

Retail Price: $137.30

You save: $14.28 (10.40%)

Our Price: $123.02

QTY:

Titan 193-200 Return Tube Fitting

Item No: 29

Part #: 193-200

Part number 193-200 is a Return Tube Fitting that connects the return hose to the pump inlet assembl...

$6.20

QTY:

Titan 227-006 Outlet Fitting

Item No: 30

Part #: 227-006

Part number 227-006 is an Outlet Fitting that connects the pump discharge to the high-pressure hose ...

$18.50

QTY:

Titan 705-120A Piston Rod Complete Assembly

Item No: 31

Part #: 705-120A

Part number 705-120A is a complete piston rod assembly that transmits reciprocating motion from ...

Retail Price: $490.00

You save: $71.54 (14.60%)

Our Price: $418.46

QTY:

Order Genuine GPX 85 Main Assembly OEM Parts Online

The GPX 85 Main Assembly Parts are designed to maintain the core structural and functional performance of the Titan GPX 85 gas piston pump system. This assembly is responsible for supporting the primary operation of the sprayer, including pressure generation, fluid control, and system stability during high-demand coating applications. It includes essential components such as pressure transducers, hexagonal washer cap screw, fluid section assemblies, seals, gaskets, washers, screws, pins, and valve-related hardware that ensure smooth and consistent operation.

Each part in the main assembly works together to regulate fluid flow and maintain accurate pressure readings throughout the spraying cycle. When all components are properly fitted and in good condition, the system delivers steady spray output with reduced vibration and minimal performance loss. However, wear in key elements like seals, fluid section components, or pressure sensors can lead to inconsistent spray patterns and reduced efficiency.

Regular servicing of the GPX 85 Main Assembly helps extend equipment life and prevents costly breakdowns in professional painting environments. Cleaning, inspection, and timely replacement of worn components ensure that the sprayer continues to perform reliably under continuous heavy-duty use, especially in commercial and industrial coating applications.

FAQs

Unstable pressure is usually caused by worn fluid section components, damaged seals, or a failing pressure transducer that cannot maintain accurate system readings.

Fluid leakage often occurs due to worn packings, loose fittings, or damaged gaskets within the fluid section assembly that fail to maintain a proper seal.

Irregular spray patterns can result from inconsistent pressure control, clogged internal passages, or worn valves affecting smooth fluid delivery.

Excessive vibration may be caused by loose mounting screws, worn internal bearings, or misaligned fluid section components during operation.

This issue is commonly linked to worn piston seals, damaged fluid section parts, or internal wear that reduces the efficiency of pressure generation within the pump system.
