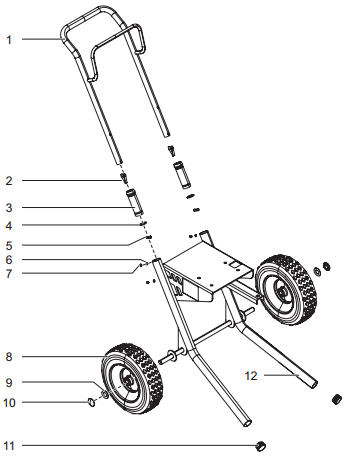

GPX 85 Cart Assembly Parts

Titan 9841504 Snap Button

Item No: 2

Part #: 9841504

Titan 9841504 Snap button or Button,snap,a-131-s *Replaced # 590-507* Fits the following models:...

$4.40

QTY:

Titan 590-504 Sleeve Handle

Item No: 3

Part #: 590-504

Titan part 590-504 is a sleeve handle designed to provide a secure gripping point for pump s...

$18.30

QTY:

Titan 590-506 Flat Washer

Item No: 4

Part #: 590-506

Titan part 590-506 is a flat washer designed to distribute load, prevent surface damage, and...

$2.10

QTY:

Titan 590-508 Roll Pin

Item No: 5

Part #: 590-508

Titan part 590-508 is a roll pin (spring pin) designed to secure linkages, pivots, or retain...

$2.00

QTY:

Titan 856-002 Lock Washer

Item No: 6

Part #: 856-002

Titan part 856-002 is a lock washer designed to prevent screws and bolts from loosening due ...

$3.40

QTY:

Titan 856-921 Screw

Item No: 7

Part #: 856-921

Titan part 856-921 is a replacement screw designed for securing critical components on compa...

$2.00

QTY:

Titan 0295687 Wheel Spacer

Item No: 9

Part #: 295687

Titan Wheel spacer 0295687 * REPLACED # 870-004*

$3.80

QTY:

Titan 800-019 Axle Cap

Item No: 10

Part #: 800-019

Part 800-019 is a replacement axle cap used to secure the wheel and protect the bearing hub on a...

$10.10

QTY:

Titan 9885571 Plug

Item No: 11

Part #: 9885571

Advantage / Impact / RentSpray / SprayTech / Elite / HVLP Power Cart part 9885571 is a...

$2.70

QTY:

Titan 0555594A Cart frame

Item No: 12

Part #: 0555946

Titan 0555594A Cart frame, gpx85, pkgd

Discontinued by Manufacturer

Order Genuine GPX 85 Cart Assembly OEM Parts Online

The GPX 85 Cart Assembly Parts category includes the structural and mobility components that support and transport the Titan GPX 85 gas piston pump system. This assembly is responsible for holding the full sprayer unit pump, engine, hoses, and accessories securely in place while ensuring easy movement across job sites. A strong cart assembly is essential for maintaining stability, reducing vibration stress, and protecting connected components during heavy-duty airless spraying operations.

The cart system is built around a reinforced frame with wheels, washers, roll pin, axle hardware, handle components, spacers, and fasteners. These parts work together to distribute weight evenly, absorb movement shocks, and allow smooth transport even on rough surfaces. Proper maintenance of cart components helps prevent misalignment of the pump system and reduces wear on connected hoses and fittings.

FAQs

Instability is often caused by worn wheel spacers, loose axle caps, or damaged roll pins. When these parts loosen, the cart can tilt or vibrate excessively during transport.

Vibration is usually linked to loose frame fasteners or worn handle sleeve components. Over time, repeated movement stress can loosen snap buttons and reduce structural rigidity.

This can happen when debris enters the axle area or when bushings and spacers wear down, increasing friction between wheel and axle components.

A failed snap button can cause handle instability or partial disassembly during movement, making the unit unsafe to transport and potentially damaging connected components.

Because the cart supports the entire sprayer weight, even small wear in fasteners or spacers can gradually affect alignment, increase vibration, and shorten the lifespan of the pump system.
