GPX 85 Main Assembly Parts

Titan 0509550 Hex washer cap screw

Item No: 1

Part #: 0509550

Titan 0509550 Hex washer cap screw replaces part Titan 700-652.

$2.53

QTY:

Titan 0551112 Pressure Transducer Assembly

Item No: 4

Part #: 0551112

Titan 0551112 Pressure Transducer Assembly is designed for use on various Titan paint sprayers like ...

Retail Price: $69.90

You save: $9.99 (14.29%)

Our Price: $59.91

QTY:

Titan 0509585 Transducer Gasket

Item No: 5

Part #: 0509585

Titan 0509585 Transducer Gasket is same as Titan 700-804 designed for use on various Titan paint spr...

$2.26

QTY:

Titan 0555904 Fluid section assy

Item No: 6

Part #: 0555904

Titan 0555904 Fluid section assy fits GPX 85

Retail Price: $507.50

You save: $74.09 (14.60%)

Our Price: $433.41

QTY:

Titan 763-552 Washer (Cart Only)

Item No: 8

Part #: 763-552

Washer, 5/16 lock, stl .32x.61 Fits the following models: Impact 440, Impact 540, Impact ...

$2.53

QTY:

Titan 710-033 Pail Bracket Bolt

Item No: 9

Part #: 710-033

Titan 710-033 Pail Bracket Bolt or Screw, hex, 5/16-18 x .5 stl ...

$2.39

QTY:

Titan 0507662 Relief Valve Knob

Item No: 10

Part #: 0507662

Titan 0507662 Relief Valve Knob Fits: Advantage GPX 220

$17.58

QTY:

Titan 700-759 Groove Pin

Item No: 11

Part #: 700-759

Titan 700-759 Groove Pin is designed for use on various Titan paint sprayers like the Titan Impact 3...

$4.28

QTY:

Titan 700-251 Bypass Cam Base

Item No: 12

Part #: 700-251

Titan 700-251 Bypass Cam Base is same as Titan 0507735, It is designed for use on various Titan pa...

$3.59

QTY:

Titan 700-823 Dowel Pin

Item No: 13

Part #: 700-823

Titan 700-823 Dowel Pin, 1/8 od x 3/8 lg

$2.79

QTY:

Titan 704-117 Fluid Section Screw

Item No: 14

Part #: 704-117

Titan 704-117 Fluid section screw or Screw, shcs 7/16 x 2" is an OEM part. Fits the following model...

$5.78

QTY:

Titan 0551556 Return Tube (Cart only)

Item No: 16

Part #: 0551556

Titan 0551556 Return Tube (Cart only) Fits: Impact 400, Impact 410, Advantage 400, Advan...

$16.54

QTY:

Titan 730-334 Hose Tie Clamp

Item No: 17

Part #: 730-334

Titan 730-334 Hose Tie Clamp serves as a holder of the return tube to the siphon tube in various Tit...

$9.16

QTY:

Titan 0327226 Return tube clip (cart only)

Item No: 18

Part #: 0327226

Titan 0327226 Return tube clip Fits the following models: Impact 340, Impact 400, Impact X 440 ...

$2.93

QTY:

Titan 763-549 Lock Nut

Item No: 20

Part #: 763-549

Titan 763-549 Lock Nut 5/16-18 is an OEM Part.

$2.53

QTY:

Titan 756-090 Washer 3/8"

Item No: 21

Part #: 756-090

Titan 756-090 Washer 3/8"

$3.78

QTY:

Titan 862-436 Screw

Item No: 22

Part #: 862-436

Titan 862-436 or 862436 Screw, HH, 3/8-16 X 1" is an OEM part.

$2.39

QTY:

Titan 0555296 Front cover

Part #: 0555296

Titan 0555296 Front cover, gpx50/pl1800

$22.43

QTY:

Titan 770-685 Philips Pan Head Screw

Part #: 770-685

Titan SPEEFLO 770-685 Philips Pan Head Screw is an OEM parts. Fits: Speeflo Powrliner 1800M, 2800M,...

$2.02

QTY:

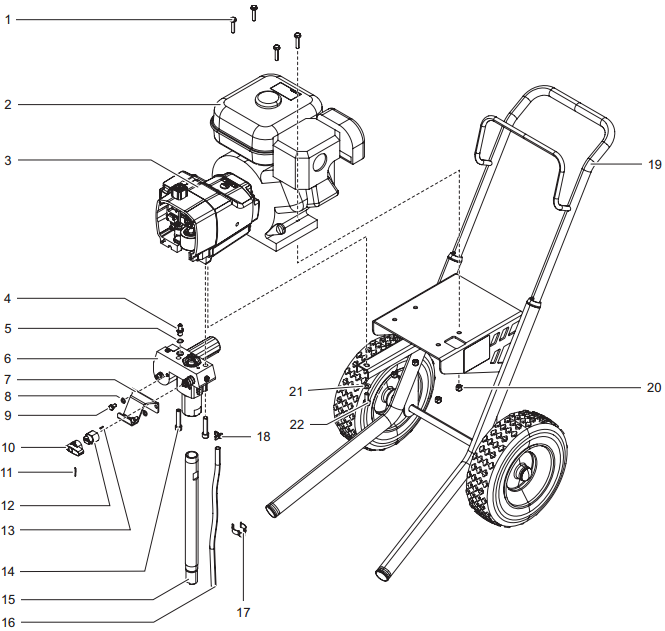

GPX 85 Main Assembly Parts

This Category illustrates the GPX 85 Main Assembly Parts.
