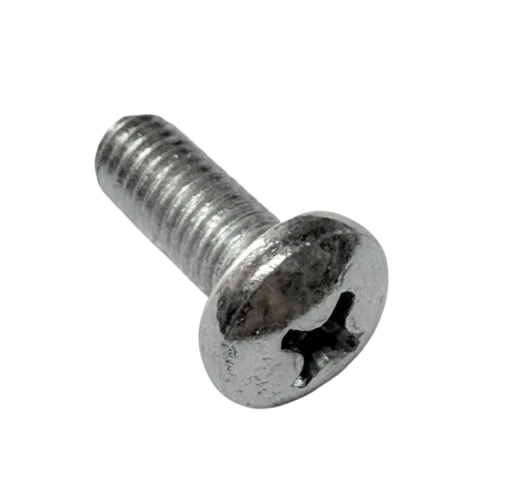

Titan 770-685 Philips Pan Head Screw
Titan part 770-685 is a Philips Pan Head Screw designed for assembly and fastening applications across multiple Titan sprayer models. This specific screw features a Phillips drive recess and a low-profile pan head design, making it suitable for applications where a flush or low-profile fastener is required. OEM screws ensure proper thread engagement, material compatibility, and corrosion resistance for long-term reliability.
| Part Number | 770-685 |
|---|---|
| Part Description | Philips Pan Head Screw |
| Brand | Titan |
| Fits | Advantage GPX 85, PowrLiner, ProMark II, RentSpray 700, SprayTech GPX 85 and other models |
| Condition | New |
Philips Pan Head Screw for Multiple Titan Sprayer Models
The Titan 770-685 Philips Pan Head Screw is a standardized fastener used in various assembly applications across multiple Titan sprayer models and series. This screw features a Phillips drive (cross-shaped recess) and a pan head design with a slightly rounded top and flat bearing surface. Pan head screws provide good clamping force while maintaining a relatively low profile compared to other screw head types.
While screws may seem like simple components, using the correct OEM fastener is important for maintaining equipment integrity. Titan-specific screws are manufactured to exact specifications for thread pitch, length, material grade, and corrosion resistance. Using incorrect or inferior replacement screws can lead to stripped threads, improper clamping, corrosion issues, or difficulty during future service. This screw is designed to match original equipment requirements for the listed compatible models.
When replacing screws during maintenance or repair, always use the correct OEM part number to ensure proper fit and function. Note the exact location and orientation when removing screws for reassembly. Apply appropriate torque during installation - over-tightening can damage threads or components, while under-tightening can lead to loose connections and vibration-induced failure.
Screw characteristics and typical applications
| Drive type | Phillips (cross-shaped) recess for Phillips screwdriver |
|---|---|
| Head style | Pan head - slightly rounded top with flat bearing surface |
| Profile | Low-profile design suitable for confined spaces |
| Material | Typically steel with appropriate coating for corrosion resistance |
| Covers/guards | Attaching protective covers, guards, and access panels |
|---|---|
| Brackets/mounts | Securing brackets, mounts, and component supports |
| Housings | Assembly of housing sections and enclosures |
| General fastening | Various fastening points throughout sprayer assembly |
Compatibility
Titan part 770-685 is used across multiple Titan sprayer models and series, indicating it is a standardized fastener in Titan's manufacturing. The wide compatibility suggests this screw is used in common assembly applications that span different sprayer lines. Always verify the specific application in your sprayer's parts diagram.
| Compatible Models | Series/Type |
|---|---|
| Advantage GPX 85 | Advantage GPX Series |
| PowrLiner 2850 GB D F | PowrLiner Series |
| PowrLiner 2800 | PowrLiner Series |
| PowrLiner 1800M, 280 | PowrLiner Series |
| ProMark II | ProMark Series |
| RentSpray 700 | RentSpray Series |
| SprayTech GPX 85 | SprayTech GPX Series |
When to replace screws
Screws should be replaced when damaged or during reassembly after service. While they are durable components, certain conditions warrant replacement:
Phillips recess is worn, stripped, or damaged preventing proper tool engagement.
Threads are stripped, crossed, or damaged preventing proper engagement.
Significant rust or corrosion that weakens the screw or makes removal difficult.
