Titan Advantage 700 Fluid Section Assembly Parts
Buy genuine Titan Advantage 700 Fluid Section Assembly Parts at AllTitanParts. Explore OEM pump cylinders, piston rods, upper and lower packings, inlet and outlet valves, O-rings, valve housings and repacking kits for your electric airless paint sprayer.
Use the factory exploded parts diagram to match original Titan part numbers, locate the correct pump repair components and make informed purchasing decisions when servicing pressure loss, priming problems or fluid-section leakage.
Maintain Your Titan Advantage 700 Fluid Section
The Titan Advantage 700 fluid section is the reciprocating pump assembly responsible for drawing coating material into the sprayer, generating spraying pressure and delivering material into the pressurized fluid system. Its principal components include the cylinder, piston rod, upper and lower packing assemblies, inlet valve, outlet valve and associated sealing hardware.
The piston moves within the cylinder as the motor and drive mechanism operate. The inlet and outlet valve balls and seats control fluid movement through the pump, while the packings seal the moving piston and help maintain pressure.
Over time, abrasive coatings, contamination and normal operating wear can affect piston surfaces, packings and valve seating. A damaged seal or worn valve component may contribute to poor priming, pressure loss, fluid leakage or irregular spraying performance.
Titan provides individual replacement parts and service assemblies, allowing customers to replace worn sealing components, service valve assemblies or purchase a piston assembly when a more extensive repair is necessary.
Use the Advantage 700 fluid-section diagram and original part numbers to distinguish individual replacement parts from complete service kits.
Shop Essential Titan Advantage 700 Fluid Section Replacement Parts
Find genuine Titan service components for pump sealing, piston movement, cylinder wear and inlet or outlet valve repairs.
Titan 0551687 Repacking Kit
Factory-specified fluid-section repacking kit containing selected upper and lower packing components, seals, valve components and related service parts.
OEM part number: 0551687
SHOP REPACKING KITS →Titan 0552156 Cylinder
OEM pump cylinder providing the working chamber for the reciprocating piston and the associated fluid-section sealing components.
Diagram item: 4
OEM part number: 0552156
SHOP PUMP CYLINDERS →Titan 0507229 Piston Assembly
Factory piston assembly including diagram items 7 through 13. Used when the piston and associated outlet valve components require replacement.
Diagram item: 21
OEM part number: 0507229
SHOP PISTON ASSEMBLIES →Titan 800-148 Inlet Valve Housing
Genuine Titan inlet valve housing that supports the lower inlet valve components and associated sealing arrangement.
Diagram item: 20
OEM part number: 800-148
SHOP INLET VALVE PARTS →Titan Advantage 700 Fluid Section Assembly Parts Diagram

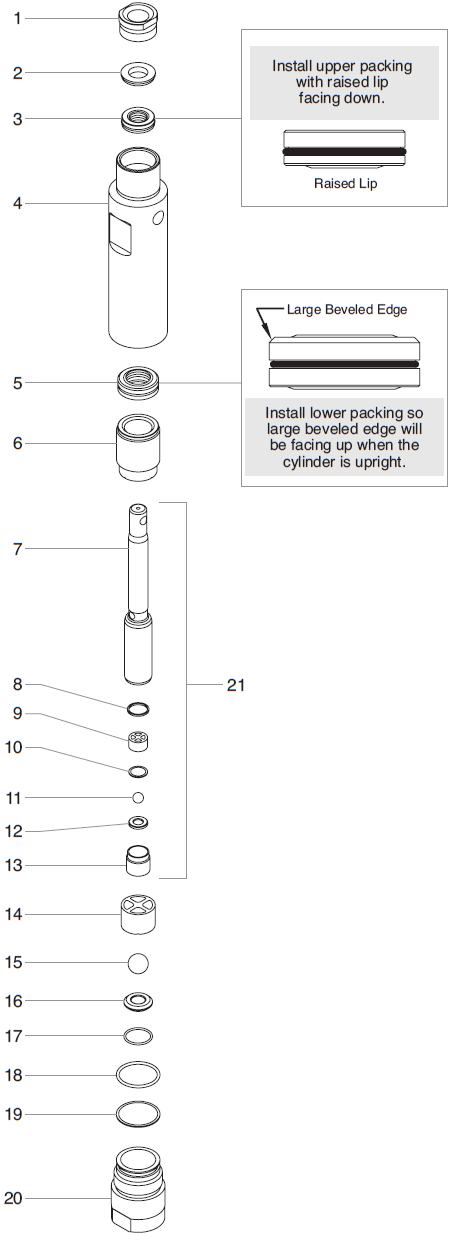

The Titan factory diagram identifies 21 numbered fluid-section positions. Use these references to locate individual components and verify the parts included in factory service assemblies.

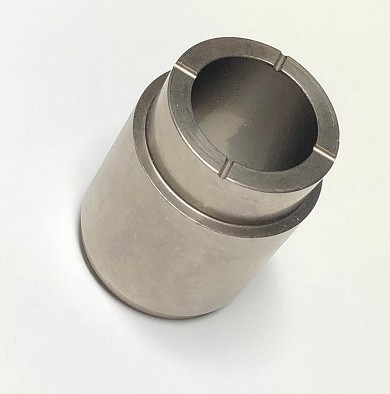

| Item | Titan Part Number | Factory Description | Original Quantity |
|---|---|---|---|
| 1 | 800-325 | Upper Seal Retainer | 1 |
| 2 | 800-327 | Upper Support Ring | 1 |
| 3 | 0552177 | Upper Packing Assembly | 3 |
| 4 | 0552156 | Cylinder | 1 |
| 5 | 0552178 | Lower Packing Assembly | 2 |
| 6 | 0552157 | Cylinder Adapter | 1 |
| 7 | 0507732 | Piston Rod | 1 |
| 8 | 800-348 | Outlet Valve Seal | 1 |
| 9 | 0507452 | Outlet Valve Cage | 1 |
| 10 | 0507454 | Nylon Washer | 1 |
| 11 | 9841502 | Outlet Valve Ball | 1 |
| 12 | 0294516 | Outlet Valve Seat | 1 |
| 13 | 800-336 | Outlet Valve Retainer | 1 |
| 14 | 800-322 | Inlet Valve Cage | 1 |
| 15 | 51519 | Inlet Valve Ball | 1 |
| 16 | 00310 | Inlet Valve Seat | 1 |
| 17 | 00203 | O-Ring | 1 |
| 18 | 800-332 | Viton O-Ring | 2 |
| 19 | 800-333 | PTFE Back-Up Ring | 2 |
| 20 | 800-148 | Inlet Valve Housing | 1 |
| 21 | 0507229 | Piston Assembly, includes items 7 through 13 | 1 |
How the Titan Advantage 700 Fluid Section Works
Cylinder and Piston
The 0552156 cylinder houses the moving piston. The 0507732 piston rod and associated outlet valve components move coating through the pump during each operating cycle.
Upper and Lower Packings
Upper and lower packing assemblies seal the moving piston against the cylinder and reduce internal and external fluid leakage. Worn packings can reduce effective pumping pressure.
Inlet and Outlet Valves
Valve balls, cages and seats help maintain the correct direction of fluid movement. Contamination or wear may interfere with priming and pressure development.
How to Choose the Correct Titan Advantage 700 Pump Part
Verify the Sprayer
Confirm your Titan Advantage 700 model and record its identification details.
Identify the Worn Area
Determine whether the problem involves packings, piston surfaces, valve components or cylinder damage.
Match the Diagram
Use the numbered factory diagram to locate the correct original Titan part number.
Compare Parts and Kits
Check the 0551687 repacking kit and 0507229 piston assembly against the parts you need.
Titan Advantage 700 Fluid Section Troubleshooting Guide
These symptoms suggest possible inspection areas. Similar problems may originate in the suction system, spray hose, filter, PRIME/SPRAY valve or pressure controls.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Sprayer does not prime | 51519 inlet ball, 00310 inlet seat, 800-322 inlet cage and suction system | Inspect for debris, damaged seating surfaces and suction-side air leaks. |
| Sprayer loses pressure | Upper/lower packings, inlet and outlet valves, piston rod | Check for internal leakage and worn sealing surfaces. |
| Fluid leaks near upper cylinder | 0552177 upper packing assembly and 0507732 piston rod | Inspect packing condition and piston scoring. |
| Pump develops pressure inconsistently | 9841502 outlet ball, 0294516 outlet seat and inlet valve components | Inspect valve seating, contamination and component wear. |
| Fluid leaks at lower housing | 00203 O-ring, 800-332 O-rings, 800-333 back-up rings | Inspect seals and mating surfaces for damage. |
| Piston is visibly scored | 0507732 piston rod and 0552156 cylinder | Inspect both surfaces and the related packing components. |
| Pump repeatedly needs repacking | Piston rod, cylinder, packing orientation and operating conditions | Identify the cause of premature wear before installing another kit. |
Repack, Repair or Replace the Titan Advantage 700 Fluid Section?
Repack the Pump
When the piston and cylinder remain serviceable but the sealing components are worn, Titan 0551687 provides the specified repacking parts for the fluid section.
Service the Inlet and Outlet Valves
Inspect the valve balls, seats, cages and retainers for damage or contamination. Replace worn components using the corresponding factory part numbers.
Replace the Piston or Cylinder
A scored piston rod or damaged cylinder may require component replacement. Compare individual parts with the 0507229 piston assembly before purchasing.
Explore Related Titan Advantage 700 Parts
Check the associated drive, filtration and suction systems when a fluid-section symptom has more than one possible cause.
Titan Advantage 700 Fluid Section Compatibility
The official Titan Advantage 700 manual identifies fluid section 0552155, while AllTitanParts lists the packaged complete fluid section under part number 0552155A. Confirm the current manufacturer reference and equipment configuration before ordering a complete assembly.
Factory replacement references include 0552156 for the cylinder, 0507732 for the piston rod, 0552177 for the upper packing assembly, 0552178 for the lower packing assembly and 800-148 for the inlet valve housing.
The 0551687 repacking kit is specified for the Advantage 700 fluid section. The 0507229 piston assembly includes the piston rod and outlet valve components corresponding to diagram items 7 through 13.
Some of these components also appear in other Titan and SprayTech sprayer diagrams. Shared individual part numbers do not establish that complete fluid sections are interchangeable between all models.
Match the exact OEM part number and factory diagram before ordering, and confirm any manufacturer replacement references shown in the current product listing.
Titan Advantage 700 Fluid Section Maintenance and Safety
Turn off the sprayer, engage the spray gun trigger lock, follow Titan's pressure-relief procedure and disconnect the power supply before servicing the fluid section.
Never loosen a pressurized fitting, cylinder, valve housing or spray hose. High-pressure fluid injection injuries require immediate emergency medical attention.
Inspect the piston rod and cylinder for scoring, wear or damage before installing new packings. Damaged surfaces can shorten packing service life.
When repacking the pump, follow Titan's packing orientation instructions. The upper packing's raised lip faces downward, while the lower packing's large beveled edge faces upward when the cylinder is upright.
Use the specified service tools and procedures when installing lower packings. Titan identifies 0552150 as the lower packing insertion tool.
Clean and inspect valve balls, cages and seats according to the manufacturer's instructions. Do not substitute unverified sealing materials or valve components.
Check all O-rings and PTFE back-up rings for damage and correct placement during reassembly. Follow the manufacturer's lubrication and tightening instructions.
After reassembly, perform Titan's prescribed operational checks and inspect for leaks before returning the sprayer to service.
Titan Advantage 700 Fluid Section Assembly Parts FAQ
Answers to common questions about Titan Advantage 700 repacking kits, pistons, cylinders, inlet valves, outlet valves and pump repairs.
What parts are included in the Titan Advantage 700 fluid section?
The factory fluid section includes the cylinder, piston rod, upper and lower packings, inlet and outlet valve components, seals, O-rings and associated hardware. A purchased individual replacement part may contain only the specified component.
What is the Titan Advantage 700 repacking kit part number?
Titan 0551687 is the factory repacking kit. It includes diagram items 3, 5, 6, 8, 10, 11, 15, 17, 18 and 19.
What is the Titan Advantage 700 piston assembly part number?
Titan 0507229 is the factory piston assembly. It includes fluid-section diagram items 7 through 13.
Which cylinder fits the Titan Advantage 700 fluid section?
Titan 0552156 is the cylinder identified as item 4 in the Advantage 700 fluid-section diagram.
Why does my Titan Advantage 700 lose spray pressure?
Possible causes include worn pump packings, a scored piston, leaking inlet or outlet valve seats, contaminated valve balls, suction leaks or restrictions elsewhere in the fluid-delivery system. Inspect the affected components before ordering replacements.
What inlet valve parts are used in the Titan Advantage 700?
The factory diagram identifies 800-322 as the inlet valve cage, 51519 as the inlet valve ball, 00310 as the inlet valve seat and 800-148 as the inlet valve housing.
Can I replace the packings without replacing the entire fluid section?
Yes, when the piston, cylinder and other major components remain serviceable. Titan 0551687 supplies the factory-specified repacking components. Inspect the complete fluid section before deciding whether repacking is sufficient.
Where can I buy genuine Titan Advantage 700 fluid section parts?
Shop the Advantage 700 Fluid Section Assembly category at AllTitanParts to compare genuine OEM cylinders, piston assemblies, repacking kits, inlet and outlet valves, seals and related pump replacement parts.
Shop Titan Advantage 700 Fluid Section Parts Today
Find genuine Titan pump cylinders, piston assemblies, repacking kits, inlet and outlet valves, O-rings and fluid-section hardware. Match your factory part number and order the replacement components needed for your Advantage 700 repair.
BUY ADVANTAGE 700 FLUID SECTION PARTS →Need help identifying a replacement part? Call 713-931-0006.
