Titan Advantage 700 Main Assembly Parts
Buy genuine Titan Advantage 700 Main Assembly Parts at AllTitanParts. Find factory-referenced fluid sections, filter assemblies, siphon tubes, return hoses, PRIME/SPRAY valves, fluid fittings, inlet screens and mounting hardware for your electric airless paint sprayer.
Identify replacement components using the Titan Advantage 700 exploded parts diagram. Compare OEM part numbers, locate the correct assembly and shop the components needed to repair your sprayer's fluid-delivery and supporting systems.
Maintain Your Titan Advantage 700 Electric Airless Sprayer
The Titan Advantage 700 main assembly brings together the principal mechanical and fluid-handling systems of the electric piston pump. The factory diagram identifies the upright cart, drive assembly, fluid section, filter assembly, PRIME/SPRAY valve, suction tube, return hose, fittings and fastening hardware.
The motor-driven mechanism operates the reciprocating piston pump. Coating material enters through the siphon tube and inlet screen, moves through the fluid section and passes into the pressurized fluid circuit. The filter assembly helps capture debris, while the PRIME/SPRAY valve provides the appropriate priming and spraying flow path.
The main assembly also includes grommets, screws, lock washers and fittings that support the installation and connection of these components. These smaller parts should be identified using their exact diagram positions rather than selected by appearance alone.
Common service concerns include difficulty priming, pressure loss, fluid leakage, restricted flow, damaged suction components and loose connections. Because similar symptoms may have different causes, inspect the affected system before purchasing replacement parts.
AllTitanParts provides genuine Titan replacement components so equipment owners and service technicians can locate individual parts and plan repairs using the manufacturer's original parts references.
Shop Essential Titan Advantage 700 Main Assembly Replacement Parts
Explore the main fluid-delivery and filtration components identified in the factory parts diagram.
Titan 0552155A Fluid Section Assembly
Factory fluid-section assembly for the Advantage 700. This is the pump mechanism responsible for drawing in and pressurizing coating material.
Diagram item: 6
OEM reference: 0552155A
VIEW FLUID SECTION PARTS →Titan 0552240A Filter Assembly
Factory filter assembly for the Advantage 700 pressurized fluid circuit. Inspect the filter system when coating debris restricts material flow.
Diagram item: 13
OEM reference: 0552240A
VIEW FILTER ASSEMBLY →Titan 0507690 PRIME/SPRAY Valve
OEM bypass valve assembly used to select the priming or spraying fluid path. Inspect if the valve leaks or does not operate correctly.
Diagram item: 14
OEM reference: 0507690
SHOP BYPASS VALVE →Titan 0507798 Siphon Tube
Factory material-intake tube that delivers coating from the supply container toward the pump inlet. Inspect for damage or intake restrictions.
Diagram item: 7
OEM reference: 0507798

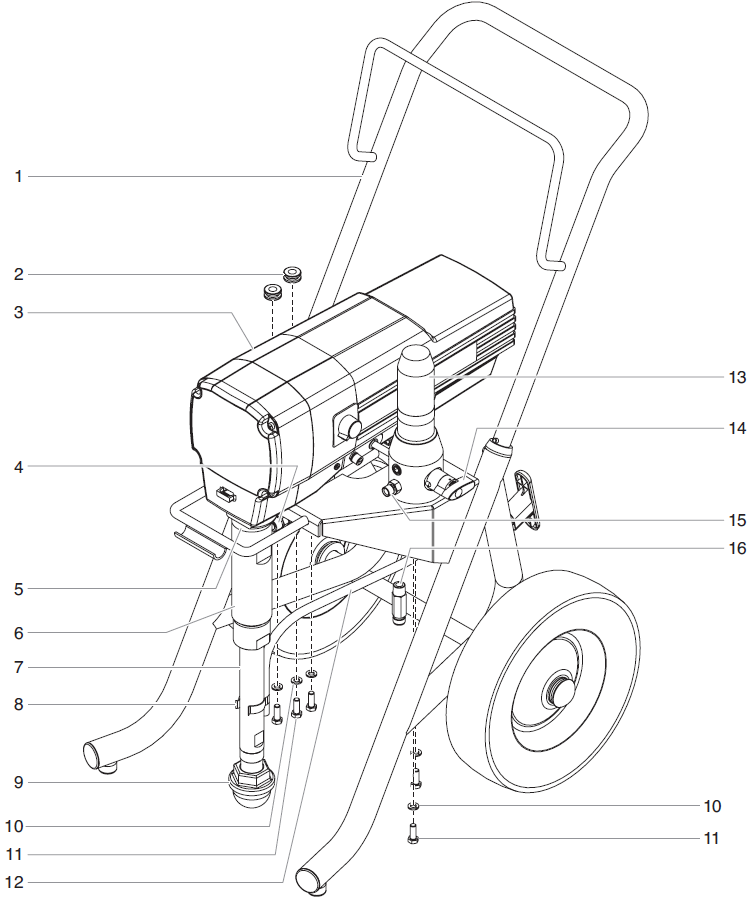

SHOP SIPHON TUBES →Titan Advantage 700 Main Assembly Parts Diagram
The factory main-assembly diagram contains 17 numbered positions. Some positions identify complete assemblies that have their own detailed parts diagrams. The AllTitanParts category currently lists 14 individual products.
| Item | Titan Part Number | Factory Description | Original Qty. | Category Status |
|---|---|---|---|---|
| 1 | 0552185A | Upright Cart Assembly | 1 | See cart assembly diagram |
| 2 | 800-036 | Grommet | 2 | Listed |
| 3 | Drive Assembly | Complete Drive Assembly | 1 | See drive assembly diagram |
| 4 | 0508343 | Fitting | 1 | Listed |
| 5 | 800-313 | Jam Nut | 1 | Confirm availability |
| 6 | 0552155A | Fluid Section Assembly | 1 | Listed; verify current availability |
| 7 | 0507798 | Siphon Tube | 1 | Listed |
| 8 | 730-334 | Hose Clamp | 1 | Listed |
| 9 | 710-046 | Inlet Screen | 1 | Listed |
| 10 | 860-002 | Lock Washer | 5 | Listed |
| 11 | 860-535 | Screw | 5 | Listed |
| 12 | 800-904 | Return Hose With Fitting | 1 | Listed |
| 13 | 0552240A | Filter Assembly | 1 | Listed |
| 14 | 0507690 | PRIME/SPRAY Valve Assembly | 1 | Listed |
| 15 | 812-003 | Outlet Fitting | 1 | Listed |
| 16 | 0507671 | Fitting | 1 | Listed |
| 17 | 0507387 | Fluid Hose, Not Shown | 1 | Listed |
How the Titan Advantage 700 Main Assembly Works
Material Intake
The 0507798 siphon tube draws coating from the material supply. The 710-046 inlet screen helps prevent larger debris from entering the pump, while the 730-334 clamp secures the designated hose connection.
Pump and Filtration
The fluid section pressurizes coating material. The 0552240A filter assembly helps remove debris from the pressurized fluid circuit before material reaches downstream spraying components.
Priming and Return Flow
The 0507690 PRIME/SPRAY valve directs fluid through the selected operating path. The 800-904 return hose carries material back toward the supply during priming or pressure relief as specified by the manufacturer.
How to Identify the Correct Titan Advantage 700 Replacement Part
Confirm the Model
Identify your Titan Advantage 700 and record the equipment model and serial number.
Locate the System
Determine whether the repair involves the drive, fluid section, filter, suction tube or return circuit.
Match the Diagram
Use the factory callout to find the exact part number and required assembly.
Verify Before Buying
Check current availability, replacement references and package contents before ordering.
Titan Advantage 700 Main Assembly Troubleshooting Guide
Use these symptoms to narrow the inspection area. They are not definitive diagnoses, and repairs should follow Titan's official service procedures.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Sprayer will not prime | 0507798 siphon tube, 710-046 inlet screen, fluid-section inlet valve and PRIME/SPRAY valve | Inspect for suction leaks, blockages and valve seating problems. |
| Sprayer loses pressure | Fluid section, filter assembly, PRIME/SPRAY valve and hose connections | Check for worn pump components, leaks or restricted fluid flow. |
| Material leaks at a connection | 0508343, 812-003 and 0507671 fittings, 0507387 hose | Relieve pressure and inspect the affected fitting, hose and sealing surfaces. |
| Return flow continues in SPRAY mode | 0507690 PRIME/SPRAY valve | Inspect for improper operation or internal valve leakage. |
| Inconsistent spray pattern | 0552240A filter assembly, fluid section, gun filter and spray tip | Inspect the fluid path and filtration components before replacing major assemblies. |
| Return hose is damaged | 800-904 return hose and related connections | Replace damaged components with the correct factory-referenced parts. |
| Motor runs but pump does not cycle | Drive assembly and fluid-section mechanical connection | Inspect the drive mechanism and pump linkage before replacing the motor. |
Repair Individual Parts or Replace a Complete Assembly?
Fluid Section Service
If the pump has worn packings, damaged valves or a scored piston, inspect the individual fluid-section components and available service kits before selecting a complete assembly.
Filter and Bypass Repair
When material flow is restricted or the PRIME/SPRAY valve leaks, inspect the filter, valve and related fittings. Replace only the parts confirmed defective.
Suction and Hose Replacement
Inspect the siphon tube, inlet screen, return hose, fluid hose and clamps for damage or leaks. Verify each connection before purchasing replacement components.
Explore Related Titan Advantage 700 Parts Diagrams
Browse the assembly that corresponds to the component you need to repair.
Titan Advantage 700 Main Assembly Compatibility
The Titan Advantage 700 factory manual covers equipment models 0552063 and 0552064. The main assembly illustration identifies the upright-cart arrangement, including the factory cart assembly reference 0552185A.
Major component references include 0552155A for the fluid section, 0552240A for the filter assembly, 0507690 for the PRIME/SPRAY valve, 0507798 for the siphon tube and 800-904 for the return hose with fitting.
The same model family also includes a low-boy configuration with separate cart and suction-set diagrams. Do not assume that complete cart or suction assemblies are interchangeable with the upright configuration.
The category lists the fluid section 0552155A, but the manufacturer may discontinue complete assemblies while individual service components remain available. Confirm current ordering status before selecting a complete replacement.
Use the original part number, exploded diagram, equipment configuration and current product listing to confirm the correct replacement. Shared component numbers across other Titan or SprayTech models do not establish interchangeability of complete assemblies.
Titan Advantage 700 Maintenance and Safety Guidance
Turn off the sprayer, engage the gun trigger lock, follow the manufacturer's pressure-relief procedure and disconnect electrical power before servicing the main assembly.
Never loosen a pressurized fluid hose, fitting or filter housing. High-pressure injection injuries require immediate emergency medical attention.
Inspect fluid hoses for cuts, abrasion, bulging, leaks or damaged fittings. Do not attempt to patch or repair a damaged high-pressure hose.
Check suction and return components for leaks, damaged connections and blockages. Install hoses and clamps in the correct factory positions.
Clean and inspect filtration components according to Titan's maintenance instructions. Replace damaged screens, seals or filter elements with compatible parts.
Use the specified replacement hardware and follow the manufacturer’s assembly and tightening instructions. Avoid substituting unverified fittings or pressure-rated components.
Electrical work and electronic-control repairs should be performed by an authorized service center or appropriately qualified technician.
After reassembly, check all connections and perform the manufacturer's operational inspection before returning the sprayer to service.
Titan Advantage 700 Main Assembly Parts FAQ
Answers to common questions about Advantage 700 fluid sections, filters, PRIME/SPRAY valves, suction tubes, return hoses and OEM parts compatibility.
What parts are included in the Titan Advantage 700 Main Assembly?
The factory diagram identifies the upright cart, drive assembly, fluid section, filter assembly, PRIME/SPRAY valve, siphon tube, return hose, inlet screen, fittings and associated mounting hardware. Individual retail products may contain only the specified replacement component.
What is the Titan Advantage 700 fluid section assembly part number?
Titan 0552155A is the fluid section assembly identified as item 6 in the factory main assembly diagram. Confirm current availability before ordering the complete assembly.
Which filter assembly fits the Titan Advantage 700?
Titan 0552240A is the factory filter assembly identified as item 13. Individual filter components are shown in the separate Advantage 700 filter assembly diagram.
What is Titan 0507690 used for?
Titan 0507690 is the PRIME/SPRAY valve assembly. It selects the appropriate fluid path for priming and spraying and is identified as item 14 in the main assembly diagram.
What is the Advantage 700 siphon tube part number?
Titan 0507798 is the siphon tube identified as item 7 in the factory main assembly diagram. It forms part of the coating-material intake system.
What is Titan 800-904?
Titan 800-904 is the return hose with fitting, also described as a bypass tube. It is identified as item 12 in the factory main assembly diagram.
Can I use low-boy cart parts on the upright Advantage 700?
The Advantage 700 has separate upright-cart and low-boy cart assembly diagrams. Some individual hardware may be shared, but complete assemblies should not be assumed interchangeable without a verified OEM reference.
Where can I buy genuine Titan Advantage 700 Main Assembly Parts?
Shop Titan Advantage 700 Main Assembly Parts at AllTitanParts. Use the factory diagram to identify fluid sections, filter assemblies, PRIME/SPRAY valves, suction tubes, return hoses, fittings and other listed OEM replacement parts.
Shop Titan Advantage 700 Main Assembly Parts Today
Find genuine Titan fluid sections, filter assemblies, PRIME/SPRAY valves, suction tubes, return hoses, fittings and mounting hardware. Match your OEM part number and order the replacement components needed for your Advantage 700 repair.
