Titan Advantage 700 Upright Cart Assembly Parts
Buy genuine Titan Advantage 700 Upright Cart Assembly Parts at AllTitanParts. Shop factory-referenced wheel spacers, semipneumatic wheels, hub caps, handle sleeves, snap buttons, roll pins, rubber bumpers, cord wraps and cart mounting hardware for your electric airless paint sprayer.
Use the original Titan upright cart diagram to identify replacement components, compare OEM part numbers and select the hardware needed to maintain your sprayer's mobility, support and transport convenience.
Maintain the Titan Advantage 700 Upright Cart
The Titan Advantage 700 upright cart assembly provides a supporting frame and wheeled transport platform for the electric piston pump. Its upright configuration incorporates a handle assembly, cart weldment, wheels, wheel spacers, hub caps, rubber bumpers, cord wraps and associated fastening hardware.
The handle assembly provides a gripping point for repositioning the sprayer. Roll pins, snap buttons, sleeves and washers are used in the factory handle arrangement. The cart weldment supports the equipment, while the wheels and spacers help maintain correct wheel positioning.
Rubber bumpers provide contact protection at designated frame locations, and cord wraps help organize the electrical power cord when the sprayer is not operating. Protective plugs close designated frame openings.
Worn wheels, missing hub caps, loose handle hardware or damaged rubber bumpers can affect cart handling and stability. Identifying the exact defective component helps customers avoid replacing a complete cart assembly when an individual service part is sufficient.
Shop Titan Advantage 700 upright cart components using the factory exploded diagram and original OEM part numbers. Verify the equipment configuration before purchasing parts intended for the separate low-boy cart.
Shop Essential Titan Advantage 700 Upright Cart Replacement Parts
Explore the factory-referenced components used for wheel support, handle retention, cart protection and convenient equipment transport.
Titan 0294534 Wheel Spacer
OEM wheel spacer used to position the cart wheels correctly within the factory wheel arrangement. Inspect when servicing loose or improperly seated wheels.
Diagram item: 6
OEM part: 0294534
SHOP WHEEL SPACERS →Titan 9841504 Snap Button
Factory snap button used in the upright cart handle assembly. Inspect the button and related handle hardware if the handle does not remain properly secured.
Diagram item: 3
OEM part: 9841504
SHOP SNAP BUTTONS →Titan 13538 Rubber Bumper
OEM rubber bumper fitted to the designated cart frame contact locations. Inspect for cracking, separation or missing bumper material.
Diagram item: 9
OEM part: 13538
SHOP RUBBER BUMPERS →Titan 9890104 Hub Cap
OEM wheel-end cap listed by AllTitanParts as replacing Titan 704-355. Helps finish and retain the designated wheel-end arrangement.
Diagram item: 16
OEM part: 9890104
SHOP HUB CAPS →Titan Advantage 700 Upright Cart Assembly Parts Diagram

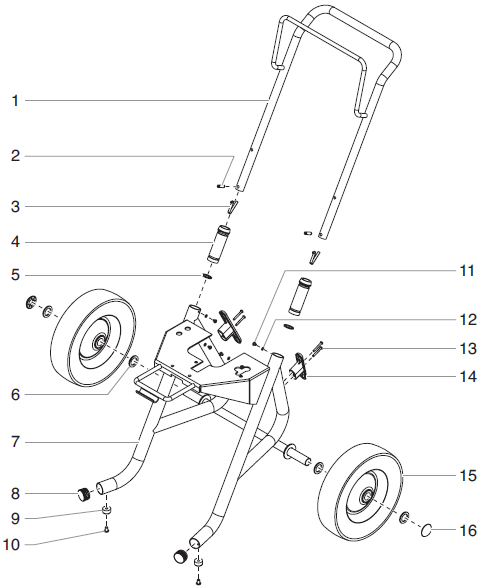

The manufacturer identifies upright cart assembly 0552185A with 16 numbered component positions. Use the item numbers and original part references below when matching replacement parts.
| Item | Titan Part Number | Factory Description | Original Quantity |
|---|---|---|---|
| 1 | 0507766 | Handle Assembly, includes items 2–5, 11 and 12 | 1 |
| 2 | 590-508 | Roll Pin | 2 |
| 3 | 9841504 | Snap Button | 2 |
| 4 | 590-504 | Handle Sleeve | 2 |
| 5 | 590-506 | Washer | 2 |
| 6 | 0294534 | Wheel Spacer | 4 |
| 7 | 0507765 | Cart Weldment, includes items 8–10 | 1 |
| 8 | 9885571 | Frame Plug | 2 |
| 9 | 13538 | Rubber Bumper | 2 |
| 10 | 054458 | Screw | 2 |
| 11 | 856-921 | Screw | 4 |
| 12 | 856-002 | Washer | 4 |
| 13 | 0507774 | Screw | 4 |
| 14 | 0507655 | Cord Wrap | 2 |
| 15 | 0507379 | Wheel | 2 |
| 16 | 9890104 | Hub Cap | 2 |
How the Titan Advantage 700 Upright Cart Components Work
Handle and Retention Hardware
The handle provides a controlled gripping point for moving the sprayer. Roll pins, snap buttons, sleeves, washers and screws secure the factory handle arrangement.
Wheel and Hub Components
The 0507379 wheels provide mobility. The 0294534 spacers maintain the designated wheel positioning, while 9890104 caps fit the wheel-end locations.
Frame Protection and Storage
The cart weldment supports the sprayer. Rubber bumpers protect contact points, frame plugs close specified openings and cord wraps provide power-cord storage.
How to Identify the Correct Titan Advantage 700 Cart Part
Confirm the Cart
Verify that your sprayer uses the upright cart rather than the low-boy arrangement.
Inspect the Component
Identify the wheel, handle, frame, bumper, plug or fastener requiring service.
Match the OEM Number
Compare the factory diagram callout and part number with the current listing.
Verify and Order
Check replacement references, quantities and current availability before purchasing.
Titan Advantage 700 Upright Cart Troubleshooting Guide
Use these common cart symptoms to identify components that may require inspection or replacement.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Wheel wobbles during transport | 0507379 wheel, 0294534 spacer, 9890104 hub cap | Inspect wheel wear, spacer placement and cap retention. |
| Handle feels loose | 590-508 roll pin, 9841504 snap button, 856-921 screws | Check handle connections and replace damaged retaining hardware. |
| Handle sleeve is damaged | 590-504 sleeve and 590-506 washer | Inspect the sleeve and adjoining handle hardware for wear. |
| Cart rocks while stationary | 13538 rubber bumpers, 0507765 cart weldment | Check bumper condition, frame damage and the supporting surface. |
| Power cord cannot be stored neatly | 0507655 cord wraps and 0507774 screws | Inspect for broken wraps or missing mounting screws. |
| Frame opening is exposed | 9885571 frame plugs | Replace missing or damaged plugs with the specified OEM component. |
| Wheel does not roll smoothly | 0507379 wheel and associated spacer arrangement | Inspect for debris, wheel damage and incorrect assembly. |
Repair the Titan Advantage 700 Upright Cart Efficiently
Wheel and Spacer Service
Inspect wheels, spacers and hub caps together. A missing spacer or damaged wheel-end component can affect wheel positioning even when the wheel itself remains usable.
Handle and Hardware Service
Check snap buttons, roll pins, sleeves, washers and screws when servicing a loose or damaged handle. Use the factory arrangement for correct placement.
Frame and Bumper Service
Inspect rubber bumpers, frame plugs and the cart weldment. If the welded frame is bent or cracked, have its condition evaluated before continued use.
Find More Titan Advantage 700 Replacement Parts
Browse related parts diagrams when your repair also involves the pump, drive, filtration or alternate cart configuration.
Titan Advantage 700 Upright Cart Compatibility
The Titan Advantage 700 factory manual identifies 0552185A as the complete upright cart assembly. Its detailed diagram identifies handle 0507766, cart weldment 0507765, wheel 0507379, spacer 0294534 and hub cap 9890104.
The factory diagram also identifies snap button 9841504, roll pin 590-508, handle sleeve 590-504, washer 590-506, rubber bumper 13538, frame plug 9885571 and cord wrap 0507655.
The AllTitanParts listing identifies 9890104 as replacing Titan 704-355. Confirm the current product description and original wheel-end configuration when selecting this replacement.
The Advantage 700 product family also has a separate low-boy cart assembly. Although some hardware may appear in both diagrams, do not assume complete frames, wheels or handles are interchangeable without matching the OEM reference.
Verify your sprayer model, cart style, diagram callout and exact part number before ordering. If an original assembly is unavailable, compare the listed individual components for a targeted repair.
Titan Advantage 700 Upright Cart Maintenance and Safety
Turn off the sprayer, engage the spray gun trigger lock, relieve fluid pressure and disconnect electrical power before servicing the cart or removing mounted equipment.
Place the sprayer on a stable, level surface before inspecting wheels, handles, bumpers or fasteners. Support the equipment securely if a wheel must be removed.
Inspect both wheels for damage, excessive wear and secure installation. Replace missing spacers or hub caps with the specified OEM components.
Check handle sleeves, snap buttons, roll pins and fastening hardware for wear or looseness. Do not transport the sprayer by a handle that is damaged or improperly secured.
Inspect the cart weldment for cracks, deformation or other structural damage. Avoid continued use of a cart with compromised structural support.
Replace missing rubber bumpers and frame plugs as needed. Confirm that all mounting hardware is installed in its original position.
Use the cord wraps only for storing the disconnected power cord. Do not pull the sprayer by its electrical cord or hose.
After repairs, verify cart stability, handle retention and free wheel movement before returning the sprayer to service.
Titan Advantage 700 Upright Cart Assembly Parts FAQ
Answers to common questions about upright cart wheels, handles, spacers, hub caps, rubber bumpers and OEM replacement hardware.
What is the Titan Advantage 700 upright cart assembly part number?
Titan 0552185A is the complete upright cart assembly identified in the official Advantage 700 main assembly and upright cart diagrams.
Which wheels fit the Titan Advantage 700 upright cart?
The factory upright cart diagram identifies Titan 0507379 as the wheel, item 15. The assembled cart uses two wheels.
What is Titan 0294534 used for?
Titan 0294534 is a wheel spacer used in the upright cart wheel arrangement. The factory diagram specifies four spacers for the complete cart.
What is the Titan Advantage 700 handle assembly part number?
Titan 0507766 is the factory handle assembly, which includes diagram items 2 through 5, 11 and 12. These include roll pins, snap buttons, sleeves, washers and associated hardware.
Which hub cap is used on the Titan Advantage 700 upright cart?
Titan 9890104 is the factory hub cap identified as item 16. AllTitanParts also lists it as replacing Titan 704-355.
What should I inspect if the upright cart handle feels loose?
Inspect the 9841504 snap buttons, 590-508 roll pins, 590-504 sleeves, 590-506 washers and designated mounting screws. Replace any damaged components with the correct factory parts.
Are Advantage 700 upright and low-boy cart parts interchangeable?
The manufacturer provides separate upright and low-boy cart diagrams. Some individual parts are shared, but complete assemblies and configuration-specific components should not be assumed interchangeable without verified OEM references.
Where can I buy genuine Titan Advantage 700 upright cart parts?
Shop the Titan Advantage 700 Upright Cart Assembly category at AllTitanParts for OEM wheel spacers, hub caps, snap buttons, roll pins, handle sleeves, bumpers, plugs, cord wraps and listed mounting hardware.
Shop Titan Advantage 700 Upright Cart Parts Today
Find genuine Titan wheels, spacers, hub caps, snap buttons, handle sleeves, rubber bumpers, cord wraps and cart hardware. Match your OEM part number and order the replacement components needed for your Advantage 700 upright cart repair.
BUY ADVANTAGE 700 UPRIGHT CART PARTS →Need help identifying a replacement part? Call 713-931-0006.
