Maintain the Titan Advantage 700 Filter Assembly
The Titan Advantage 700 filter assembly is part of the sprayer's pressurized fluid-delivery system. Its manifold filter element helps capture particles and coating debris before material travels through the outlet hose toward the spray gun and tip. Proper filtration helps reduce downstream restrictions and spray-tip clogging.
The factory assembly combines a filter body, filter spring, manifold filter, screen adapter, core support spring, PTFE O-ring and filter housing. The same diagram also identifies a pressure transducer, PRIME/SPRAY valve assembly, outlet fitting and threaded plugs.
These components serve different purposes. The filter element screens material, the springs and adapter support the internal filter arrangement, and the O-ring seals the designated interface. The transducer provides pressure feedback to the sprayer's control system, while the PRIME/SPRAY valve controls the fluid path used for priming, spraying and pressure relief according to Titan's operating instructions.
A clogged filter may restrict coating flow, while a damaged housing, worn seal or loose fitting can contribute to external leakage. Pressure-control and bypass-valve symptoms require separate diagnosis rather than automatically replacing the filter screen.
Use the Titan Advantage 700 exploded parts diagram to identify individual replacement components or compare them with the complete OEM filter assembly, Titan 0552240A.
Shop Essential Titan Advantage 700 Filter Assembly Parts
Explore genuine OEM replacement components for coating filtration, filter sealing, pressure sensing and PRIME/SPRAY valve operation.
Titan 0551950 Filter Body
Factory filter body forming part of the manifold filtration arrangement. Inspect for damaged threads, cracks and sealing-surface wear during filter service.
Diagram item: 1
OEM part: 0551950
SHOP FILTER BODY →Titan 730-067 60 Mesh Filter
OEM medium-grade manifold filter element used to screen coating debris from the pressurized fluid path. Confirm mesh suitability for the material being sprayed.
Diagram item: 3
OEM part: 730-067
SHOP MANIFOLD FILTERS →Titan 0551666 Transducer Assembly
Factory pressure-sensing assembly used by the sprayer's electronic control system. Electrical diagnosis should be performed by qualified service personnel.
Diagram item: 7
OEM part: 0551666
SHOP PRESSURE SENSORS →Titan 0507690 PRIME/SPRAY Valve
OEM bypass valve assembly used to select the designated priming or spraying fluid path. Inspect when the valve leaks or does not operate correctly.
Diagram item: 12
OEM part: 0507690
SHOP PRIME/SPRAY VALVES →Titan Advantage 700 Filter Assembly Parts Diagram

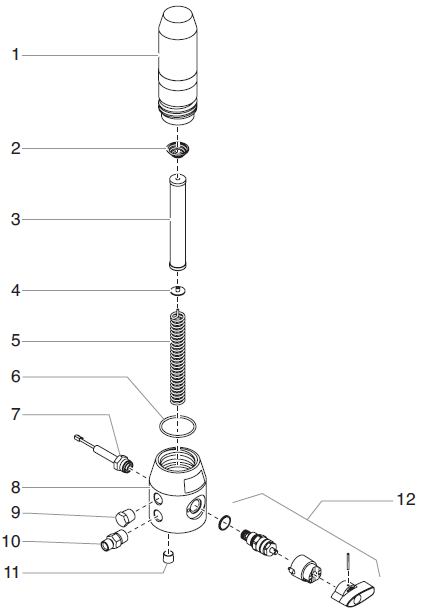

The official Titan manual identifies 12 numbered component positions within filter assembly 0552240A. Use the following factory references to identify replacement parts and confirm the correct assembly configuration.
| Item | Titan Part Number | Factory Description | Original Quantity |
|---|---|---|---|
| 1 | 0551950 | Filter Body | 1 |
| 2 | 14058 | Filter Spring | 1 |
| 3 | 730-067 | Medium Filter, 60 Mesh | 1 |
| 4 | 702-251 | Filter Screen Adapter | 1 |
| 5 | 757-105 | Core Support Spring | 1 |
| 6 | 800-906 | PTFE O-Ring | 1 |
| 7 | 0551666 | Transducer Assembly | 1 |
| 8 | 0555625 | Filter Housing | 1 |
| 9 | 227-033 | 3/8-Inch Plug | 1 |
| 10 | 812-003 | Outlet Fitting | 1 |
| 11 | 800-907 | 1/4-Inch Plug | 1 |
| 12 | 0507690 | PRIME/SPRAY Valve Assembly | 1 |
How the Titan Advantage 700 Filter Assembly Works
Manifold Filter and Springs
The 730-067 filter screens coating debris. The 14058 filter spring, 702-251 adapter and 757-105 core spring support the factory filter arrangement.
Filter Housing and Seals
The 0551950 filter body, 0555625 housing and 800-906 PTFE O-ring form part of the pressurized manifold assembly. Plugs and fittings close or connect designated fluid passages.
Transducer and PRIME/SPRAY Valve
The 0551666 transducer provides pressure feedback to the controls. The 0507690 valve directs fluid through the specified prime or spray path.
How to Choose the Correct Titan Advantage 700 Filter Part
Confirm the Model
Verify your Titan Advantage 700 model and factory filter assembly reference.
Identify the Symptom
Determine whether the problem involves clogging, leakage, pressure sensing or valve operation.
Match the OEM Part
Compare the numbered diagram callout and exact Titan part number.
Select and Order
Verify mesh size, seals, fittings and whether an individual part or complete assembly is needed.
Titan Advantage 700 Filter Assembly Troubleshooting Guide
Use the symptoms below to identify potential inspection areas. Similar problems may originate in the fluid section, suction system, spray hose, gun filter or electronic controls.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Reduced spray flow or irregular pattern | 730-067 filter element, hose and spray-tip filtration | Inspect the filter for clogging and check downstream restrictions. |
| Repeated spray-tip blockage | 730-067 manifold filter and filter support components | Clean or replace the damaged filter and verify the coating is properly prepared. |
| Leakage at the filter body | 0551950 filter body, 800-906 PTFE O-ring | Inspect sealing surfaces, threads and O-ring condition after pressure relief. |
| Leakage at a manifold connection | 812-003 outlet fitting, 227-033 and 800-907 plugs | Inspect the specified fitting and threaded connection for damage. |
| Pressure reading or control behaves abnormally | 0551666 transducer and electronic controls | Have a qualified technician diagnose the pressure feedback system. |
| Sprayer does not switch correctly between PRIME and SPRAY | 0507690 PRIME/SPRAY valve assembly | Inspect the valve according to Titan's service procedures. |
| Filter element is loose or incorrectly seated | 14058 spring, 702-251 adapter, 757-105 core spring | Check the filter's factory support arrangement and component condition. |
Repair the Titan Advantage 700 Filter Assembly Efficiently
Replace a Clogged Filter
Inspect the 730-067 medium filter for debris, tears or deformation. Check the springs and adapter before installing a replacement element.
Repair Leaking Seals or Housings
Inspect the 800-906 O-ring, filter body, housing and threaded connections. Replace damaged components with the corresponding OEM parts.
Diagnose Valve or Sensor Faults
A faulty PRIME/SPRAY valve or transducer requires diagnosis separate from filter cleaning. Follow Titan's procedures and use qualified service personnel for electrical work.
Find Related Titan Advantage 700 Replacement Components
Explore other Advantage 700 diagrams when a filtration or pressure problem requires inspection beyond the manifold filter assembly.
Titan Advantage 700 Filter Assembly Compatibility
The official Titan Advantage 700 manual identifies 0552240A as the complete filter assembly. The factory diagram specifies 0551950 as the filter body, 730-067 as the medium filter, 0555625 as the filter housing and 800-906 as the PTFE O-ring.
Additional factory components include 14058 filter spring, 702-251 adapter, 757-105 core spring, 0551666 transducer, 227-033 plug, 812-003 outlet fitting, 800-907 plug and 0507690 PRIME/SPRAY valve assembly.
AllTitanParts also identifies complete filter assembly 0552240A for the Titan Advantage 1100 and certain SprayTech Advantage EPX models. However, individual model compatibility should always be confirmed using the correct equipment parts diagram.
The 730-067 filter is specified as a medium, 60-mesh element. Other mesh sizes may be available for different coatings or applications, but they should not be treated as direct replacements without verifying the manufacturer's filtration recommendations.
Confirm your sprayer model, filter assembly reference, OEM part number and current product specifications before ordering. A matching component number is stronger fitment evidence than a general similarity between sprayer families.
Titan Advantage 700 Filter Assembly Maintenance and Safety
Turn off the sprayer, engage the gun trigger lock, follow Titan's pressure-relief procedure and disconnect electrical power before opening the filter housing or servicing any pressurized fluid component.
Never loosen the filter body, outlet fitting, plugs, transducer or PRIME/SPRAY valve while the system is pressurized. High-pressure fluid injection can cause serious injury.
Remove and inspect the filter element according to Titan's instructions. Clean reusable elements with a compatible cleaning solution and replace torn, crushed or otherwise damaged screens.
Inspect the 14058 filter spring, 702-251 adapter and 757-105 core spring for damage and correct placement during reassembly.
Examine the 800-906 PTFE O-ring and mating surfaces for wear, cuts or deformation. Replace damaged seals with the specified OEM component.
Do not operate the sprayer with missing manifold plugs, damaged fittings or a cracked filter body. Use only manufacturer-approved parts suitable for the system's operating conditions.
Electrical diagnosis involving the 0551666 pressure transducer and associated control components should be performed by qualified personnel.
After service, follow Titan's prescribed operating checks and inspect all serviced connections for leakage before returning the sprayer to use.
