Titan Advantage 700 Low Boy Cart Assembly Parts
Shop Titan Advantage 700 Low Boy Cart Assembly Parts at AllTitanParts. Find factory-referenced wheels, wheel spacers, hub caps, handle sleeves, snap buttons, roll pins, frame plugs, drip cups and mounting hardware for your Titan Advantage 700 electric airless paint sprayer.
Repair worn transport components, replace missing hardware and maintain the low-profile cart supporting your sprayer. Match original Titan part numbers to the factory exploded diagram before selecting replacement components.
Maintain the Titan Advantage 700 Low Boy Cart
The Titan Advantage 700 low-boy cart provides a wheeled support structure for the electric airless sprayer. Its lower-profile configuration incorporates a welded cart frame, handle assembly, wheels, wheel spacers, hub caps, retaining hardware and a drip cup.
The factory identifies the complete low-boy cart as Titan 0552190A. The cart weldment, Titan 0552191, provides the structural foundation, while the Titan 800-113 handle assembly and associated fasteners support equipment handling and transport.
Two Titan 0278373 wheels provide mobility. Titan 0294534 wheel spacers maintain the factory wheel arrangement, and Titan 9890104 hub caps finish the wheel-end locations. Roll pins, snap buttons, washers and screws secure the handle and other designated cart components.
The Titan 700-1041 drip cup is positioned beneath the designated pump area to collect minor drips during equipment use or service. It is not a substitute for repairing leaking pump seals, valves or fluid connections.
With continued jobsite use, wheels can wear, handle hardware can loosen, frame plugs may go missing and drip cups can become damaged. Replacing the correct individual part may restore the affected cart function without requiring a complete cart replacement.
Browse the Advantage 700 low-boy cart parts diagram, identify the damaged component and compare the factory OEM reference with the current AllTitanParts product listing before ordering.
Shop Essential Titan Advantage 700 Low Boy Cart Replacement Parts
Explore replacement components for wheel support, handle retention, drip collection and cart maintenance.

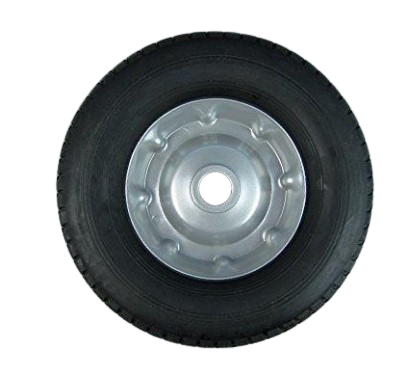

Titan 0278373 Wheel
Factory wheel for the Advantage 700 low-boy cart. Inspect for damaged tread, excessive wear, deformation or difficult rolling.
Diagram item: 14
OEM part: 0278373
SHOP CART WHEELS →Titan 0294534 Wheel Spacer
Factory spacer used to maintain the designated wheel positioning. Check spacers when servicing wheel movement or wheel-end hardware.
Diagram item: 13
OEM part: 0294534
SHOP WHEEL SPACERS →Titan 9841504 Snap Button
Factory snap button for the handle arrangement. AllTitanParts identifies this part as replacing Titan 590-507.
Diagram item: 3
OEM part: 9841504
SHOP SNAP BUTTONS →Titan 700-1041 Drip Cup
Factory drip cup positioned at the cart's designated collection location. Replace if cracked, missing or unable to retain incidental drips.
Diagram item: 11
OEM part: 700-1041
SHOP DRIP CUPS →Titan Advantage 700 Low Boy Cart Assembly Parts Diagram
The official Titan Advantage 700 manual identifies complete low-boy cart assembly 0552190A and 16 numbered component positions. Use these factory references to locate the correct replacement part.
| Item | Titan Part Number | Factory Description | Original Quantity |
|---|---|---|---|
| 1 | 590-506 | Washer | 2 |
| 2 | 590-504 | Sleeve | 2 |
| 3 | 9841504 | Snap Button | 2 |
| 4 | 800-113 | Handle Assembly, Includes Items 1–3, 5, 9 and 10 | 1 |
| 5 | 590-508 | Roll Pin | 2 |
| 6 | 335-018 | Plug | 2 |
| 7 | 9805230 | Screw | 1 |
| 8 | 710-204 | Plug | 2 |
| 9 | 856-002 | Washer | 4 |
| 10 | 856-921 | Screw | 4 |
| 11 | 700-1041 | Drip Cup | 1 |
| 12 | 704-291 | Roll Pin | 2 |
| 13 | 0294534 | Wheel Spacer | 4 |
| 14 | 0278373 | Wheel | 2 |
| 15 | 9890104 | Cap | 2 |
| 16 | 0552191 | Cart Weldment | 1 |
Parts-list caution: The manufacturer prints part number 710-204 for item 8, described as a plug. The same number also appears in the low-boy suction set documentation as a siphon hose assembly. Verify item 8 directly with the supplier before ordering; do not assume the two references are interchangeable.
How the Titan Advantage 700 Low Boy Cart Components Work
Handle and Retention Hardware
The 800-113 handle assembly provides a gripping point for repositioning the sprayer. Sleeves, washers, snap buttons, roll pins and screws support the specified handle arrangement.
Wheels, Spacers and Caps
The 0278373 wheels provide mobility. The 0294534 spacers maintain factory wheel positioning, while 9890104 caps fit the designated wheel ends.
Frame and Drip Collection
The 0552191 cart weldment supports the sprayer. Frame plugs close designated openings, while the 700-1041 drip cup collects minor drips at its intended location.
How to Identify the Correct Titan Advantage 700 Cart Part
Confirm the Cart Style
Verify that your sprayer has the low-boy cart rather than the upright configuration.
Locate the Defective Part
Inspect the wheels, handle, drip cup, frame or related fastening hardware.
Match the OEM Reference
Compare the factory diagram item and original Titan part number with the listing.
Check and Order
Confirm the required quantity, current replacement reference and availability.
Titan Advantage 700 Low Boy Cart Troubleshooting Guide
Use these common cart symptoms to identify parts that may need inspection or replacement.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Wheel wobbles during transport | 0278373 wheel, 0294534 spacer, 9890104 cap | Check wheel wear, spacer placement and wheel-end hardware. |
| Wheel does not roll smoothly | 0278373 wheel and associated hardware | Inspect for debris, damage, deformation or incorrect assembly. |
| Handle feels loose | 9841504 snap buttons, 590-508 roll pins, 856-921 screws | Inspect handle retention and replace damaged hardware. |
| Handle sleeve is damaged | 590-504 sleeve, 590-506 washer | Check sleeve condition and associated handle components. |
| Drips collect beneath the pump | 700-1041 drip cup and pump fluid-section seals | Inspect the cup and locate the underlying fluid leak. |
| Cart is unstable while stationary | 0552191 cart weldment, wheels and mounting hardware | Check frame condition, wheel alignment and supporting surface. |
| Frame opening is exposed | 335-018 plugs and designated frame closures | Identify the correct factory plug and replace if missing. |
Repair the Titan Advantage 700 Low Boy Cart Efficiently
Wheel and Spacer Service
Inspect the 0278373 wheels, 0294534 spacers and 9890104 caps together. Replace missing or damaged components to restore the factory wheel arrangement.
Handle and Fastener Service
Check snap buttons, sleeves, roll pins, washers and screws for looseness or wear. Verify whether individual service parts or the complete handle assembly are required.
Frame and Drip Cup Service
Inspect the cart weldment for structural damage and replace a cracked drip cup. Repair any active pump leakage instead of relying on the cup to contain it.
Find More Titan Advantage 700 Replacement Parts
Explore related diagrams when servicing your Advantage 700 sprayer beyond the low-boy cart assembly.
Titan Advantage 700 Low Boy Cart Compatibility
The Titan Advantage 700 factory manual identifies 0552190A as the complete low-boy cart assembly. The principal components include 800-113 handle assembly, 0552191 cart weldment, 0278373 wheels and 700-1041 drip cup.
The handle assembly includes 590-506 washers, 590-504 sleeves, 9841504 snap buttons, 590-508 roll pins, 856-002 washers and 856-921 screws. The cart also uses 704-291 roll pins, 0294534 wheel spacers and 9890104 caps.
AllTitanParts identifies Titan 9841504 as replacing 590-507 and Titan 9890104 as replacing 704-355. Verify current product references and any applicable replacement information before ordering.
The Advantage 700 upright cart is a different factory assembly, identified as 0552185A. Although some hardware is shared between the upright and low-boy configurations, the complete frames, handles and wheels should not be assumed interchangeable.
The manufacturer's low-boy cart parts list identifies item 8 as a plug under part number 710-204. That number is also used for a siphon hose assembly in the suction set diagram. Confirm the required component with the supplier before ordering this particular reference.
Match your equipment model, low-boy cart configuration, diagram callout and exact OEM part number. If the complete cart is unavailable, inspect the listed individual components for a targeted repair.
Titan Advantage 700 Low Boy Cart Maintenance and Safety
Turn off the sprayer, engage the spray gun trigger lock, relieve fluid pressure according to Titan's instructions and disconnect electrical power before servicing cart components.
Place the sprayer on a stable, level surface. Support the equipment securely if removing a wheel or loosening cart mounting hardware.
Inspect both wheels for damage, uneven wear and secure installation. Check the wheel spacers and caps for correct positioning.
Check handle sleeves, snap buttons, roll pins and mounting screws for looseness, corrosion or deformation. Do not transport the sprayer using a damaged or unsecured handle.
Inspect the cart weldment for cracks, bending or other structural damage. A compromised frame should be evaluated before continued use.
Keep the drip cup clean and properly secured. If coating is continuously leaking into the cup, inspect the pump fluid section and repair the underlying problem.
Replace missing plugs and damaged fastening hardware with the appropriate factory-referenced parts. Avoid substituting unrelated hardware without confirming fit and strength requirements.
After servicing, verify cart stability, handle security, wheel movement and proper equipment mounting before returning the sprayer to operation.
Titan Advantage 700 Low Boy Cart Assembly Parts FAQ
Answers to common questions about Advantage 700 low-boy cart wheels, handle assemblies, wheel spacers, hub caps, drip cups and replacement hardware.
What is the Titan Advantage 700 low-boy cart assembly part number?
Titan 0552190A is the complete low-boy cart assembly identified in the official Advantage 700 factory parts manual.
Which wheels fit the Titan Advantage 700 low-boy cart?
The factory diagram identifies Titan 0278373 as the wheel, item 14. The low-boy cart uses two wheels.
What is the Titan Advantage 700 low-boy handle assembly part number?
Titan 800-113 is the factory handle assembly. It includes diagram items 1 through 3, 5, 9 and 10, covering washers, sleeves, snap buttons, roll pins and mounting hardware.
What is Titan 0294534 used for?
Titan 0294534 is a wheel spacer used to maintain the factory wheel arrangement. The complete low-boy cart requires four spacers.
What is the purpose of Titan 700-1041?
Titan 700-1041 is the drip cup used in the low-boy cart assembly. It collects incidental fluid drips at its designated location but does not replace proper repair of leaking pump components.
Which hub cap is used on the Titan Advantage 700 low-boy cart?
Titan 9890104 is the factory cap, item 15. AllTitanParts also identifies it as replacing Titan 704-355.
Are Titan Advantage 700 upright and low-boy cart parts interchangeable?
The factory provides separate diagrams for the upright and low-boy carts. Some individual hardware is shared, but configuration-specific components must be matched by exact OEM part number.
Where can I buy Titan Advantage 700 low-boy cart replacement parts?
Shop the Titan Advantage 700 Low Boy Cart Assembly category at AllTitanParts for wheels, spacers, hub caps, snap buttons, handle sleeves, roll pins, drip cups and other listed cart hardware.
Shop Titan Advantage 700 Low Boy Cart Parts Today
Find Titan cart wheels, spacers, hub caps, snap buttons, handle sleeves, roll pins, drip cups and mounting hardware. Compare OEM references and order the replacement components needed for your Advantage 700 low-boy cart repair.
BUY ADVANTAGE 700 LOW BOY CART PARTS →Need help identifying a replacement part? Call 713-931-0006.
