Maintain the Titan Advantage 700 Drive System
The Titan Advantage 700 drive assembly transfers motor rotation through its gear train and slider mechanism to operate the reciprocating fluid-section piston. The factory assembly includes the motor, gear components, slider, slider housing, covers, connecting hardware and associated electrical-control components.
The first-stage and second-stage gears transmit mechanical power through the drive system. The slider mechanism converts the drive's rotating motion into the back-and-forth movement required by the pump piston. Proper alignment, component condition and lubrication are important to reliable operation.
The drive-assembly diagram also includes electrical and pressure-control components, such as the electronic cover, fuse holder, fuse, pressure-control knob and related hardware. These components serve different functions from the mechanical gears and slider.
Unusual drive noise, excessive vibration, mechanical binding, intermittent electrical operation or a motor that runs without corresponding piston movement can indicate a need for inspection. Similar symptoms may also originate outside the drive assembly, so diagnosis should include the fluid section and related systems.
Shop the factory-referenced replacement parts individually to help avoid unnecessary complete-assembly replacement.
Shop Essential Titan Advantage 700 Drive Assembly Replacement Parts
Locate the OEM components that support gear transmission, piston movement, electrical protection and pressure adjustment.
Titan 800-261 First-Stage Gear Assembly
Factory-referenced gear assembly used in the Advantage 700 drive mechanism. Inspect for damaged teeth or abnormal wear when diagnosing mechanical drive problems.
Diagram item: 6
OEM part: 800-261
SHOP DRIVE GEARS →Titan 0507218 Slider Assembly
Mechanical slider assembly that helps transfer drive movement to the pump piston. Inspect associated guides and connecting hardware during service.
Diagram item: 9
OEM part: 0507218
SHOP SLIDER PARTS →Titan 800-934A Fuse Holder Service Kit
Replacement fuse-holder service kit listed for the Advantage 700. The category identifies it as replacing original Titan 0551628.
Diagram item: 21
Replacement part: 800-934A
SHOP FUSE COMPONENTS →Titan 700-159 Pressure Control Knob
Operator adjustment knob for the pressure-control mechanism. The category lists this part as replacing original Titan 507740.
Diagram item: 27
Replacement part: 700-159
SHOP CONTROL KNOBS →Titan Advantage 700 Drive Assembly Parts Diagram Reference

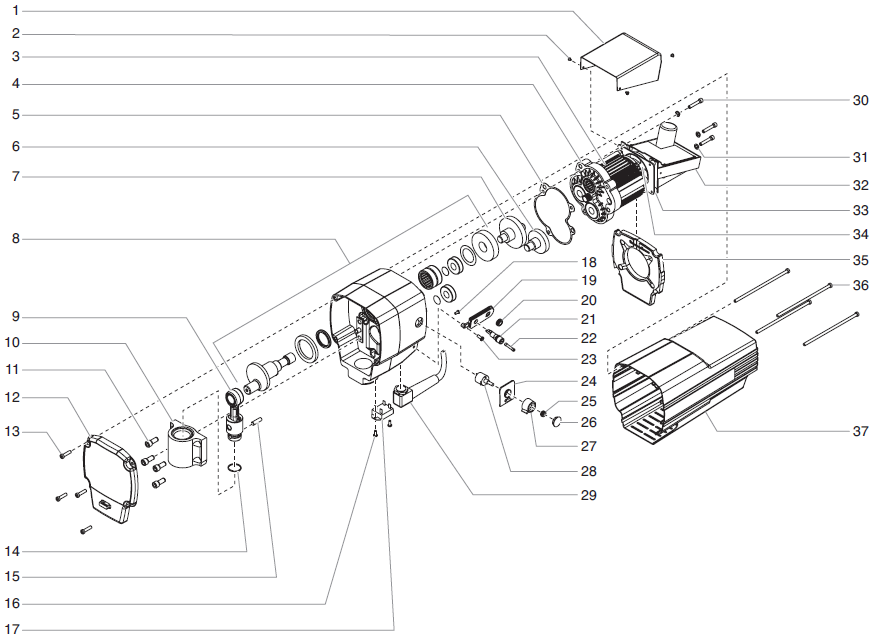

Use the numbered callouts on the Titan factory diagram to identify the correct replacement. The following table highlights parts listed in the AllTitanParts category and additional major assemblies identified by the manufacturer.
| Diagram Item | Titan Part Number | Component | Function or Reference |
|---|---|---|---|
| 1 | 800-078 | Electronic Cover | Protective enclosure component |
| 2 | 800-205 | Screw | Factory fastening hardware |
| 3 | 0551775 | Motor Assembly | Factory motor reference; check availability |
| 4 | Not separately numbered | Front End Bell Assembly | Factory assembly reference |
| 5 | 800-525 | Housing Gasket | Housing interface component |
| 6 | 800-261 | First-Stage Gear Assembly | Mechanical power transmission |
| 7 | 0507222 | Second-Stage Gear Assembly | Factory gear-train reference |
| 8 | 0507219 | Front Gearbox Assembly | Factory gearbox reference |
| 9 | 0507218 | Slider Assembly | Piston-drive linkage |
| 10 | 0507769 | Slider Housing | Supports and guides slider movement |
| 11 | 700-283 | Screw | Mounting hardware |
| 14 | 800-382 | Retaining Ring | Retains specified drive component |
| 15 | 800-753 | Connecting Pin | Mechanical linkage hardware |
| 16 | 800-206 | Screw | Factory fastening hardware |
| 18 | 9800340 | Ground Screw | Electrical grounding hardware |
| 21 | 800-934A | Fuse Holder Service Kit | Listed replacement for 0551628 |
| 22 | 800-929 | 15A Fuse | Listed replacement for 0551627 |
| 23 | 800-076 | Screw | Factory fastening hardware |
| 25 | 700-176 | Nut With Seal | Control mounting hardware |
| 26 | 700-175 | Potentiometer Cap | Listed replacement for 507748 |
| 27 | 700-159 | Pressure Control Knob | Listed replacement for 507740 |
| 30 | 700-287 | Socket Head Cap Screw | Assembly fastening hardware |
| 31 | 9821503 | Lock Washer | Fastener retention |
| 36 | 800-283 | Fillister Screw | Factory fastening hardware |
| Additional | 0551972 | Surge Protector | Listed electrical service component |
| Additional | 800-368 | Wire Assembly | Listed electrical connection component |
How the Titan Advantage 700 Drive Assembly Works
Motor and Gear Train
The motor drives the first-stage and second-stage gear assemblies. These components transmit mechanical power through the drive mechanism to operate the pumping system.
Slider and Connecting Hardware
The slider assembly moves within its housing and transfers motion toward the pump piston. Connecting pins and retaining rings secure designated mechanical connections.
Electrical and Pressure Controls
Electrical components support motor operation and circuit protection. The pressure-control knob provides operator adjustment, while the control electronics manage the corresponding system response.
How to Choose the Correct Titan Advantage 700 Drive Part
Confirm the Sprayer
Record your Titan Advantage 700 model and serial details.
Identify the Fault
Determine whether the problem involves the gear train, slider, motor or controls.
Match the Diagram
Compare the factory callout with the exact Titan part number.
Check the Replacement
Verify compatibility, supersessions and package contents before ordering.
Titan Advantage 700 Drive Assembly Troubleshooting Guide
Use these symptoms to identify potential inspection areas. They are not definitive diagnoses, and electrical repairs require qualified service personnel.
| Observed Condition | Components to Inspect | Recommended Approach |
|---|---|---|
| Unusual grinding or clicking noise | 800-261 gear, 0507222 second-stage gear, 0507219 gearbox | Inspect gear teeth, bearings and lubrication condition. |
| Motor runs but piston does not cycle | 0507218 slider, 800-753 connecting pin, gear assemblies | Check the mechanical drive connection and fluid-section linkage. |
| Excessive vibration | Slider housing, connecting hardware, drive fasteners | Inspect for wear, looseness or mechanical misalignment. |
| Motor does not start | Power supply, 800-929 fuse, 800-934A fuse holder, motor controls | Have qualified personnel diagnose electrical supply and circuit faults. |
| Pressure adjustment is unresponsive | 700-159 knob, potentiometer and control electronics | Check for a damaged knob or a control-system fault. |
| Intermittent electrical operation | Fuse holder, wiring, switches and electrical connections | Refer electrical diagnosis to a qualified technician. |
| Pump cycles but spray pressure is weak | Fluid section, valves, packings, suction system and controls | Inspect the fluid-delivery system before assuming a drive fault. |
Repair the Titan Advantage 700 Drive Assembly Efficiently
Gear and Housing Service
Inspect gear assemblies and housings for wear, damage or contamination. Check adjacent components before replacing an individual gear.
Slider and Linkage Service
Inspect the slider, connecting pin, retaining ring and related mechanical interfaces for damage or excessive wear.
Electrical Control Service
Have a qualified technician evaluate fuse-holder, wiring, motor and pressure-control problems. Replace electrical components only after confirming the fault.
Find Related Titan Advantage 700 Replacement Components
Use these related diagrams when troubleshooting extends beyond the drive mechanism.
Titan Advantage 700 Drive Assembly Compatibility
The Titan Advantage 700 factory manual identifies the motor assembly as 0551775, first-stage gear assembly as 800-261, second-stage gear assembly as 0507222, front gearbox assembly as 0507219, slider assembly as 0507218 and slider housing as 0507769.
The current AllTitanParts category also identifies replacement part numbers for selected original components: 800-934A replaces fuse-holder reference 0551628, 800-929 replaces fuse reference 0551627, 700-175 replaces potentiometer cap reference 507748 and 700-159 replaces pressure-control knob reference 507740.
These are individual part references. Their appearance in the same exploded diagram does not mean the complete motor, gearbox, slider or electrical assemblies are interchangeable with parts from other sprayer models.
Verify the equipment model, original part number, manufacturer supersession and current product description before ordering. Consult Titan's authorized service guidance for electrical components and complete drive-assembly repairs.
Titan Advantage 700 Drive Assembly Maintenance and Safety
Turn off the sprayer, engage the spray gun trigger lock, follow Titan's pressure-relief procedure and disconnect the power cord before opening the drive assembly.
Never service the mechanical drive while the motor is energized. Moving gears and slider components can cause serious injury.
Inspect gear teeth, slider contact surfaces, retaining rings, pins and housings for visible wear or damage. Follow Titan's service instructions for lubrication and reassembly.
Use the correct manufacturer-specified fasteners and retainers. Do not substitute unidentified screws or connecting hardware in load-bearing drive components.
Do not bypass electrical protection, substitute an incorrectly rated fuse or defeat grounding connections.
All electrical work should be performed by a Titan-authorized service center, as specified in the manufacturer documentation.
After service, verify that covers, fasteners, electrical connections and mechanical components are properly installed before conducting the manufacturer's operational checks.
Titan Advantage 700 Drive Assembly Parts FAQ
Answers to common questions about Advantage 700 gears, sliders, gearbox components, fuse holders, pressure controls and drive-system repairs.
What does the Titan Advantage 700 drive assembly do?
The drive assembly transfers motor rotation through the gear train and slider mechanism to produce the reciprocating motion required by the fluid-section piston.
What is the Titan Advantage 700 first-stage gear part number?
Titan 800-261 is the first-stage gear assembly identified as item 6 in the factory drive-assembly diagram.
Which slider assembly fits the Titan Advantage 700?
Titan 0507218 is the slider assembly identified as item 9. The corresponding slider housing is Titan 0507769, identified as item 10.
Why does my Titan Advantage 700 motor run without pumping?
Possible causes include a damaged gear train, slider, connecting hardware or fluid-section mechanism. Inspect the drive-to-piston connection and pump components before selecting a replacement.
What is Titan 800-934A used for?
Titan 800-934A is a fuse-holder service kit listed as a replacement for original Titan 0551628. Electrical diagnosis and replacement should be handled by qualified service personnel.
What fuse is listed for the Titan Advantage 700?
AllTitanParts lists Titan 800-929 as a 15A fuse replacing original part 0551627. Verify the correct electrical configuration and manufacturer specifications before replacement.
What is the Titan Advantage 700 pressure control knob part number?
Titan 700-159 is the listed replacement pressure-control knob for original reference 507740. The knob is an operator adjustment component, not a replacement for the entire electronic control system.
Where can I buy genuine Titan Advantage 700 drive assembly parts?
Shop the Advantage 700 Drive Assembly category at AllTitanParts to compare OEM gears, sliders, housings, connecting pins, retaining rings, electrical covers, fuse components, control hardware and other listed replacement parts.
