Titan 840ix Prime/Spray Valve Assembly Parts (P/N 800-915)
Shop genuine Titan 840ix Prime/Spray Valve Assembly Parts for P/N 800-915. Find OEM bypass valve seats, housings, valve handles, gaskets, O-rings, springs, retaining pins, valve retainers and cam components. Restore proper prime and spray selection by identifying the correct part from the numbered Titan 840ix exploded assembly diagram.
Assembly Overview
Buy Titan 840ix Prime/Spray Valve Replacement Parts
The Prime/Spray valve assembly is part of the Titan 840ix airless sprayer's fluid-routing system. During priming, the valve arrangement allows fluid to follow the bypass or return path. During spraying, it is positioned to support delivery through the spray circuit. The valve's sealing surfaces, operating handle and internal retaining components must function correctly for dependable operation.
A damaged valve seat, deteriorated gasket, worn O-ring or faulty retaining component can contribute to leakage, difficulty priming or problems changing between operating modes. The P/N 800-915 diagram identifies 12 individual replacement parts so you can locate the correct component rather than replacing unrelated sprayer assemblies.
Parts Identification
How to Find the Correct Titan 840ix Valve Part
Confirm the Model
Verify that your airless sprayer is a Titan 840ix.
Find Assembly 800-915

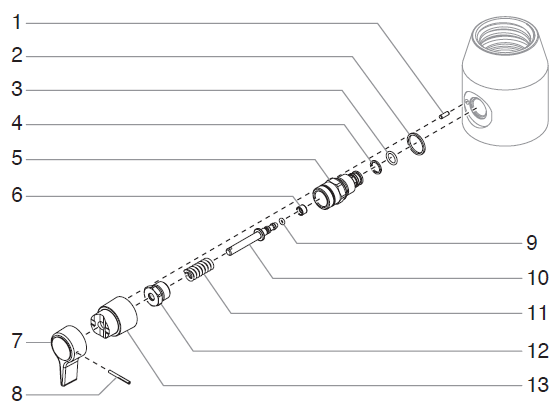

Locate the Prime/Spray Valve Assembly exploded drawing.
Match the Diagram Callout
Compare the illustrated position with the OEM part number.
Verify Before Checkout
Confirm the part, model compatibility and required quantity.
OEM Parts Catalog
Titan 840ix Prime/Spray Valve Parts and OEM Numbers
Browse the 12 components listed for assembly 800-915. Match each part to its numbered position in the exploded diagram.
Titan 700-823 Dowel Pin
Precision dowel pin used at the designated valve assembly position. Listed size: 1/8 inch outside diameter by 3/8 inch long.
Part Number: 700-823Titan 700-537 Gasket
Replacement gasket for the applicable valve connection. Inspect the gasket and mating surfaces for damage when servicing the assembly.
Part Number: 700-537Titan 222-012 PTFE O-Ring
PTFE O-ring used at its specified sealing location. Match the exact part number rather than substituting a visually similar seal.
Part Number: 222-012Titan 221-012 Viton O-Ring
Fluoroelastomer O-ring for the designated valve sealing position. Inspect for flattening, cuts or deterioration.
Part Number: 221-012Titan 700-253 Bypass Valve Housing
Housing component associated with the bypass fluid-routing mechanism. Check sealing surfaces and connection points for damage.
Part Number: 700-253Titan 800-910 Bypass Valve Seat
Replacement bypass valve seat. A damaged seating surface can interfere with proper valve sealing and fluid routing.
Part Number: 800-910Titan 700-697 Valve Handle
Replacement operating handle for selecting the applicable valve position. Inspect for cracks, looseness or poor engagement.
Part Number: 700-697Titan 700-759 Groove Pin
Grooved retaining pin used in the specified valve mechanism. Verify the diagram location before replacement.
Part Number: 700-759Titan 700-721 O-Ring
Replacement O-ring for the illustrated valve assembly. Examine the seal and groove for wear or contamination.
Part Number: 700-721Titan 800-926 Spring
Replacement spring for the applicable valve mechanism. Inspect for corrosion, deformation or loss of spring integrity.
Part Number: 800-926Titan 700-248 Bypass Valve Retainer
Retaining component for the specified bypass valve arrangement. Check for damage or improper engagement.
Part Number: 700-248Titan 700-251 Bypass Cam Base
Replacement bypass cam base associated with the valve operating mechanism. Listed as replacing Titan 0507735.
Part Number: 700-251Valve Operation
How the Titan 840ix Prime/Spray Valve Assembly Works
Prime Mode
The valve arrangement provides the applicable bypass path during priming and circulation.
Spray Mode
Changing the valve position supports fluid delivery through the spray circuit.
Fluid Sealing
Gaskets, O-rings and the valve seat help control leakage at their designated interfaces.
Mechanical Control
The handle, cam base, spring and retainers contribute to the valve's operating mechanism.
Maintenance Guide
Maintaining Your Titan 840ix Prime/Spray Valve
Inspect the Seals
Check the gasket and O-rings for cuts, flattening, chemical damage or other deterioration.
Examine the Valve Seat
Inspect the bypass valve seat for visible wear or damage that could affect sealing.
Check Operating Hardware
Inspect the valve handle, cam base, retaining pins, spring and retainer for damage.
Follow Service Instructions
Use the applicable Titan service procedure for disassembly, correct seal placement and reassembly.
Troubleshooting
Common Titan 840ix Prime/Spray Valve Problems
These symptoms identify components worth inspecting, but they do not establish a diagnosis. Pump valves, suction leaks and other fluid-system faults may produce similar symptoms.
| Symptom | Parts to Inspect | Suggested Check |
|---|---|---|
| Fluid leaks around valve | 700-537, 222-012, 221-012, 700-721 | Inspect seals, housing interfaces and mating surfaces after relieving pressure. |
| Difficulty changing valve position | 700-697, 700-251, 700-759 | Check handle and cam-related components for damage or obstruction. |
| Unexpected bypass flow | 800-910, 700-253, associated seals | Inspect the bypass seat and valve sealing arrangement. |
| Damaged internal retention | 700-823, 700-248, 800-926 | Inspect retaining hardware and spring condition using the assembly diagram. |
| Sprayer fails to prime | Prime/Spray valve and related intake system | Verify valve position and inspect the siphon set and pump valves before replacing parts. |
Fitment Verification
Verify Titan 840ix Valve Assembly Compatibility
Assembly number 800-915 identifies the Prime/Spray valve assembly illustrated on this page. Each service component has its own Titan OEM part number. Confirm the exact number, diagram callout and required quantity before ordering.
Titan 700-251 Bypass Cam Base is listed as replacing Titan 0507735. Do not assume that visually similar bypass valves, seats, gaskets or O-rings from other Titan models are interchangeable without documented part-number confirmation.
Buying Guide
Before Ordering Titan 840ix Prime/Spray Valve Parts
Check the machine model and configuration.
Use the Prime/Spray valve exploded diagram.
Check O-rings and gaskets during valve service.
Use the OEM number instead of visual similarity.
Check how many components your repair requires.
Related Titan 840ix Parts
Explore Titan 840ix Parts and Assemblies
Shop pump packings, piston components and fluid valves.
840ix Filter Assembly PartsFind filters, housings, springs, seals and fluid-system components.
840ix Low Rider Siphon PartsBrowse intake screens, siphon tubes and return hoses.
840ix Main Assembly PartsExplore the main sprayer assembly components.
840ix Drive Assembly PartsLocate drive-system replacement components.
All Titan 840ix PartsBrowse the complete Titan 840ix parts catalog.
Service Safety
Relieve Pressure Before Servicing the Prime/Spray Valve
Shut down the sprayer, disconnect power and follow Titan's complete pressure-relief procedure before removing the valve handle, housing, seat, plugs or sealing components. Never loosen a pressurized fluid connection. High-pressure fluid injection can cause serious injury. Follow the applicable Titan manual for disassembly, reassembly and functional testing.
Genuine Titan OEM Valve Parts
Order Titan 840ix Prime/Spray Valve Parts Online
Find the exact bypass valve housing, seat, handle, gasket, O-ring, spring or retaining component for assembly 800-915. Use the numbered diagram to select the right part for your repair.
Shop Titan 840ix Prime/Spray Valve PartsFrequently Asked Questions
Titan 840ix Prime/Spray Valve Parts FAQ
What is Titan 840ix Prime/Spray Valve Assembly P/N 800-915?
It is the illustrated valve assembly associated with the Titan 840ix fluid-routing system, containing bypass valve components, seals, operating hardware and retainers.
How many parts are listed for assembly 800-915?
The AllTitanParts category lists 12 individual replacement components.
What is the Titan 840ix bypass valve seat part number?
Titan 800-910 is the listed Bypass Valve Seat. Confirm the diagram position before purchasing.
Which Titan bypass valve housing is listed?
Titan 700-253 Bypass Valve Housing is included in the assembly parts list.
What valve handle fits this illustrated assembly?
Titan 700-697 Valve Handle is the part listed for the 840ix Prime/Spray Valve Assembly.
What replaces Titan 0507735?
The catalog lists Titan 700-251 Bypass Cam Base as replacing Titan 0507735. Verify the replacement relationship for your machine.
Why does my Titan 840ix keep returning paint in spray mode?
A bypass valve sealing problem is one possibility. Inspect the valve seat, housing and associated seals, while also checking other fluid-system causes using the service manual.
Can I replace the valve O-rings individually?
Yes. Titan 222-012 PTFE O-Ring, 221-012 Viton O-Ring and 700-721 O-Ring are listed separately. Each serves a specified location and should not be substituted without verification.
How do I choose the correct Titan 840ix valve part?
Confirm the Titan 840ix model, locate assembly 800-915 and match the numbered callout to the exact OEM part number and required quantity.
Parts and Fitment Assistance
Need Help Finding a Titan 840ix Prime/Spray Valve Part?
Have your sprayer model, serial number, assembly P/N 800-915 and relevant diagram callout ready. Our parts team can help identify the correct replacement.
