Titan 840ix Fluid Section Assembly Parts (P/N 800-300)
Restore the pumping performance of your Titan 840ix airless paint sprayer with genuine OEM fluid section replacement parts. Shop Titan 840ix Fluid Section Assembly Parts (P/N 800-300), including piston rods, upper and lower packings, inlet and outlet valve components, pump housings, seals and repair kits. Find the exact replacement using the numbered factory parts diagram.
Buy Genuine Titan 840ix Fluid Section Replacement Parts
The fluid section is the pumping assembly responsible for drawing coating material into the sprayer and delivering it under pressure to the spray system. Its piston, packing system, inlet valve and outlet valve must work together to maintain consistent material flow and pressure.
With regular use, pump packings can wear, valve components can become contaminated, and sealing surfaces may deteriorate. These conditions can contribute to pressure loss, fluid leakage, difficulty priming and inconsistent spray performance.
AllTitanParts provides genuine Titan replacement components organized around the 840ix Fluid Section Assembly, P/N 800-300. Browse the exploded diagram, identify the damaged component and order the correct individual part or applicable repair kit.
Find the Correct Titan 840ix Fluid Section Part
Confirm Your Model
Verify that your airless sprayer is a Titan 840ix and identify the applicable fluid section configuration.
Locate Assembly 800-300

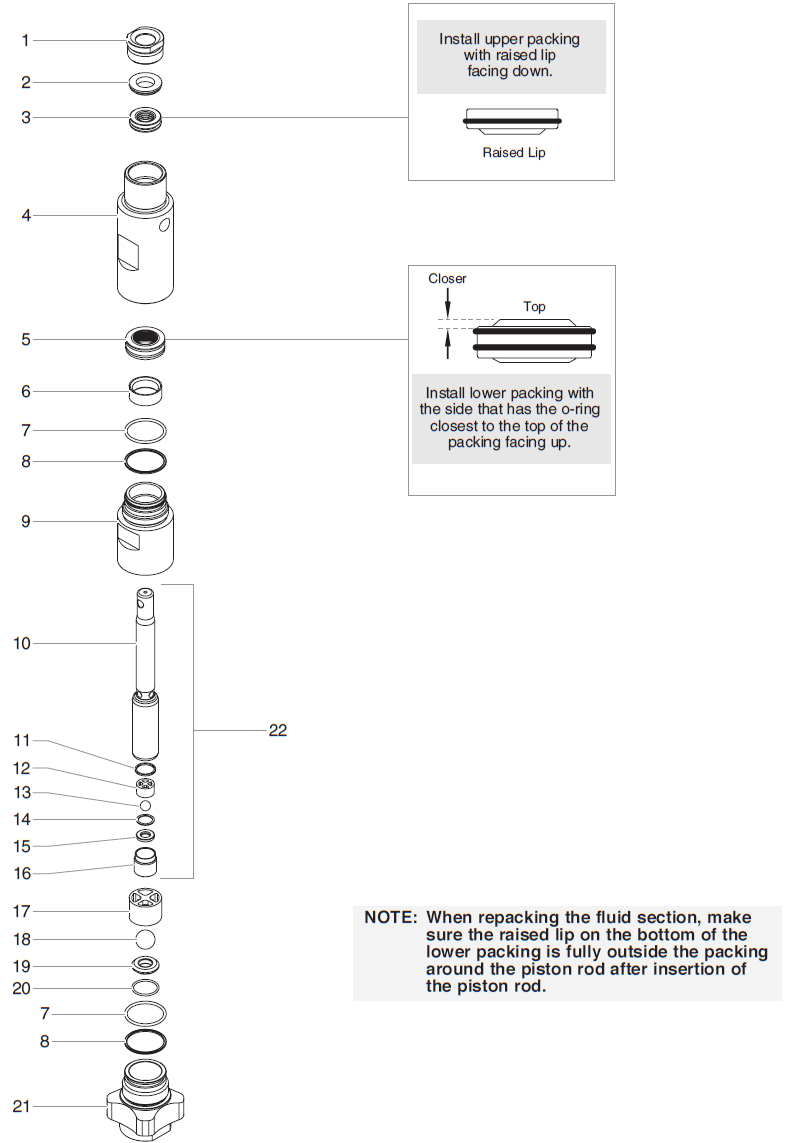

Use the 840ix Fluid Section Assembly (P/N 800-300) exploded diagram to identify the required component.
Match the Part Number
Match the numbered diagram callout to the correct OEM part number and description.
Check Quantity and Fitment
Confirm the required quantity and inspect related parts before completing your order.
Shop Titan 840ix Fluid Section Parts by Component
The following genuine Titan components are listed within the 840ix Fluid Section Assembly parts catalog. Select individual parts according to the exploded diagram and your repair requirements.
Titan 800-273 Repacking Kit
A service kit for renewing applicable pump packing and sealing components during fluid section maintenance.
OEM Part Number: 800-273Titan 800-248 Upper Packing
Helps seal the piston rod at the upper packing area to control fluid leakage during pump operation.
OEM Part Number: 800-248Titan 800-355A Lower Packing Assembly
Provides sealing support within the lower pumping section and is an important component during pump repacking.
OEM Part Number: 800-355ATitan 800-246 Piston Rod
A key reciprocating pump component that operates through the packing system during fluid displacement.
OEM Part Number: 800-246Titan 800-365A Piston Assembly
A replacement piston assembly for the applicable fluid section configuration, listed as replacing Titan 800-365.
OEM Part Number: 800-365ATitan 9841502 Outlet Valve Ball
Works with the applicable outlet valve seat to help control the discharge of material from the pumping chamber.
OEM Part Number: 9841502Titan 800-243 Outlet Seat Valve
Provides the applicable sealing surface for the outlet valve ball during pump operation.
OEM Part Number: 800-243Titan 51519 Inlet Ball
A replacement inlet valve ball listed as replacing Titan 800-242. Helps regulate material entry into the fluid section.
OEM Part Number: 51519Titan 800-241 Foot Valve Seat
Provides the seating surface for the inlet valve ball within the fluid intake system.
OEM Part Number: 800-241Titan 800-351 Upper Housing
An upper fluid section housing component used to support the applicable internal pumping and sealing arrangement.
OEM Part Number: 800-351Titan 800-352 Lower Housing
Forms part of the structural housing for the lower fluid section and its internal pump components.
OEM Part Number: 800-352Titan 800-332 Viton O-Ring
An OEM sealing component used at its specified location within the fluid section assembly.
OEM Part Number: 800-332Additional listed components include the Titan 800-325 Upper Seal Retainer, 800-327 Spacer, 800-354 Wear Ring, 800-333 PTFE Back-Up Ring, 800-348 Outlet Valve Seal, 0507452 Upper Cage, 0507454 Washer, 800-336 Outlet Valve Retainer, 800-322 Lower Cage, 762-058 Seat O-Ring and 800-305 Foot Valve Housing. The catalog also lists the Titan 800-359 Piston Insertion Tool.
How the Titan 840ix Fluid Section Works
Material Intake
The inlet valve permits coating material to enter the pumping chamber during the appropriate piston stroke.
Piston Movement
The reciprocating piston assembly displaces material through the fluid section during the pumping cycle.
Pressure Sealing
Upper and lower packings help contain material around moving pump components and maintain pressure.
Material Discharge
The outlet valve controls material movement from the pump chamber toward the downstream spray system.
Diagnose Titan 840ix Pump Problems Before Ordering
Pressure loss, poor priming and irregular material delivery can have several causes. Inspect the fluid section together with the suction, filtration and pressure-control systems before deciding which parts need replacement.
1. Identify the Symptom
Determine whether the issue involves priming, pressure, leakage, material flow or mechanical wear.
2. Inspect Related Systems
Check the suction path, filters, valve operation and fluid connections for restrictions or leaks.
3. Inspect the Fluid Section
After safe pressure relief, inspect the piston, packings, valve components and sealing surfaces according to Titan service instructions.
4. Match the OEM Diagram
Identify the required replacement part using the 800-300 assembly diagram and its corresponding parts list.
Common Titan 840ix Fluid Section Problems
The following symptoms provide general inspection guidance. Confirm the actual failure before replacing components.
| Symptom | Components to Inspect | Recommended Inspection |
|---|---|---|
| Sprayer Will Not Prime | Inlet ball, foot valve seat, suction components | Check for contamination, damaged valve seating and suction-side restrictions or air leaks. |
| Low or Unstable Pressure | Pump packings, piston, inlet and outlet valves | Inspect sealing and valve components while also checking downstream pressure-control and filtration issues. |
| Fluid Leakage Around Pump | Upper packing, lower packing, O-rings and housings | Locate the exact leakage point and inspect the relevant seals and adjoining surfaces. |
| Irregular Pump Delivery | Piston assembly, outlet valve ball, outlet seat, inlet valve | Check valve operation, piston condition and possible material restrictions. |
| Repeated Packing Failure | Piston rod, wear ring, packings and housing surfaces | Inspect mating surfaces for scoring, excessive wear or damage before installing new packings. |
Choose the Correct Titan 840ix Repair Section
840ix Fluid Section 800-300
Find packings, piston rods, valve balls, seats, housings, O-rings and pump repair parts.
Titan 840ix Airless Sprayer
Return to the complete Titan 840ix model catalog to locate other machine assemblies.
Browse Titan 840ix PartsTitan I, IX & XC Sprayer Parts
Browse related Titan sprayer model families and their corresponding parts diagrams.
Browse I, IX & XC PartsVerify Titan 840ix Fluid Section Part Compatibility
Assembly number 800-300 identifies the fluid section assembly covered by this parts diagram. Individual service components have their own Titan part numbers and should be ordered using the corresponding diagram callouts.
Before purchasing, verify the Titan 840ix model, applicable fluid section assembly, exact OEM part number, component description and required quantity. Do not assume that similar parts used in Titan 740, 840 or 1140 sprayer variants are interchangeable without checking the applicable parts documentation.
Before Ordering Titan 840ix Pump Repair Parts
Confirm your machine is the Titan 840ix airless sprayer.
Check that this fluid section diagram matches the assembly being repaired.
Examine adjoining packings, valve seats, balls and piston surfaces for wear.
Determine whether the repair requires a single component or an applicable repacking kit.
Verify each OEM part number and the quantity needed before checkout.
Shop Titan 840ix Fluid Section and Related Parts
Explore the 840ix Fluid Section Assembly diagram or return to the complete sprayer model catalog to find other repair components.
Relieve Pressure Before Servicing the Titan 840ix Fluid Section
Shut down the sprayer, disconnect or isolate its electrical supply and follow the complete Titan pressure-relief procedure before inspecting or removing pump components. Never loosen a pressurized fitting, hose, valve or fluid section component. Follow the applicable Titan service manual for disassembly, cleaning, packing installation, lubrication, reassembly and testing. High-pressure fluid injection can cause serious injury.
Order Titan 840ix Fluid Section Assembly Parts
Repair your Titan 840ix fluid section with the correct OEM piston components, packings, valve parts, seals and pump housings. Browse the P/N 800-300 exploded diagram to locate the exact replacement part for your sprayer.
Shop Titan 840ix Fluid Section PartsTitan 840ix Fluid Section Assembly Parts FAQ
What is the Titan 840ix Fluid Section Assembly P/N 800-300?
P/N 800-300 identifies the fluid section assembly covered by this Titan 840ix parts diagram. The assembly contains pumping and sealing components used to draw in and pressurize coating material.
What parts are available for the Titan 840ix fluid section?
Listed components include repacking kits, upper and lower packings, piston rods, piston assemblies, valve balls, valve seats, pump housings, O-rings, retainers and other repair parts.
Which repacking kit is listed for the 840ix Fluid Section Assembly?
Titan 800-273 Repacking Kit is listed in the 840ix Fluid Section Assembly P/N 800-300 parts catalog. Verify the applicable pump configuration and kit contents before ordering.
What are common signs of worn fluid section packings?
Possible symptoms include fluid leakage around the pump, difficulty maintaining pressure and reduced pumping performance. Other system faults can produce similar symptoms, so proper diagnosis is important.
Which inlet ball replaces Titan 800-242?
The catalog lists Titan 51519 Inlet Ball as the replacement for Titan 800-242. Confirm your fluid section diagram before purchasing.
Can I replace individual fluid section components instead of the complete assembly?
Yes. The catalog lists individual service parts, including packings, piston components, valve parts and housings. The correct repair depends on inspection results and the applicable Titan service instructions.
Are Titan 840ix fluid section parts interchangeable with other Titan models?
Some individual components may be listed for multiple Titan models, but interchangeability must be verified by exact OEM part number and applicable parts documentation.
How do I order the correct Titan 840ix replacement part?
Confirm the Titan 840ix model and Fluid Section Assembly P/N 800-300, locate the required diagram callout and match it to the exact OEM replacement part number and quantity.
Need Help Finding a Titan 840ix Fluid Section Part?
Have your Titan 840ix model information, serial number when available, assembly number 800-300 and existing component part number ready. Our parts team can assist with identifying the correct replacement from the applicable diagram.
Parts and Fitment Help: 713-931-0006```
