Use your sprayer's model diagram when the part lives inside the machine, and the accessory category pages when it is a gun, tip, tip guard, hose, filter, seal, repacking kit or piston rod. Those pages are separate on the site: spray guns and tips, tip guards, hoses, filters, seals, repacking kits and piston rods.
Two ways in: by model or by part type
The site is organized two ways. Parts that live inside a sprayer, such as a motor, gear box or fluid section, are on that model's diagram pages. Start at Order by Parts Diagram, open your model and find the numbered callout.
Parts that move between sprayers are grouped by type instead: guns, tips, tip guards, hoses, filters, seals, repacking kits and piston rods. If you know what you want but not which Titan it came off, the type pages below are the faster route.
The accessory pages at a glance
Where to look for each kind of part
| You need | Open | What you will find |
|---|---|---|
| A gun or a ready-made gun, hose and tip kit | Guns, Hoses and Tip Kits | RX-80, RX-Pro and RX-Apex guns and kits |
| An entry-level gun | Entry Level Contractor Airless Guns | LX-40 and LX-70 inline gun parts |
| A spray tip | Airless Spray Tips | The tip section |
| A tip guard | Tip Guards | Four tip guards, including a G-thread and an adjustable guard |
| A hose | Titan Hoses | Airless hoses |
| A filter | Titan Filters | Pump and gun filters |
| A tip seal or tip seat | Titan Seals | Tip seals, tip seat kits and tip gaskets |
| Pump packings | Repacking Kits and Pump Service Kits | The biggest page, with 73 parts |
| A piston rod or piston assembly | Piston Rods and Piston Assemblies | 52 parts |
Part counts are what the site's diagram data shows today. The site also has broader Spray Guns, Tips and Accessories and Sprayer Accessories pages if you want to browse.
Guns and kits
Titan lists three main gun families. The RX-80 and RX-Pro are rated to 3600 psi, and the RX-Apex to 5000 psi. The LX-40 is rated to 3000 psi and the LX-70 inline gun to 3600 psi. Look at the rating on your own gun and sprayer before you choose, because every part in the system has to meet or exceed the sprayer's maximum pressure.
The kits page bundles a gun with a hose and tip, so you replace several parts in one order. Examples are the 0538022 RX-Pro airless spray gun, the 2454979 RX-80 airless spray gun and the 0538076 RX-Apex gun, hose and TR1 tip kit with filter. The 538072 RX-Apex kit without a filter is listed as replacing the older 0550075 and 550-110 numbers.
Tips and tip guards
Titan's three-digit tip sizes follow a pattern. The first digit, doubled, is the approximate fan width in inches, and the last two digits are the orifice in thousandths of an inch. A 517 is about a 10 to 12 inch fan with a 0.017 inch orifice.
The Tip Guards page lists four guards: 0289228 (G-thread), 0153003 (flat), 450-100A (adjustable) and 661-027. Pick the one that matches how your tip thread and guard mount on the gun, and replace a damaged guard rather than spray without it.
Hoses and filters
Titan's hose pages list families rated 3300, 3600, 4500, 6500 and 7500 psi, with solid urethane construction and a conductive tube for grounding. Titan's advice for a damaged hose is to replace it, not repair it. Choose a rating at or above the sprayer's maximum, and open Titan Hoses for the lengths.
Airless sprayers usually have a suction strainer, a pump or manifold filter and a gun filter. The Titan Filters page is the place to find the mesh you need, and your manual says which filters your sprayer has.
Seals, packings and piston rods
Titan Seals covers the small tip-end items, such as the 651-020 tip seal and the 661-020 tip seat and seal kit (5 pack).
For the pump, packings are on the repacking kits page, for example the 138-153A repacking kit, and rods are on the piston rods page, such as the 704-551A piston rod. There are many repacking kits because each fluid section uses its own. Do not choose by name alone.
When to go to the diagram instead
If you cannot tell what a part is called, find your model on Order by Parts Diagram and use the numbered picture. The series pages, such as Electric Airless Sprayer Parts and Gas Airless Sprayer Parts, narrow the list to one type of sprayer. Manuals are on our manuals page.

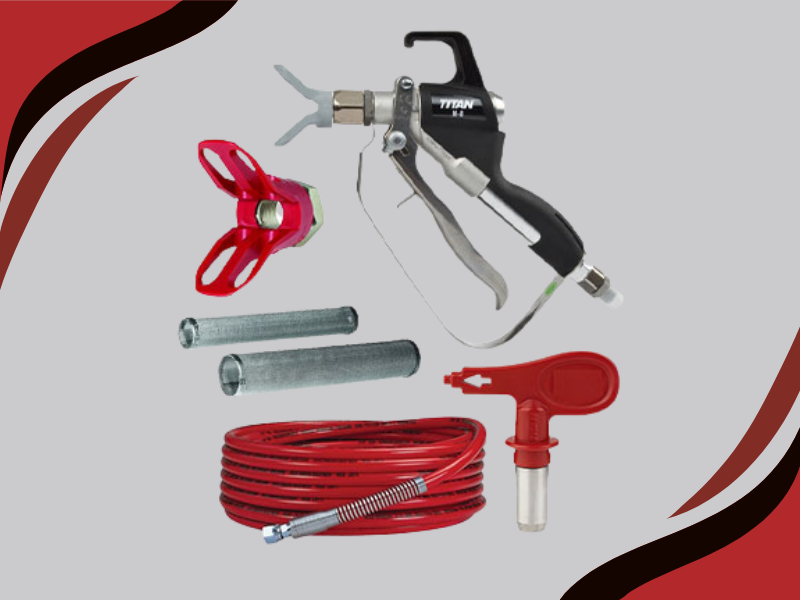

A few of the accessory parts mentioned above:
−16%
Bottom line
Gun, tip, tip guard, hose, filter, seal, repacking kit or piston rod: use the type page. Anything inside the machine: use your model's diagram. If neither answers it, call (713) 931-0006 with your model and serial number.
