Titan PowrTwin 3500 Electric Airless Sprayer Parts
Shop Titan PowrTwin 3500 Electric Airless Sprayer Parts for repair, maintenance and equipment service. Use the model-specific exploded parts diagrams to locate genuine Titan OEM pump, fluid-section, hydraulic, motor, filter, valve, frame, hose, fitting and related replacement components.
Find the Correct PowrTwin 3500 Replacement Parts
The Titan PowrTwin 3500 is a professional hydraulic airless sprayer built around multiple serviceable systems. Correct parts identification starts with determining which assembly contains the component that requires inspection, maintenance or replacement.
Use the PowrTwin 3500 exploded parts diagrams to identify individual components rather than ordering by appearance alone. Locate the required component on the applicable assembly drawing, record its diagram callout, and match that reference to the corresponding genuine Titan OEM part number in the parts list.
Find Your PowrTwin 3500 Part in Four Steps
Confirm the Sprayer
Verify that your machine is the Titan PowrTwin 3500 and confirm the applicable equipment configuration.
Select the Assembly
Open the appropriate pump, fluid, hydraulic, motor, filter, frame or related assembly diagram.
Locate the Callout
Find the required component on the exploded drawing and record its numbered diagram reference.
Verify the Part Number
Match the callout to the parts list and confirm the Titan OEM number before purchasing.
Titan PowrTwin 3500 Parts Diagrams
Start with the system or assembly you are servicing. Assembly-level diagrams make it easier to distinguish small components and locate the correct OEM replacement part.
Fluid Section Parts
Locate packings, piston components, cylinders, valve components, seals and related fluid-section repair parts.
Hydraulic Parts
Find documented hydraulic motor, pump, hose, fitting and related hydraulic-drive components.

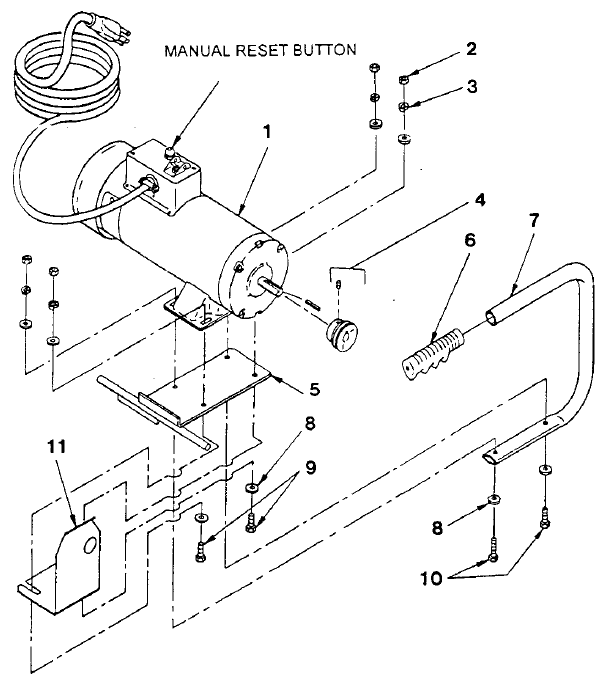

Electric Motor Parts
Identify model-specific electric-drive components, mounting hardware and related service parts.

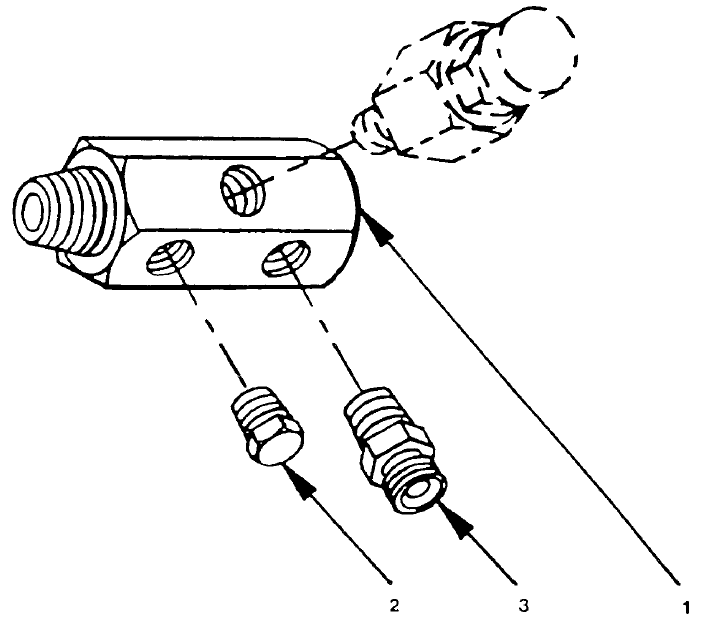

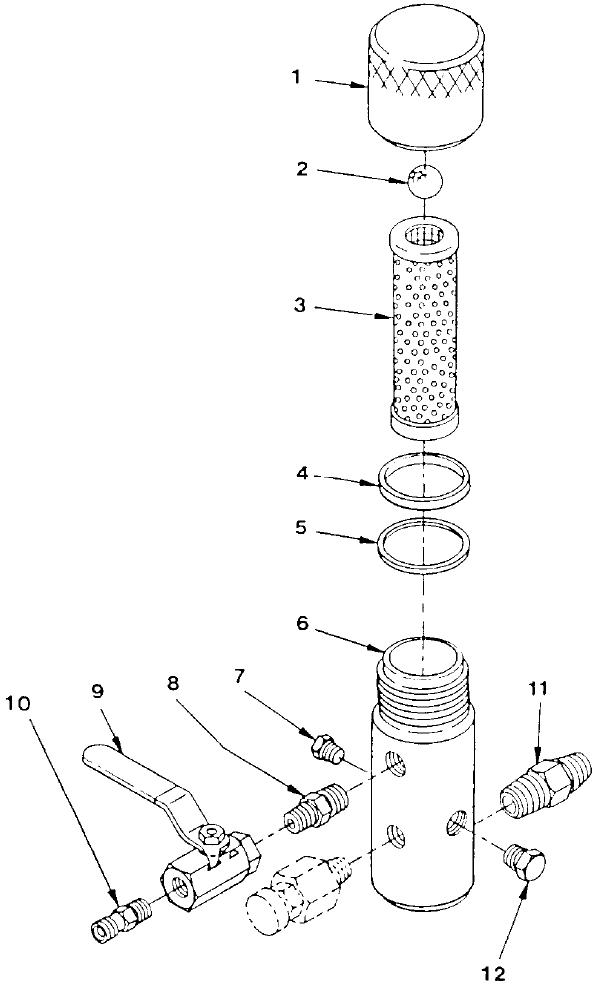

Filter & Manifold Parts
Browse filters, manifold components, fittings, valves and associated high-pressure fluid-path parts.
Suction & Intake Parts
Find suction components, inlet screens, hoses, fittings and related material-intake parts.
Valve & Control Parts
Locate documented pressure-control, bleed, relief and associated service components.

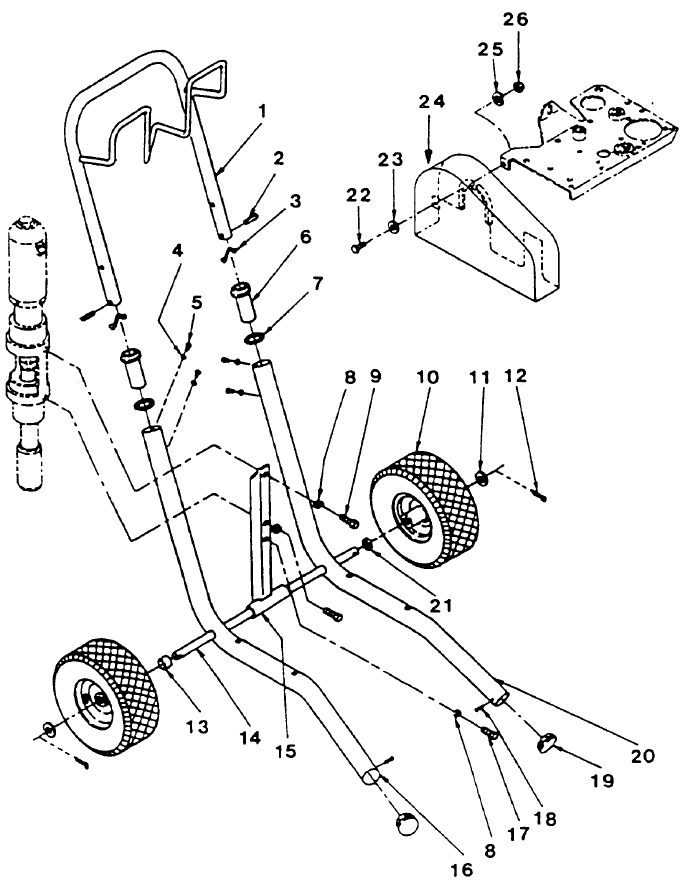

Frame & Hardware
Identify frame, mounting, wheel, handle and other structural components shown in the applicable diagram.
Hose, Gun & Accessories
Find documented high-pressure hose, spray-gun, tip and related application components for the equipment setup.

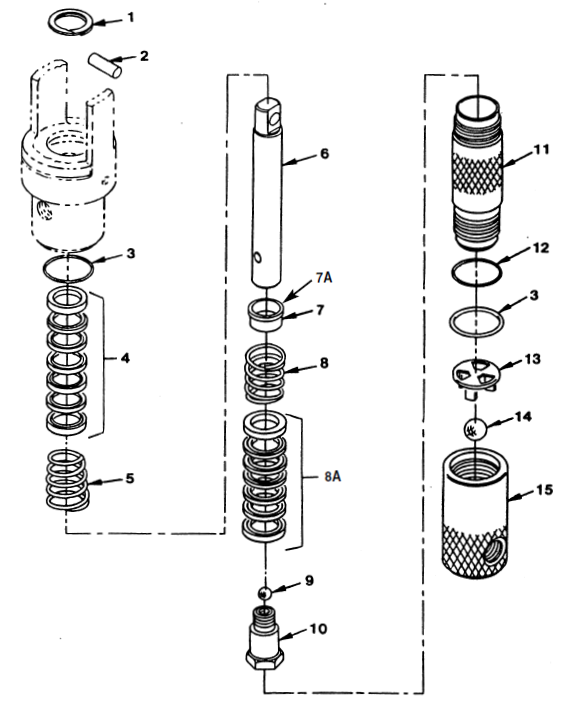

PowrTwin 3500 Pump & Fluid Section Parts
The fluid section is responsible for moving and pressurizing coating material. Because packings, valves and other fluid-section components are exposed to repeated operating cycles and coating material, this area is an important part of routine inspection and sprayer repair.
Inspect sealing components when diagnosing leakage or reduced fluid-section performance.
Check the piston and mating components for wear or damage during a pump rebuild.
Inspect the inlet-valve area when troubleshooting poor priming or material-intake problems.
Outlet-valve condition can affect pressure generation and consistent fluid delivery.

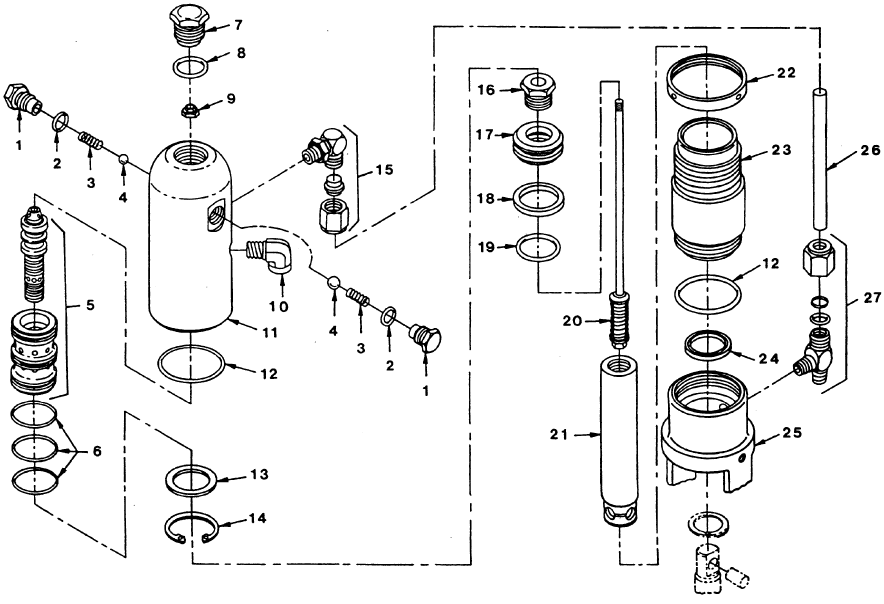

PowrTwin 3500 Hydraulic System Parts
The hydraulic drive transfers power to the pumping system. When troubleshooting irregular pump movement or hydraulic performance, inspect the complete system rather than replacing an individual component without diagnosis.
Use the model-specific diagram to identify hydraulic motor service components and related hardware.
Inspect the pump and associated components when diagnosing hydraulic-drive problems.
Inspect hoses for leakage, abrasion, deterioration or other visible damage before operation.
Verify documented fittings and connections whenever the hydraulic system is opened for service.
Common PowrTwin 3500 Service Symptoms
Use symptoms to determine which system should be inspected first. A single symptom can have several possible causes, so follow the applicable Titan troubleshooting procedure before ordering replacement parts.
| Symptom | Inspect First | Related Components | System |
|---|---|---|---|
| Sprayer Will Not Prime | Material intake | Suction components, inlet screen, inlet valve | Fluid Intake |
| Low or Unstable Pressure | Fluid section | Packings, valves, piston, filter | Pump / Fluid |
| Fluid Leakage | Exact leak location | Packings, seals, fittings, hose | Fluid System |
| Restricted Material Flow | Filter and intake | Screen, filter, hose, gun, tip | Fluid Path |
| Irregular Pump Movement | Hydraulic system | Hydraulic motor, pump, fluid, connections | Hydraulic Drive |
| Electric Drive Will Not Operate | Power supply and drive | Documented motor and electrical components | Electric System |
Related Parts to Inspect During PowrTwin 3500 Repairs
When replacing a worn component, inspect neighboring parts in the same assembly. This can help identify additional wear before the machine is reassembled.
Inspect the piston, cylinder and associated sealing surfaces for wear or damage.
Inspect the associated valve components, sealing surfaces and material-intake system.
Inspect the filter housing, manifold and downstream fluid path for contamination.
Inspect related hoses, fittings, connections and documented hydraulic components.
Maintain Your Titan PowrTwin 3500
Routine cleaning and inspection can help keep the sprayer ready for service and make developing problems easier to identify. Follow the maintenance instructions specified for the PowrTwin 3500.
Flush and clean the coating path using procedures appropriate for the material and equipment.
Check filters and inlet screens for contamination or restrictions that could reduce material flow.
Check the hydraulic system, hoses and connections according to the recommended service procedure.
Inspect fluid hoses, fittings and related high-pressure components for visible wear or damage.
Shop More Titan PowrTwin Parts
Browse the parent PowrTwin Electric category or other Titan sprayer families when servicing additional equipment.
Verify PowrTwin 3500 Parts Before Ordering
Do not identify a PowrTwin 3500 component solely by appearance. Similar fittings, seals, valves, filters, hydraulic components and pump parts may have different applications or OEM numbers. Confirm the sprayer model, applicable assembly diagram, diagram callout and Titan part number before completing your order.
Before Buying PowrTwin 3500 Replacement Parts
Verify that your equipment is a Titan PowrTwin 3500 and identify the applicable configuration.
Select the correct fluid, hydraulic, motor, filter, frame or other assembly diagram.
Locate the component on the exploded view and match its reference number to the parts list.
Verify the Titan OEM part number and description before purchasing.
PowrTwin 3500 Service Safety
Disconnect electrical power and follow the required pressure-relief procedure before inspecting, cleaning or servicing the PowrTwin 3500. Never loosen a pressurized hose, fitting, filter, gun or fluid-section component.
Hydraulic and airless spray systems can retain hazardous pressure after operation stops. Follow the applicable Titan operating and service instructions for electrical isolation, pressure relief, hydraulic service, grounding and component replacement.
Shop Titan PowrTwin 3500 Parts
Find genuine Titan OEM parts for PowrTwin 3500 pump repairs, hydraulic service, fluid-section maintenance, filtration, material intake and general sprayer repair. Use the exploded diagram to verify the correct part before ordering.
Shop PowrTwin 3500 PartsTitan PowrTwin 3500 Parts FAQ
How do I find the correct Titan PowrTwin 3500 part?
Confirm the sprayer model, select the correct assembly diagram, locate the component's numbered callout and match that reference to the Titan OEM part number in the corresponding parts list.
What types of PowrTwin 3500 replacement parts can I find?
Depending on the assembly, replacement parts can include fluid-section components, packings, seals, valves, filters, hydraulic components, electric-drive parts, fittings, hoses, intake parts and frame hardware.
Where can I find a Titan PowrTwin 3500 parts diagram?
Use the model-specific assembly sections on this page to locate the appropriate exploded parts diagram and match diagram callouts to the corresponding replacement parts.
What should I check if my PowrTwin 3500 will not prime?
Inspect the material supply, suction components, inlet screen, inlet valve and associated fluid path according to the applicable Titan troubleshooting procedure.
What can cause a PowrTwin 3500 to lose pressure?
Pressure problems can involve the fluid section, packings, piston, inlet or outlet valves, filters or other fluid-path components. Diagnose the system before replacing individual parts.
Can I rebuild the PowrTwin 3500 fluid section?
The fluid section contains serviceable wear components. Use the correct model-specific parts information and follow Titan's service procedure when inspecting or replacing packings, valves and related components.
Are PowrTwin 3500 parts interchangeable with other PowrTwin models?
Do not assume interchangeability. Some components may be shared by specific models or configurations, while others differ. Verify the OEM part number and documented model application before ordering.
How can I verify a PowrTwin 3500 part before buying?
Compare the sprayer model, assembly diagram, diagram callout, description and Titan OEM part number. If the identification remains uncertain, have the machine information available when requesting fitment assistance.
Need Help Finding a PowrTwin 3500 Part?
Have your Titan PowrTwin 3500 model information, serial number, existing part number and diagram callout ready. These details can help identify the correct genuine Titan OEM pump, hydraulic, motor, valve, filter, fitting or related replacement component.
Parts & Fitment Help: 713-931-0006
