Titan PowrTwin 3500 Major Components
Shop Titan PowrTwin 3500 Major Components for repair, maintenance and equipment restoration. Use the exploded major-components diagram to identify genuine Titan OEM assemblies, mounting components, hydraulic and fluid-system parts, fittings, hardware and other model-specific replacement components.
Find the Correct PowrTwin 3500 Major Component
The major-components diagram provides an overview of the primary assemblies and supporting parts that make up the Titan PowrTwin 3500. It is a useful starting point when the required replacement is part of the overall machine structure or when you need to determine which detailed assembly contains a smaller service component.

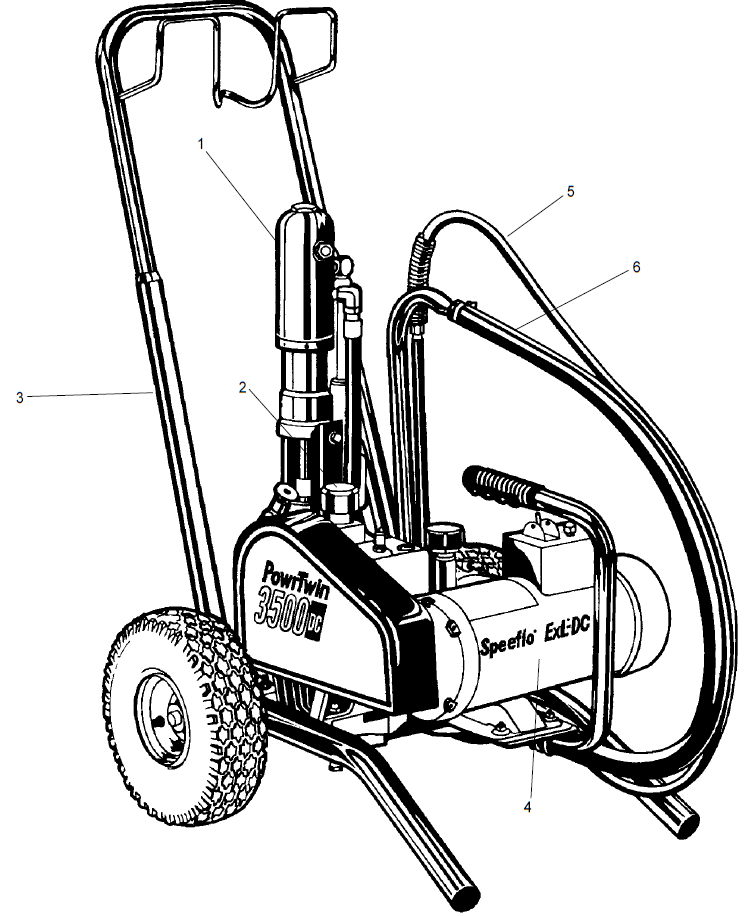

Locate the required component on the exploded view, note its numbered callout and match that reference with the corresponding parts-list entry. Verify the Titan OEM part number and description before ordering rather than selecting components only by appearance.
Use the PowrTwin 3500 Major Components Diagram
Confirm PowrTwin 3500
Verify the machine model before using the major-components parts diagram.
Locate the Assembly
Find the required major assembly or supporting component on the exploded drawing.
Match the Callout
Match the numbered diagram reference to its corresponding entry in the parts listing.
Verify the OEM Number
Confirm the Titan part number, description and model application before ordering.
PowrTwin 3500 Major Component Areas
The major-components view helps organize the sprayer into functional systems. After identifying the affected area, use the corresponding detailed assembly diagram when additional component-level identification is required.
Pump & Fluid Section
Identify the primary pumping assembly and associated fluid-delivery components before moving to the detailed fluid-section diagram.
Hydraulic Drive Components
Locate the major hydraulic-drive assemblies and their relationship to the pump and power system.
Electric Drive Components
Identify the primary electric-drive assembly, mounting components and associated hardware shown in the diagram.
Filter & Fluid Delivery
Locate major filter, manifold, hose, fitting and outlet components associated with coating delivery.
Suction & Intake System
Identify the major components used to supply coating material to the pump.
Frame & Mounting Components
Find structural parts, mounting points and supporting hardware used to secure major assemblies to the sprayer.
Why Start with the Major Components Diagram?
The major-components view is especially useful when you know the general location of a problem but have not yet identified the exact replacement part. It shows how the principal PowrTwin 3500 systems relate to one another and can direct you to the correct detailed assembly.
Determine whether the repair involves the fluid, hydraulic, electric, intake, frame or delivery system.
See where primary assemblies are positioned and how they connect to neighboring systems.
Move from the major assembly to the detailed diagram when you need an internal service component.
Match the final callout and part number before purchasing the replacement.
From Major Assembly to Individual Replacement Part
Some callouts on a major-components drawing identify complete assemblies. If the assembly itself contains serviceable parts, use its detailed exploded diagram before deciding whether the complete assembly or an individual internal component should be ordered.
| Major Area | Detailed Area to Check | Typical Parts Search |
|---|---|---|
| Pump Assembly | Fluid section | Packings, seals, piston and valves |
| Hydraulic Drive | Hydraulic assembly | Motor, pump, hoses, fittings and service parts |
| Electric Drive | Motor / power assembly | Drive and mounting components |
| Filter / Manifold | Fluid delivery assembly | Filters, valves, fittings and seals |
| Material Intake | Suction assembly | Hoses, screens, fittings and intake components |
| Frame | Chassis / mounting area | Hardware, supports and structural components |
Inspect Related Components Before Reassembly
When a major assembly is removed for repair, inspect its mounting points, connections and neighboring components. Visible wear, leakage or damage elsewhere in the same system may require attention before the sprayer is returned to service.
Inspect fluid and hydraulic connections for wear, leakage, damage or incorrect routing.
Check documented fasteners, brackets and mounting points associated with the serviced assembly.
Inspect sealing surfaces and related fittings when fluid or hydraulic connections have been opened.
Check neighboring components for visible damage or wear that could affect operation after reassembly.
Which PowrTwin 3500 System Should You Inspect?
Use operating symptoms only as a starting point. Follow the applicable Titan troubleshooting procedure to determine the actual cause before replacing parts.
| Condition | Major Area to Inspect | Related System |
|---|---|---|
| Poor Priming | Intake and pump assemblies | Material Intake / Fluid Section |
| Low Pressure | Pump, filter and fluid delivery | Fluid System |
| Irregular Pump Movement | Hydraulic drive | Hydraulic System |
| Fluid Leakage | Pump, manifold, hose and fittings | Fluid Delivery |
| Hydraulic Leakage | Hydraulic assembly and connections | Hydraulic Drive |
| Drive Does Not Operate | Power and drive assemblies | Electric Drive |
Continue Your PowrTwin 3500 Parts Search
Use the parent model page when you need another PowrTwin 3500 assembly, or return to the PowrTwin Electric category to browse additional electric models.
Verify Every PowrTwin 3500 Component Before Ordering
Similar-looking components may have different applications or part numbers. Do not order a motor, pump component, fitting, hose, filter, valve, bracket or other replacement solely by appearance. Confirm the PowrTwin 3500 model, applicable diagram, numbered callout, description and Titan OEM part number before purchasing.
Before Buying PowrTwin 3500 Major Components
Verify the exact machine before selecting parts from this diagram.
Determine which primary machine system contains the required part.
If the major assembly is serviceable, inspect its detailed diagram before ordering the complete assembly.
Match the callout, description and Titan part number before purchasing.
PowrTwin 3500 Service Safety
Disconnect electrical power and follow the required pressure-relief procedure before removing or servicing a major component. Never loosen a pressurized fluid or hydraulic connection.
Follow the applicable Titan operating and service instructions for electrical isolation, pressure relief, hydraulic service, grounding, lifting or supporting assemblies, and component replacement.
Shop PowrTwin 3500 Major Components
Use the PowrTwin 3500 major-components diagram to identify the correct assembly or replacement component. Match the numbered callout with the Titan OEM part number before ordering.
Shop PowrTwin 3500 ComponentsTitan PowrTwin 3500 Major Components FAQ
What is the PowrTwin 3500 major-components diagram?
It is an exploded parts view used to identify primary assemblies, supporting components and their corresponding parts-list references on the Titan PowrTwin 3500.
How do I use the PowrTwin 3500 major-components parts list?
Locate the required component on the exploded diagram, record its numbered callout and match that number with the corresponding part description and Titan OEM part number.
Should I order a complete assembly or an individual repair part?
Check whether the major assembly has a separate detailed parts diagram. If individual service components are listed, identify the actual failed or worn part before deciding whether a complete assembly is required.
Where can I find detailed PowrTwin 3500 assembly parts?
Return to the main PowrTwin 3500 parts page and select the appropriate detailed assembly section for the component you need.
Can I identify a PowrTwin 3500 component by appearance?
Appearance alone is not a reliable fitment method. Use the diagram callout, part description and Titan OEM part number to verify the replacement.
What should I inspect when removing a major assembly?
Inspect associated hoses, fittings, seals, mounting hardware and neighboring components for visible wear, leakage or damage before reassembly.
Are PowrTwin 3500 components interchangeable with other PowrTwin models?
Do not assume interchangeability. Verify the documented application and Titan OEM part number for the exact sprayer before ordering.
How can I confirm a PowrTwin 3500 component before buying?
Confirm the sprayer model, select the correct diagram, match the numbered callout to the parts list and verify the Titan OEM part number and description before completing your order.
Need Help Identifying a PowrTwin 3500 Component?
Have your PowrTwin 3500 model information, serial number, existing part number and diagram callout ready. These details can help identify the correct genuine Titan OEM assembly or replacement component.
Parts & Fitment Help: 713-931-0006
