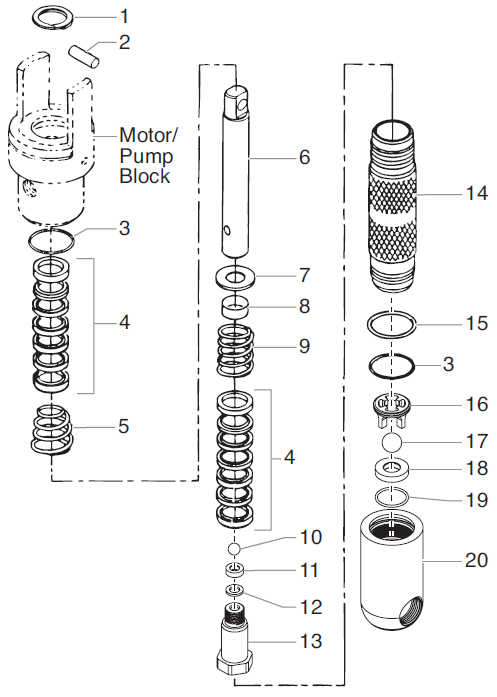

PowrLiner 4900XLT Fluid Section

PowrLiner 4900XLT Fluid Section
Titan 107-015A Foot valve Housing
Titan 107-015A Foot valve Housing

Item No: ---

Part #: 107-015A

Titan 107-015A Foot valve Housing *Replaced Part # 107-015* (INCLUDES: wave washer, foot valve cage...

Retail Price: $246.10
You save: $34.21 (13.90%)
Our Price: $211.89
QTY:
Titan 107-016 Outlet valve assembly
Titan 107-016 Outlet valve assembly

Item No: --

Part #: 107-016

Titan 107-016 Outlet valve assembly is an OEM replacement part used in Titan PowrBeast and Speeflo a...

Retail Price: $250.90
You save: $34.88 (13.90%)
Our Price: $216.02
QTY:
Titan 107-051 Fluid Section Service Kit
Titan 107-051 Fluid Section Service Kit

Item No: -

Part #: 107-051

Titan 107-051 Fluid Section Service Kit replaces Titan 55534, It is designed for use on various Tita...

Retail Price: $158.70
You save: $19.84 (12.50%)
Our Price: $138.86
QTY:
Titan 107-501 Major fluid section service kit
Titan 107-501 Major fluid section service kit

Item No: ----

Part #: 107-501

Titan 107-501 Major fluid section service kit *Replaces Titan 107-502*    INCLUDES: retaining ri...

Retail Price: $558.90
You save: $89.42 (16.00%)
Our Price: $469.48
QTY:
Titan 143-019 Retaining Ring
Titan 143-019 Retaining Ring

Item No: 1

Part #: 143-019

  PowrBeast / PowrLiner / PowrTwin part 143-019 is a retaining ring designed to secure c...

$18.70
QTY:
Titan 107-003 Connecting Pin
Titan 107-003 Connecting Pin

Item No: 2

Part #: 107-003

Titan 107-003 Connecting Pin is designed for Titan and Speeflo airless sprayers, including models li...

$18.50
QTY:
Titan 106-015 O-Ring PTFE
Titan 106-015 O-Ring PTFE

Item No: 3

Part #: 106-015

Titan 106-015 O-Ring is a PTFE (polytetrafluoroethylene) O-ring used in Titan paint sprayers. It is...

$15.60
QTY:
Titan 106-002A Repacking Set
Titan 106-002A Repacking Set

Item No: 4

Part #: 106-002A

Titan 106-002A Repacking Set is designed for use on various Titan paint sprayers like the Titan Powr...

Retail Price: $89.30
You save: $7.41 (8.30%)
Our Price: $81.89
QTY:
Titan 106-005 Upper packing spring
Titan 106-005 Upper packing spring

Item No: 5

Part #: 106-005

Titan 106-005 Upper packing spring is an OEM replacement part for Titan equipment. Titan 106-005 Up...

$15.60
QTY:
Titan 107-029 Displacement rod
Titan 107-029 Displacement rod

Item No: 6

Part #: 107-029

Titan 107-029 Displacement Rod is designed for use on various paint sprayers like the Titan PowrLine...

Retail Price: $189.30
You save: $23.66 (12.50%)
Our Price: $165.64
QTY:
Titan 106-001 Spring retainer
Titan 106-001 Spring retainer

Item No: 7

Part #: 106-001

Titan 106-001 Spring retainer is a genuine OEM component designed for use in Titan airless paint spr...

$20.40
QTY:
Titan 106-116 Sleeve Spring
Titan 106-116 Sleeve Spring

Item No: 8

Part #: 106-116

Titan 106-116 Sleeve Spring replaces part 0349505. Titan 106-116 Sleeve Spring is an OEM component ...

$25.50
QTY:
Titan 106-016 Lower packing spring
Titan 106-016 Lower packing spring

Item No: 9

Part #: 106-016

Titan 106-016 Lower packing spring is designed for various Titan and Speeflo airless paint sprayers....

Retail Price: $30.90
You save: $1.7 (5.50%)
Our Price: $29.20
QTY:
Titan 569-021 Ball Outlet Valve
Titan 569-021 Ball Outlet Valve

Item No: 10

Part #: 569-021

  AirCoat / PowrBeast / PowrLiner / PowrTwin part 569-021 is a ball outlet valve designe...

$5.90
QTY:
Titan 107-058 Outlet Valve Seat
Titan 107-058 Outlet Valve Seat

Item No: 11

Part #: 107-058

Titan 107-058 Outlet valve seat is an OEM replacement part used in SpeeFlo Titan pumps, including mo...

Retail Price: $44.00
You save: $3.34 (7.59%)
Our Price: $40.66
QTY:
Titan 107-060 Seal washer
Titan 107-060 Seal washer

Item No: 12

Part #: 107-060

Titan 107-060 Seal washer  is an OEM replacement part used in Titan PowrBeast and SpeeFlo airless p...

$9.60
QTY:
Titan 107-055 Outlet valve housing
Titan 107-055 Outlet valve housing

Item No: 13

Part #: 107-055

Titan 107-055 Outlet valve Housing for various Titan sprayers fluid section like the Titan PowrBeast...

Retail Price: $93.60
You save: $7.77 (8.30%)
Our Price: $85.83
QTY:
Titan 106-014 O-Ring
Titan 106-014 O-Ring

Item No: 15

Part #: 106-014

Titan 106-014 O-Ring replaces obsolete Part Titan 0349502  Titan 106-014 O-Ring is a synthetic rub...

$4.80
QTY:
Titan 107-056 Foot valve cage
Titan 107-056 Foot valve cage

Item No: 16

Part #: 107-056

Titan 107-056 Foot Valve Cage is a genuine OEM replacement part designed for various Titan paint spr...

$26.90
QTY:
Titan 138-340 Foot Valve Ball
Titan 138-340 Foot Valve Ball

Item No: 17

Part #: 138-340

  PowrLiner / PowrTex / PowrTwin / PowrBeast / Admiral / Commander part 138-340 is a foo...

$12.20
QTY:
Titan 762-137 Foot Valve Seat
Titan 762-137 Foot Valve Seat

Item No: 18

Part #: 762-137

Part 762-137 is a replacement foot valve seat for a wide range of compatible spray equipment. Th...

Retail Price: $55.40
You save: $4.6 (8.30%)
Our Price: $50.80
QTY:
Titan 762-058 Seat O-Ring
Titan 762-058 Seat O-Ring

Item No: 19

Part #: 762-058

Part 762-058 is a replacement seat o-ring used in fluid systems across an extensive range of com...

$7.40
QTY:
Titan 107-057 Foot valve housing
Titan 107-057 Foot valve housing

Item No: 20

Part #: 107-057

Titan 107-057 Foot Valve Housing holds the inlet valve seat and in certain Titan sprayers fluid sect...

Retail Price: $117.60
You save: $12.23 (10.40%)
Our Price: $105.37
QTY:

Titan PowrLiner 4900XLT Fluid Section Parts

The Fluid Section for the Titan PowrLiner 4900XLT is the core pump assembly responsible for pressurizing striping material and delivering it to the spray gun. Proper fluid section maintenance ensures consistent spray pressure, clean line definition, and reliable performance in demanding pavement marking applications.

Fits Titan PowrLiner 4900XLT
System High-Pressure Pump Assembly
Used On Pavement striping, parking lots, municipal roadwork, athletic fields
Function Pressurizes and delivers striping material
Fluid Section Components May Include:
  • Piston Rod
  • Upper & Lower Packings
  • Inlet Valve Assembly
  • Outlet Valve Assembly
  • Cylinder Housing
  • Seal Kits
  • O-Rings
  • Retaining Hardware
  • Connection Fittings
  • Rebuild Kits

Product Overview

The Titan PowrLiner 4900XLT Fluid Section is designed to handle high-pressure striping coatings while maintaining steady output and clean spray patterns. This pump assembly works in conjunction with the hydraulic motor to deliver consistent pressure across large striping projects.

Because the fluid section operates under continuous pressure and handles heavy-bodied coatings, wear components such as packings and valves require regular inspection to prevent pressure loss or material bypass.

Why the Fluid Section Is Critical

  • Maintains consistent spray pressure
  • Ensures uniform line quality
  • Handles heavy striping materials
  • Supports long-duration operation
  • Reduces downtime when properly maintained

Signs the Fluid Section Needs Service

  • Pressure fluctuations
  • Material leaking from pump housing
  • Difficulty maintaining prime
  • Irregular spray pattern
  • Reduced output performance

Compatibility

Machine Model Assembly Type
Titan PowrLiner 4900XLT High-Pressure Fluid Section

Frequently Asked Questions

It pressurizes striping material and delivers it to the spray gun.

Yes. These components are designed for compatibility with the Titan PowrLiner 4900XLT.

Replacement intervals depend on usage frequency and coating type, but regular inspection is recommended.

Yes. Valve wear can cause pressure instability and inconsistent material flow.

Yes. The hydraulic motor drives the fluid section to generate spray pressure.

Related Products

PowrLiner 4900XLT Hydraulic Motor

Drives the fluid section under pressure.

PowrLiner 4900XLT Hydraulic System Assembly

Complete hydraulic drive components.

PowrLiner 4900XLT Filter Assembly

Filtration components for system protection.
