Titan PowrCoat 960 Main Assembly Parts

Shop verified PowrCoat 960 Main Assembly Parts for cart model 0533960C and wall model 0533960W. Titan’s official diagram confirms the cart assembly, wheel hardware, twin mufflers, bleed tube, lubricator drain hose, cart and wall suction sets, and inlet filter screen used around the machine’s primary service structure.

Official 17-Position Diagram

Every retained component matches Titan’s PowrCoat main-assembly table.

Cart and Wall Configurations

Separate verified suction assemblies support both PowrCoat 960 formats.

Verified 6,000 PSI Model

Titan specifies a 60:1 ratio and 100 PSI maximum air inlet pressure.

Six Verified Product Links

Each featured replacement resolves to a confirmed live product page.

Assembly Overview

Understanding the PowrCoat 960 Main Assembly

This is an exploded main-assembly replacement-parts page. It covers the machine’s support and peripheral service components rather than the internal air motor or fluid pump. Titan documents the same main-assembly positions across PowrCoat 730, 745, 940, 960 and 975, while each machine retains its own verified operating specifications.

For the PowrCoat 960, Titan specifies model 0533960C for the cart version and 0533960W for the wall version, a 60:1 pressure ratio, 6,000 PSI maximum operating pressure, 100 PSI maximum air inlet pressure, and 1.9 gallons per minute at 60 cycles per minute.

Main Functions

Functions Supported by the Main Assembly

Supports and transports the cart-mounted machine.
Routes pneumatic exhaust through twin mufflers.
Retains the bleed tube and lubricator drain hose.
Draws coating through cart or wall suction assemblies.
Filters large debris at the material inlet.

Service Applications

When Repair Teams Use This Diagram

Restoring cart stability or wheel retention.
Diagnosing increased exhaust noise or restriction.
Repairing bleed-tube or drain-hose routing.
Correcting weak coating pickup or air ingestion.
Matching cart and wall suction configurations correctly.

Troubleshooting

PowrCoat 960 Main-Assembly Diagnostic Priorities

Relieve pneumatic and fluid pressure before service. Inspect the complete connected system and confirm the actual fault before ordering parts.

Operating symptom	Inspection points	Recommended action
Cart feels unstable	0533203A assembly, 0533201A weldment, 670-105 wheels, 590-100 rings and 870-003 washers	Locate looseness, deformation or missing retention hardware before replacing the cart or wheels.
Wheel wobbles or drags	670-105 wheel, axle area, 590-100 ring, 870-003 washer and cart weldment alignment	Separate wheel damage from retention or frame misalignment before ordering parts.
Exhaust noise increases	both 830-340 mufflers, both 830-345 elbows, looseness, physical damage and restriction	Inspect both exhaust branches and confirm airflow before replacing a muffler.
Material pickup is weak	correct 0533237A or 0533238A suction set, 0509762A screen, hose connections and pump inlet	Clean the screen, check for air leaks and verify coating condition before replacement.
Coating leaks from bleed routing	0533325 bleed tube, both 730-334 clamps, connected fittings and hose routing	Identify the exact leaking joint or damaged tube section before ordering components.
Lubricator drain routing leaks	0533346A drain hose, connections, abrasion points and nearby clamps	Confirm whether the hose or its connection is damaged before replacement.

Verified Replacement Components

High-Value PowrCoat 960 Main Assembly Parts

Only components shown on the PowrCoat 960 page, confirmed in Titan’s main-assembly table and matched to verified live product URLs are linked below.

Cart Support Assembly

Titan 0533203A Cart Assembly

Complete documented cart assembly for PowrCoat 960 cart model 0533960C. Titan specifies that it includes diagram positions 2 through 6.

View Titan 0533203A

16-Inch Cart Wheel

Titan 670-105 Wheel

Official position-4 wheel used in pairs on the PowrCoat 960 cart assembly for stable transport and jobsite positioning.

View Titan 670-105

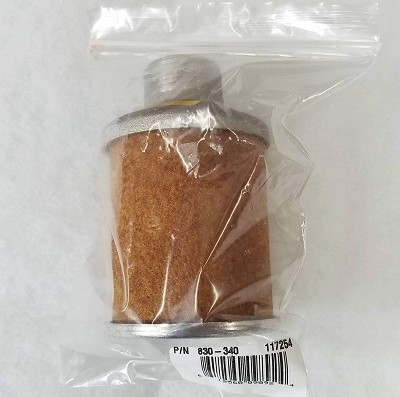

Air-Motor Exhaust Muffler

Titan 830-340 Muffler Kit

Official position-10 muffler used in pairs to manage pneumatic exhaust flow and reduce operating noise.

View Titan 830-340

Cart-Model Siphon Assembly

Titan 0533237A Suction Set Assembly

Official position-16 suction assembly for PowrCoat 960 cart model 0533960C. Titan specifies that it includes inlet screen 0509762A.

View Titan 0533237A

Wall-Model Siphon Assembly

Titan 0533238A Suction Set Assembly

Official position-16 suction assembly for PowrCoat 960 wall model 0533960W. Titan specifies that it includes inlet screen 0509762A.

View Titan 0533238A

Material Intake Screen

Titan 0509762A Inlet Screen

Official position-17 filter screen used at the suction inlet to reduce debris entering the fluid pump.

View Titan 0509762A

Buying Guide

How to Select the Correct PowrCoat 960 Main-Assembly Part

STEP 1

Confirm cart or wall model

Use 0533960C for cart configuration and 0533960W for wall configuration.

STEP 2

Match the diagram callout

Use Titan positions 1 through 17 to avoid ordering adjacent hardware incorrectly.

STEP 3

Diagnose the full connection

Inspect mating hardware, hoses and fittings before selecting one replacement.

STEP 4

Verify product status

Use only active internal product pages and omit uncertain or unavailable listings.

Maintenance

Maintain Reliable Support, Exhaust and Material Intake

Inspect wheels, retaining rings and washers before transport.
Keep both mufflers and elbows clear of visible obstruction.
Secure the bleed tube and lubricator drain hose away from abrasion.
Clean the inlet screen before dried coating restricts flow.
Check suction connections for air leakage before startup.
Relieve system pressure before any main-assembly service.

Repair Planning

Plan a Complete PowrCoat 960 Main-Assembly Repair

Record the machine configuration, diagram position, symptom and exact leak or damage location before disassembly. Cart, exhaust, bleed and suction faults often involve connected hardware rather than a single isolated component.

During inspection, evaluate both sides of every connection: wheel and retention hardware, muffler and elbow, tube and clamp, suction assembly and inlet screen. This diagnostic approach reduces repeat downtime and unnecessary parts replacement.

Fast Navigation

Shop Major PowrCoat 960 Main Assembly Components

Titan 0533203A Cart Assembly Titan 670-105 Wheel Titan 830-340 Muffler Kit Titan 0533237A Suction Set Assembly Titan 0533238A Suction Set Assembly Titan 0509762A Inlet Screen

FAQ Section

PowrCoat 960 Main Assembly FAQs

Verified answers covering page type, model numbers, operating specifications, suction assemblies, cart hardware, intake restriction, exhaust service and pressure relief.

What type of page is the PowrCoat 960 main-assembly page?+

It is an exploded main-assembly replacement-parts category covering cart hardware, exhaust components, bleed tubing, hose retention, lubricator drainage, suction assemblies and the inlet screen.

Which PowrCoat 960 model numbers are verified?+

Titan identifies 0533960C as the cart model and 0533960W as the wall-mounted model.

What are the verified PowrCoat 960 specifications?+

Titan specifies a 60:1 pressure ratio, 6,000 PSI maximum operating pressure, 100 PSI maximum air inlet pressure and 1.9 gallons per minute at 60 cycles per minute.

Which suction assembly fits the cart model?+

Titan 0533237A is the documented cart-model siphon tube assembly and includes filter screen 0509762A.

Which suction assembly fits the wall-mounted model?+

Titan 0533238A is the documented wall-model siphon tube assembly and includes filter screen 0509762A.

What does inlet screen 0509762A do?+

It reduces debris entering the suction path before coating reaches the fluid pump.

Which parts belong to the cart assembly?+

Titan identifies plugs 9885571, cart weldment 0533201A, wheels 670-105, retaining rings 590-100 and washers 870-003 as positions 2 through 6 within cart assembly 0533203A. The main-assembly table also identifies mounting screws 9805429, washers 0509285 and nuts 862-410 at positions 7 through 9.

What should be checked when the machine is hard to move?+

Inspect both 670-105 wheels, retaining rings, washers, axle area and cart weldment before ordering replacement parts.

What can cause weak material pickup?+

Check coating level and viscosity, then inspect the correct siphon assembly, inlet screen 0509762A, hose connections and fluid-pump inlet before replacement.

What should be inspected when exhaust noise increases?+

Inspect both 830-340 mufflers and both 830-345 45-degree elbows for damage, looseness or restriction before replacing components.

What should be checked when coating leaks from the bleed route?+

Inspect bleed tube 0533325, both 730-334 hose clamps, connected fittings and hose routing to identify the actual leak point before replacement.

What pressure-relief steps are required before service?+

Secure the gun, shut off and bleed the air supply, open the pressure-bleed valve, trigger into a grounded metal container and verify zero stored fluid pressure.
