Assembly Overview

PowrCoat 1064 Wall Mount Assembly

Titan’s official wall-mount diagram covers the structural wall weldment, fastening groups, upper shroud, 10-inch air motor, motor bracket, stanchions, pump assembly, inlet elbow, filter fitting and high-pressure filter. The PowrCoat 1064 uses a 64:1 pressure ratio with a maximum operating pressure of 6,400 PSI and maximum air inlet pressure of 100 PSI.

Verified component index: 9805426, 9822651, 0533969, 0533970, 0509292, 9805466, 0533979, 0533971, 0533972, 858-625, 9821503, 0533579, 0533973, 0533974, 0533976, 9822650, 9812326, 0533262, 0533977, 0533978, 0533265

Functions Supported by the Assembly

Supports the complete wall-mounted sprayer structure.
Positions the 10-inch air motor above the fluid pump.
Routes compressed air through the upper pneumatic connections.
Maintains fluid alignment between pump and filter.
Provides verified gun storage and service access.

Service Applications

Correcting loose or distorted wall hardware.
Repairing air-tube and fitting leaks.
Replacing damaged motor support components.
Restoring pump-to-filter alignment.
Planning complete wall-system service.

Troubleshooting

Relieve all air and fluid pressure. Inspect genuine components shown on this page and diagnose the actual failure before replacement.

Operating symptom	Inspection points and reason	Recommended action
Wall assembly shifts or vibrates	9805426 screws, 9822651 washers, 0533970 bent washers, 0509292 lock washers and 9805466 nuts	Inspect every fastening point and the wall weldment before replacing individual hardware.
Air leaks near the upper housing	0533971 air tube, 0533972 elbow and connected fittings	Use leak detection to identify the exact joint before replacement.
Air motor and pump sit out of alignment	0533974 bracket, 0533976 stanchions and mounting hardware	Correct structural alignment before replacing the pump or motor.
Material leaks between pump and filter	0533977 inlet elbow, 0533978 filter fitting and mating threads	Identify the leaking connection and inspect both mating surfaces.
Gun hook is loose or damaged	0533979 gun hook and its fastening hardware	Inspect the hook and attachment points before replacement.
Fluid delivery remains unstable	0533262 pump assembly and 0533265 filter assembly	Diagnose the pump and filter separately before replacing either assembly.

High-Value Replacement Parts

Only active products verified on the supplied category and matched to working internal destinations are linked.

Verified component

Titan 9805426 Screw

Structural 3/8-16 wall-mount fastener.

View Titan 9805426

Verified component

Titan 9822651 Washer

Flat wall-mount load-distribution washer.

View Titan 9822651

Verified component

Titan 0533970 Bent Washer

Profiled washer for the wall weldment.

View Titan 0533970

Verified component

Titan 0533971 Air Tube

Formed pneumatic tube used in the wall assembly.

View Titan 0533971

Verified component

Titan 0533974 Motor Mount Bracket

Structural air-motor support bracket.

View Titan 0533974

Verified component

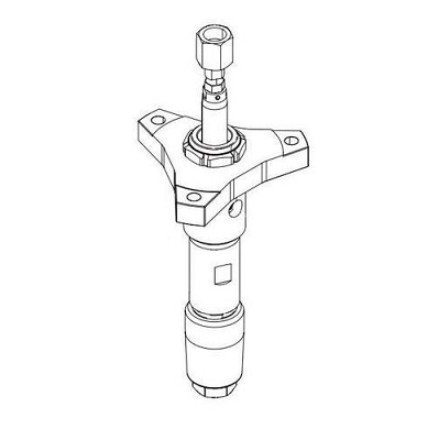

Titan 0533262 Pump Assembly

Complete verified PowrCoat pump assembly.

View Titan 0533262

Buying Guide

STEP 1

Confirm the assembly

Use the exact PowrCoat 1064 diagram.

STEP 2

Match the callout

Check part number and component name.

STEP 3

Inspect mating parts

Find the true failure point.

STEP 4

Order verified fitment

Exclude discontinued or uncertain items.

Maintenance

Relieve all stored pressure before service.
Keep air and coating passages clean.
Inspect seals and mating surfaces together.
Check fasteners and connections for alignment.
Record model, part number and service date.
Replace only after confirming the fault.

Repair Planning

Record the exact model, diagram position, symptom and affected connection before disassembly. Photograph routing and orientation where useful, then inspect every mating pair so the repair addresses the cause rather than only the visible symptom.

Fast Navigation

Titan 9805426 Screw Titan 9822651 Washer Titan 0533970 Bent Washer Titan 0533971 Air Tube Titan 0533974 Motor Mount Bracket Titan 0533262 Pump Assembly

FAQ Section

What type of page is PowrCoat 1064 Wall Mount Assembly?+

It is a 28-position exploded wall-mount replacement-parts category.

Which PowrCoat 1064 model is documented?+

Titan identifies cart model 05331064C in the official operation and parts manual.

What is the verified pressure ratio?+

The PowrCoat 1064 uses a 64:1 pressure ratio.

What is the maximum operating pressure?+

Titan specifies 6,400 PSI, or 441 bar.

What is the maximum air inlet pressure?+

Titan specifies 100 PSI, or 6.9 bar.

Why should technicians diagnose before replacement?+

Connected seals, fittings, valves and hard parts can produce similar symptoms.

How should a part number be confirmed?+

Match the supplied category, diagram position, component name and Titan part number.

Can unlisted products be assumed compatible?+

No. Unverified products and relationships should be omitted.

What safety step comes before service?+

Lock the gun, shut off the unit and fully relieve fluid and air pressure.

Why inspect mating components?+

A damaged mating surface can cause a replacement part to fail quickly.

How many product links are included?+

6 verified active product links are included.
