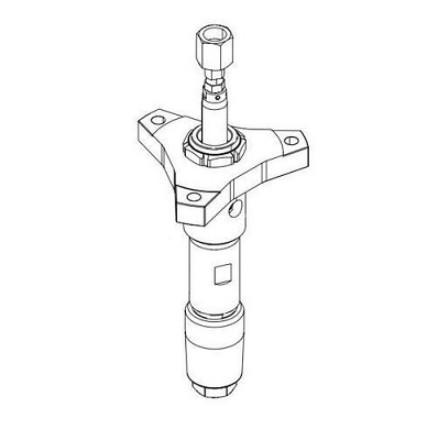

Titan 0533262 Pump assembly

Name: Titan 0533262 Pump assembly
Brand: Titan
SKU: 533262
Price: 1270.58 USD
Availability: InStock

Sourced From:

Titan Tools Inc.

Titan PowrCoat Complete Fluid Section Assembly

The Titan 0533262 Pump Assembly provides the complete fluid-section replacement for compatible PowrCoat 1045 sprayers, helping contractors restore dependable material intake, pressurization and delivery when internal pump wear begins affecting output, priming or spray consistency.

Brand: Titan Part Number: 0533262 Type: Pump Assembly Application: Fluid Pressurization

Compatibility Table

Brand	Accurate Compatible Titan Machine(s)	Part Number	Parts / Assemblies Serviced With	Technical / Commercial Detail
Titan	PowrCoat 1045 Cart — 05331045C; PowrCoat 1045 Wall Mount — 05331045W	0533262	0533261 air motor, 0533974 motor-mount bracket, 0533976 stanchions and fluid-filter assembly	Complete model-specific fluid section; not interchangeable with 0533263 or 0533264.

Retail Price: $1512.6

You save: $242.02 (16.00%)

Our Price: $1270.58

Description

Titan PowrCoat Complete Fluid Pump Assembly

Upgrade Industrial Spraying Reliability Through Precision Titan Pump Assembly Excellence Every Shift

Titan 0533262 is the model-specific fluid pump assembly for PowrCoat 1045 air-powered airless sprayers. It restores material intake, pressurization and delivery when pump wear begins reducing priming performance, operating pressure or spray consistency.

Brand: Titan Part Number: 0533262 Type: Complete Pump Assembly Application: Fluid Pressurization Machine Series: PowrCoat 1045

Technical and Commercial Information
Product Overview	Complete replacement fluid pump assembly developed specifically for Titan PowrCoat 1045 pneumatic airless sprayers.
Function	Draws coating material from the supply, converts air-motor movement into fluid displacement and delivers pressurized material through the filtration and spray system.
Industrial Applications	Protective coatings, structural steel finishing, corrosion control, marine maintenance, waterproofing, roofing, fireproofing and high-output industrial painting.
Accurate Compatible Titan Machines	Titan PowrCoat 1045 Cart — model 05331045C; Titan PowrCoat 1045 Wall Mount — model 05331045W.
Accurate Part Number	Titan 0533262 — complete PowrCoat 1045 pump assembly.
Compatible Parts & Assemblies	0533261 air-motor assembly, 0533974 motor-mount bracket, 0533976 stanchions, fluid-filter assembly, inlet plumbing and high-pressure outlet fittings.
Related Parts Commonly Serviced Together	Pump packing components, piston and valve parts, inlet ball and seat, outlet fittings, filter element, siphon components and motor-to-pump connection hardware.
Common Problems Solved	Addresses poor priming, pressure loss, inconsistent material delivery, internal leakage, excessive cycling and reduced output caused by a worn or damaged fluid section.
Use with Coating Systems	Designed for PowrCoat 1045 air-powered airless systems applying compatible architectural, protective, high-solids and industrial coating materials.
OEM & Brand Information	Titan replacement pump assembly configured for the PowrCoat 1045 air motor, support structure and fluid-delivery system.
Commercial Benefits	Restores complete pumping capability, shortens major repair time and helps contractors return valuable spraying equipment to productive service with matched components.

FAQ Section

Review these contractor-focused answers before replacing a PowrCoat 1045 fluid pump assembly.

Which Titan sprayers use this pump assembly?

It fits the Titan PowrCoat 1045 Cart model 05331045C and PowrCoat 1045 Wall Mount model 05331045W.

Does this pump fit PowrCoat 1064 or 1072 sprayers?

No. PowrCoat 1064 uses pump assembly 0533263, while PowrCoat 1072 uses pump assembly 0533264.

When should contractors replace the complete pump assembly?

Replacement is appropriate when extensive internal wear, housing damage or repeated fluid-section failures make a complete assembly more practical than individual component repairs.

What symptoms indicate a failing fluid pump?

Typical symptoms include difficult priming, pressure loss, irregular output, excessive air-motor cycling, internal leakage and reduced coating delivery at the spray gun.

What should be inspected during pump installation?

Inspect the air-motor connection, mounting hardware, siphon components, filter assembly, fluid fittings and high-pressure hose connection before returning the sprayer to service.
