Keep the small wear items on the truck: a tip seat and seal kit, tip guard and gun filters, manifold filters or the filter service kit, the repacking kit for your fluid section, Piston Lube, and a fuse. The 4700 uses the 106-002A repacking set, while the 7700 and 9700 use the 138-153A kit, so order by model.
Why carry a kit
Parts on this site are ordered from the diagrams, and some products are ordered from the manufacturer after your order is placed, so availability shown online does not always mean the item is on a shelf. Delivery dates are estimates; the details are on the shipping page. A small box of the parts that wear in normal use is cheaper than a day without a sprayer. This list sticks to wear items; we do not suggest stocking drive or hydraulic parts unless you have a reason.
Spray end
The spray end wears fastest, and a worn tip is the first thing to rule out when the pattern turns coarse or streaky. Titan does not publish a tip life, so judge by the pattern. Keep:
- 661-020 tip seat and seal kit, 5 pack.
- 0289228 tip guard, G-THREAD.
- 0089959 gun filter, 100 mesh, yellow, or the coarse 0089957 2-pack if you spray thicker material.
- A spare tip sized within your model's limit. Titan's listing text for each unit includes a 517 TR1 reversible tip; the largest size for each gun count is in Titan's tip table for your model.
Your model's accessories page lists the rest of the spray end: 4700/4700T, 7700 and 9700.
Filters
Partly blocked filters cause pressure loss, pulsing and spitting, so a clean spare saves a diagnosis. The PowrBeast has more than the one in the gun:
- 930-050 filter service kit for the high pressure filter.
- 930-006 and 930-007 manifold filters, plus 930-005. The mesh differs between them, so match it to the coating.
- 451-220 hydraulic filter, from the Hydraulic System page.
We do not give a hydraulic filter change interval because we could not verify one. Check your manual. The high pressure filter diagram is on this page for the 9700, with equivalent pages for the 4700 and 7700.
Pump
Packings seal the piston so the pump can hold pressure. Worn packings show up as leaking at the wet cup, paint in the wet cup, or pressure that will not hold. The numbers differ by model:
Pump spares by model
| Item | 4700 / 4700T | 7700 / 9700 |
|---|---|---|
| Repacking | 106-002A repacking set | 138-153A repacking kit |
| Service kits | 0537905 / 0537916 minor, 0537917 major | 0537907 minor, 0537908 major |
| Diagram | 0537255 / 0537268 page | 0537256 page |
We do not list what is inside each kit. Confirm contents with our parts team on (713) 931-0006 before you order.
Keep Piston Lube, 314-480 in the 8 oz size, for the wet cup, and 314-482 Liquid Shield, both listed on the PowrBeast accessories pages. Follow your manual for how to use them. A minor service kit covers a smaller job; which kit you need depends on what inspection shows. Do not reuse packing around a scored piston rod, because a scored rod destroys new packings.
Other items
The 53732 fuse lists PowrBeast 4700, 7700, 9700 and 4700T in its fitment, so one spare covers all the sizes. The 2301766 control lamp is on the Main Assembly pages. A summary of the PowrBeast manual says Coolflo hydraulic fluid is required, so a gallon of 430-361 is worth carrying. Confirm in your manual. We do not state a capacity.
Match to the model
The 4700 and the 7700/9700 do not share fluid section numbers, so check which unit you have before you buy a repacking kit. Titan lists fluid section 537255 for the 4700, 537256 for the 7700 and 9700, and the site sells 537268 for the 4700T. If you are not sure, call (713) 931-0006 with the model and serial number. All our parts are for identification; the manual remains the guide for installation. Start from the PowrBeast parts page if you need to find a diagram.

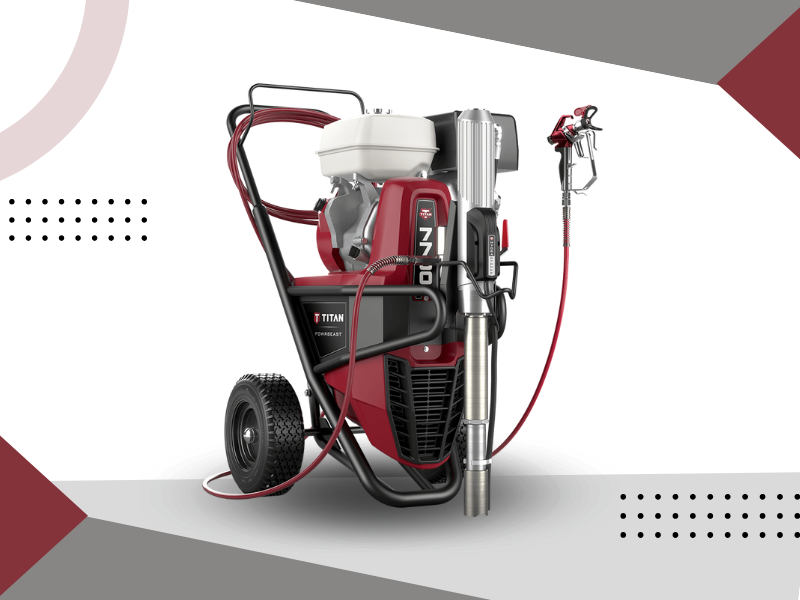

A starter spares list for a PowrBeast:
The Short Version
Carry the tip seat kit, tip guard, gun filters, a filter service kit, the repacking kit for your fluid section, Piston Lube and a fuse. Match the pump items to your model first, and call (713) 931-0006 if the number is not clear.
