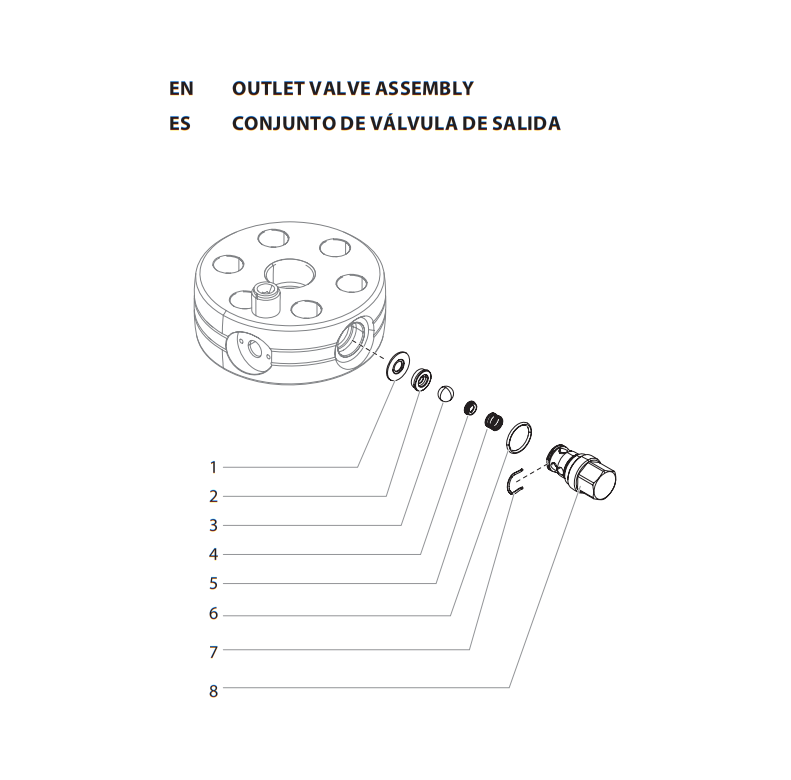

Titan PowerLiner 4500 Outlet Valve Assembly Parts

Titan PowerLiner 4500 Outlet Valve Assembly Parts
Titan 2369445 Outlet valve assembly (replaces Titan 2342946)
Titan 2369445 Outlet valve assembly (replaces Titan 2342946)

Item No: -

Part #: 2369445

Titan 2369445 Outlet valve assembly replaces Titan 2342946 designed for use with Titan paint sprayer...

Retail Price: $71.00
You save: $5.89 (8.30%)
Our Price: $65.11
QTY:
Titan 341347 Seal
Titan 341347 Seal

Item No: 1

Part #: 341347

Titan 341347 Seal or Sealing ring fits snugly into the Titan Powrliner 3500 and 3500s valve assembl...

$8.20
QTY:
Titan 341327 Outlet valve seat
Titan 341327 Outlet valve seat

Item No: 2

Part #: 341327

Titan 341327 Outlet Valve Seat hold the valve ball in the Titan valve assembly outlet Titan 341327 ...

Retail Price: $54.70
You save: $4.54 (8.30%)
Our Price: $50.16
QTY:
Titan 9941501 Outlet valve ball
Titan 9941501 Outlet valve ball

Item No: 3

Part #: 9941501

Titan 9941501 Outlet valve ball is an OEM replacement component designed for Titan airless paint spr...

Retail Price: $38.50
You save: $2.12 (5.51%)
Our Price: $36.38
QTY:
Titan 253405 Spring support ring
Titan 253405 Spring support ring

Item No: 4

Part #: 253405

Titan 253405 spring support ring serves as a base for the Compression ring to fit in the outlet valv...

$2.60
QTY:
Titan 341326 Compression spring
Titan 341326 Compression spring

Item No: 5

Part #: 341326

Titan 341326 Compression spring is designed for use in Titan airless paint sprayers, particularly in...

$4.90
QTY:
Titan 9971470 O-Ring
Titan 9971470 O-Ring

Item No: 6

Part #: 9971470

Titan 9971470 O-Ring serves as a tight seal in the Titan outlet valve assembly Here are some detai...

$4.90
QTY:
Titan 0341328 Clip
Titan 0341328 Clip

Item No: 7

Part #: 0341328

Titan 0341328 Clip is designed for use in Titan's PowrLiner 3500 and 3500S airless line stripers. T...

$18.10
QTY:
Titan 2342943 Outlet valve housing
Titan 2342943 Outlet valve housing

Item No: 8

Part #: 2342943

Titan 2342943 Outlet valve housing is an OEM replacement part designed for Titan Elite 4500 sprayers...

Retail Price: $34.20
You save: $0.68 (1.99%)
Our Price: $33.52
QTY:

Titan PowrLiner 4500 Outlet Valve Assembly Parts

The Outlet Valve Assembly for the Titan PowrLiner 4500 is a key component of the fluid section that controls material flow leaving the pump. It ensures proper pressure buildup, prevents backflow, and supports consistent spray output during pavement and athletic field striping applications.

Fits Titan PowrLiner 4500
Used On Pavement striping, parking lots, road markings, athletic fields
System Location Fluid section – pump outlet stage
Function Regulates pressurized coating flow and prevents reverse material movement
Assembly Components Include:
  • Outlet Valve Body
  • Valve Seat
  • Ball
  • Retainer
  • Spring (if applicable)
  • O-Rings and Seals
  • Carbide or Hardened Components
  • Mounting Threads

Product Overview

The Titan PowrLiner 4500 Outlet Valve Assembly plays a critical role in maintaining high-pressure performance within the pump system. Installed at the discharge end of the fluid section, this assembly controls material leaving the pump chamber and prevents backflow during each stroke cycle.

In high-demand striping environments, proper outlet valve function is essential for maintaining consistent line quality, reducing pressure loss, and minimizing system wear.

Why the Outlet Valve Is Critical

  • Maintains steady pressure during spraying
  • Prevents reverse flow into the pump chamber
  • Supports clean and sharp striping lines
  • Protects internal pump components from stress
  • Helps reduce downtime during peak striping seasons

Signs the Outlet Valve Needs Service

  • Loss of pressure during spraying
  • Surging or inconsistent spray pattern
  • Material leaking from pump outlet area
  • Reduced prime retention
  • Visible wear on seat or ball components

Compatibility

Machine Model Application Type
Titan PowrLiner 4500 Pavement and athletic field line striping

Frequently Asked Questions

It regulates material exiting the pump, builds pressure, and prevents backflow during each pumping cycle.

Continuous high-pressure operation and abrasive striping materials can gradually wear the valve seat and ball.

Yes. Wear can cause pressure drops or surging, which directly impacts line consistency and edge sharpness.

Yes. This outlet valve assembly configuration is designed specifically for the Titan PowrLiner 4500 model.

It is located at the pump discharge end within the fluid section, directly controlling material flow to the hose.

Related Products

PowrLiner 4500 Fluid Section Parts

Replacement packings, pistons, rods, and rebuild components for full pump servicing.

PowrLiner 4500 Inlet Valve Assembly

Maintain proper priming and suction with inlet valve seats, balls, and seal components.

PowrLiner 4500 High Pressure Filter Assembly

Ensure clean material flow with replacement filter housings and elements.
