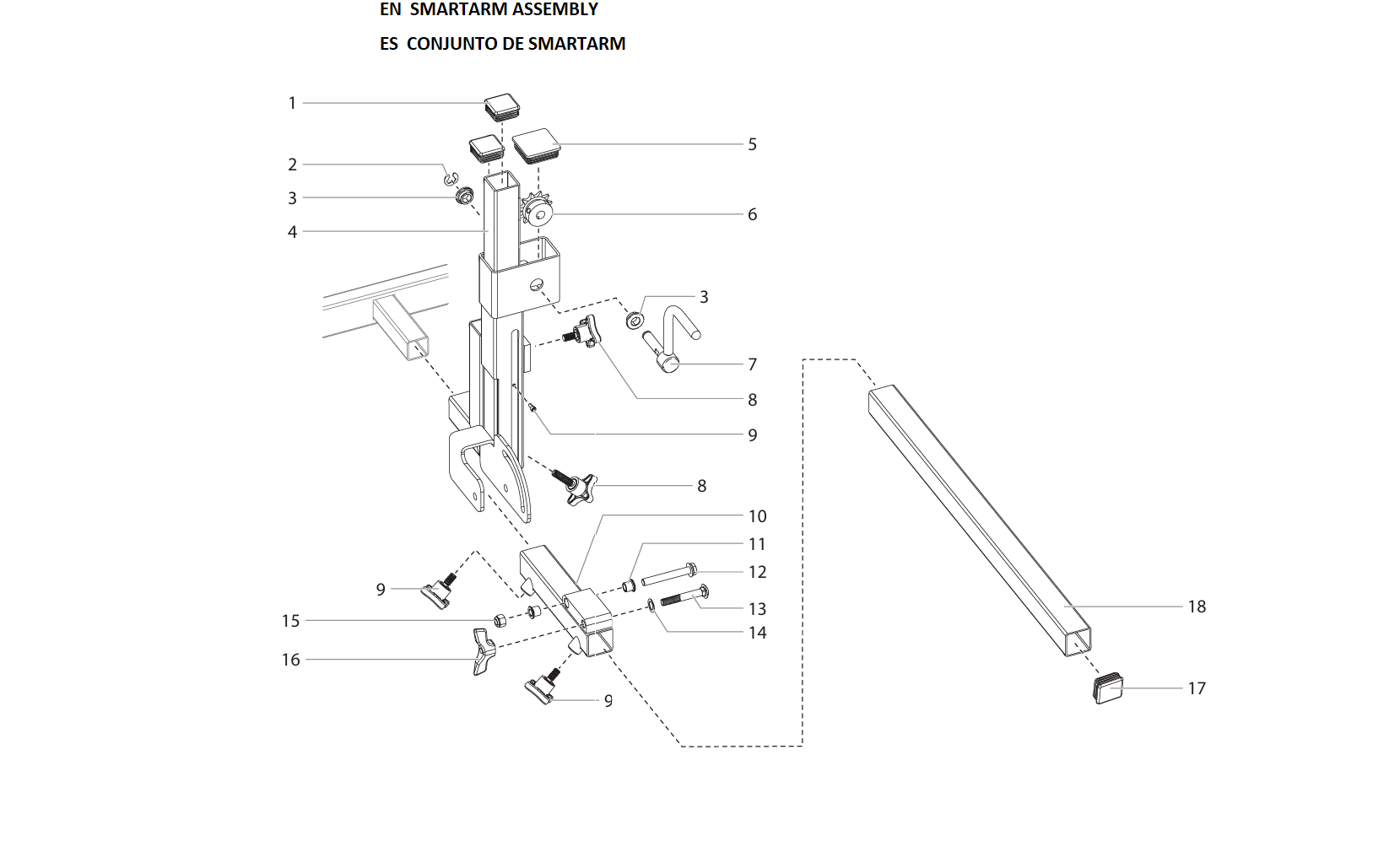

Titan PowerLiner 4500 Smart Arm Assembly Parts

Titan PowerLiner 4500 Smart Arm Assembly Parts
Titan 451-052 Plug,Plastic SQ
Titan 451-052 Plug,Plastic SQ

Item No: 1

Part #: 451-052

  Part number 451-052 is a plastic square plug used to seal unused openings, ports, or c...

$3.65
QTY:
Titan 0290997 E-Ring, 1/2 Shaft
Titan 0290997 E-Ring, 1/2 Shaft

Item No: 2

Part #: 0290997

Titan 0290997 E-Ring, 1/2 Shaft-OEMFits: Powrliner 4955, 6955, 8955

$2.60
QTY:
Titan 0290995 Bushing, long
Titan 0290995 Bushing, long

Item No: 3

Part #: 0290995

Titan 0290995 Bushing, long 1/2 id x 3/8 Fits: Powrliner 4955, 6955, 8955

$7.80
QTY:

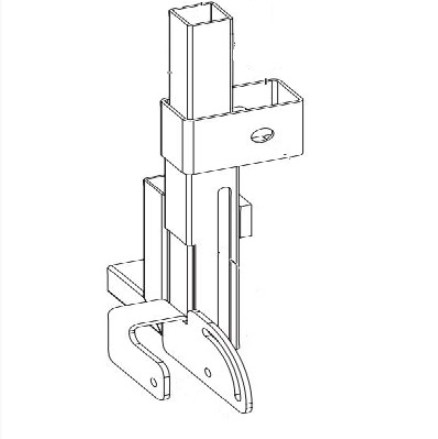

Titan 0290062 Frame weldment/gun support
Titan 0290062 Frame weldment/gun support

Item No: 4

Part #: 0290062

Titan 0290062 Frame weldment/gun support pkg *Replaced Part #'s 0290111 / 0290112*Fits: Powrliner 49...

Retail Price: $836.00
You save: $133.76 (16.00%)
Our Price: $702.24
QTY:
Titan 0290998 Cap, 2
Titan 0290998 Cap, 2" square

Item No: 5

Part #: 0290998

Titan 0290998 Cap, 2" squareFits: Powrliner 4955, 6955, 8955

$22.80
QTY:
Titan 0290996 Sprocket
Titan 0290996 Sprocket

Item No: 6

Part #: 0290996

Titan 0290996 Sprocket, gun assy lift   Fits: Powrliner 4955, 6955, 8955 Titan 0290996 Sprocket ...

$27.90
QTY:

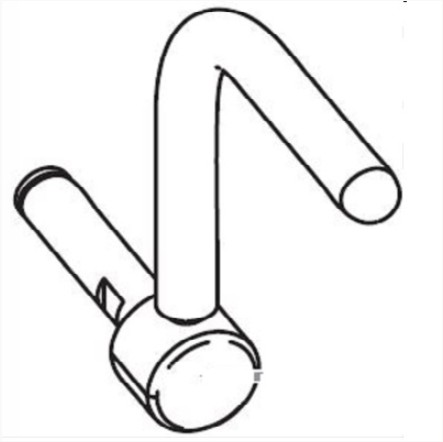

Titan 0290891A Weldment Handle
Titan 0290891A Weldment Handle

Item No: 7

Part #: 0290891A

Part number 0290891A is a Weldment Handle assembly used as a primary carrying and support handle on ...

Retail Price: $188.10
You save: $19.56 (10.40%)
Our Price: $168.54
QTY:
Titan 759-306 Clamp Knob
Titan 759-306 Clamp Knob

Item No: 8

Part #: 759-306

  PowrLiner part 759-306 is a clamp knob designed to secure and adjust clamping mechanis...

$19.00
QTY:
Titan 756-076 Screw
Titan 756-076 Screw

Item No: 9

Part #: 756-076

Titan 756-076 Screw

Retail Price: $25.10
You save: $1.6 (6.37%)
Our Price: $23.50
QTY:

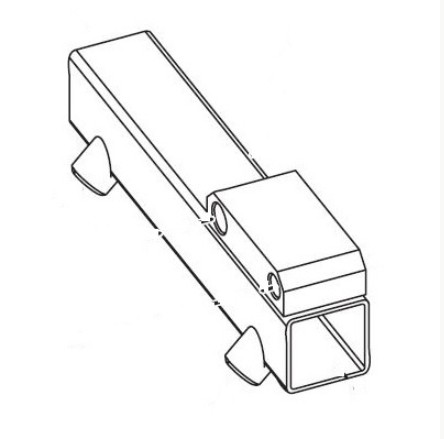

Titan 0290330A Receiver, gun slide
Titan 0290330A Receiver, gun slide

Item No: 10

Part #: 0290330A

The 0290330A Receiver, Gun Slide is an OEM mounting and retention component used on select Titan P...

Retail Price: $250.30
You save: $31.29 (12.50%)
Our Price: $219.01
QTY:
Titan 0290351 Bearing, bronze, 3/8 id
Titan 0290351 Bearing, bronze, 3/8 id

Item No: 11

Part #: 0290351

Titan 0290351 Bearing, bronze, 3/8 idFits: Powerliner 4955, 6955, 8955

$6.40
QTY:
Titan 9805457 Screw
Titan 9805457 Screw

Item No: 12

Part #: 9805457

Part 9805457 is a replacement screw used in various assemblies on compatible equipment. It secures c...

$2.60
QTY:
Titan 0290362 Carriage Bolt
Titan 0290362 Carriage Bolt

Item No: 13

Part #: 0290362

Titan 0290362 Carriage Bolt, 3/8-16 x 2.50Fits: Powerliner 4955, 6955, 8955

$2.60
QTY:
Titan 0290373 Washer
Titan 0290373 Washer

Item No: 14

Part #: 0290373

Titan 0290373 Fiber Washer   Fits: Powerliner 4955, 6955, 8955

$2.60
QTY:
Titan 862-410 Locknut
Titan 862-410 Locknut

Item No: 15

Part #: 862-410

  Genuine replacement part 862-410 is a locknut designed to securely fasten components w...

$3.10
QTY:
Titan 779-078 Wing Knob Clamp
Titan 779-078 Wing Knob Clamp

Item No: 16

Part #: 779-078

Part 779-078 is a replacement wing knob clamp used on compatible PowrLiner airless sprayers. It prov...

$5.40
QTY:
Titan 757-055 End Cap
Titan 757-055 End Cap

Item No: 17

Part #: 757-055

  Part number 757-055 is an end cap designed to seal or close off the open end of a tube...

$2.00
QTY:
Titan 0290328 Bar, Gun Assembly mount
Titan 0290328 Bar, Gun Assembly mount

Item No: 18

Part #: 0290328

Titan 0290328 Bar, Gun Assembly mountFits: PowrLiner 4955

Retail Price: $54.40
You save: $4.52 (8.31%)
Our Price: $49.88
QTY:

Titan PowrLiner 4500 Smart Arm Assembly Parts

The Smart Arm Assembly for the Titan PowrLiner 4500 supports precision gun positioning and adjustable line control during pavement and athletic field striping. It allows controlled lateral movement and alignment of the spray gun to achieve consistent, professional striping results.

Fits Titan PowrLiner 4500
Used On Pavement striping, parking lots, road markings, athletic fields
System Location Front carriage – lateral gun positioning system
Function Provides adjustable spray gun alignment and lateral positioning
Assembly Components Include:
  •  Smart Arm Support Bracket
  •  Adjustment Arm
  •  Pivot Points
  •  Locking Mechanism
  •  Mounting Hardware
  •  Alignment Components
  •  Height/Angle Adjusters
  •  Bushings or Bearings

Product Overview

The Titan PowrLiner 4500 Smart Arm Assembly is designed to provide controlled lateral adjustment and accurate positioning of the spray gun. Installed on the front carriage, it allows operators to fine-tune gun placement to maintain straight lines, precise spacing, and consistent width during striping operations.

In professional pavement and field marking environments, alignment accuracy directly impacts finished line quality. The Smart Arm system helps minimize operator error by stabilizing and securing the gun assembly in the correct position.

Why the Smart Arm Assembly Is Important

  • Ensures precise lateral positioning of the spray gun
  • Supports uniform line spacing and width
  • Reduces vibration-related misalignment
  • Allows quick field adjustments
  • Improves overall striping accuracy

Signs Service or Replacement Is Needed

  • Difficulty maintaining straight line alignment
  • Loose or unstable arm positioning
  • Worn pivot joints or bushings
  • Locking mechanism slipping
  • Visible structural wear or bending

Compatibility

Machine Model Application Type
Titan PowrLiner 4500 Pavement and athletic field line striping

Frequently Asked Questions

It controls the lateral positioning and alignment of the spray gun to maintain accurate line placement.

Yes. Misalignment can cause uneven spacing, inconsistent widths, and visible striping defects.

Yes. The Smart Arm system is designed for field adjustments to accommodate different striping configurations.

Yes. This Smart Arm assembly configuration is designed for the Titan PowrLiner 4500 striping machine.

It is mounted on the front carriage of the machine, supporting and positioning the spray gun system.
