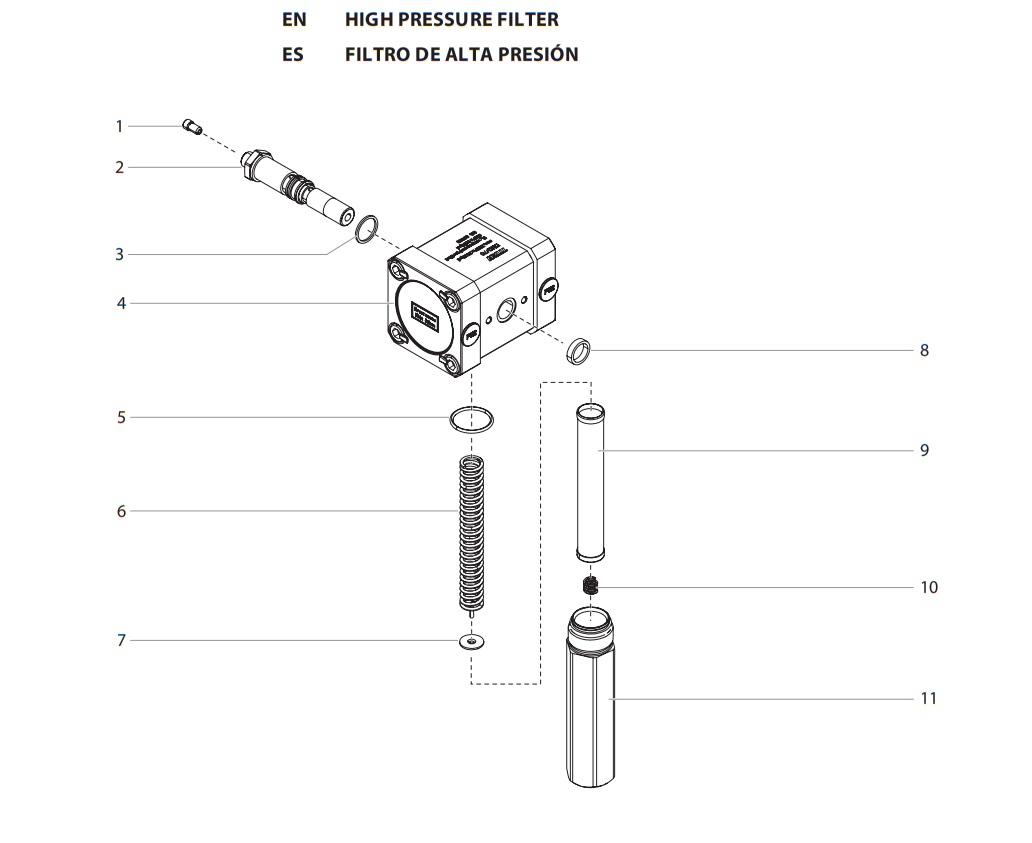

Titan PowerLiner 4500 High Pressure Filter Assembly Parts

Titan PowerLiner 4500 High Pressure Filter Assembly Parts
Titan 2402215 Tip insert 0.059
Titan 2402215 Tip insert 0.059"

Item No: 1

Part #: 2402215

Titan 2402215 Tip insert features a 0.059-inch orifice and is an OEM product, ensuring compatibility...

Retail Price: $50.60
You save: $4.2 (8.30%)
Our Price: $46.40
QTY:
Titan 9974028 O-Ring
Titan 9974028 O-Ring

Item No: 2

Part #: 9974028

Titan 9974028 O-Ring

$3.70
QTY:
Titan 9970110 Washer or Seal Ring
Titan 9970110 Washer or Seal Ring

Item No: 3

Part #: 9970110

  PowrLiner / Elite part 9970110 is a washer or seal ring designed to provide load distr...

$4.90
QTY:
Titan 2419184 Pulsation Dampener DM2-70 10MPa GAS
Titan 2419184 Pulsation Dampener DM2-70 10MPa GAS

Item No: 4

Part #: 2419184

  PowrLiner / Elite part 2419184 is a pulsation dampener DM2-70 10MPa GAS designed to re...

Retail Price: $1548.80
You save: $247.81 (16.00%)
Our Price: $1300.99
QTY:
Titan 9974027 O-Ring(PTFE)
Titan 9974027 O-Ring(PTFE)

Item No: 5

Part #: 9974027

  PowrLiner / Elite part 9974027 is a PTFE O-ring designed to create a leak-proof seal i...

$4.03
QTY:
Titan 757-105 Filter Support Spring
Titan 757-105 Filter Support Spring

Item No: 6

Part #: 757-105

  Airless Sprayer / Advantage / Elite / Epic / Impact / Performer / PowrLiner / PowrTex ...

$10.30
QTY:
Titan 702-251 Filter Screen Adapter
Titan 702-251 Filter Screen Adapter

Item No: 7

Part #: 702-251

Titan 702-251 Filter Screen Adapter is same as Titan 508603. This adapter is located at the tip of ...

$9.30
QTY:
Titan 0097304 Washer
Titan 0097304 Washer

Item No: 8

Part #: 0097304

Titan 0097304 Washer known as a seal ring for Titan Elite 3000 high pressure filter assembly. Here ...

$16.50
QTY:
Titan 730-067 60 Mesh Manifold Filter
Titan 730-067 60 Mesh Manifold Filter

Item No: 9

Part #: 730-067

Titan 730-067 is a 60 Mesh Manifold Filter designed for filtering latex and enamel paints for Tita...

$18.00
QTY:

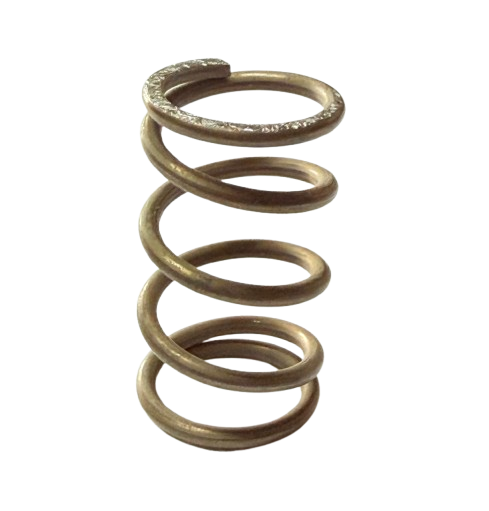

Titan 9994245 Pressure Spring
Titan 9994245 Pressure Spring

Item No: 10

Part #: 9994245

  PowrLiner / Elite part 9994245 is a pressure spring designed to apply consistent force...

$3.20
QTY:
Titan 2429835 Filter Housing (replaces Titan 0097302)
Titan 2429835 Filter Housing (replaces Titan 0097302)

Item No: 11

Part #: 2429835

Titan 2429835 Filter Housing replaces Titan 0097302, it is an octagon-shaped tube with threaded en...

Retail Price: $39.50
You save: $2.17 (5.49%)
Our Price: $37.33
QTY:

Titan PowrLiner 4500 High Pressure Filter Assembly Parts

The High Pressure Filter Assembly for the Titan PowrLiner 4500 is installed between the pump and spray hose to filter debris before material reaches the spray gun. It helps maintain consistent pressure, prevent tip clogs, and protect internal components during pavement and athletic field striping operations.

Fits Titan PowrLiner 4500
Used On Pavement striping, parking lots, road markings, athletic fields
System Location Between pump outlet and spray hose/gun
Function Filters high-pressure coating material to prevent clogs and pressure fluctuations
Assembly Components Include:
  • Filter Housing Block
  • High-Pressure Filter Element
  • Retaining Cap / Plug
  • Internal Spring
  • O-Rings and Seals
  • Check Valve Components (if applicable)
  • Mounting Hardware

Product Overview

The Titan PowrLiner 4500 High Pressure Filter Assembly is a critical fluid-system component designed to remove debris from striping materials before they reach the spray tip. Operating under high PSI conditions, this assembly helps maintain smooth flow, stable pressure, and sharp line quality.

Proper filtration protects the spray gun, pump packings, and tip from premature wear caused by contaminants commonly found in pavement and field marking coatings.

Why This Assembly Matters

  • Reduces spray tip clogging and downtime
  • Helps maintain consistent line width and pattern
  • Protects internal pump and gun components
  • Stabilizes pressure during continuous striping
  • Supports long-term equipment reliability

Signs Service or Replacement Is Needed

  • Frequent spray tip blockages
  • Inconsistent spray pattern or tailing
  • Pressure spikes or fluctuations
  • Damaged or flattened O-rings
  • Visible debris accumulation inside housing

Compatibility

Machine Model Application Type
Titan PowrLiner 4500 Pavement and athletic field line striping

Frequently Asked Questions

It filters coating material under high pressure before it reaches the spray gun, preventing debris from clogging the tip or damaging internal components.

Replacement frequency depends on material type and usage intensity. Inspect regularly and replace when clogged or flow becomes restricted.

A clogged filter can cause pressure fluctuations, poor spray patterns, and increased strain on the pump system.

Yes. This configuration is designed for use on the Titan PowrLiner 4500 striping machine.

It is installed between the pump outlet and the spray hose, acting as a final filtration stage before the spray gun.
