Titan PowerLiner 4500 Gun Holder Assembly Parts

Titan PowerLiner 4500 Gun Holder Assembly Parts
Titan 756-034 Gun Clamp Knob
Titan 756-034 Gun Clamp Knob

Item No: 1

Part #: 756-034

The Titan 756-034 Gun Clamp Knob is Designed to replace the Titan 761-412, for durability and precis...

Retail Price: $57.70
You save: $4.79 (8.30%)
Our Price: $52.91
QTY:
Titan 424-202 Actuator lever
Titan 424-202 Actuator lever

Item No: 2

Part #: 424-202

The Titan 424-202 Actuator Lever is a genuine OEM replacement designed to restore precision, control...

Retail Price: $87.00
You save: $7.22 (8.30%)
Our Price: $79.78
QTY:
Titan 759-316 Clamp block
Titan 759-316 Clamp block

Item No: 3

Part #: 759-316

The Titan 759-316 Clamp Block is a precision-engineered OEM component built to secure and stabilize ...

$9.50
QTY:
Titan 756-037 Screw
Titan 756-037 Screw

Item No: 4

Part #: 756-037

The Titan 756-037 Screw is a genuine OEM shoulder screw designed for precise fit and long-lasting pe...

$8.70
QTY:
Titan 9810108 Nut
Titan 9810108 Nut

Item No: 5

Part #: 9810108

The Titan 9810108 Nut is designed to replace Titan 858-601 which ensures strong and secure fastening...

$3.40
QTY:

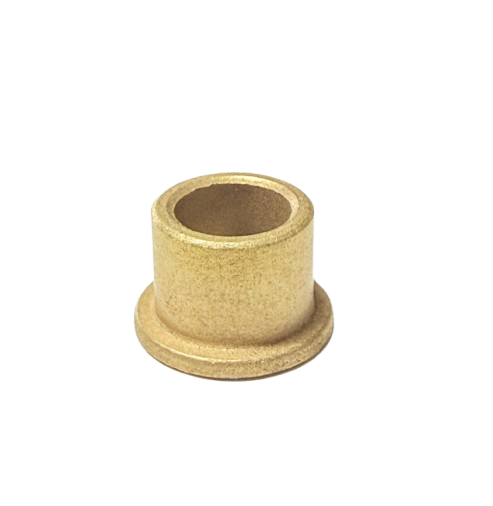

Titan 424-248 Flanged bearing
Titan 424-248 Flanged bearing

Item No: 6

Part #: 424-248

The Titan 424-248 Flanged Bearing is a replacement designed to deliver smooth, stable, and long-last...

$4.80
QTY:
Titan 858-653 Shoulder Screw
Titan 858-653 Shoulder Screw

Item No: 7

Part #: 858-653

The Titan 858-653 Shoulder Screw is a genuine OEM replacement designed for precision and strength in...

$3.90
QTY:
Titan 424-249 Sleeve Bearing
Titan 424-249 Sleeve Bearing

Item No: 8

Part #: 424-249

The Titan 424-249 Sleeve Bearing is a genuine OEM replacement designed to ensure smooth, efficient m...

$5.00
QTY:
Titan 858-603 Jam Nut
Titan 858-603 Jam Nut

Item No: 9

Part #: 858-603

The Titan 858-603 Jam Nut is a genuine OEM hex nut designed to deliver secure fastening and reliable...

$2.00
QTY:
Titan 703-079 Screw
Titan 703-079 Screw

Item No: 10

Part #: 703-079

The Titan 703-079 Screw is a genuine OEM fastener designed for lasting strength and precision fit in...

$6.70
QTY:
Titan 759-056 Spring holder
Titan 759-056 Spring holder

Item No: 11

Part #: 759-056

The Titan 759-056 Spring Holder is a genuine OEM part built for reliability and precision in Titan s...

$19.80
QTY:
Titan 0509781 Return Spring
Titan 0509781 Return Spring

Item No: 12

Part #: 0509781

The Titan 0509781 Return Spring is a genuine OEM part built to maintain smooth and precise trigger m...

$10.10
QTY:
Titan 759-057 Holder spring (long)
Titan 759-057 Holder spring (long)

Item No: 13

Part #: 759-057

The Titan 759-057 Holder Spring (Long) is a genuine OEM replacement built to deliver durability and ...

$20.60
QTY:
Titan 860-936 Screw Shoulder
Titan 860-936 Screw Shoulder

Item No: 14

Part #: 860-936

The Titan 860-936 Screw Shoulder is a genuine OEM socket head screw designed for precision, durabili...

$23.70
QTY:
Titan 424-202 Actuator lever
Titan 424-202 Actuator lever

Item No: 15

Part #: 424-202

The Titan 424-202 Actuator Lever is a genuine OEM replacement designed to restore precision, control...

Retail Price: $87.00
You save: $7.22 (8.30%)
Our Price: $79.78
QTY:

Titan PowrLiner 4500 Gun Holder Assembly Parts

The Gun Holder Assembly for the Titan PowrLiner 4500 secures and positions the spray gun during striping operations. It provides stable mounting, proper alignment, and adjustable control to ensure clean, consistent line application on pavement and athletic fields.

Fits Titan PowrLiner 4500
Used On Pavement striping, parking lots, road markings, athletic fields
System Location Front carriage – spray gun mounting position
Function Holds, aligns, and stabilizes spray gun during line striping
Assembly Components Include:
  •  Gun Mount Bracket
  •  Adjustable Clamp
  •  Trigger Actuation Linkage
  •  Height Adjustment Mechanism
  •  Mounting Bolts & Hardware
  •  Alignment Arm
  •  Trigger Cable or Rod (if applicable)
  •  Pivot Points & Bushings

Product Overview

The Titan PowrLiner 4500 Gun Holder Assembly is engineered to securely mount and position the spray gun for precision line striping. Installed on the front carriage of the machine, this assembly ensures that the gun remains properly aligned with the surface while maintaining consistent spray height and line width.

Accurate gun positioning is critical for achieving professional striping results. A properly functioning holder assembly minimizes vibration, prevents misalignment, and allows for consistent trigger activation during operation.

Why the Gun Holder Assembly Is Important

  • Maintains precise spray gun alignment
  • Supports consistent line width and edge sharpness
  • Reduces vibration-related pattern distortion
  • Ensures smooth trigger engagement
  • Allows height and positioning adjustments for various applications

Signs Service or Replacement Is Needed

  • Gun misalignment or uneven line edges
  • Loose mounting hardware
  • Worn pivot points or bushings
  • Trigger linkage binding or delay
  • Excessive vibration during spraying

Compatibility

Machine Model Application Type
Titan PowrLiner 4500 Pavement and athletic field line striping

Frequently Asked Questions

It secures and aligns the spray gun to ensure accurate and consistent striping during operation.

Yes. Misalignment can cause uneven edges, inconsistent width, and distorted spray patterns.

Yes. The holder typically allows adjustments for height, angle, and positioning to match different striping needs.

Yes. This gun holder assembly configuration is designed for the Titan PowrLiner 4500 striping machine.

It is mounted on the front carriage of the machine, directly supporting and positioning the spray gun during striping.
