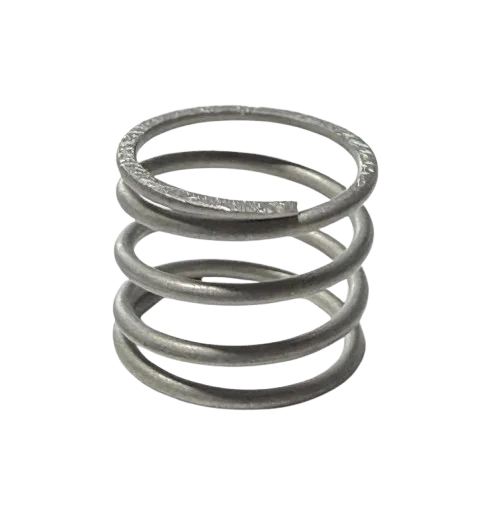

Titan 341326 Compression Spring
OEM Titan Mechanical Spring
Titan 341326 Compression Spring is an OEM precision-wound spring that applies controlled force to the outlet valve ball and seat, ensuring proper sealing and preventing backflow on compatible Elite and PowrLiner sprayers.
Compatibility Table
A fatigued, collapsed, or broken spring reduces valve sealing force, causing pressure loss, erratic spray patterns, and poor priming performance.
Titan Fluid Section Replacement Part
Titan 341326 Compression Spring for Outlet Valve Assembly
Titan 341326 is an OEM compression spring that provides the force required to seat the outlet valve ball against its seat, ensuring one-way flow and preventing material backflow on compatible Elite and PowrLiner sprayers.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan compression spring used within the outlet valve assembly of compatible Elite and PowrLiner sprayers. |
| Function | Applies downward force on the outlet valve ball, keeping it seated against the valve seat to prevent backflow during the intake stroke; compresses during the discharge stroke to allow paint flow. |
| Industrial Applications | Professional airless sprayer repair, fluid section rebuild, pressure restoration, and rental fleet servicing. |
| Compatible Titan Machines | Elite 3000, Elite 3500, Elite 4500; PowrLiner 3500/3500s. |
| OEM Part Number | 341326 Compression Spring (alternate: 0341326; callout 5 in Elite 3000 outlet valve diagram). |
| Compatible Parts & Assemblies | Used with the spring support ring (253405), outlet valve ball (9941501), outlet valve seat (341327), seal (341347), O-ring (9971470), and clip (0341328) in the outlet valve assembly. |
| Related Parts Commonly Serviced Together | Outlet valve assembly (2369445), spring support ring, seat, ball, and inlet valve assembly should be inspected during a fluid section rebuild. |
| Common Problems Solved | Fatigued, collapsed, or broken spring causing insufficient valve sealing force, pressure loss, erratic spray pattern, and poor priming. |
| Target Users / Markets | Painting contractors, maintenance technicians, rental fleets, and repair shops running compatible Titan sprayers. |
| OEM & Brand Information | Genuine Titan OEM component manufactured from high-quality spring steel for reliable tension and long service life. |
| Commercial Benefits | Restores proper valve sealing force, eliminates pressure fluctuations, and ensures consistent spray performance for professional finish quality. |
The 341326 Compression Spring is a direct replacement for worn or damaged springs in compatible Titan sprayers. When servicing the outlet valve, inspect the spring for loss of tension, visible fatigue, corrosion, or breakage. A spring that feels weak or no longer returns to its original height should be replaced. The spring clips onto the spring support ring (253405) and must be properly seated during reassembly. It is recommended to replace this inexpensive component during any fluid section rebuild to ensure proper valve function and prevent having to reopen the pump later due to a failed spring.
