Titan EP2300 Dump Valve Assembly Parts
Shop Titan EP2300 Dump Valve Assembly Parts for maintenance and repair of the sprayer's dump and pressure-relief fluid path. Use the EP2300 exploded parts diagram to identify valve components, seals, ball and seat components, handles, shafts, fittings, retainers and related fluid-control parts by exact callout and replacement part number.
Find Titan EP2300 Dump Valve Replacement Parts
The EP2300 dump valve assembly is part of the sprayer's fluid-control system. Its components help direct the applicable fluid path during priming, pressure relief and normal sprayer operation. Internal valve components and sealing surfaces must operate correctly for dependable fluid control.
Contamination, worn seals, damaged ball or seat components, restricted passages or damaged operating parts can contribute to poor priming, leakage or difficulty building pressure. Because similar symptoms can originate elsewhere in the fluid system, inspect the complete EP2300 fluid path before replacing dump valve parts.
How to Find the Correct EP2300 Dump Valve Part
Confirm EP2300
Verify that the sprayer being serviced is the Titan EP2300 before selecting dump valve replacement components.
Open the Dump Valve Diagram

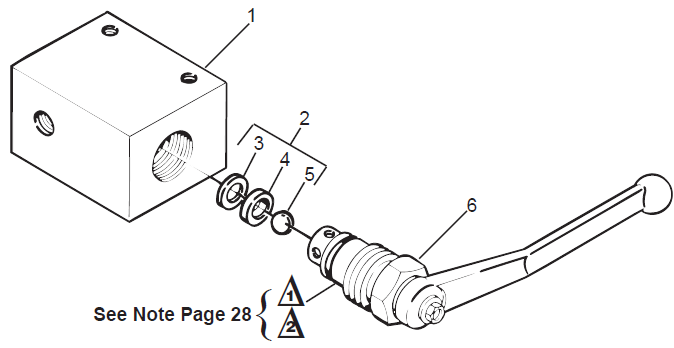

Use the applicable EP2300 Dump Valve Assembly exploded illustration to locate the component requiring inspection or replacement.
Match the Callout
Match the numbered diagram callout with the corresponding component entry in the EP2300 parts list.
Verify Part & Quantity
Confirm the exact replacement part number, component description and required quantity before ordering.
How the EP2300 Dump Valve Controls Fluid Flow
The dump valve works within the EP2300 fluid system to control the applicable return and pressure-relief path. Its internal components must move and seat correctly so fluid can follow the intended path during priming and pressure operation.
Dump Fluid Path
The applicable valve position allows fluid to follow the intended return path during priming and pressure-relief operation.
Valve Seating
Internal components must seat correctly when the fluid system is required to build and maintain operating pressure.
Seals & Seating Surfaces
Applicable seals and mating surfaces help control leakage and unwanted fluid bypass through the valve assembly.
Handle & Actuation Parts
Applicable handle, shaft and related operating components allow the dump valve to be positioned for the required operating mode.
EP2300 Dump Valve Components to Inspect
Inspect the valve body, threads, fluid passages and mating areas for damage, contamination or compromised sealing surfaces.
Check applicable ball components for wear, coating buildup, damage or deformation that could prevent proper seating.
Inspect applicable seating surfaces for wear, contamination or physical damage when the valve does not seal correctly.
Inspect diagram-listed seals for deterioration, cuts, flattening or other conditions that can contribute to fluid leakage.
Check applicable operating components if the valve feels loose, difficult to move or does not reach its intended position.
Verify the condition of diagram-listed fittings, connectors, retainers and related valve hardware.
Inspect the Complete EP2300 Dump Valve System
Dump valve symptoms can be caused by contamination, worn internal components, damaged sealing surfaces or problems elsewhere in the sprayer. A systematic inspection helps identify the actual repair area before replacement parts are selected.
1. Check Valve Movement
Inspect the operating components for physical damage, binding or contamination that can interfere with normal valve movement.
2. Inspect Ball & Seat
Check applicable ball and seating surfaces for wear, contamination or damage that could prevent correct sealing.
3. Inspect Seals & Connections
Examine applicable seals, fittings and mating surfaces when fluid leakage is present around the valve.
4. Check Related Systems
If the dump valve is serviceable, continue diagnosis through the suction set, fluid section and pressure-control system.
Common EP2300 Dump Valve Problems
Use these symptoms as inspection starting points. Do not replace the dump valve solely because the sprayer has a priming or pressure problem. Confirm the actual source of the fault first.
| Symptom | What to Inspect | Repair Direction |
|---|---|---|
| EP2300 Will Not Prime | Dump valve operation, suction set, material supply, pump inlet and fluid-section components. | Trace the complete priming path before determining which valve or pump component requires service. |
| Pressure Will Not Build | Valve seating, ball and seat components, seals, fluid section and pressure-control system. | Determine whether fluid is bypassing through the dump path or pressure loss originates elsewhere. |
| Fluid Continues Through Return Path | Internal valve components, ball, seat, seals and valve operating mechanism. | Inspect for contamination, wear or damage preventing the valve from seating correctly. |
| Fluid Leakage Around Valve | Valve seals, fittings, threads, valve body and mating surfaces. | Relieve pressure and identify the exact leak source before replacing seals or related components. |
| Dump Valve Difficult to Operate | Handle, shaft, internal components, retainers and material buildup. | Inspect for contamination, physical damage or worn operating components that restrict movement. |
Dump Valve, Suction Set or Fluid Section?
EP2300 Dump Valve Assembly
Start here for dump valve components, seals, ball and seat parts, handles, shafts, fittings, retainers and related valve hardware.
EP2300 Suction Set Assembly
If the sprayer has difficulty drawing coating, inspect the suction path, intake strainer, fittings and pump connection.
View EP2300 Suction Set PartsEP2300 Fluid Section Assembly
If the dump valve and suction path are serviceable, inspect the piston, packings, inlet valve, outlet valve and related pump parts.
View EP2300 Fluid Section PartsVerify EP2300 Dump Valve Part Compatibility
Do not select a valve seal, ball, seat, handle, shaft, fitting, retainer or internal valve component based only on appearance. Similar dump valve components used on other Titan EP, EPSE and EPX sprayers can differ in dimensions, configuration or application.
Confirm the EP2300 model, correct Dump Valve Assembly diagram, numbered callout, component description, required quantity and exact replacement part number before ordering. If your EP2300 documentation shows more than one dump valve configuration, identify the applicable assembly before selecting internal repair parts.
Before Buying Titan EP2300 Dump Valve Parts
Verify the exact sprayer model before selecting dump valve replacement components.
Use the applicable EP2300 dump valve diagram and confirm the valve configuration before ordering internal parts.
Check ball and seat components, seals, valve body and operating parts together when valve wear is suspected.
Locate the required component in the exploded diagram and match its numbered callout to the parts list.
Confirm the exact replacement part number, description and required quantity before ordering.
Find Related Titan EP2300 Parts & Assemblies
Priming and pressure problems can involve the dump valve, material-intake system, fluid section, piston pump or pressure-control system. Use the correct EP2300 diagram to isolate the repair area before ordering parts.
Relieve Pressure Before EP2300 Dump Valve Service
Shut down the sprayer, disconnect or isolate the applicable power source and follow the manufacturer's complete pressure-relief procedure before servicing the dump valve. Never loosen the valve, pump, hose, filter, fitting or another fluid component while the system is pressurized. Follow the applicable EP2300 service instructions during valve removal, disassembly, cleaning, inspection, replacement, reassembly and testing.
Shop Titan EP2300 Dump Valve Assembly Parts
Use the applicable EP2300 Dump Valve Assembly exploded diagram to identify the valve component, seal, ball, seat, handle, shaft, fitting or retainer you need, then verify the exact replacement part number and required quantity before ordering.
Shop EP2300 Dump Valve PartsTitan EP2300 Dump Valve Assembly Parts FAQ
What does the Titan EP2300 Dump Valve Assembly do?
The dump valve is part of the EP2300 fluid-control system. It controls the applicable return and pressure-relief fluid path during priming, pressure relief and normal sprayer operation.
How do I identify the correct EP2300 dump valve part?
Confirm the applicable EP2300 Dump Valve Assembly diagram, locate the required component and match its numbered callout to the exact replacement part number, description and quantity.
Can a dump valve problem prevent the EP2300 from building pressure?
A valve that does not seat correctly can contribute to pressure loss. However, the suction system, fluid section and pressure-control system can produce similar symptoms, so diagnose the complete fluid system.
What should I inspect if the EP2300 dump valve leaks?
After completely relieving pressure, inspect the applicable seals, valve body, fittings, threads and mating surfaces to identify the exact source of the leak.
Should the dump valve ball and seat be inspected together?
When the applicable assembly uses ball and seat components, inspect both mating surfaces for contamination, wear or damage that could prevent correct sealing.
Does the EP2300 use more than one dump valve configuration?
Always identify the applicable dump valve assembly shown for the machine being serviced. If different assembly diagrams or part numbers are listed, use the exact configuration and callout that applies to your EP2300 before ordering internal parts.
What should I verify before ordering EP2300 dump valve parts?
Confirm the EP2300 model, applicable Dump Valve Assembly diagram, numbered callout, component description, exact replacement part number and required quantity before ordering.
Need Help Finding an EP2300 Dump Valve Part?
Have your EP2300 model information, serial number when available, applicable dump valve assembly number, existing part number and exploded-diagram callout ready to help identify the correct valve component, seal, ball, seat, handle, fitting or related replacement part.
Parts & Fitment Help: 713-931-0006
